Waveshare Picogo Mobile Robot, Based On Raspberry Pi Pico, Autonomous Driving, Compatible Remote Control (Us 20282 Specification). :US Plug Surprise

Descrição de Waveshare Picogo Mobile Robot, Based On Raspberry Pi Pico, Autonomous Driving, Compatible Remote Control (Us 20282 Specification). :US Plug Surprise

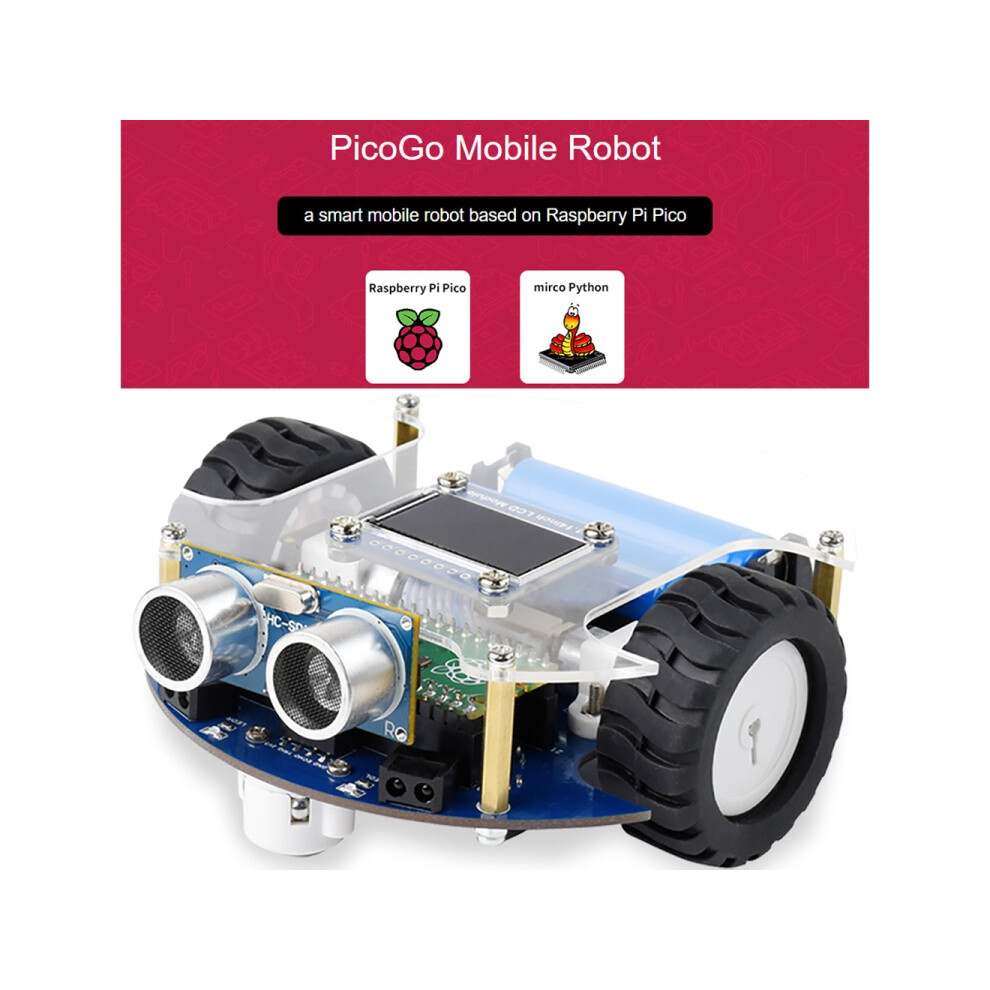

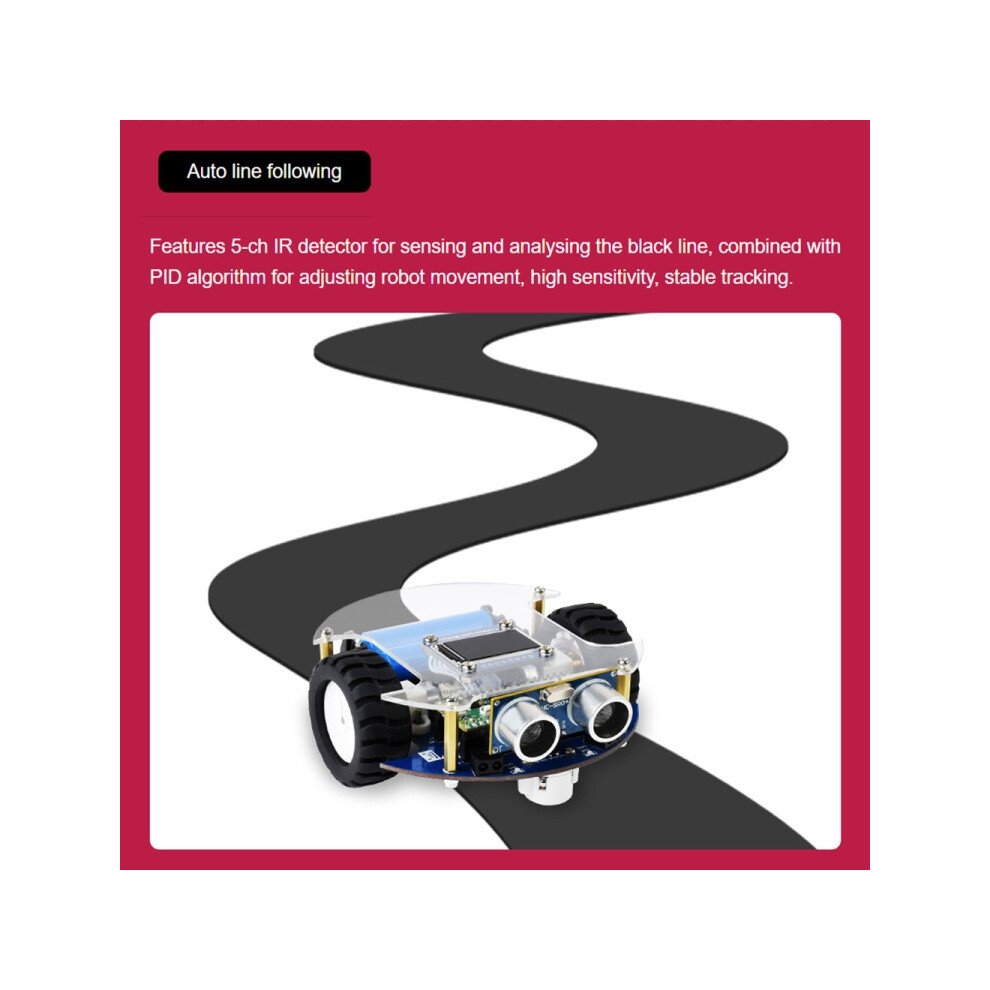

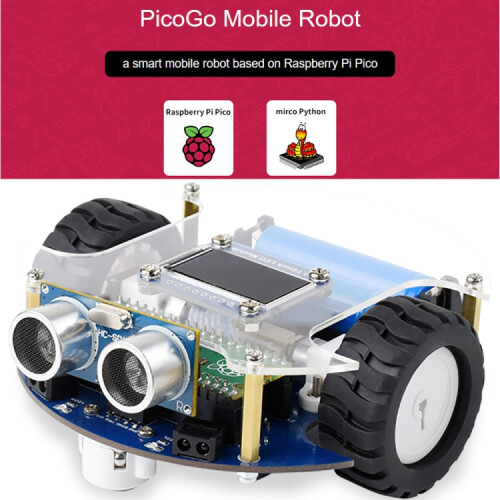

Waveshare Picogo Mobile Robot, Based On Raspberry Pi Pico, Autonomous Driving, Compatible Remote Control (Us 20282 Specification). Surprise Gift _US Plug___**Features** Intelligent robots have always been a favorite project Compatible electronics enthusiasts, and Waveshare's product line already includes several robots based on Raspberry Pi ZeroW, 3B+, and 4B. Now, the Pico version is here: PicoGo! PicoGo is an intelligent mobile robot based on the Raspberry Pi Pico, including an ultrasonic module, LCD module, Bluetooth module, line-following module, and obstacle avoidance module. These functions are highly integrated, easily achieving infrared obstacle avoidance, automatic line-following, BT/IR remote control, and more. With its various advanced features, it will help you quickly begin designing and developing intelligent robots. PicoGo Smart Mobile Robot Features: 1. Standard Raspberry Pi Pico interface, supports Raspberry Pi Pico series. 2. Battery protection circuit: overcharge/discharge protection, overcurrent protection, short circuit protection, reverse connection protection, Compatible more stable and safer operation. 3. Charging/discharging circuit, allowing programming/debugging while charging. 4. 5-channel infrared sensors, analog output, combined with PID algorithm, Compatible stable line tracking. 5. Onboard multiple smart robot sensors, such as line tracking and obstacle avoidance, eliminating messy wiring. 6. 1.14-inch IPS color LCD screen, 240 x 135 pixels, 65K colors. 7. Integrated BT module, allowing remote control of robot movements, RGB LED display colors, buzzer, etc. via mobile APP. 8. N20 micro gear motor, metal gears, low noise, high precision. 9. Colorful RGB LED, cool!

Raspberry Pi Pico Controller Board Features:
1. RP2040 microcontroller chip designed by Raspberry Pi UK
2. Dual-core Arm Cortex M0+ processor, flexible clock speed up to 133 MHz
3. 264KB SRAM, 2MB onboard Flash
4. USB 1.1 support Compatible devices and host
5. Low-power sleep and hibernation modes
6. Drag-and-drop programming via USB using mass storage

Package List
1. Raspberry Pi Pico (pre-soldered head) x1
2. PicoGo board x1
3. PicoGo acrylic panel x1
4. 1.14-inch LCD module x1
5. Ultrasonic sensor x1
6. 5V 3A power supply x1
7. Infrared remote control x1
8. USB-A to micro-B 1.2m cable x1
9. PH2.0 8Pin ribbon cable 5cm opposite connector x1
10. Mini Phillips wrench socket x1
11. Screwdriver x1
12. Screw and bracket bag x1
