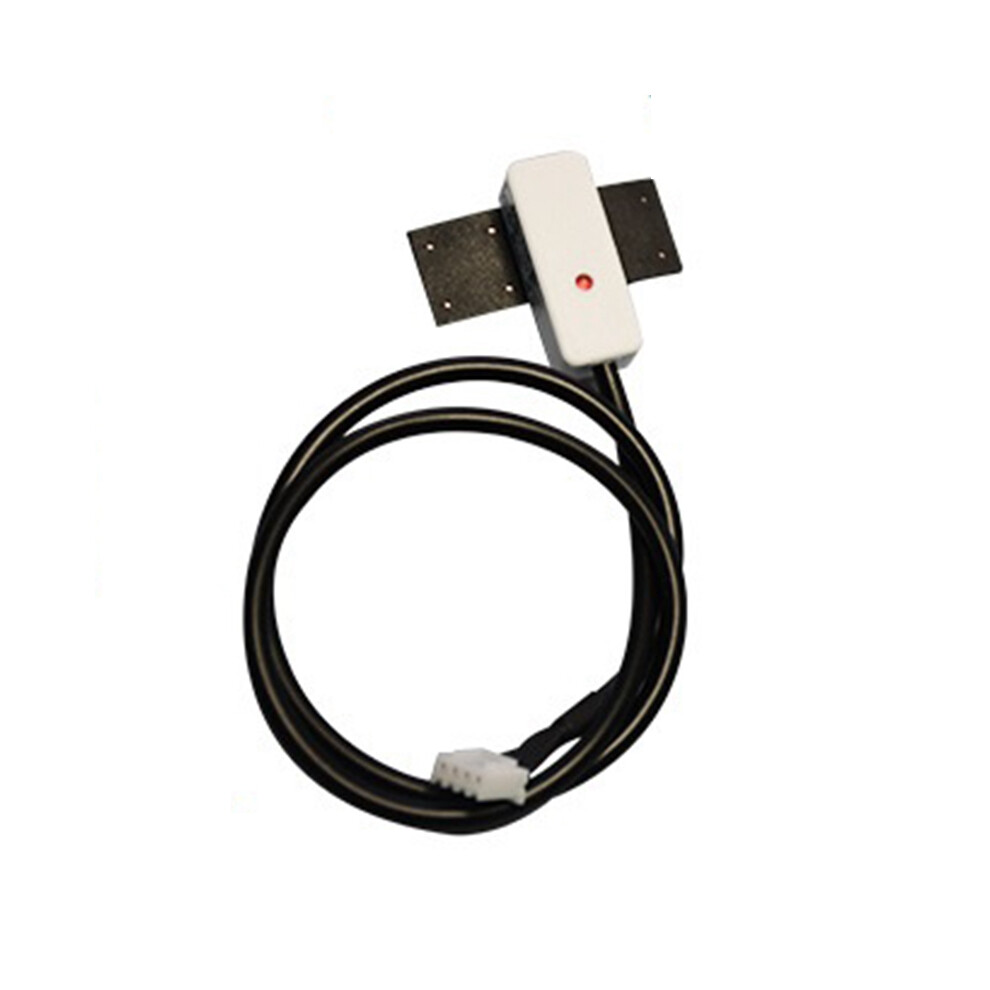

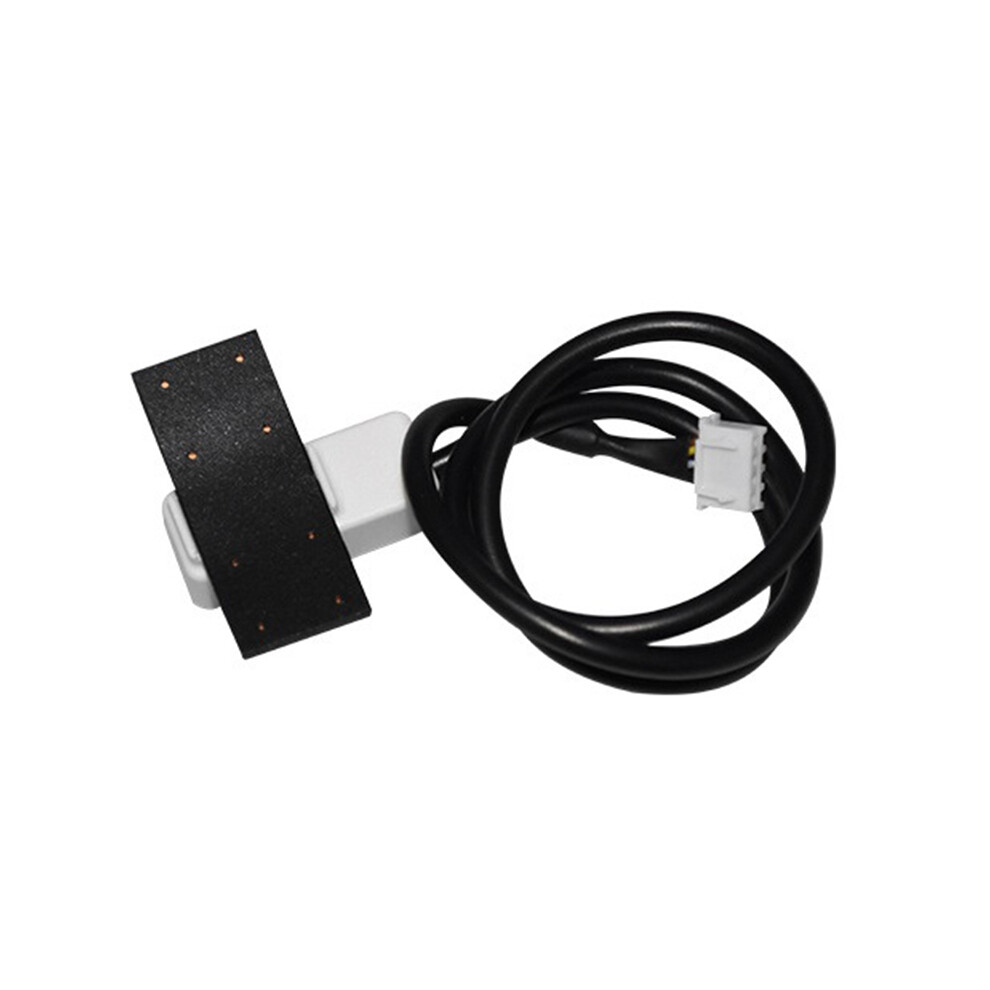

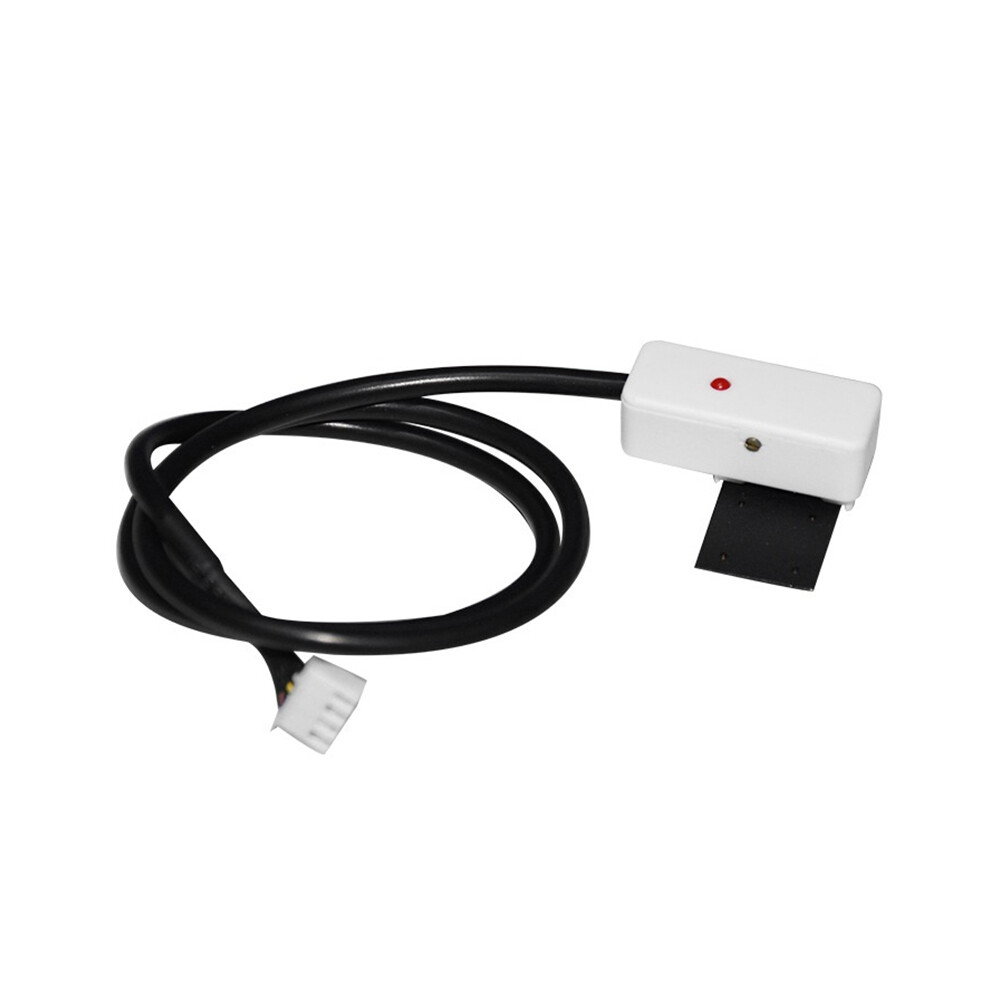

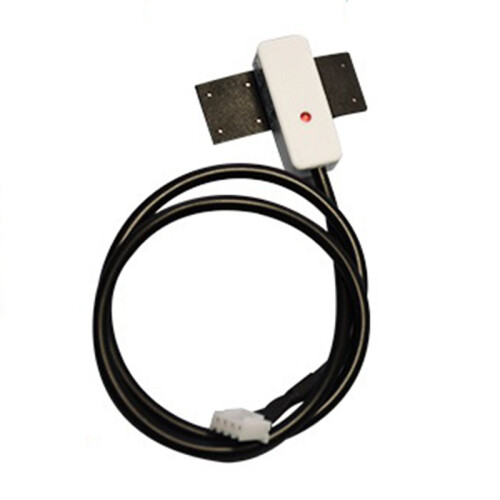

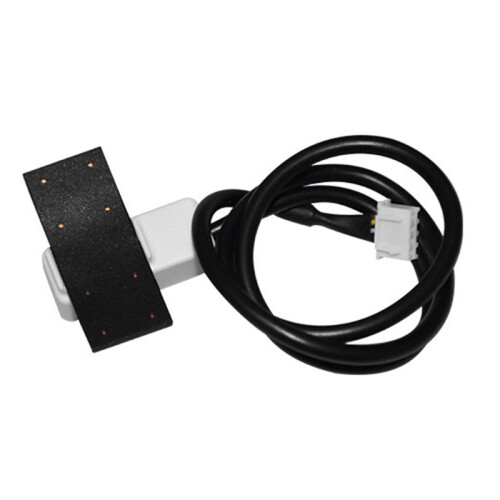

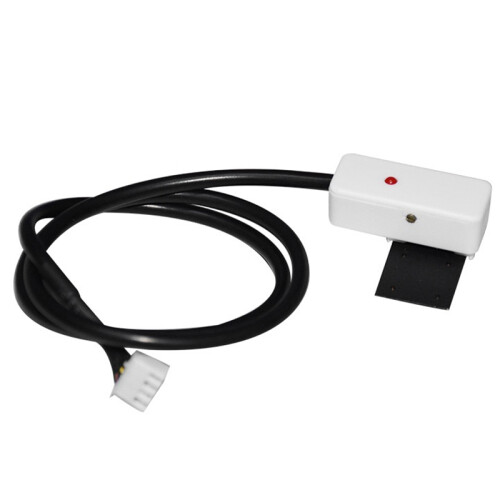

XKC-Y26-V Non-Contact Liquid Level Sensor Stick Type Water Detector Liquid Level Sensor 5-24V

Descrição de XKC-Y26-V Non-Contact Liquid Level Sensor Stick Type Water Detector Liquid Level Sensor 5-24V

Intelligent non-contact type level detector(Hereinafter referred to level detector) adopts advanced signal processing technology and high speed signal processing chip, break through the effects of vessel wall thickness, realized the real non-contact measurement for the level height in the sealed vessel.

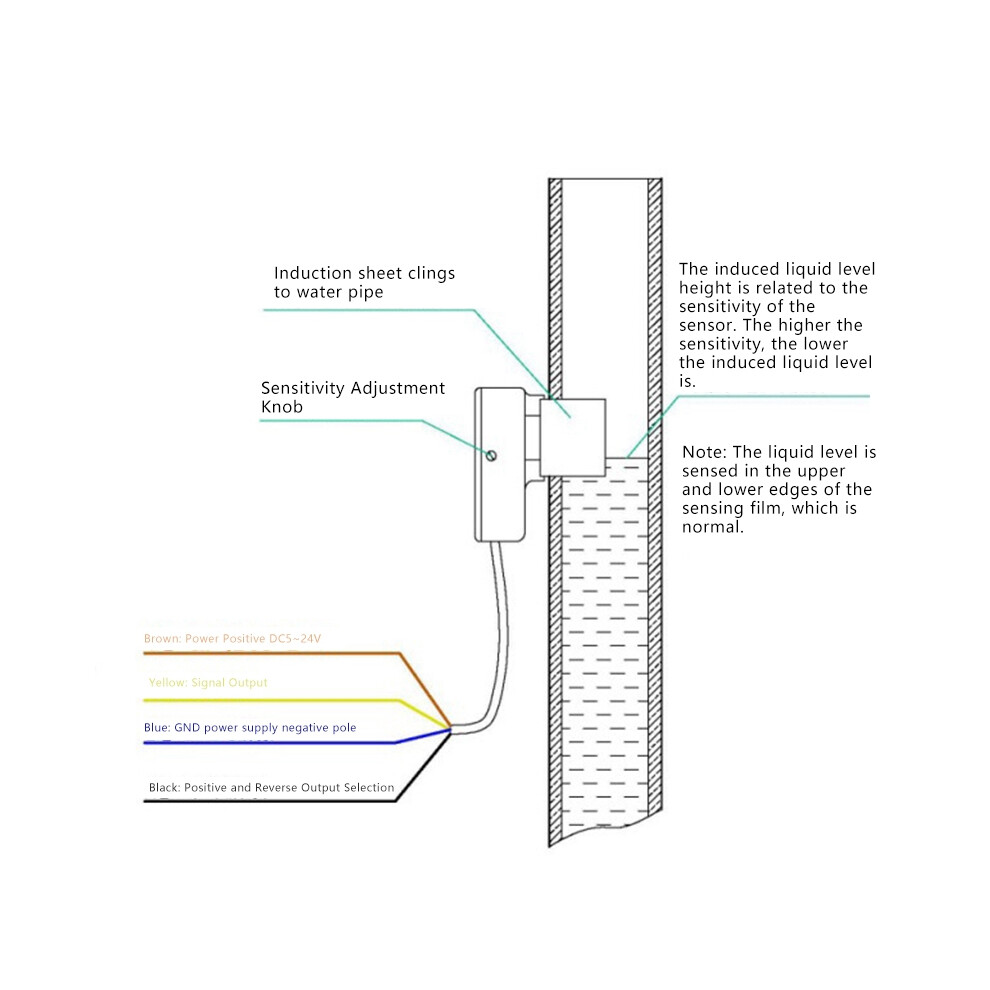

Level sensor(probe) installed the top and bottom(the high level and the low level) of the measuring vessel wall, non-metal vessel do not need to drill a hole, easy installation, good for the production. Can be used for different kinds of toxic, strong acid, strong alkali, and all kinds of level measurement in the high pressure sealed vessel or tank. The application of this product is very wide, no special requirements for liquid media and vessel material.
1: XKC-Y26-V suitable for non-metal pipe wall, and do not need to contact the liquid, will not corrode by strong acid, strong alkali, and other corrosive liquid. Will not affected by incrustation or other impurities.
2: Intelligent level adjustment and level memory function, level status display method, can realize multi points series connection.It achieves non-contact detection of the liquid level in the closed container.

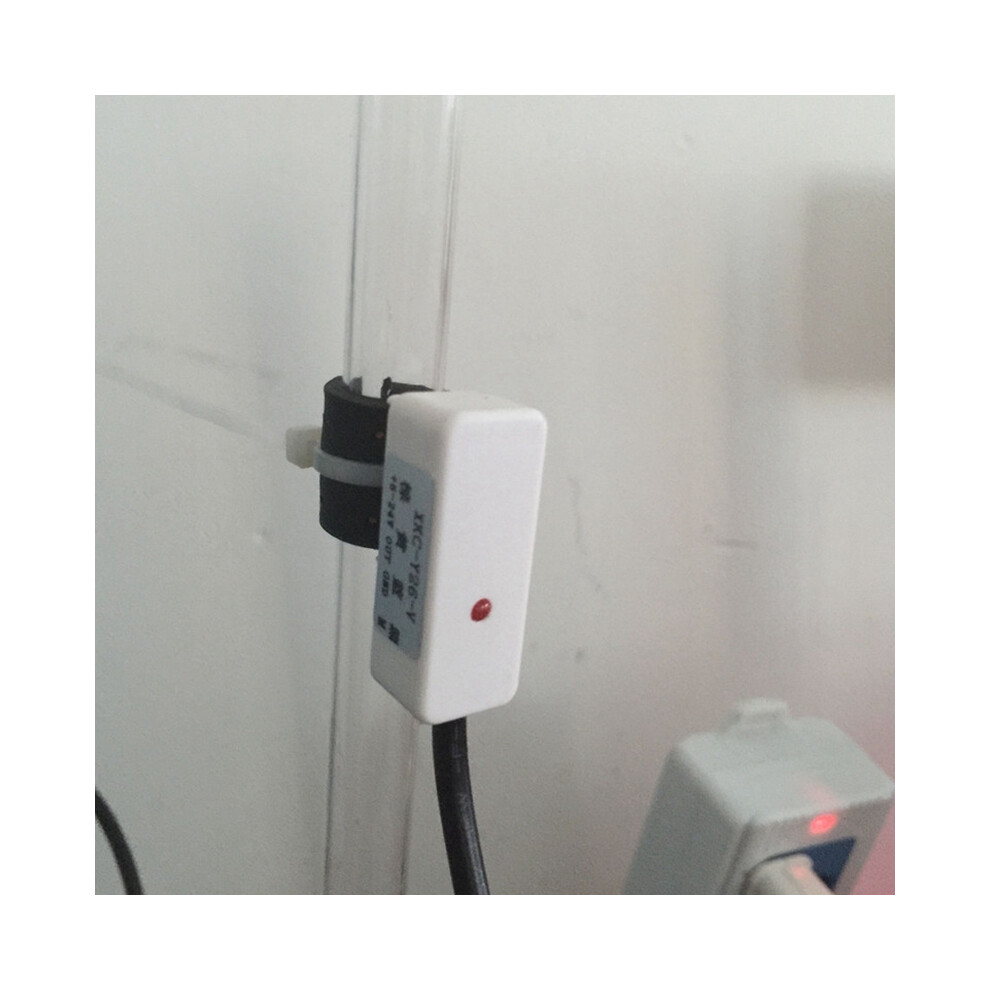

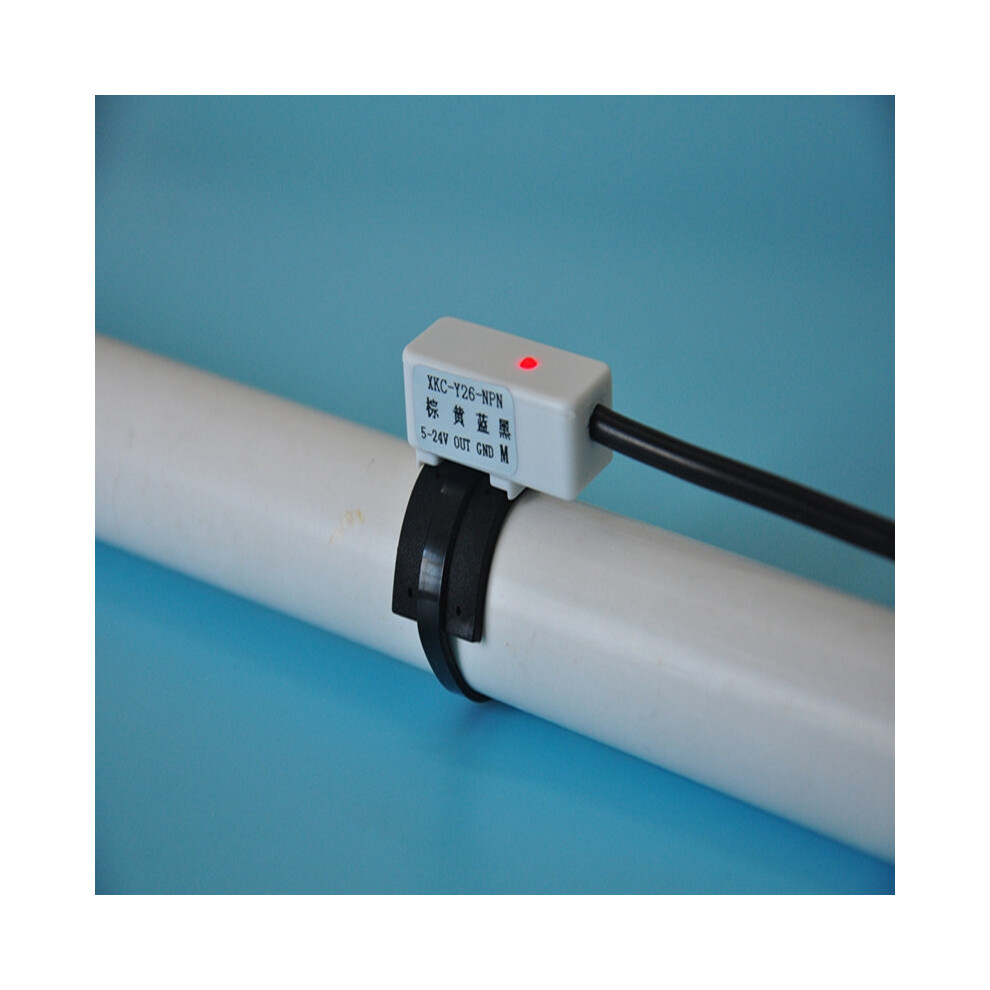

The liquid level sensor is installed the upper and lower sides of the container (the liquid level is high and low).The non-metallic container does not need to open the hole.Can detect the level of various toxic substances, strong acids, alkalis and various liquids in high pressure airtight containers
DIY Supplies: Electrical
The liquid level sensor has no special requirements for liquid type and container materials and can be widely used.
The installation is simple and does not affect the production.
The output signal is High and Low Level
Product model:XKC-Y26-V
Input voltage (Vin): 5~24V
Output Signal:High and Low Level
Current c
