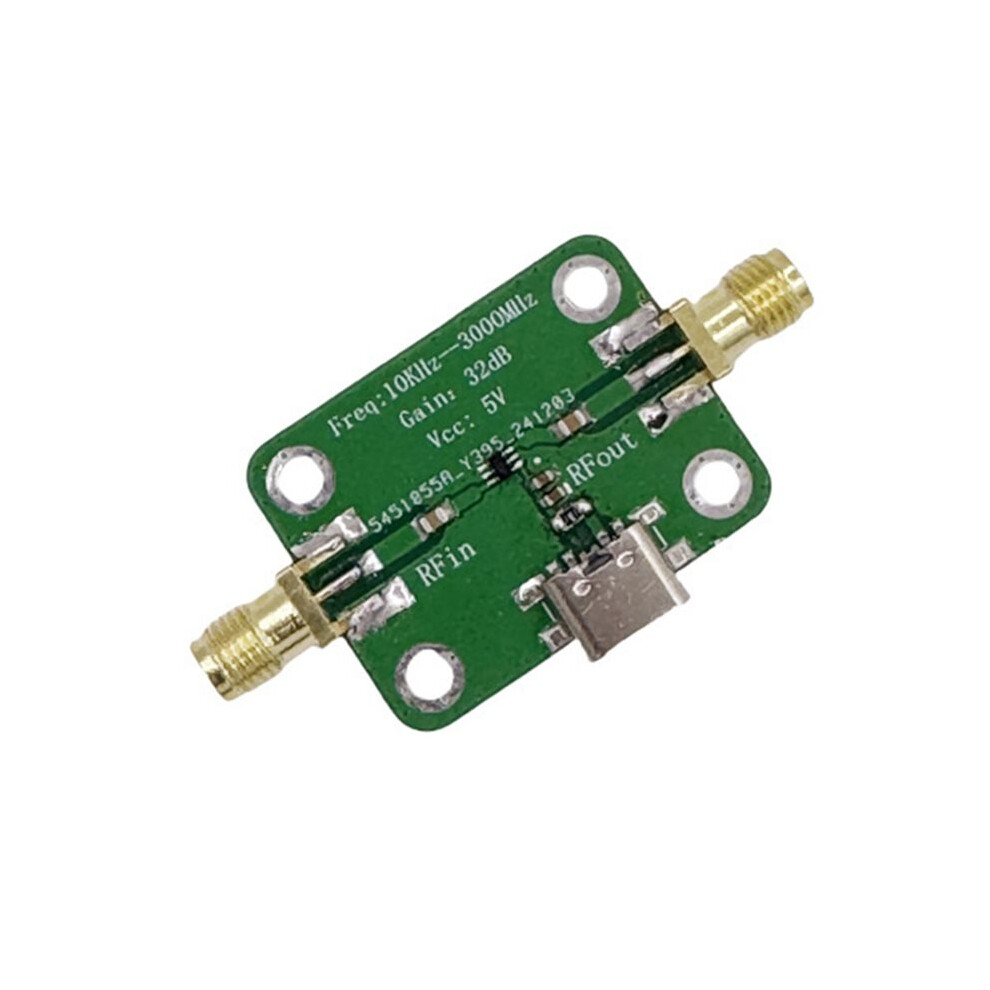

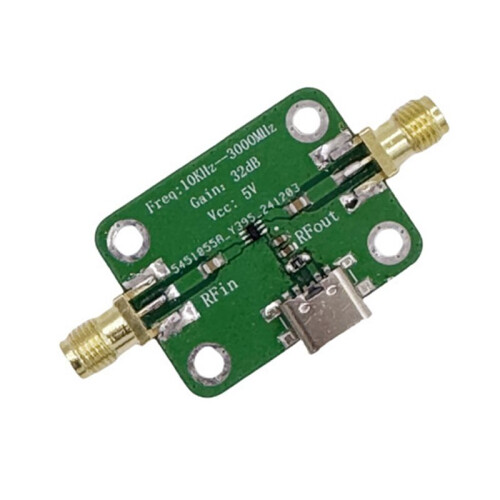

10KHz-3GHz Low Noise Medium Power LNA RF Broadband Amplifier Module Type-C Interface 32dB Gain

10KHz-3GHz Low Noise Medium Power LNA RF Broadband Amplifier Module Type-C Interface 32dB Gain Beschrijving

Wideband High Gain: Covering 10 kHz to 3 GHz, with to 32 dB gain in the low-frequency band, it meets the needs of wide-spectrum signal amplification.
Adjustable Gain: Gain varies linearly with supply voltage from 5-8 V, and automatic gain control (AGC) is implemented via the DAC, simplifying circuit design.
Low Noise and High Stability: With an 8-10 V supply voltage, it combines low noise figure with high stability, making it suitable for sensitive receiver front ends.
Extended Bandwidth: The default lower limit is 0.1 MHz (with a 0.1 μF capacitors), which can be extended to 5 kHz by replacing the input and output capacitors (e.g., 10 μF), meeting the needs of extremely low-frequency applications.
Excellent Gain Flatness: Gain fluctuation is less than 1 dB below 500 MHz, ensuring signal consistency.

Frequency Range: 10 kHz - 3 GHz (lower frequency adjustable via capacitors)
Gain: to 32.5 dB at low frequencies (12V supply)
Noise Figure: Low noise design, optimized for 8-10V supply
Supply Voltage: 5-12V (Gain adjustable with voltage)
Gain Flatness: Less than 1 dB (Less than 500 MHz, after fine-tuning)
Input/Output Impedance: 50Ω
Features: Supports voltage-controlled gain, compatible with AGC applications
Color: Green
Material: PCB

Package Contents:
1 * RF module
