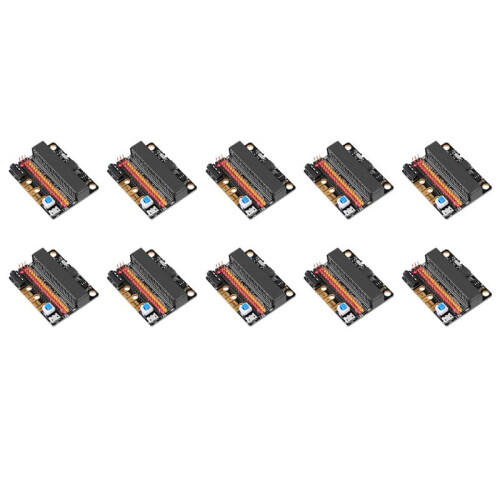

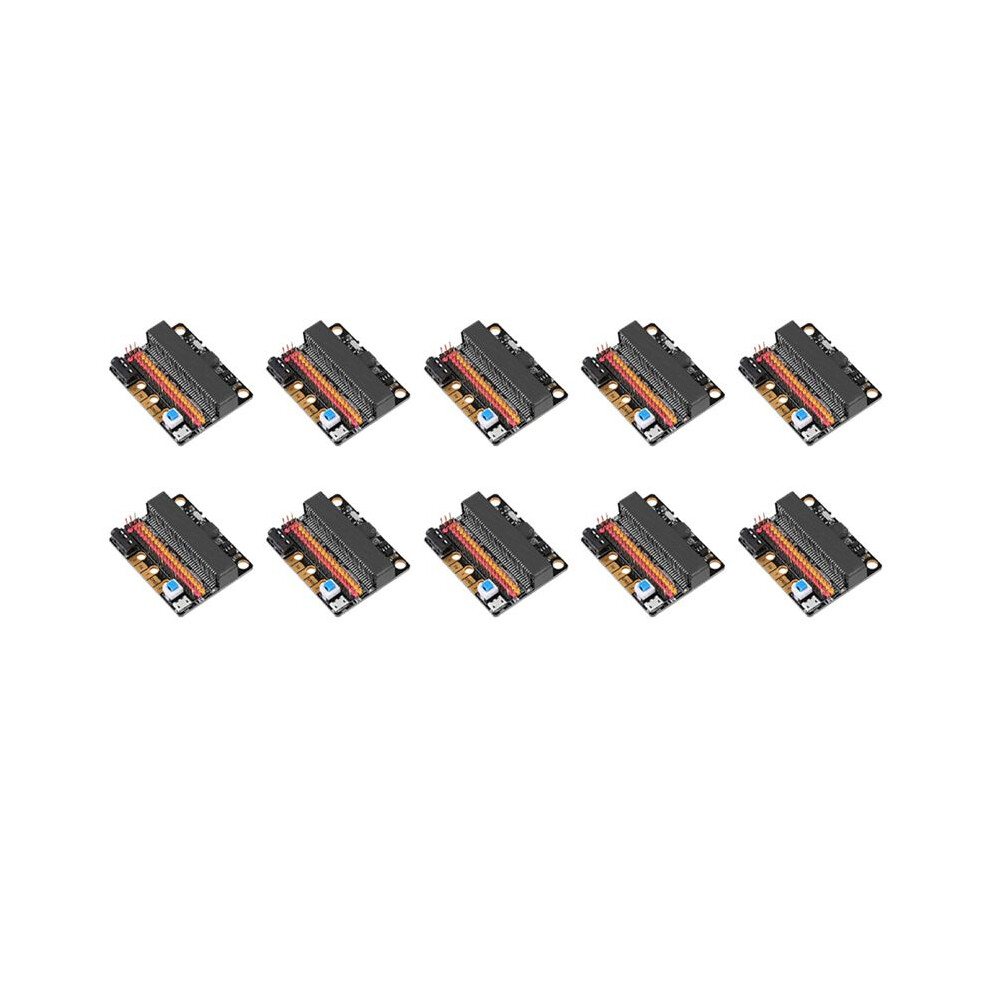

10X Micro-Bit Expansion Board IOBIT V2.0 Breakout Adapter Shield with Buzzer for BBC Micro:Bit Programming

10X Micro-Bit Expansion Board IOBIT V2.0 Breakout Adapter Shield with Buzzer for BBC Micro:Bit Programming Beschrijving

Compatible With: BBC Micor:Bi
Accessory Type: Extension Board
5V 1A power supply for greater driving force
3.3V and 5V power interface
Support 3V5V sensor module

Micro:bit all pins lead
3.5mm audio connector
5 gold fingers
Builtin buzzer ( switching)
With mounting holes
Yellow and black differentiated 3PIN interface
5V 1A selfrecovery fuse
colour:black
Material:ABS
size: 56 x 44 x 12mm

Package Contents:
10 x Expansion board
Note
1. When using micro:bit power supply, IO port current is less than 200ma, please do not connect high current devices (such as large servo, motor), otherwise it will burn out micro:bit.
2. When using a 5V external power supply, you can drive multiple small servos, but please note that the current should not exceed 1A.
3. If you use the high-low read function of the pin, you must set the pull-down the pin.
4. If P0 is used as a normal IO port, the buzzer toggle must be placed the off side, otherwise the buzzer will sound or the IO read value will be abnormal.
5. Use the shared pin with the Micro:bit dot matrix (such as 3, 4, 5, 6, 7, 8, 9, 10, 11), remember to disable the dot matrix screen the software.
6. Do not use IO19,20.19and 20 can not be used as an IO port, only for I2C communication.
7. The USB port allows a maximum input current of 1A.
8. Do not use metal products to avoid short circuits.

Only the above package content, other products are not included.
