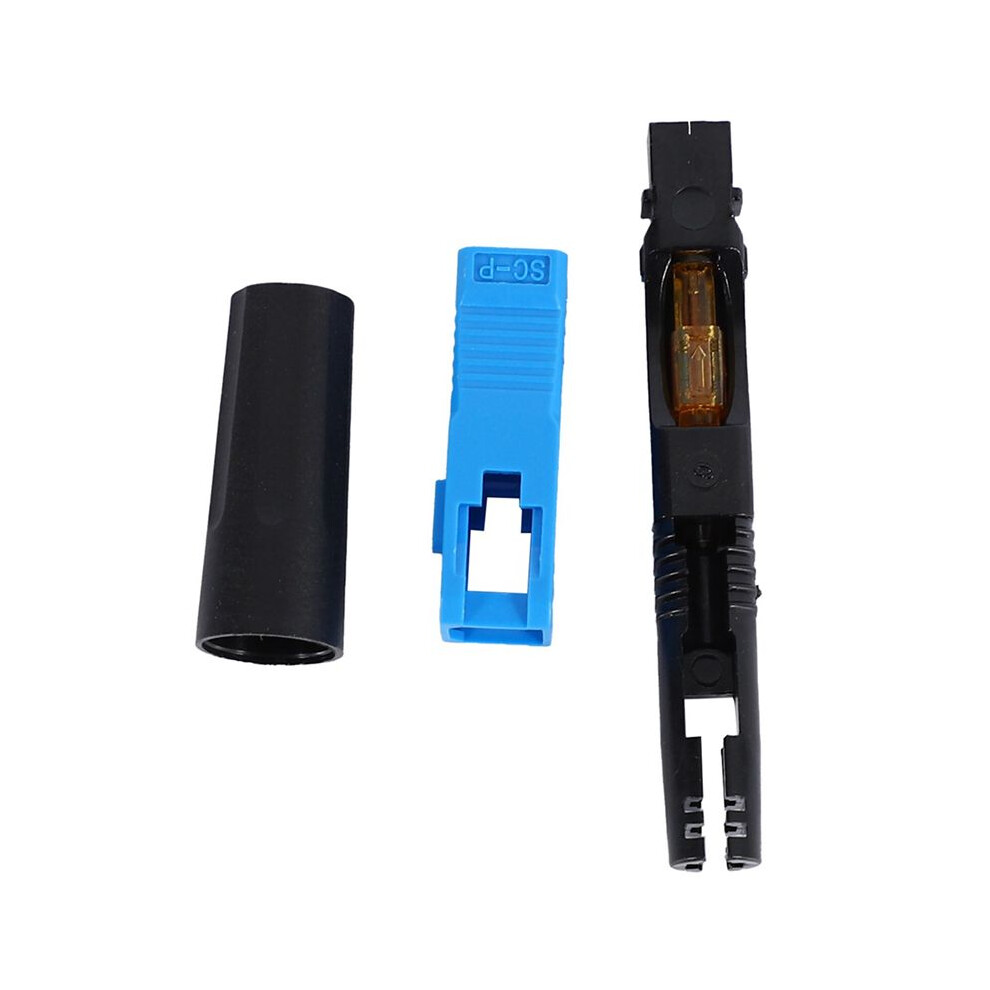

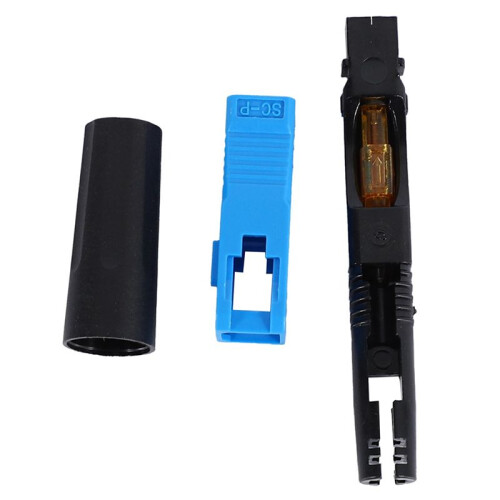

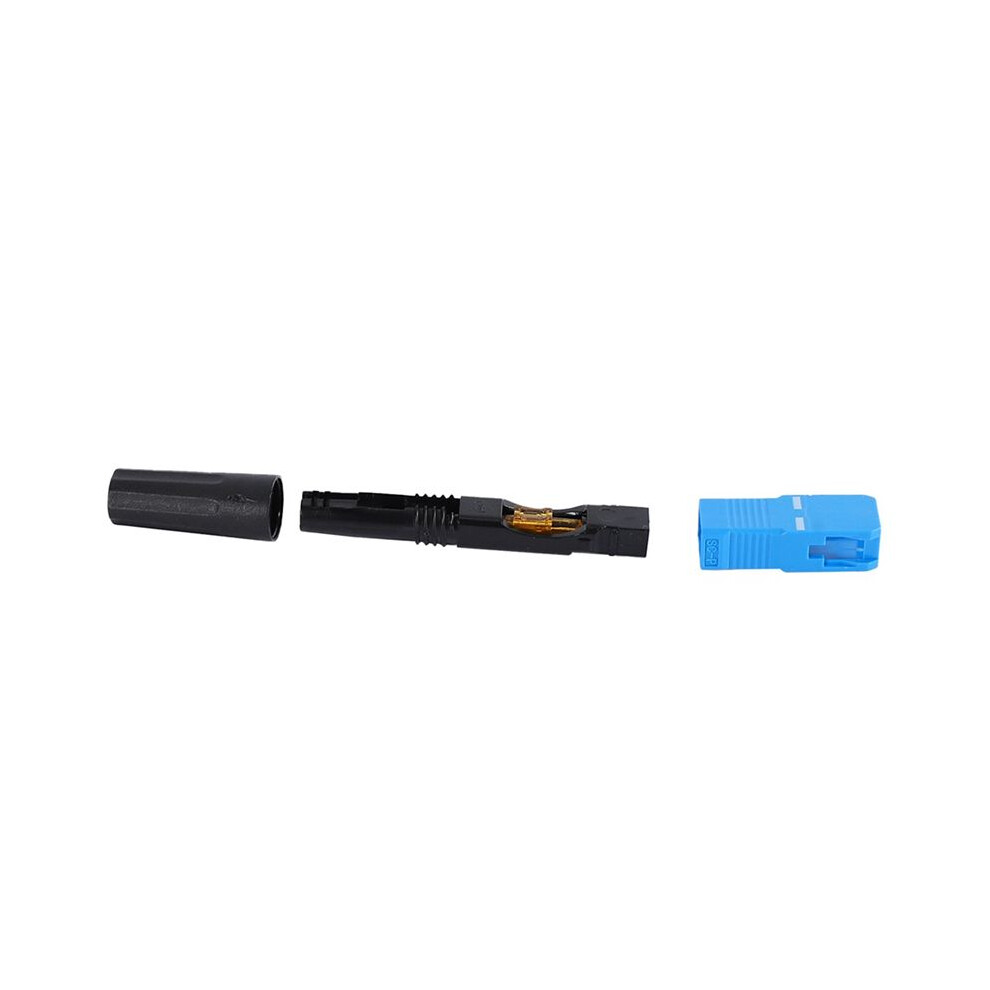

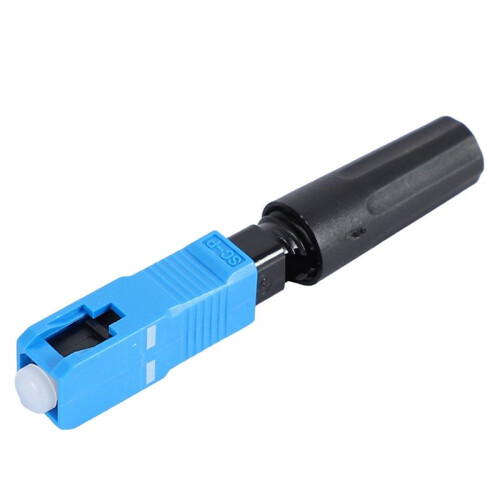

200 Pcs Embedded Sc Upc Fiber Optic Fast Connector Ftth Single-Mode Fiber Optic Sc Quick Connector Sc Adapter

200 Pcs Embedded Sc Upc Fiber Optic Fast Connector Ftth Single-Mode Fiber Optic Sc Quick Connector Sc Adapter Beschrijving

Fiber Optic Fast Connector SC Connector Field Assembly
Field installable
Insert loss less than 0.2dB
Metal V-shape cavity work well in high and low temperature
Installation less than 1 minutes

Reliable and superior optical performance
Cable Tensile test complies with Telcordia GR-326-COR
Application:
1. Distribution frames
2. Maintenance or emergency restoration of fiber networks
3. Patch panels
4. FTTH Outlets
5. Field word
Connector Type: SC/UPC
Compatible: Ericsson
Compatible: Brocade
Compatible: Mellanox
Compatible: Enterasys
Compatible: Zyxel
Fiber Type: Single Mode
Applicable Cable: 0.9mm, 2.0mm, 3.0mm Cable; 2.0x3.0mm FTTH Drop Cable
Fiber Diameter: 125um
Coating Diameter: 250um
Insertion Loss: 0.2dB (max. 0.5dB)
Return Loss: Over 50dB
Tensile Strength: Over 30N
Temperature Cycling: IL Less than 0.3dB; RL Less than 5dB
Assembly Repeatability: 5 times
Installation Durability: Over 500 times
Atmospheric Pressure: 60kpa~160kpa
Operating Temperature: -40 to 85 degree Celsius
Storage Temperature: -40 to 85 degree Celsius
colour:
Material:plastic
size:60 x 9mm

Package Contents:
200 x Embedded SC UPC Fiber Optic Fast Connector
