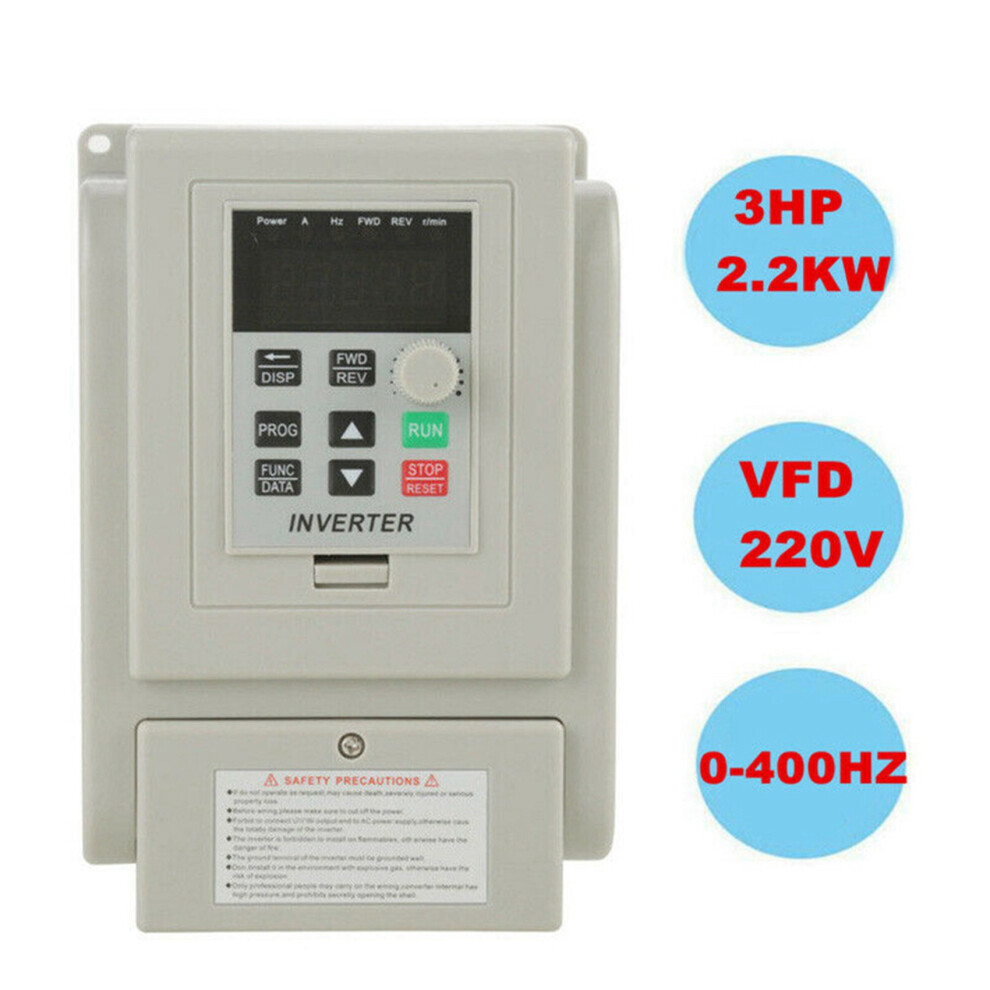

2X 2.2KW 3HP 220V Variable Frequency Drive Inverter CNC VFD VSD Single to 3 Phase

2X 2.2KW 3HP 220V Variable Frequency Drive Inverter CNC VFD VSD Single to 3 Phase Beschrijving

This VFD uses unique control method to realize high moment of force, high precision and wide speed regulating range driving, with high performance.
It has good anti-trip performance and ability to adapt to rough power, temperature, humidity and dust interference, greatly improved stability.
By optimizing PWM control technology and electromagnetic compatibility, it satisfies users' requirement of low noise, low electromagnetic interference.

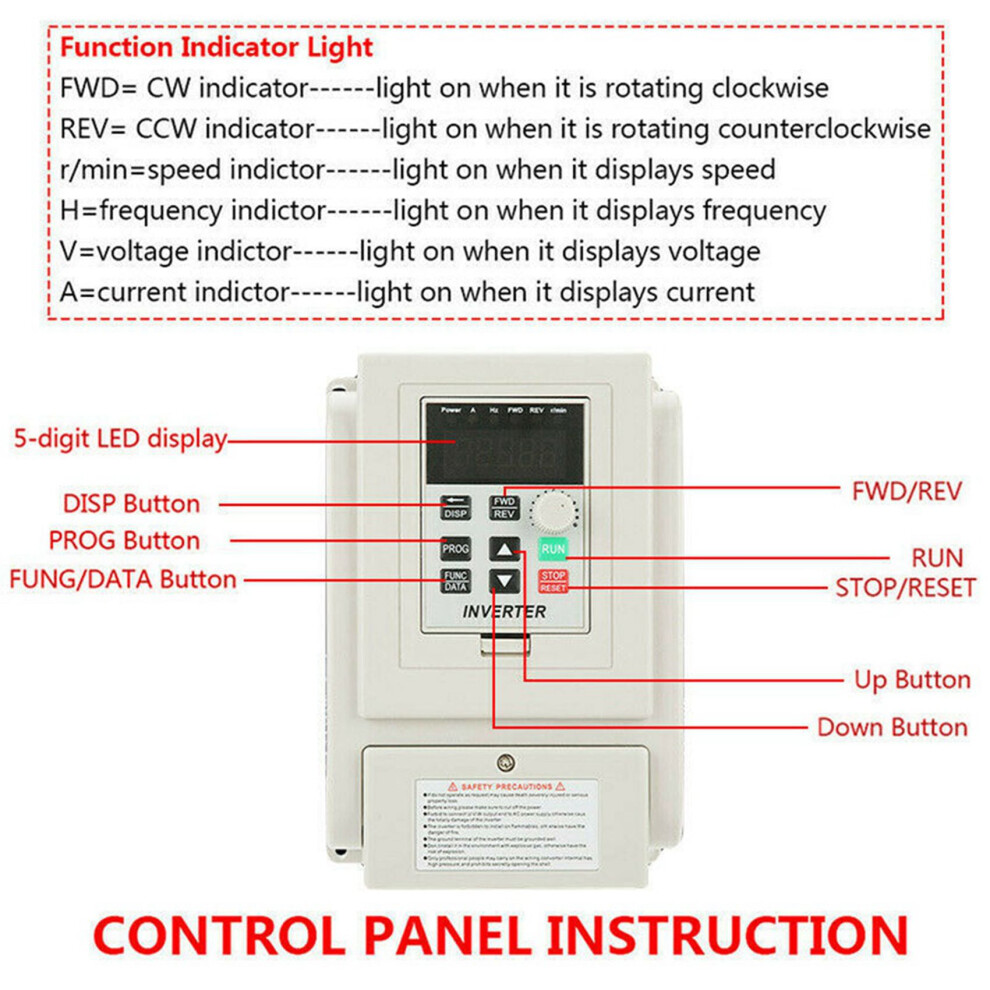

Simple to operate and wire, connect to wires by screw terminals which are more convenient.
Designed with large heat sink for better heat dissipation.

Power Source Phase: Single-phase
color: White
Material: plastic + metal
Rated Voltage: single-phase/3-phase AC220V
Power Supply Voltage: Low voltage
Suitable Motor Power: 2.2kW
Filter: Built-in filter
Power Supply Type: Voltage type
Control Method: V/F closed loop
Output Voltage Adjusting Method: PWM control
Rated Current: 12A
Protection: Over-current, over-voltage, over-heat, under-voltage, short circuit protection
Max. Output Frequency: 400Hz
Size: 18*12.5*12.5cm/7.1*4.9*4.9in

Package included:

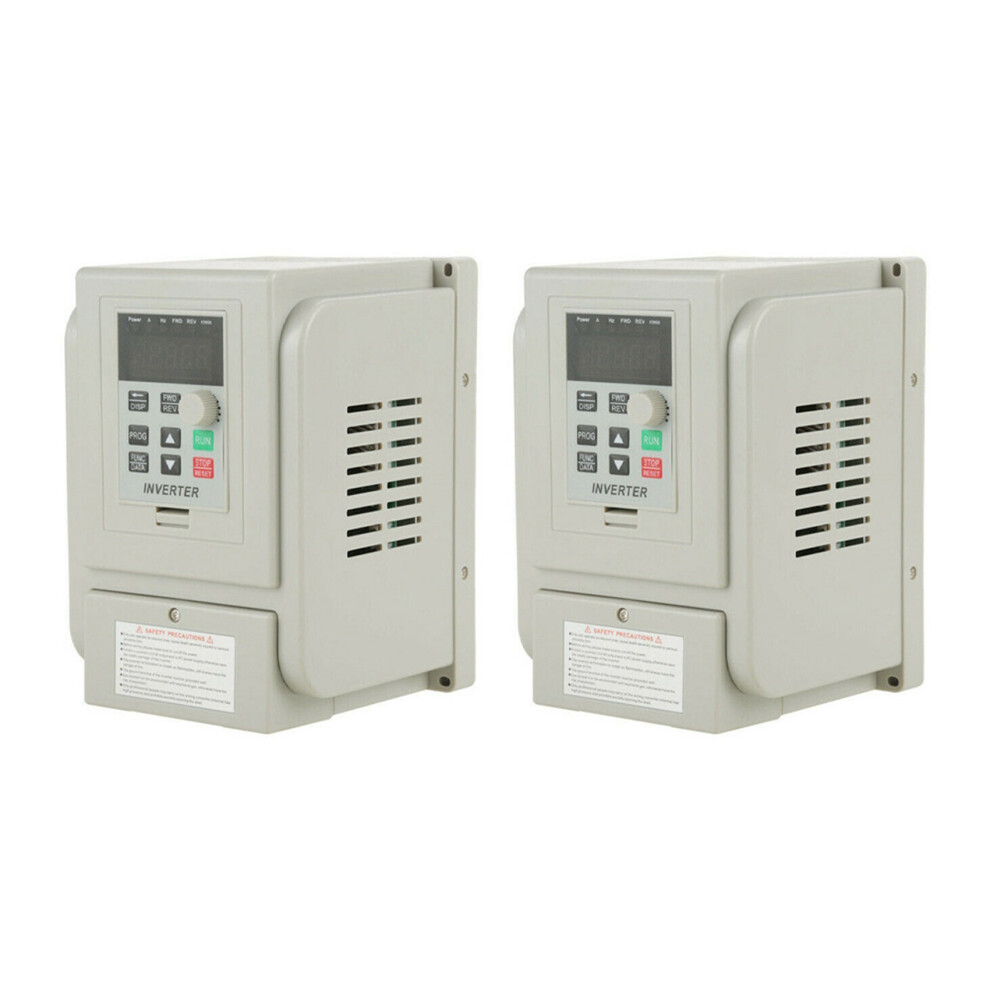

2 x Frequency Converter
