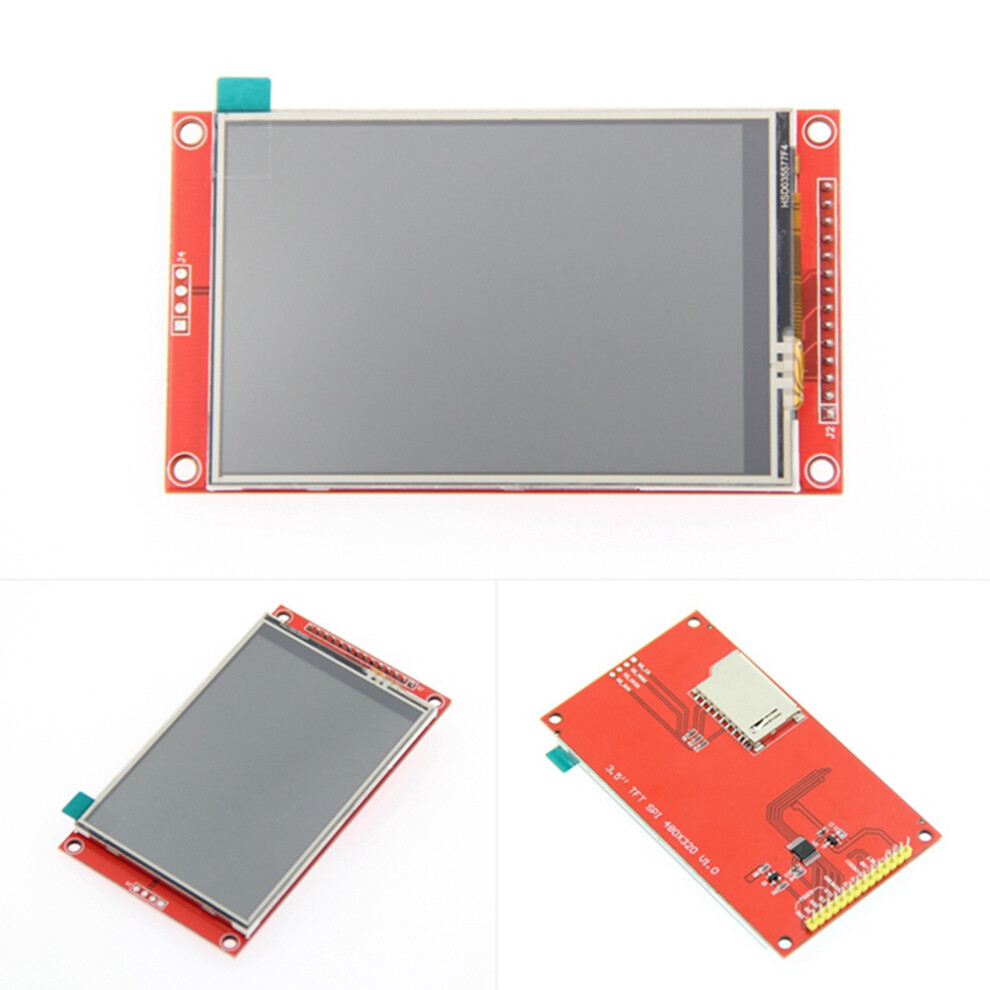

2X 3.5 Inch 480X320 SPI Serial TFT LCD Module Display Screen with Press Panel Driver IC ILI9488 for MCU

2X 3.5 Inch 480X320 SPI Serial TFT LCD Module Display Screen with Press Panel Driver IC ILI9488 for MCU Beschrijving

Product Description:

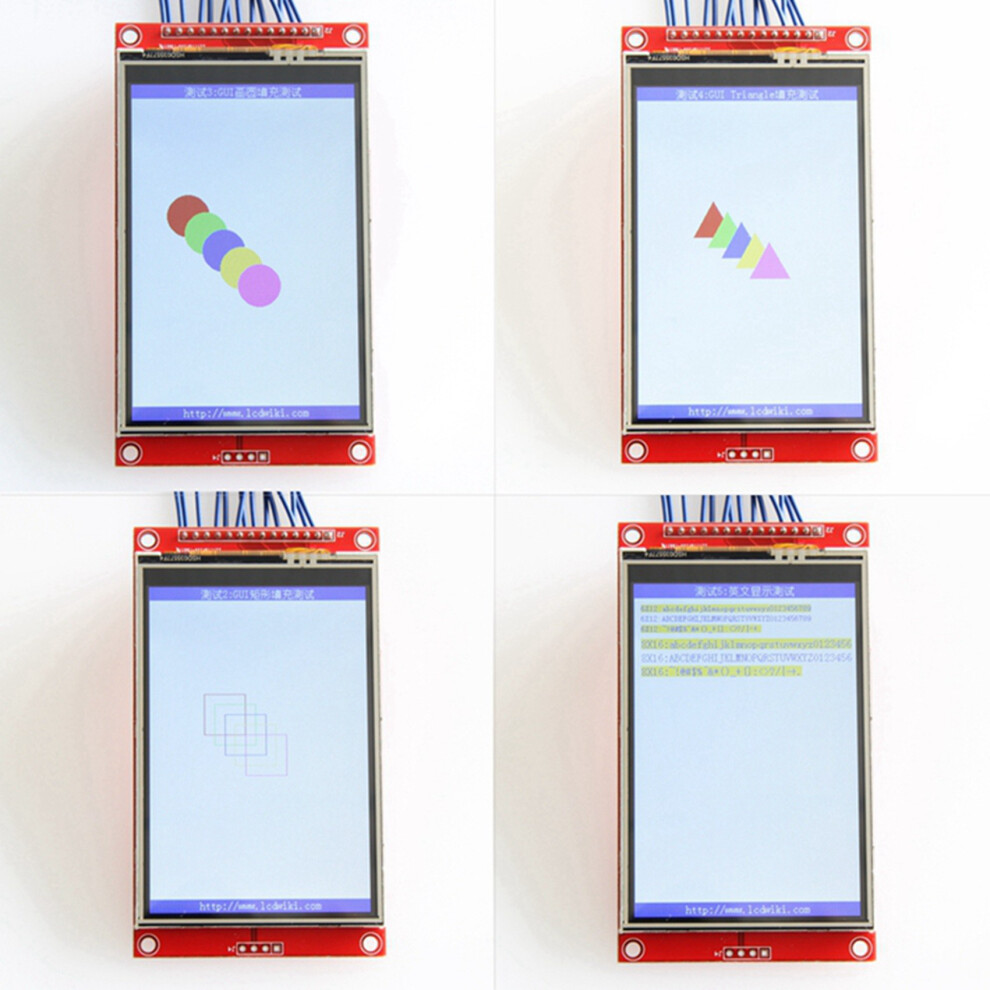

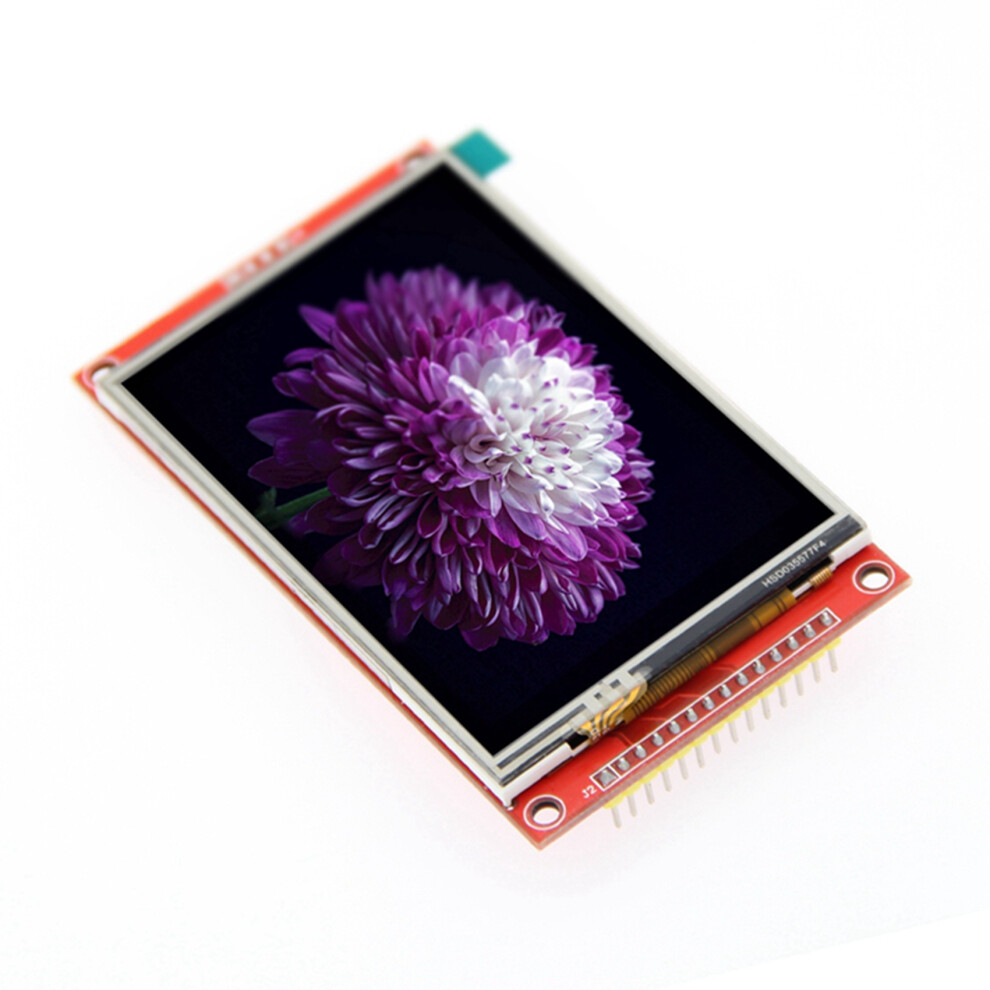

3.5-inch color screen,support 65K color display,display rich colors
480X320 resolution, Press function
color: red
Material: metal + pc

Using the SPI serial bus, it only takes a few IOs to illuminate the display
Easy to expand the experiment with card slot
Provide a rich sample program
process standards, long-term stable work
Provide underlying driver technical support
Product Parameters:
Name : Parameter
Display Color : RGB 65K color
SKU : have Press screen: MSP3520
Screen Size: 3.5(inch)
Type: TFT
Driver IC : ILI9488
Resolution: 480*320 (Pixel)
Module Interface: 4-wire SPI interface
Active Area (AA area): 48.96x73.44(mm)
Module PCB Size: 56.34x98(mm)
Operating Temperature: -20~60
Storage Temperature: -30~70
VCC power voltage : 3.3V~5V
Logic IO port voltage: 3.3V(TTL)
Power Consumption: TBD
Rough Weight(Package containing) With touch: 57 (g)

Package Contents:
2 * 3.5 inch 480*320 SPI Serial TFT LCD Module
