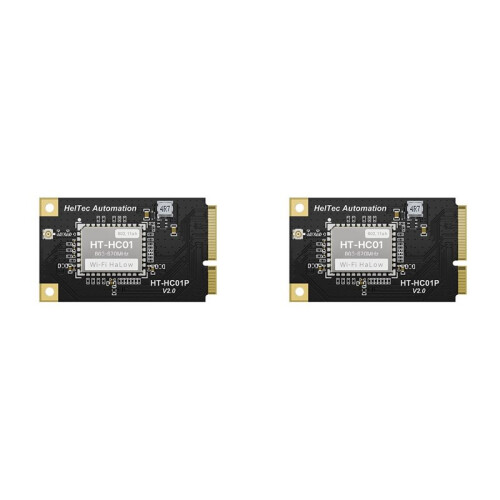

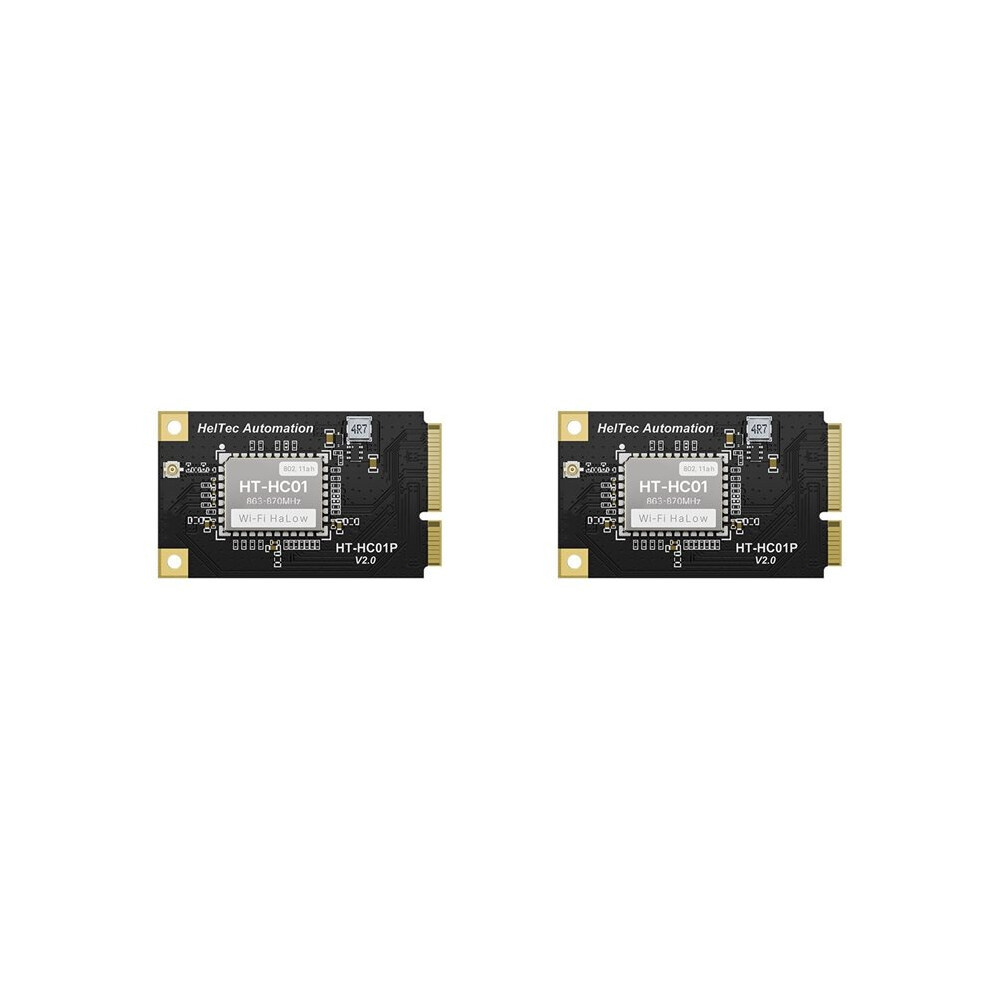

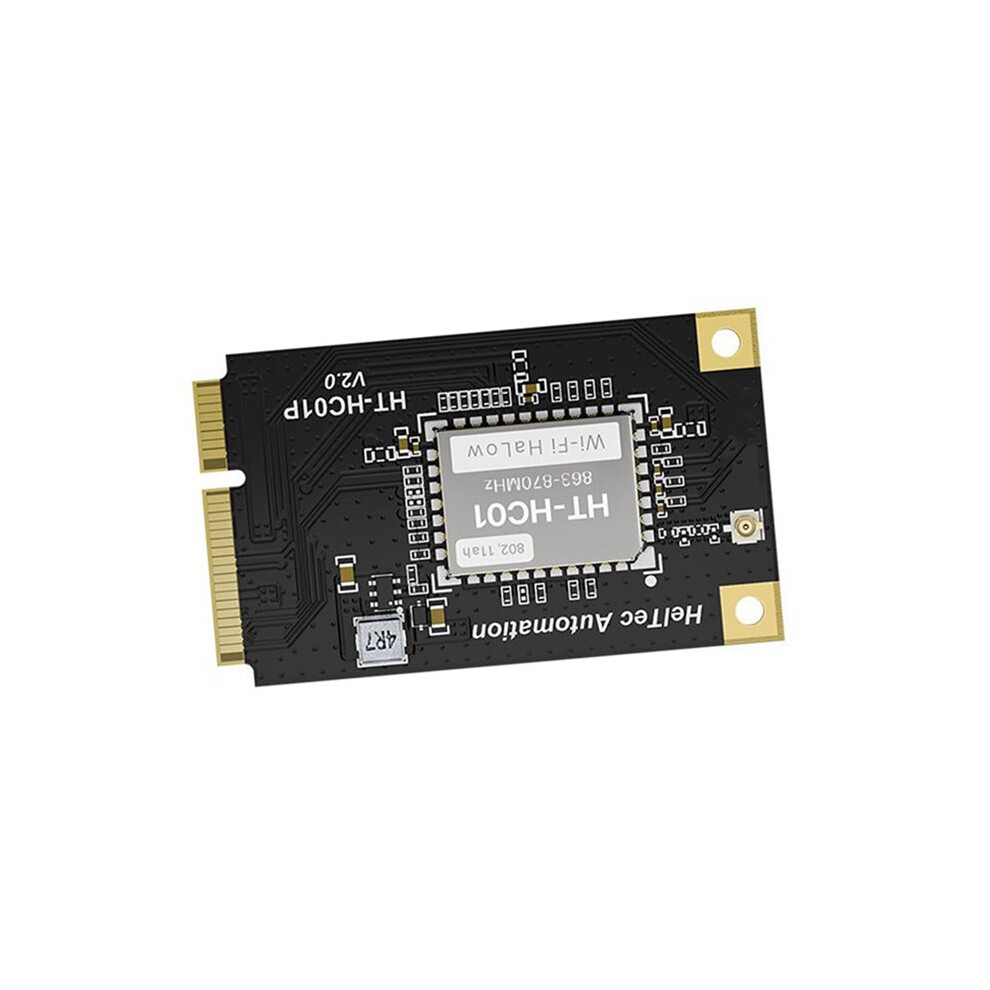

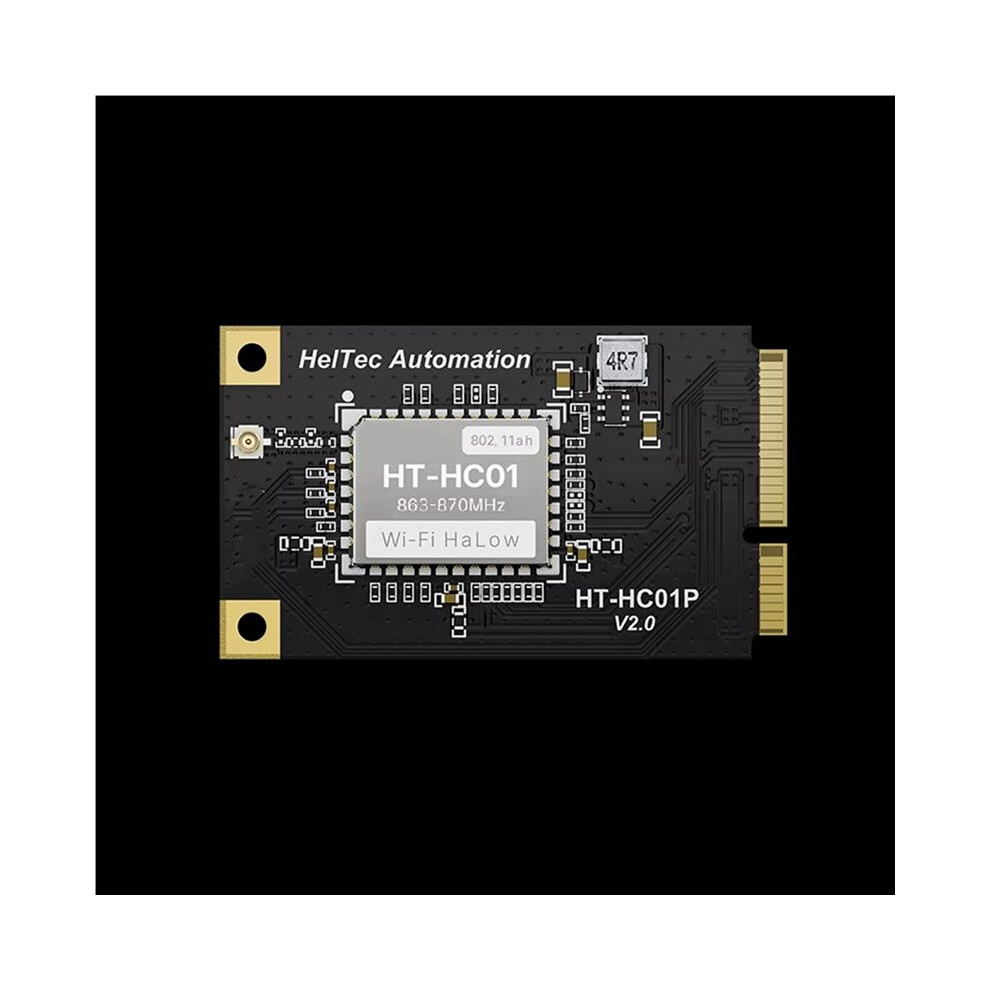

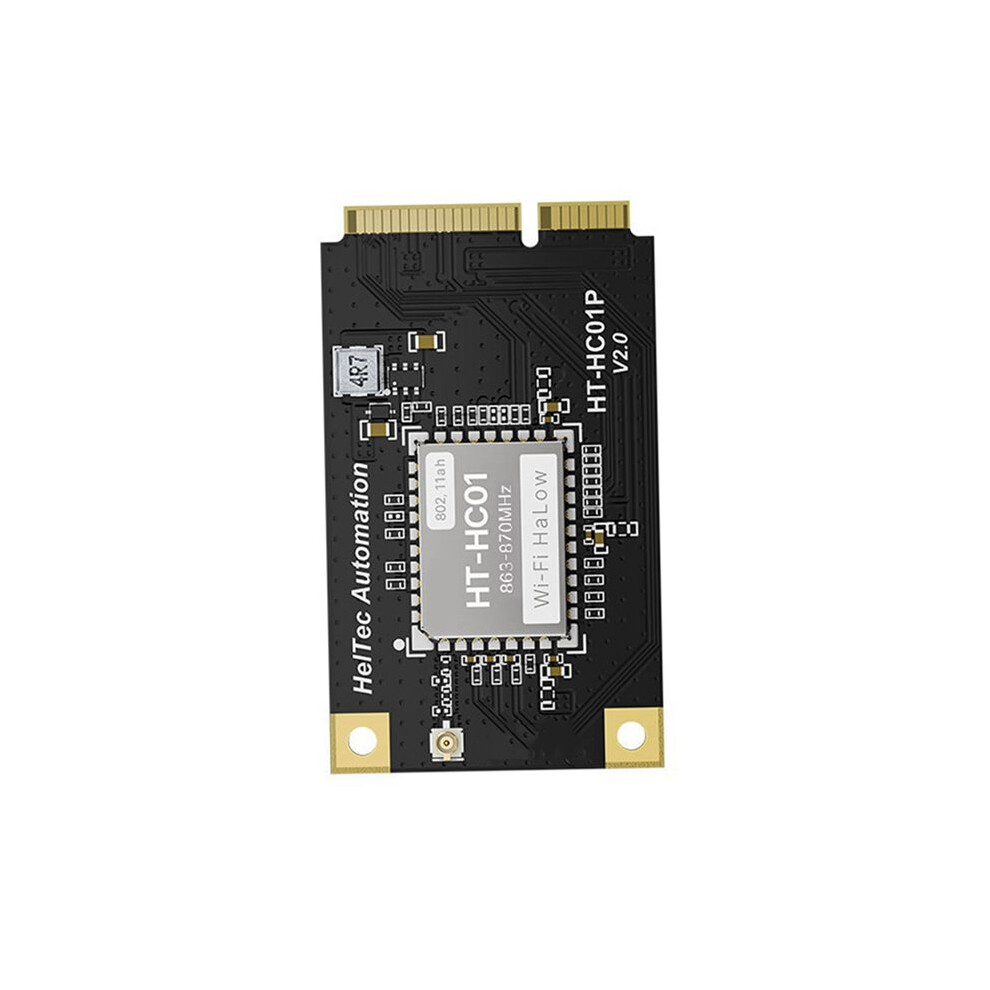

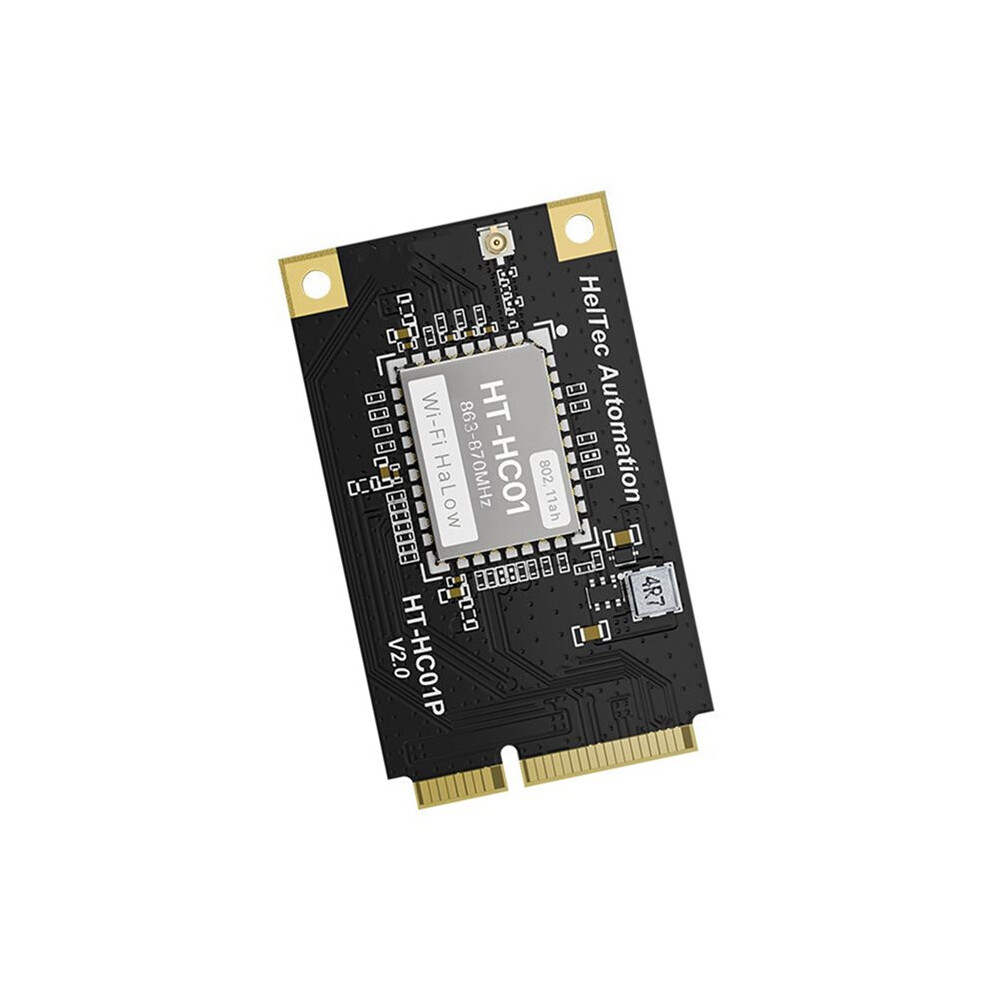

2X Heltec HT-HC01P V2 WiFi HaLow Module PCIe Interface 863-870MHz 16dBm Long Range Transmission Secure IoT

2X Heltec HT-HC01P V2 WiFi HaLow Module PCIe Interface 863-870MHz 16dBm Long Range Transmission Secure IoT Beschrijving

HT-HC01P-V2 is a Wi-Fi HaLow module with PCIe interface, which operates in 863-870MHz, to 1-2km transmission range.
It meets IEEE 802.11ah standard, which is specifically designed for battery-operated devices, allowing them to remain in longer sleep and idle states without frequent wake-ups. This significantly reduces power consumption and extends the device's battery life.
Application: Wi-Fi HaLow can seamlessly integrate with traditional Wi-Fi or Ethernet networks and is suitable for most IoT scenarios, especially those requiring long-range high-speed transmission.

Note: 868MHz only offers 1MHz bandwidth and a maximum transmit power of 16dBm.
Main Features:
Long-range transmission, to 1km or and further within the visual distance.
Channel bandwidth: 1MHz.
Support frequency bands: 863-870MHz.
Max output power: 16dBm.
Hibernate mode (internal / external wake).
802. 11ah OFDM PHY supporting WFA HaLow certification.
802. 11ah supporting WFA HaLow certification.
High data rate, single-stream max. data rate of 32.5 Mbps @ 8 MHz or 15 Mbps @ 4 MHz channel.
Wide spectrum of security features.
Specifications:
Main Chip: MM6108IQ
Power Supply: 3.3V
HaLow Standard: IEEE 802.11ah
Band Width: 1MHz
Interface: PCIe
Operating temperature: -40 ~ 85
Operating humidity: 10%~90%, no-condensing
Max. Data Rate: 32.5 Mbps
Application
Wi-Fi HaLow can seamlessly integrate with traditional Wi-Fi or Ethernet networks and is suitable for most IoT scenarios, especially those requiring long-range high-speed transmission.
Color: Black
Material: PCB

Package Contents:
2 x WiFi HaLow Module
