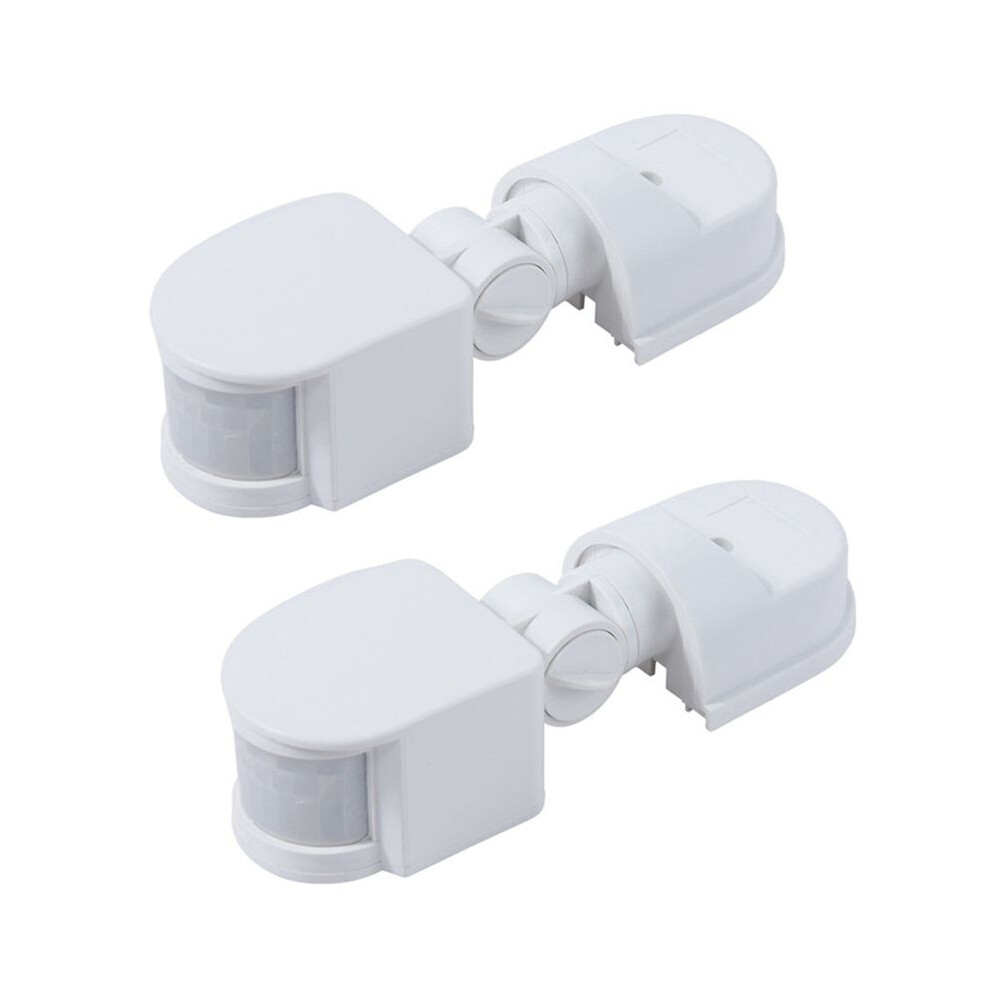

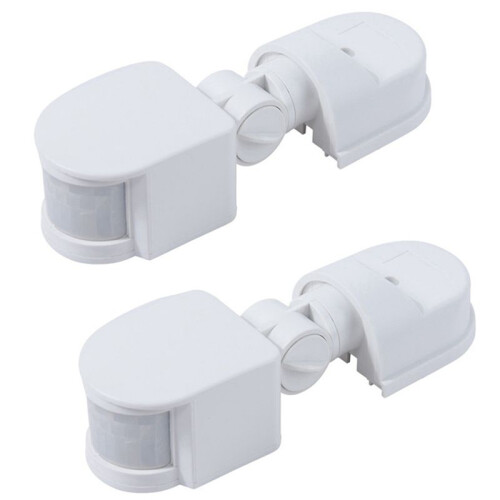

2X Infrared Motion Sensor AC110V-240V Adjustable Sensor for PIR Body Motion Sensors for Multiple Scenarios

2X Infrared Motion Sensor AC110V-240V Adjustable Sensor for PIR Body Motion Sensors for Multiple Scenarios Beschrijving

Made of premium plastic material, not easy to aging, sturdy and durable for long use.
It adopts infrared body motion induction technology, which can achieve intelligent control and saving.
The sensing distance, ambient light and delay are adjustable according to the actual demand.
Exquisite looking design, with high sensitivity and stable performance.
Widely used to control LED light, compact fluorescent lamp, incandescent bulb, alarm, exhaust fan, etc.

product description
specification:
Material: ABS + PC
color: White
Working voltage: AC 110 ~ 240V
Detection range: 180
Detection distance: maximum 12m (25)
Working temperature: -10 ~ +40
Working humidity: less than 93% RH
Delay : 5 seconds ~ 6 minutes (adjustable)
Environmental illumination: 2 ~ 2000LUX (adjustable)
Installation height: 1.8m ~ 2.5m
Induction distance: 2 ~ 12 meters (adjustable)
Induction angle: 160
Delay: 5 seconds ~ 10 minutes (adjustable)
Protection level: IP 65
Size: about 60 x 45 x 160mm
Installation method: open type, (opening 16mm)
Wiring instructions:
N- (connect to the neutral )
L-brown (connected to live wire)
Output-Red (Sensor output )
and red connected to the load (lamps)
and brown input power

Package Contents:
2 x infrared motion sensor
