2X STM32F407VET6 STM32 System Core Board STM32F407 Development Board F407 Single-Chip Learning Board

2X STM32F407VET6 STM32 System Core Board STM32F407 Development Board F407 Single-Chip Learning Board Beschrijving

USB interface support download (DFU download, not serial port)
OLED interface - plug and support 0.96 inch OLED
TFT liquid crystal interface
Connect 1.44 inch full color LCD
Connect 1.8 inch full color LCD

Data storage: W25Q16
High speed crystal oscillator 8MHz
Low frequency crystal: 32.768K
Power + programmable LED lights
User and reset button

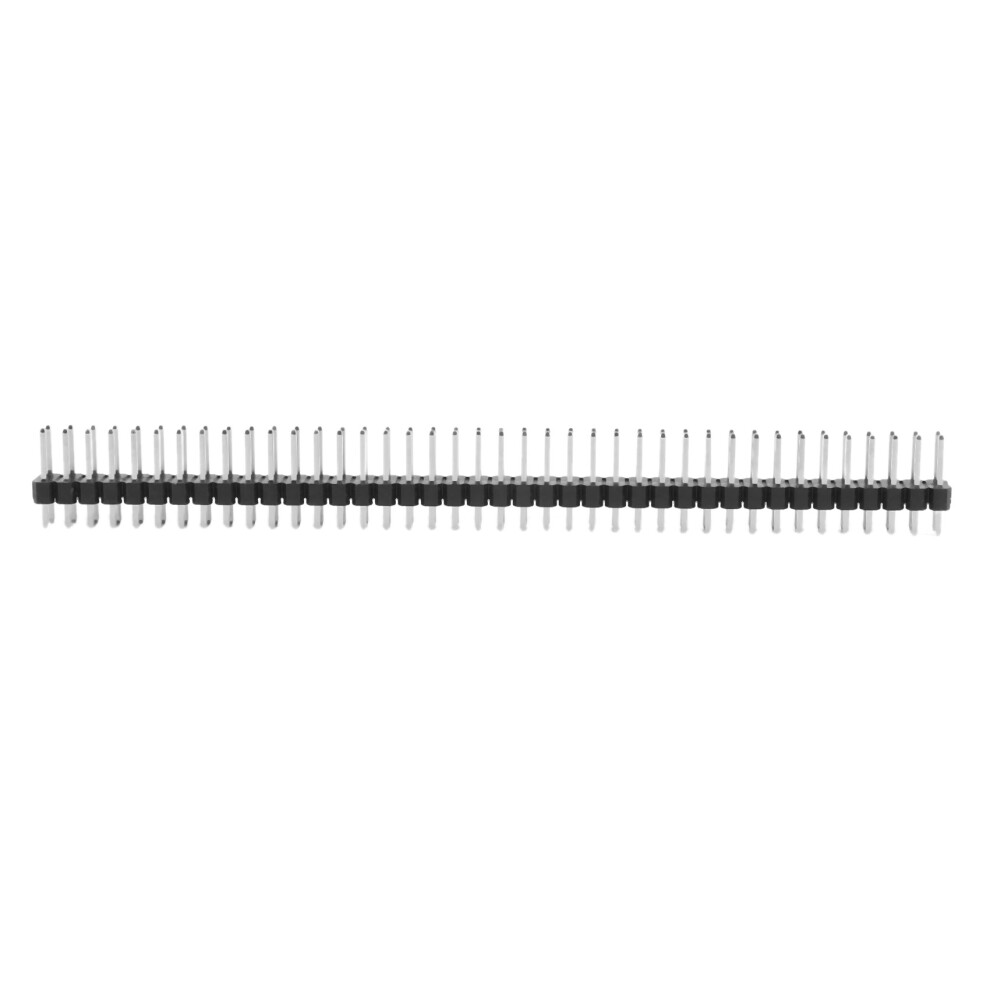

All CPU-IO leads 2.54 integer pitch pins
Parameter:
Kernel: Cortex-M4 32 bit RISC
Features: Single-cycle DSP instructions
Operating frequency: 168MHZ, 210DMIPS/1.25DMIPS/MHz
Working voltage: 1.8-3.6V
Package: LQFP100
Storage resource: 512KB Flash
Resources: 3 x SPI, 3 x USART
2 x UART, 2 x I2S, 3 x 12C
1 x FSMC, 1 x SDIO, 2 x CAN;
1 x USB 2.0 FS/HS controller (with dedicated DMA)
1 x USB HS ULPI (for external USB HS PHY)
1 x 10/100Ethemet
1 x 8 to 12-bit parallel camera interrace
3 x AD (12-bit, 1us, -sharing 24), 2 x DA (12-bit)
colour:black
Material:PCB
size:41 x 70MM

Package Contents:
2 x System Core Board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
