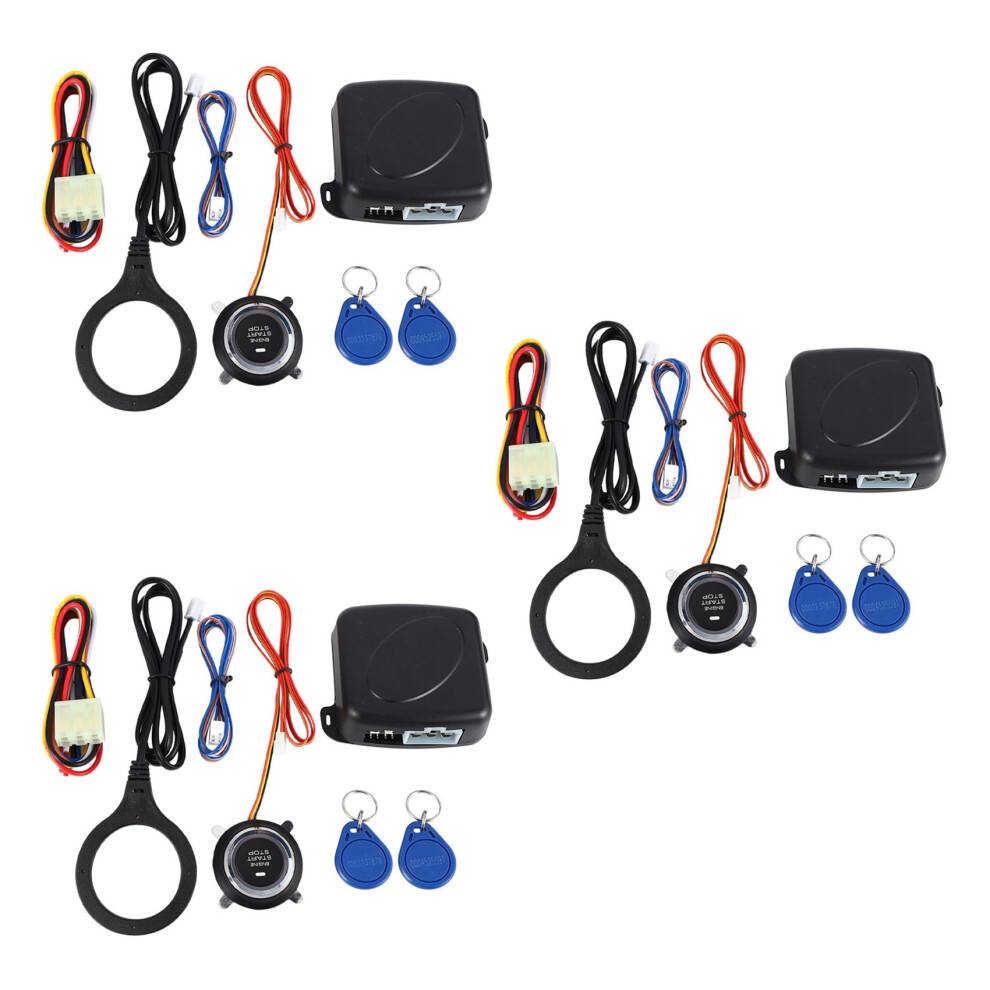

3X RFID Car Alarm System Push Engine Start Stop Button Lock Ignition Immobilizer with Remote Keyless 12V

Samenvatting

• Operating Instructions: Into the anti-theft: 15 seconds after each turn off the host tweet 1, said the system has entered the anti-theft state, then start the button lights turn off, the whole car power, start operation is invalid..Exit the anti-theft: When the ID sensor card near the car in the induction coil area, this time the host tweeted 2, said the system has been revoked anti-theft, start button immediately power flash, the vehicle can start at any time.
• A key to start: foot brakes, short press start button 1 times after the release, that is, the vehicle automatically activated after 0.5 seconds.A key off: foot brakes, short press the start button 1 times after the release, that is, the vehicle immediately turn off.A key to open the sound: do not step on the foot brake, short press a key to start the button to open the sound, the function as the key hit the first file.
• A key to open the instrument panel: do not step on the foot brake, has been opened on the basis of sound and then press a key to start the button to open the instrument panel, then the instrument panel power, function as the key hit in the second file.
• Parameters: Operating voltage: DC voltage DC = 12V, no support 24V power supply.Standby current: 8mA (Note: continuous standby up to a month).Button display: blue light (Note: in the flame-resistant state of the blue light off, anti-theft after the anti-flash)Into the anti-theft: each time off the fire 15 seconds the system automatically locks the engine, the whole car off, the button lights off.
• Exit the anti-theft: on the train using the ID card proximity sensor coil, the host tweeted 2 out of the anti-theft.Brake light output flashing voltage: DC = 12V (Note: the output time controlled by the foot brake).Brake light output form: each brakes after the first brake light flashing 4, and then long bright, loose feet off..Alarm: brake light alarm, when the car on the illegal brakes, the brake light will flash alarm for 15 seconds.
