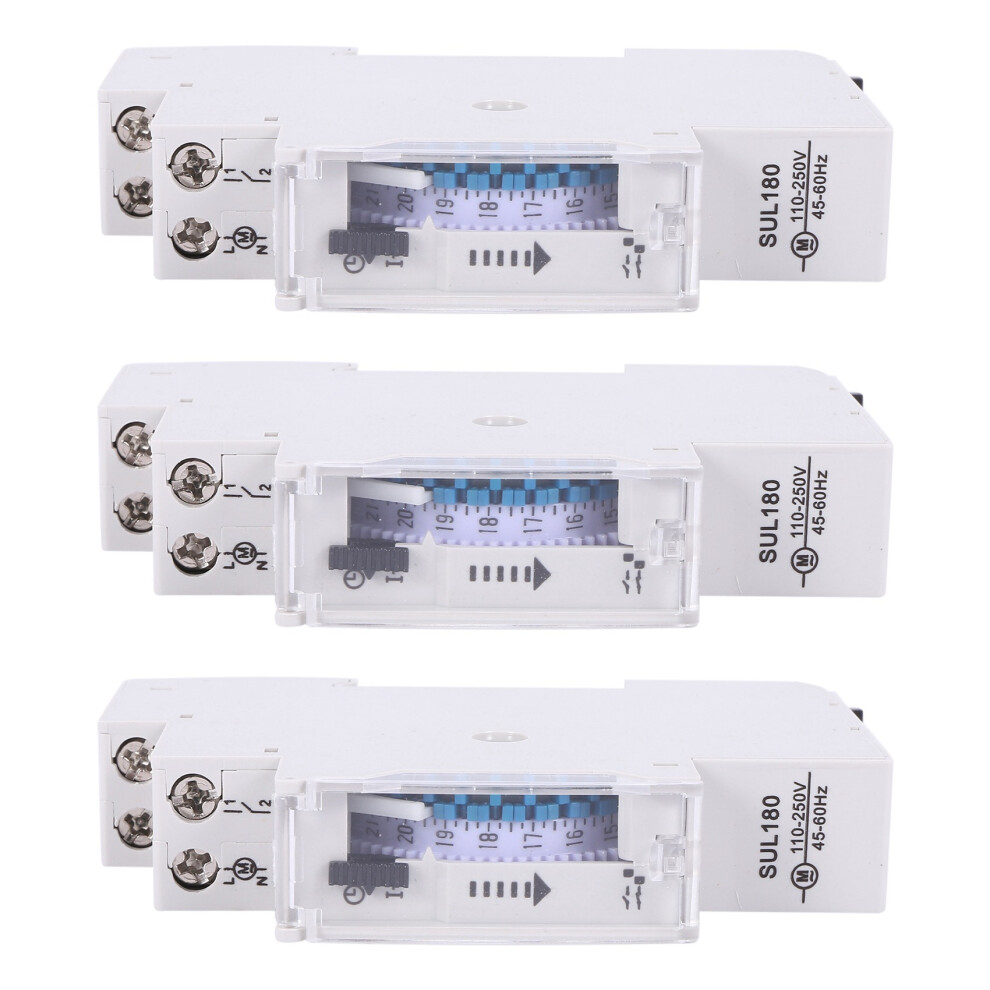

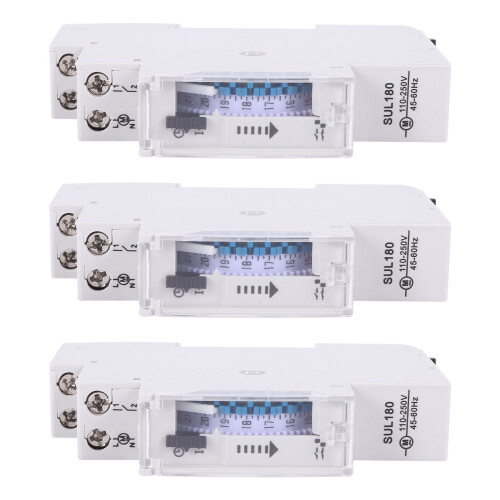

3X SUL180A 15 Minutes Mechanical Timer 24 Hours Programmable Din Rail Timer Relay Analysis Instruments

3X SUL180A 15 Minutes Mechanical Timer 24 Hours Programmable Din Rail Timer Relay Analysis Instruments Beschrijving

working principle: Set the of the machine/product in advance, mechanically driven;
The battery inside the machine can work continuously for 80-100 hours under power failure;
the product is a 24-hour , the minimum set is 15 minutes;
The clock icon the machine faceplate indicates the start of the set mode;
The I graphic the machine panel indicates the lock setting.

: Mechanical
Model Number: SUL180a
Usage: Timer
Type:
Power supply: AC110V / AC220V
Power frequency: 45-60Hz
Power consumption: 1W
Drive mode: quartz motor
Contact capacity: Resistor 16A
Incandescent 10A
Reactance (cosDiameter = 0.7) 12A
Motor (cosDiameter = 0.7) 110VAC 750W, 220VAC 1500W
Minimum setting : 15 minutes.
Action: Standard 96 action
circuit output: 1 circuit normally open
Cycle : 24 hours
Power failure compensation: 72 hours (built-in battery)
Ambient temperature: -10 ~ + 50 Degree (no freezing)
Storage temperature: -25 ~ +55 Degree (no freezing)
Ambient humidity: 85% or less
Application:
SUL180a can be widely used in the neon lights, water heaters,
street lamps, staircase lights, aquaculture,
garden watering, motors, advertising boxes, office automation and other civilian or
industrial electricity needs control of the occasion,
according to the required for automatic control.
colour: Grayish white
Material: ABS+ electronic components

Package Contents:
3 * Timer
3 * Instruction manual
