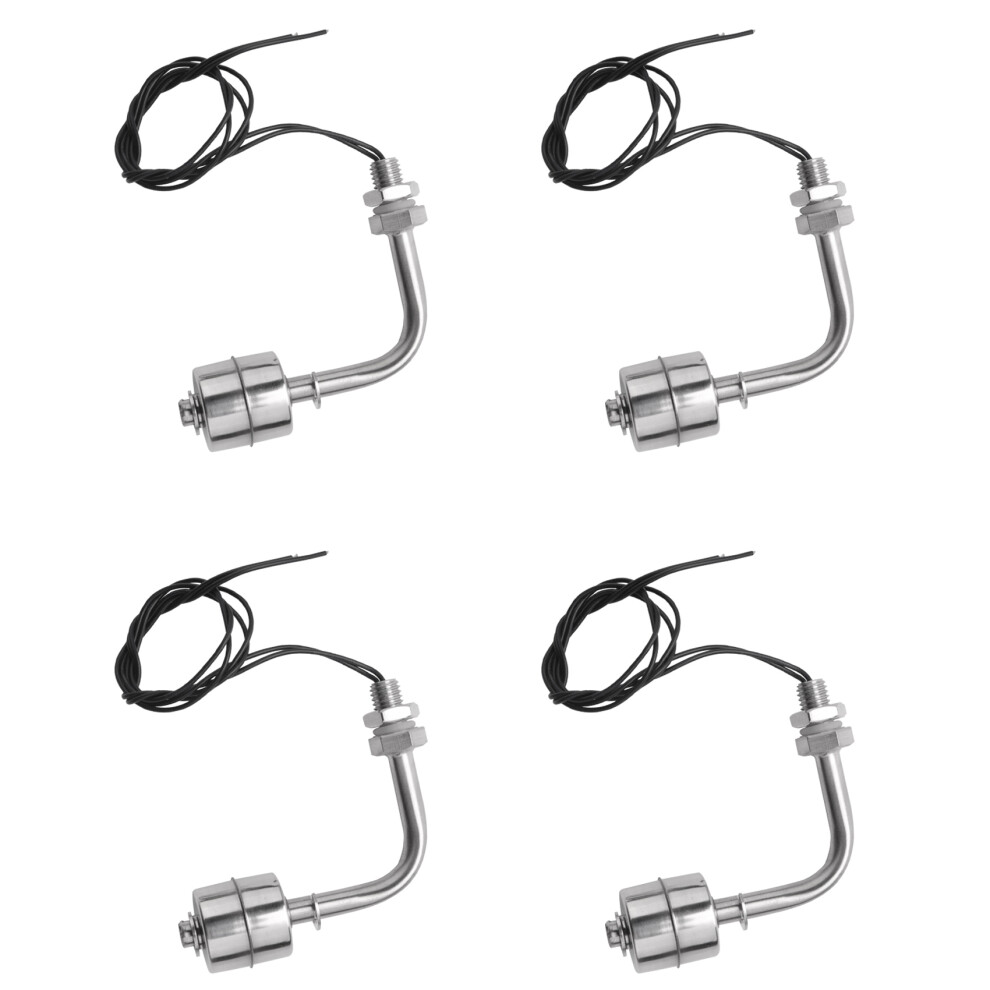

4X Liquid Water Level Stainless Steel Right Angle Floating for Aquarium

4X Liquid Water Level Stainless Steel Right Angle Floating for Aquarium Beschrijving

A float is a device used to sense the level of liquid within a tank.
The may actuate a pump, an indicator, an alarm, or other device.
It can be easily converted from normally open to normally close by inverting the float.
Note: because the current that the can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.

Product Name: Water Level Sensor;
Contacts: NO+NC;
Max Contact Rating: 10W
Max Switching Voltage: 100V ;
Max Switching Current: 0.5A;
Max Breakdown Voltage: 220V ;
Max Carry Current: 1.0A
Max Contact Resistance: 100mÎ;
Temperature Rating: -30 - +125 ÂC;
Float Size(Approx): 25 x 27mm / 1 inch x 1.1 inch(L x D);
Thread Dia(Approx): 9.8mm / 0.386 inch
Hex Nut Size(Approx): 19mm / 0.75 inch;
Bottom Clip Dia(Approx): 15mm / 0.6 inch;
Body Total Length(Approx): 81mm / 3.2 inch;
Body Total Width(Approx): 70mm / 2.8 inch
Cable Length: 31cm / 12.2 inch;
Color: Silver Tone;
Material: Stainless steel
Net Weight: 188g;
Package Content: 4 x Water Level Sensor
