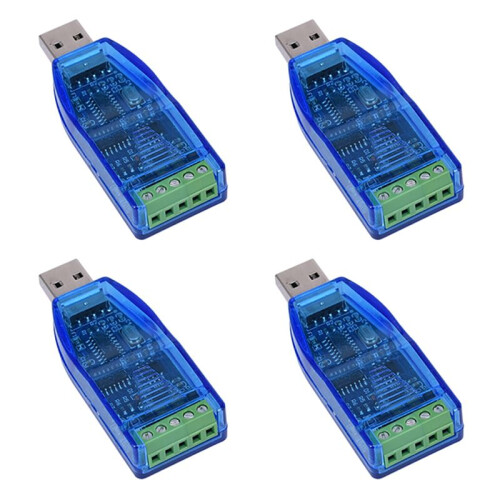

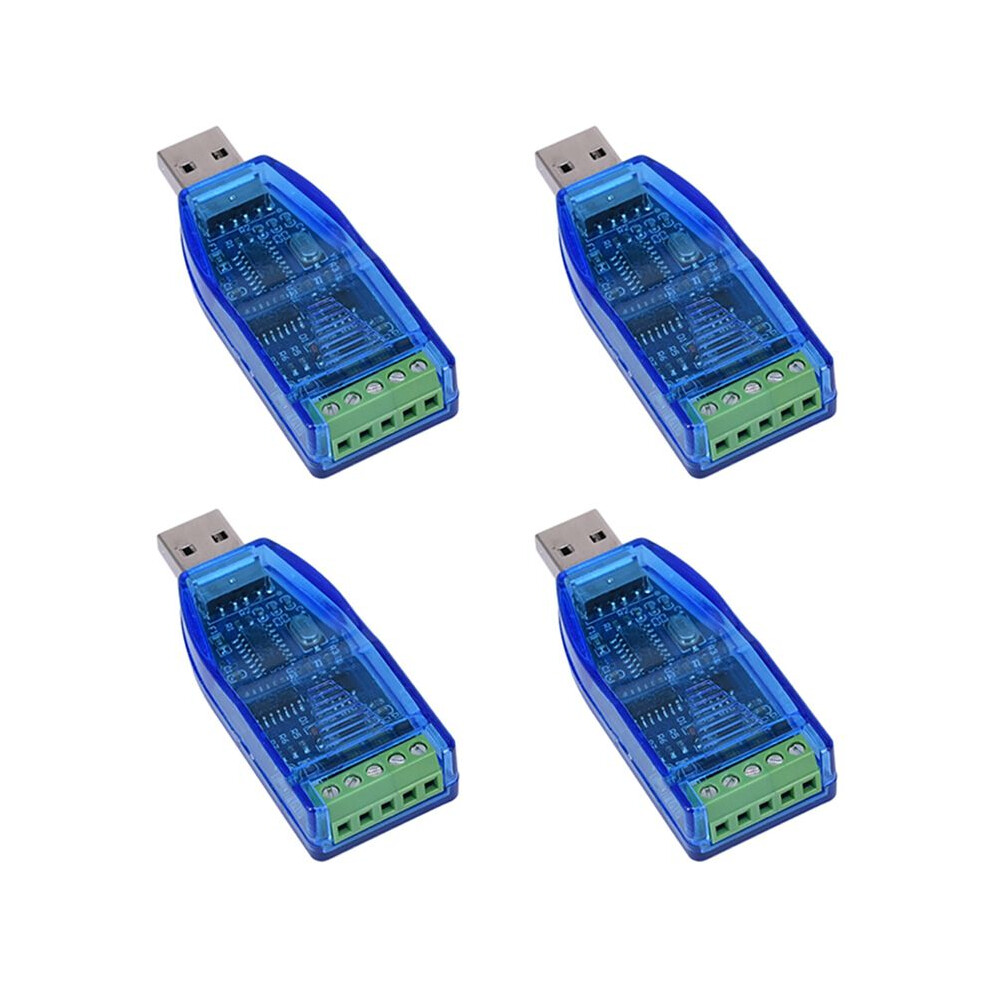

4X USB to RS485 Communication Module Bidirectional Half-Duplex Serial Converter

4X USB to RS485 Communication Module Bidirectional Half-Duplex Serial Converter Beschrijving

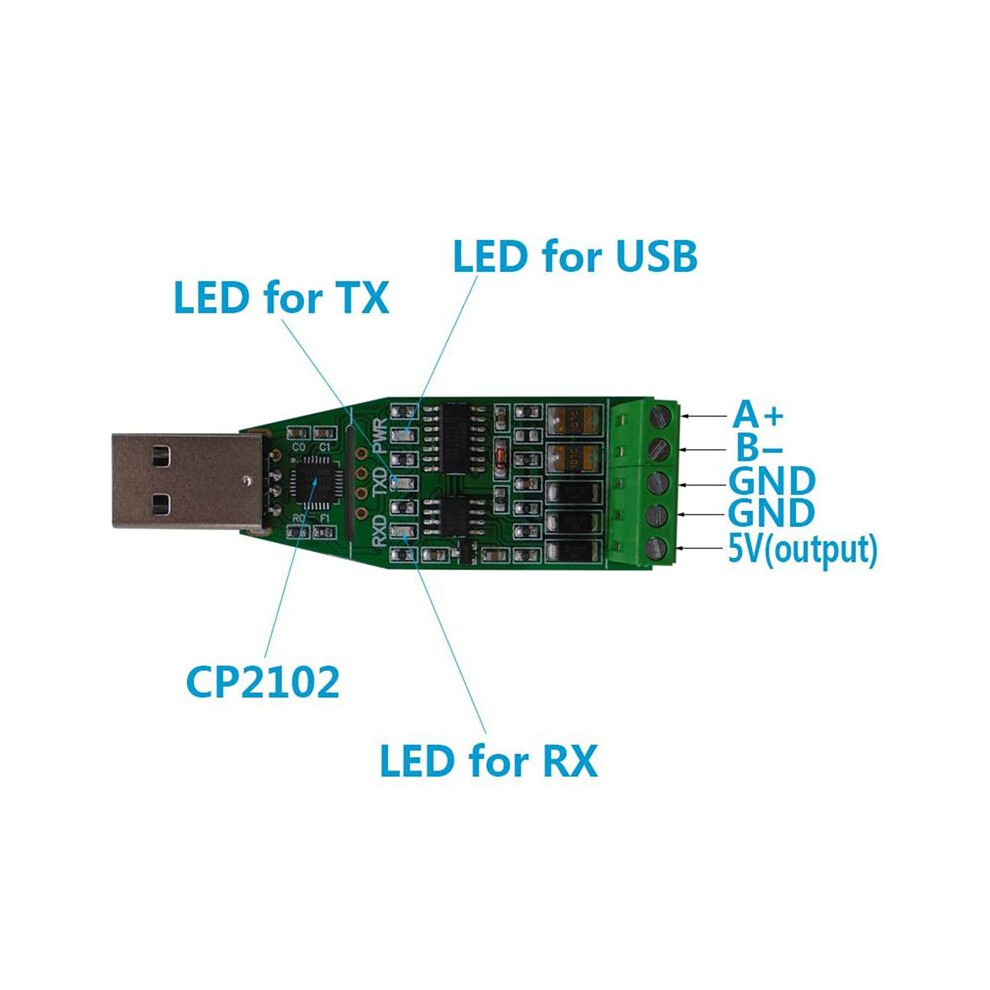

USB 2.0 to RS485 Converter and all kinds of 485 interface docking, transmission distance to 1000 meters;Mainchip:CP2102(SILICON LABS) ,Industrial chip, high quality, super stable. The Lead PINS include: A +, B-, GND ,GND,5V0;Industrial Product, With 15KV ESD protection and TVS overvoltage protection
Features:1. Industrial level protection: TVs transient suppression protection, ESD protection, surge protection, AB signal short circuit and power supply short circuit protection (short circuit does not burn
2. Transmission distance to 1200 meters (tested at 9600bps);3. Support the baud rate of 921600, which is much higher than 115200, and the baud rate of pairwise mutual transmission is higher
4. Multi system supports hot plug, WIN98 / CE / 2000/2003/2008 / xpwn7n8 / wn10 Vista / Linux / OS X system, and USB interface can be hot plug
5. Automatic identification and control of data transmission direction, without any handshake signal (such as RTS, DTR, etc.) and without jumper setting, mode conversion can be realized to ensure compliance with existing communication software and interface hardware;6. With TXD, RXD indicator light

Specification Description:
1. Power supply: usb5v
2. Transmission distance: to 1200m (9600bps)
3. Chip scheme: ch340
4. Communication protocol: hardware only, not limited by protocol
5. Baud rate: to 921600bps, supporting mutual transmission supports higher baud rate
6. Protection: TVs transient suppression protection, ESD protection, surge protection, AB signal short circuit and power supply short circuit protection (short circuit does not burn)
7. Temperature range:-40 Celsius-80 Celsius
8. Provide external 5V power supply with fuse to limit current
9. Support system: support hot plug, support WIN98 / CE / 2000/2003/2008 / xpwn7wn8 / wn10 / Vista
