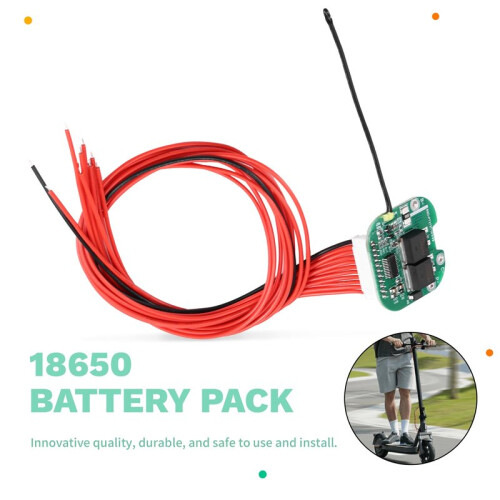

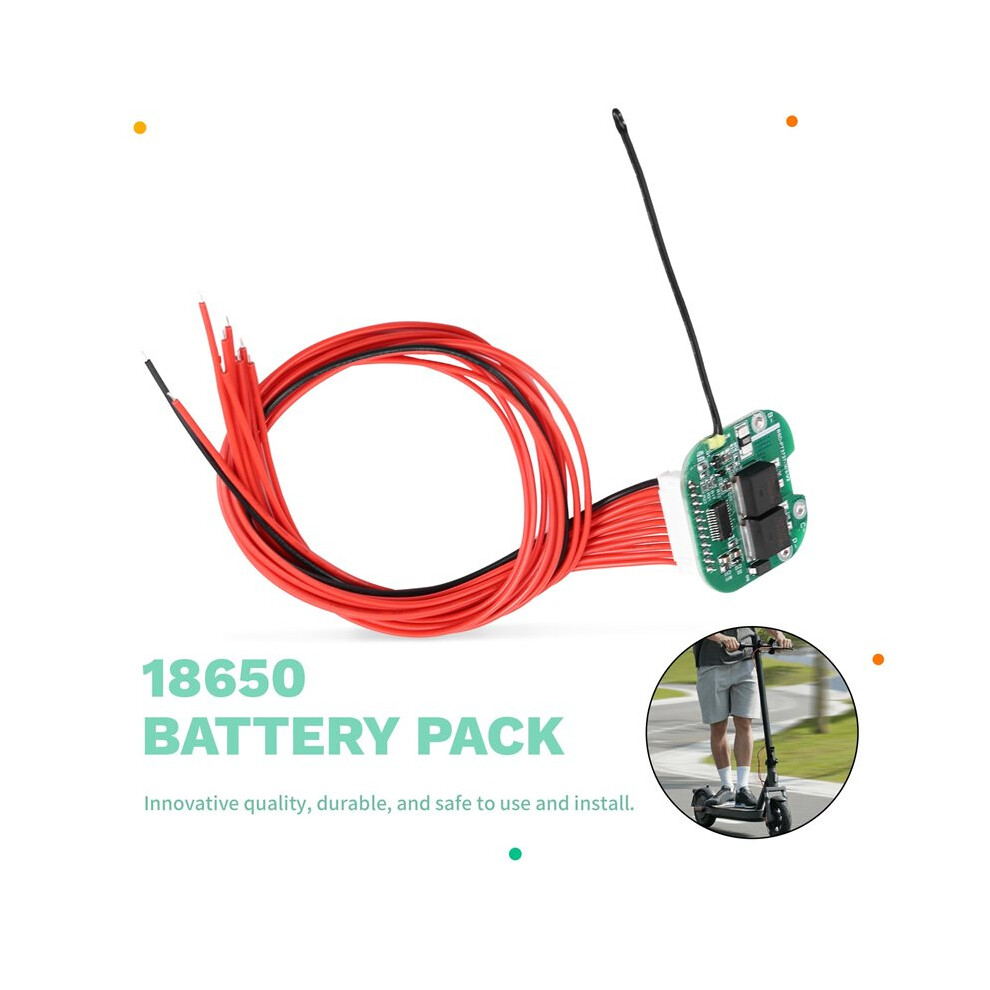

5Set for 10S 36V 15A BMS Split with Temperature Control for Electric Scooter Lithium 18650 Battery Pack

5Set for 10S 36V 15A BMS Split with Temperature Control for Electric Scooter Lithium 18650 Battery Pack Beschrijving

The main functions are: overcharge protection, overdischarge protection, overcurrent protection, short circuit protection, Drop protection,temperature protection, etc.
Can provide 3S to 24S series solutions, provide 5A to 200A working current customization. Different voltages and currents. There are different parameter details. If you need to confirm. Please communicate with the seller to confirm that the data is accurate.
The use of top-level (A-level) protection integrated circuit IC, from industrial automotive-level solutions. BMS is made of high-quality Mos and imported IC.
Double-sided PCB circuit board, high anti-corrosion, high waterproof, high impedance ESD conformal coating. Silicone plate + aluminum plate double-layer heat dissipation. Three anti-glue + insulation sheet, double-layer electrostatic insulation.

Charging protection:
Overcharge protection voltage (single cell): 4.2V(Min)4.25V(Typ)4.3(Max)
Overcharge release voltage (single cell): 4.1V(Min)4.15V(Typ)4.2(Max)
Charge overcurrent protection delay : 500ms(Min)1000ms(Typ)1500ms(Max)
Discharge protection:
Over-discharge protection voltage (single cell): 2.6V (Min) 2.7V (Typ) 2.8 (Max)
Overcharge release voltage (single cell): 2.9V(Min)3V(Typ)3.1V(Max)
Overcharge delay : 3000ms(Min)4700ms(Typ)6400ms(Max)
Short circuit protection:
Short circuit protection delay : 200ms(Min)350ms(Typ)550ms(Max)
Short-circuit protection release condition: unplug the load
Self-consumption power: 30uA(MAX)
Protection board conduction internal resistance: 25mΩ (MAX)
Operating temperature range: -20C (Min) 70C (Max)
Dropped wire protection: When a battery string is welded with missing or dropped wires. The circuit will be disconnected for protection.
Remarks: The internal resistance of the protection board and self-consumption are dynamic values. During the test, the cell voltage must be 3.7V
Color: As Sho
