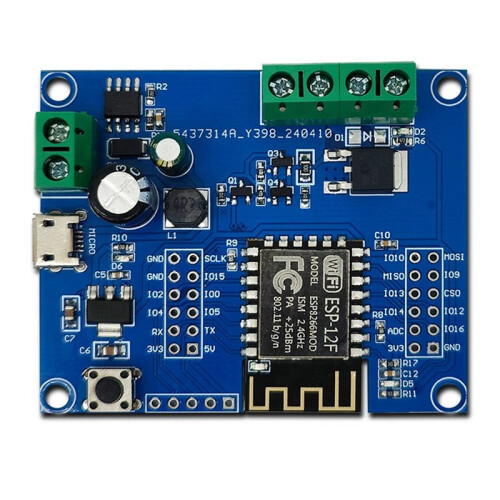

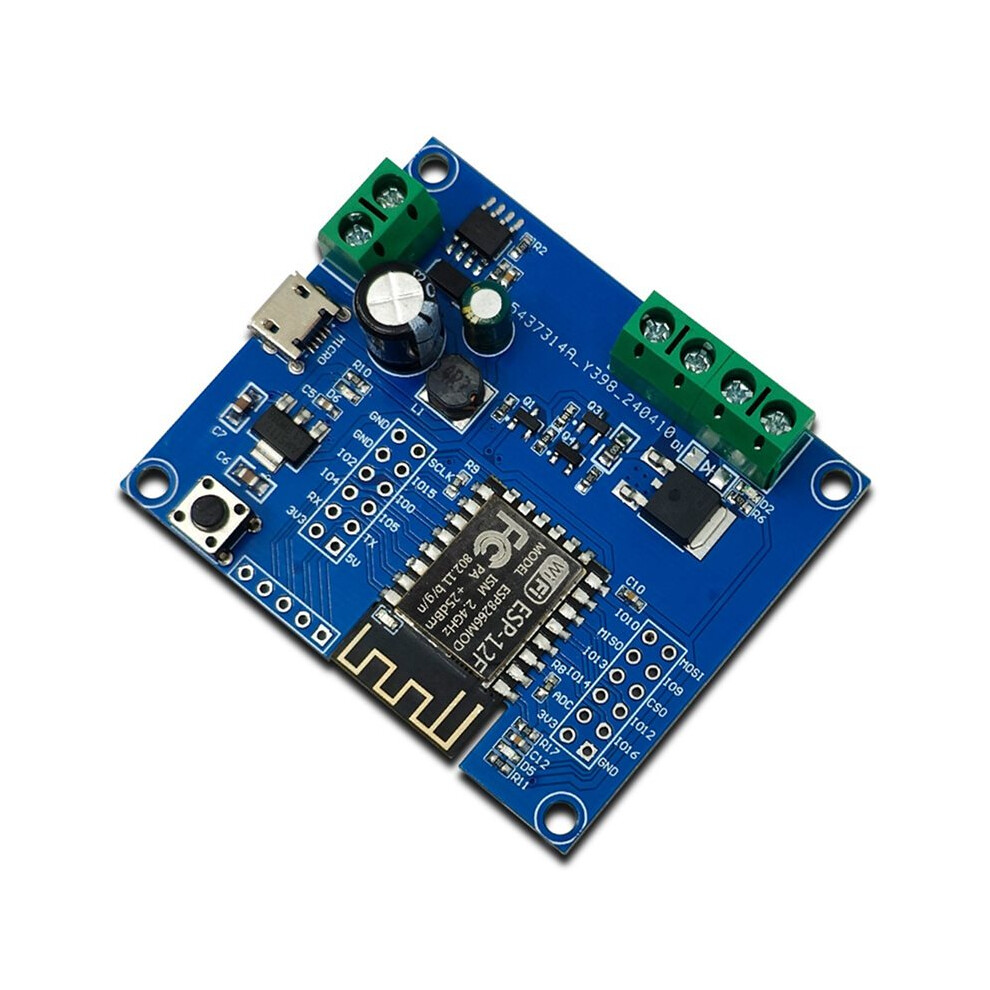

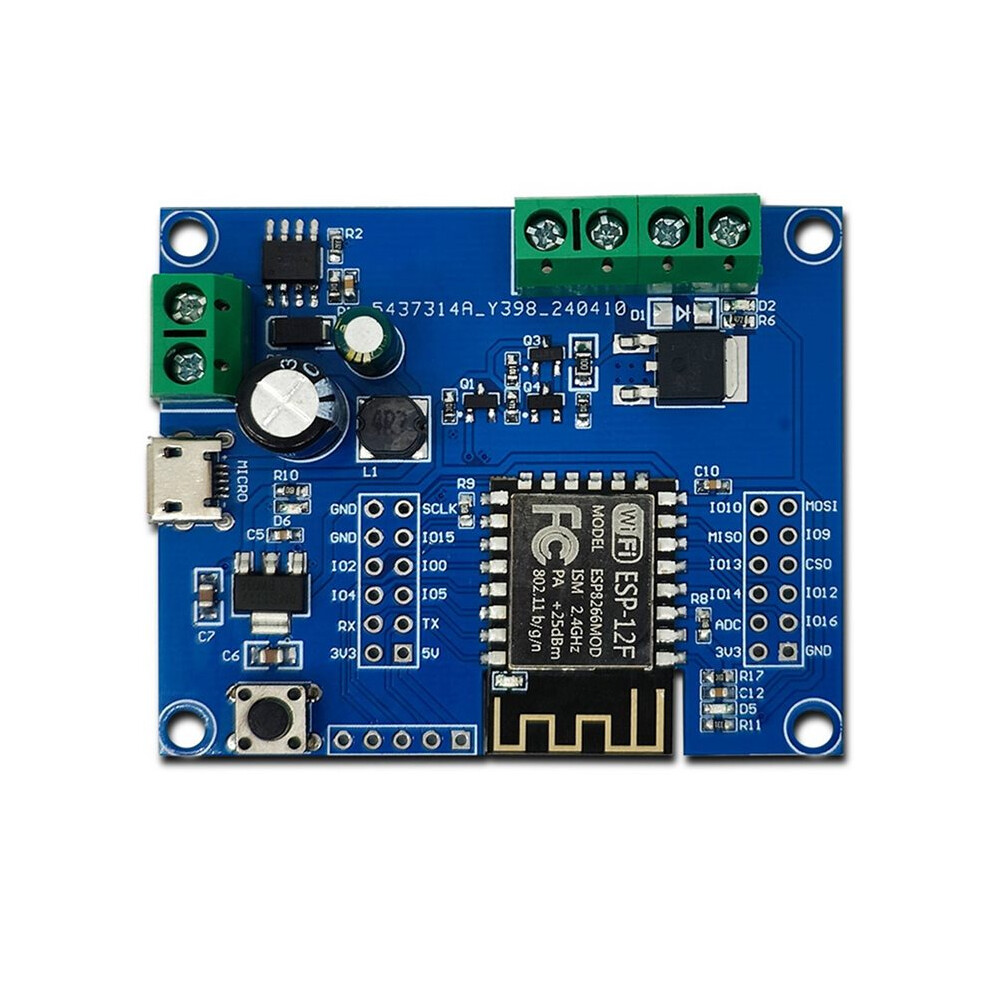

5X ESP8266 WIFI Single Relay MOS Control Module ESP-12F Development Board Support 5-80V and USB Port

5X ESP8266 WIFI Single Relay MOS Control Module ESP-12F Development Board Support 5-80V and USB Port Beschrijving

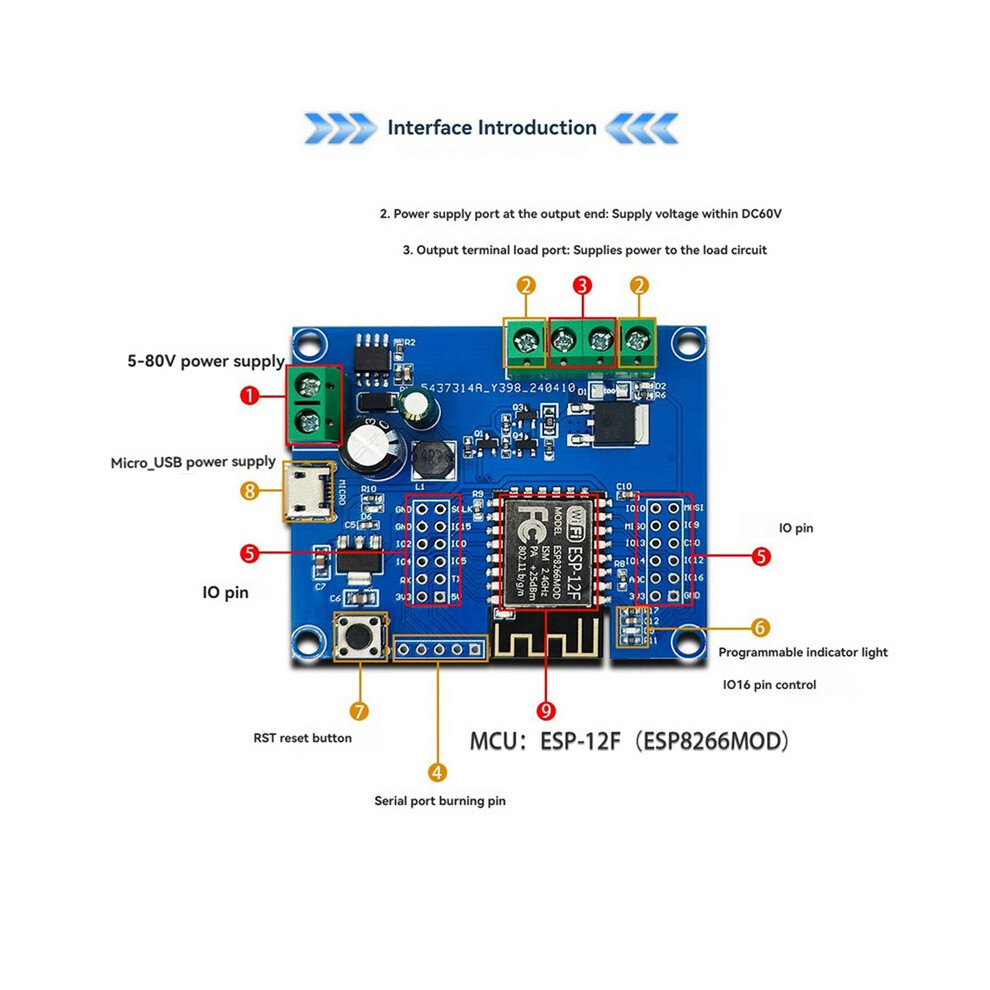

1. Mature and stable ESP-12F (ESP8266MOD) module board, large-capacity 32Mbit SPI Flash.
2. ESP-12F module I / O port and UART program download port all lead out, convenient for secondary development
3. -board RST reset button; -board Micro-USB port + 5-80V to 5V power supply circuit (recommended power supply 12V)
4. ESP-12F supports for IDE compilation tool, providing reference programs under for development environment.
5. -board leakage voltage of 60V N-channel MOS tube, suitable for controlling the "control voltage" for the load within DC60V

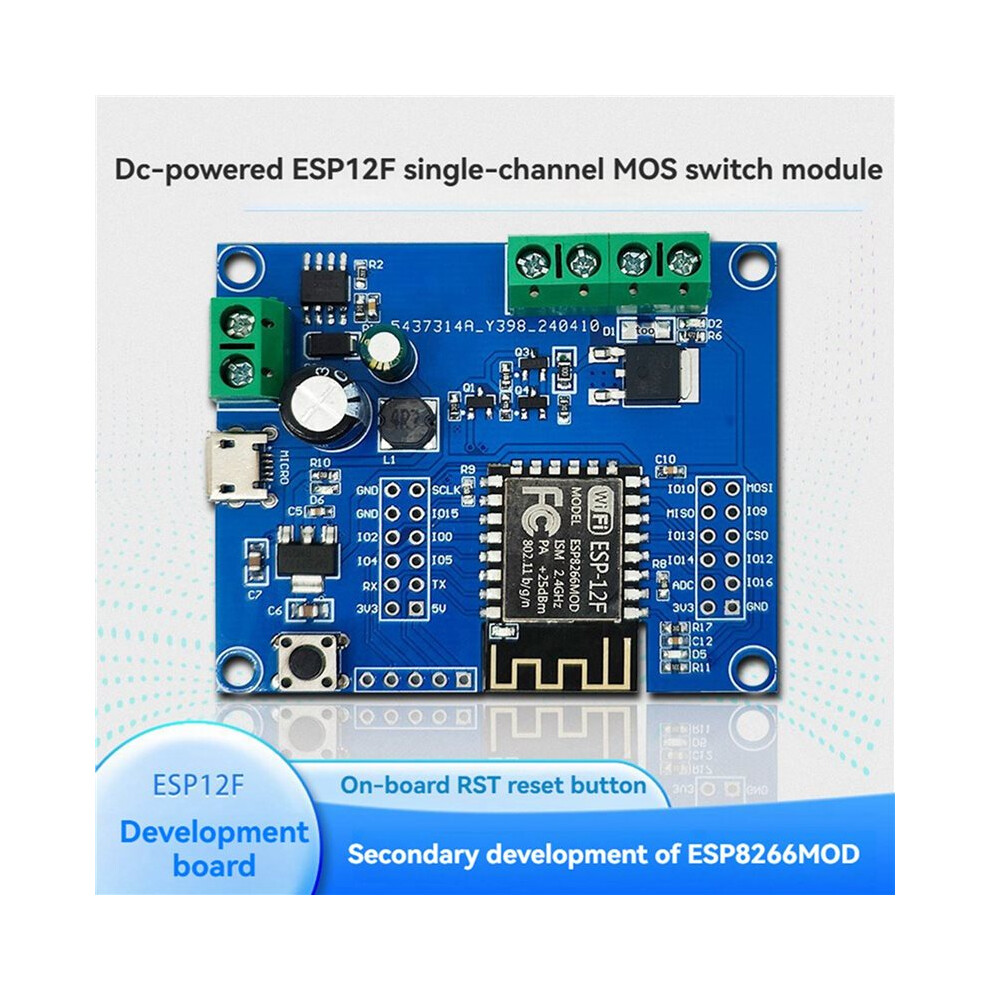

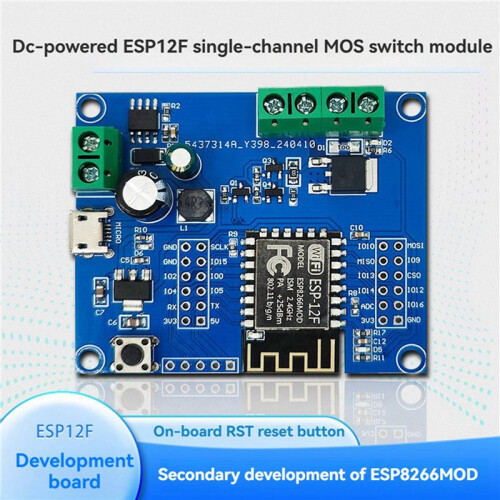

-powered ESP12F single MOS module equipped with ESP-12F (ESP8266MOD) module, I / O port full lead, support 5-80V power supply mode + Micro-USB port power supply. Suitable for ESP-12F secondary development learning, home wireless control and other occasions.
Power supply voltage: 5-80V or Micro-USB 5V
Module Model: ESP-12F
Programmable indicator: IO16 pin control
Output power supply port: 60V or less supply voltage
Output load port: power supply for load circuit
Color:
Material: PCB
Variations in printed text may occur between batches but do not affect usability; actual product color may differ due to lighting or display settings.

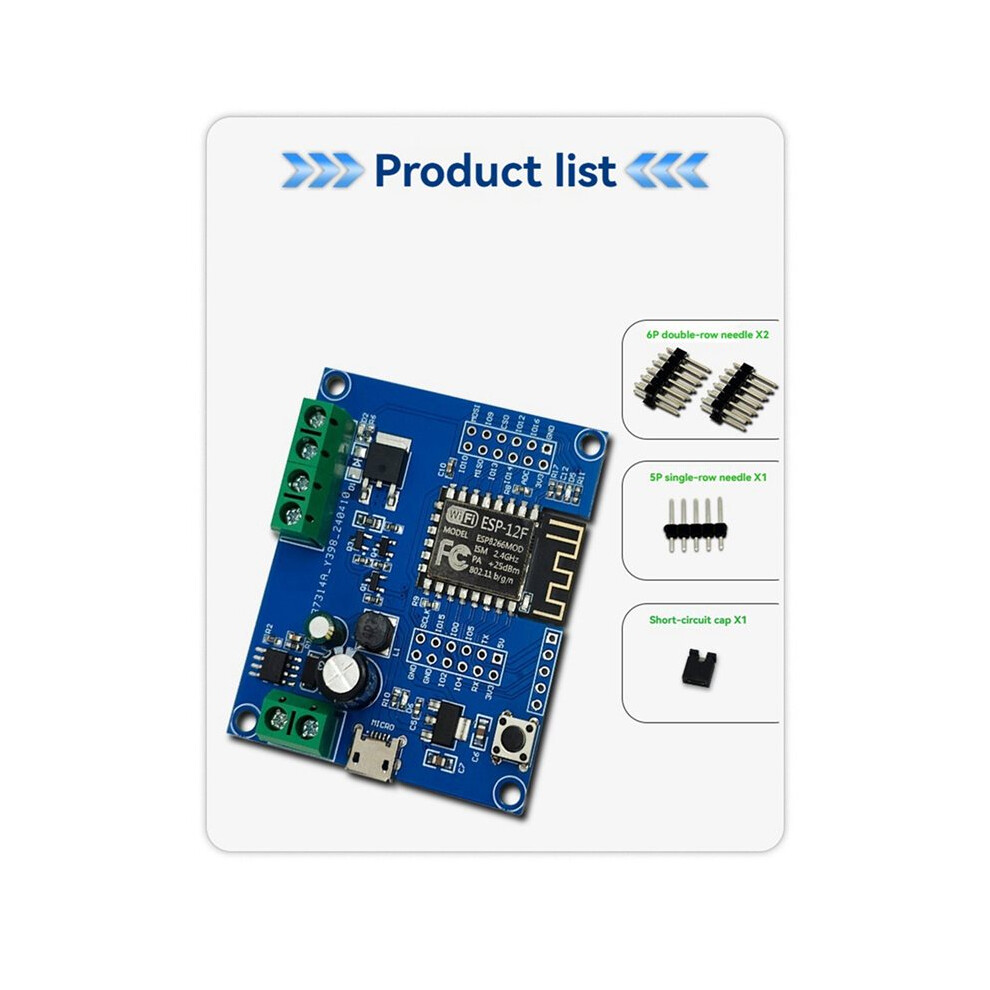

Package Contents:

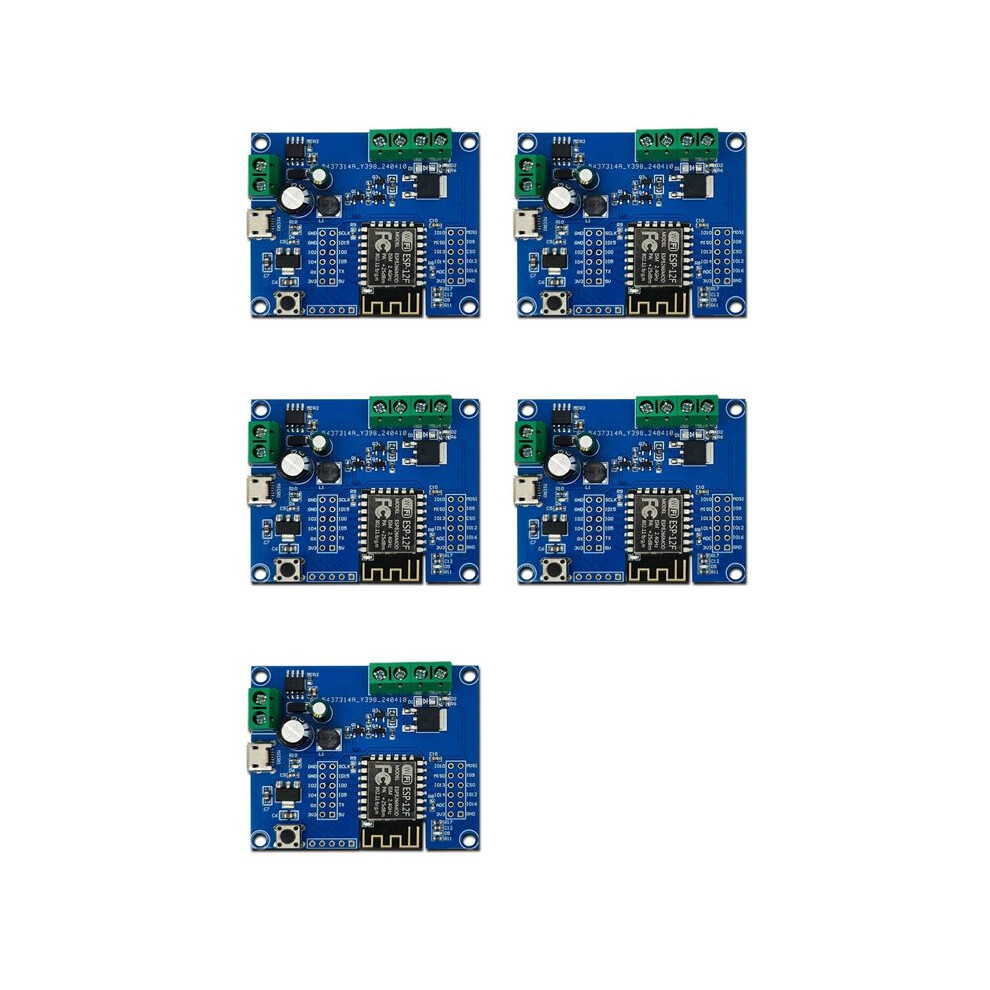

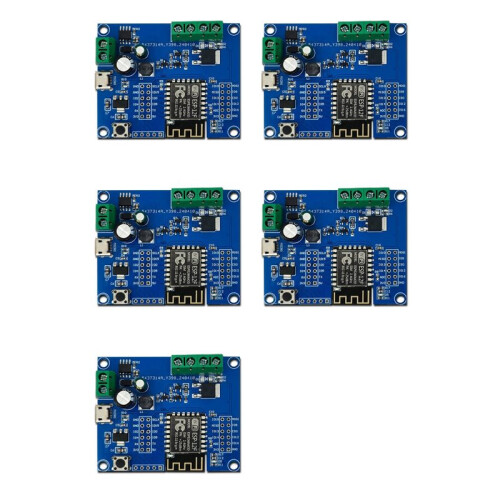

5 x MOS module
15 x pin headers
5 x shorting cap
