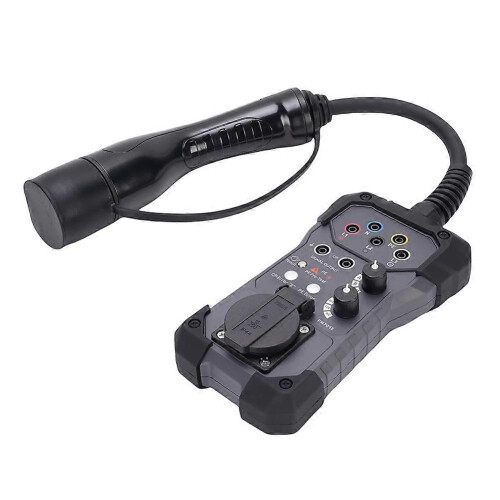

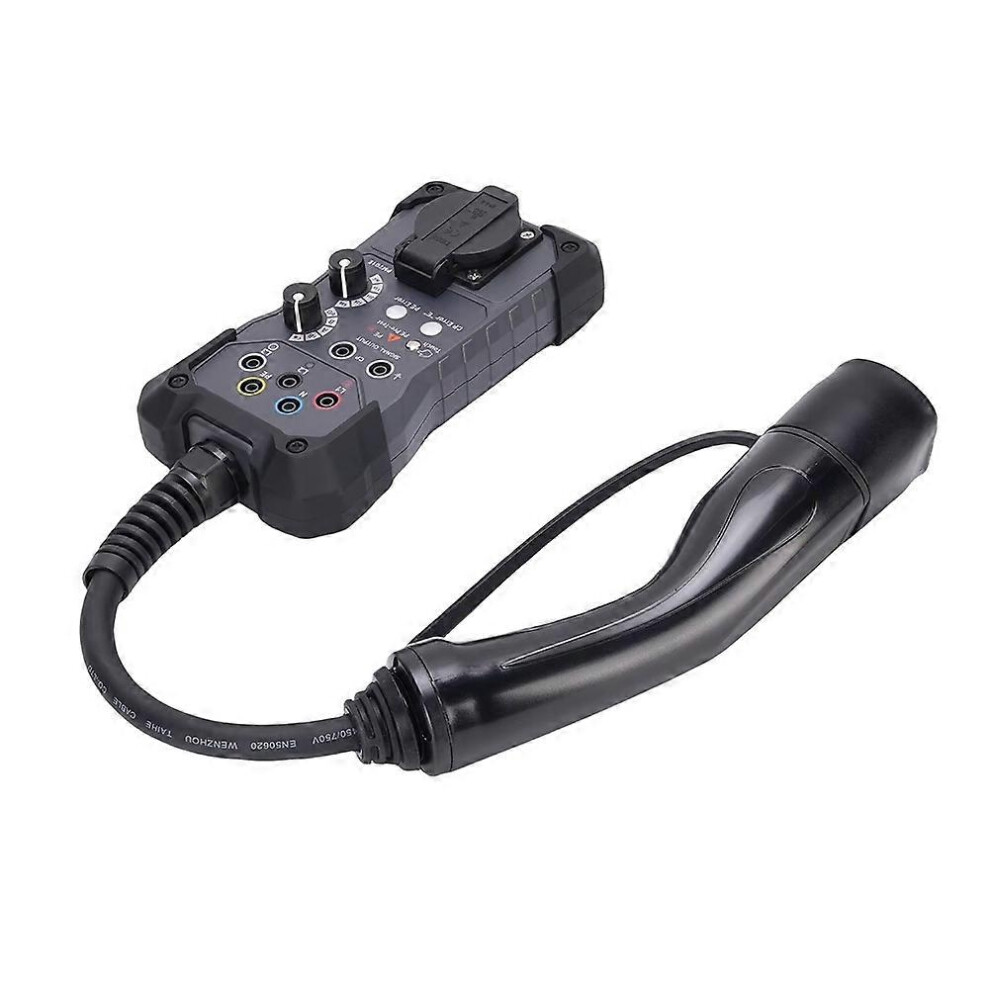

63A EVSE Tester Adapter for EV Charging Station, Multimeter & Oscilloscope

63A EVSE Tester Adapter for EV Charging Station, Multimeter & Oscilloscope Beschrijving

EVSE Tester Kit: Simulate the presence of electric vehicles and equipped with European standard Type 2 plug for easy testing of European standard AC electric vehicle charging stations

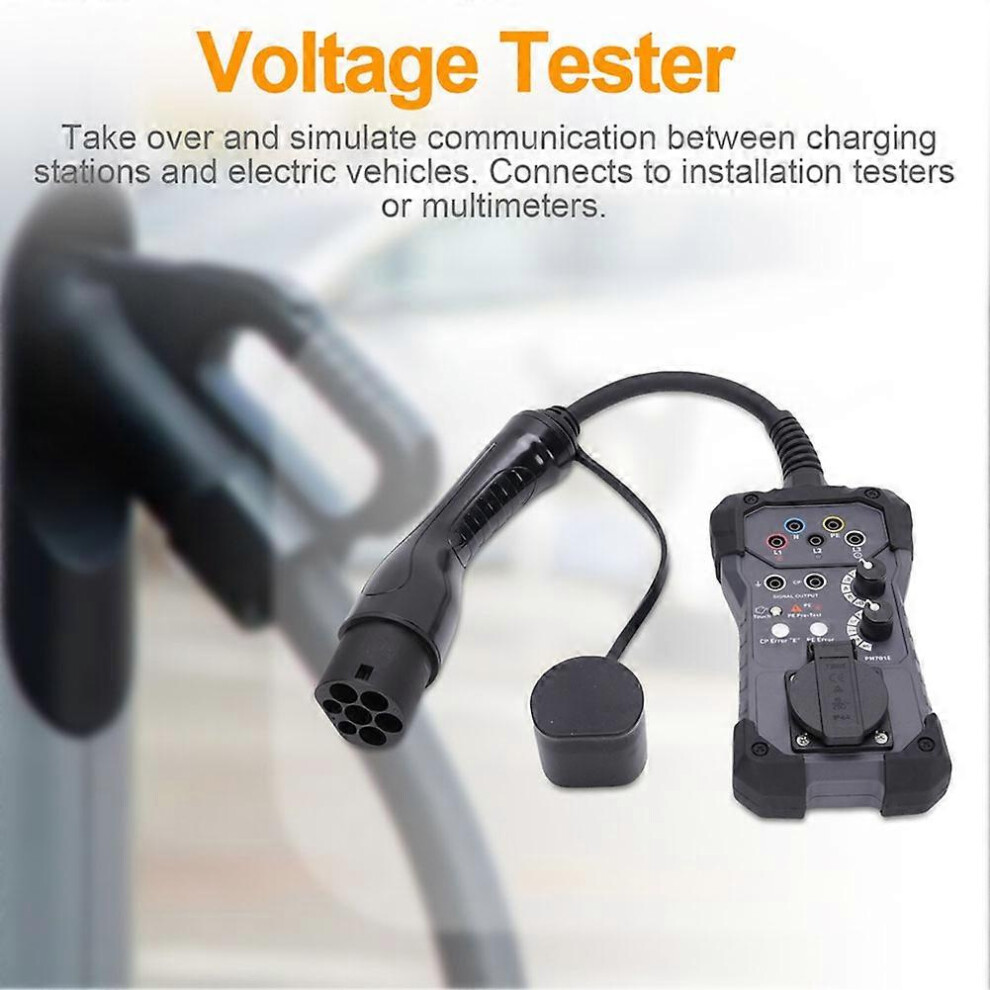

Voltage Tester: Take over and simulate communication between charging stations and electric vehicles. Connects to installation testers or multimeters
Universal 4mm Socket: Compatible with testers, multimeters, and oscilloscopes for checking load voltage and CP signal output

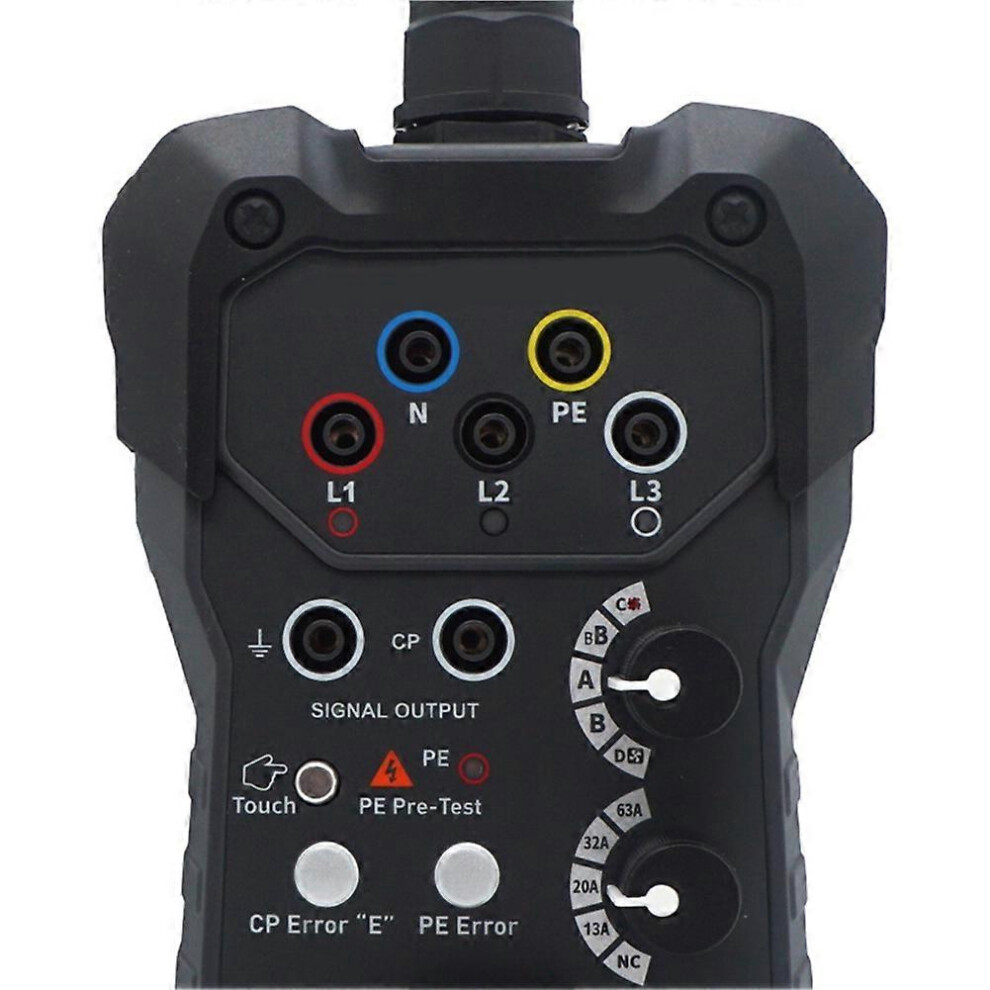

LED Indicator: Built-in LED lights indicate the presence of phases. Each phase can be individually checked
Rotating Switches: PP switch simulates different charging cables - Open, 13A, 20A, 32A, 63A. CP switch helps simulate common vehicle states - A, B, C, D
Item Type: Electric Vehicle Charging Station Test Adapter
Frequency: 50/60Hz
Current: 10A
Type 2 Testing Cable: AC Charging Mode 3, suitable for IEC62196-2 Type 2 socket or fixed cable with vehicle connector (Type 2, 7 pole, three-phase)
Measurement Category: IEC/EN 61851-1/IEC/HD, 60364-7-722, 600VCATII
Protection Grade: IP54
(The product printed words may vary depending on the batch, but this does not affect use)
Color: As Shown
Material: plastic
Package Contents:
1 * 63A EVSE Tester Adapter
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
