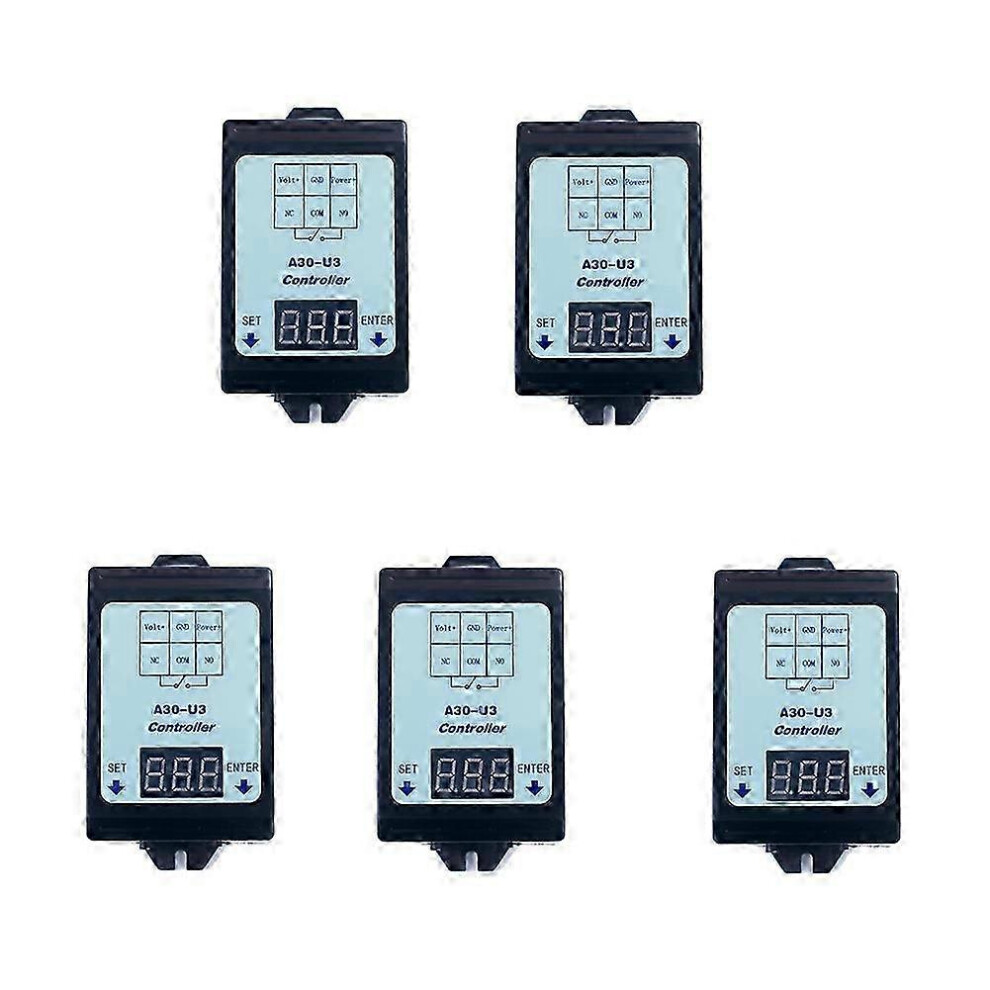

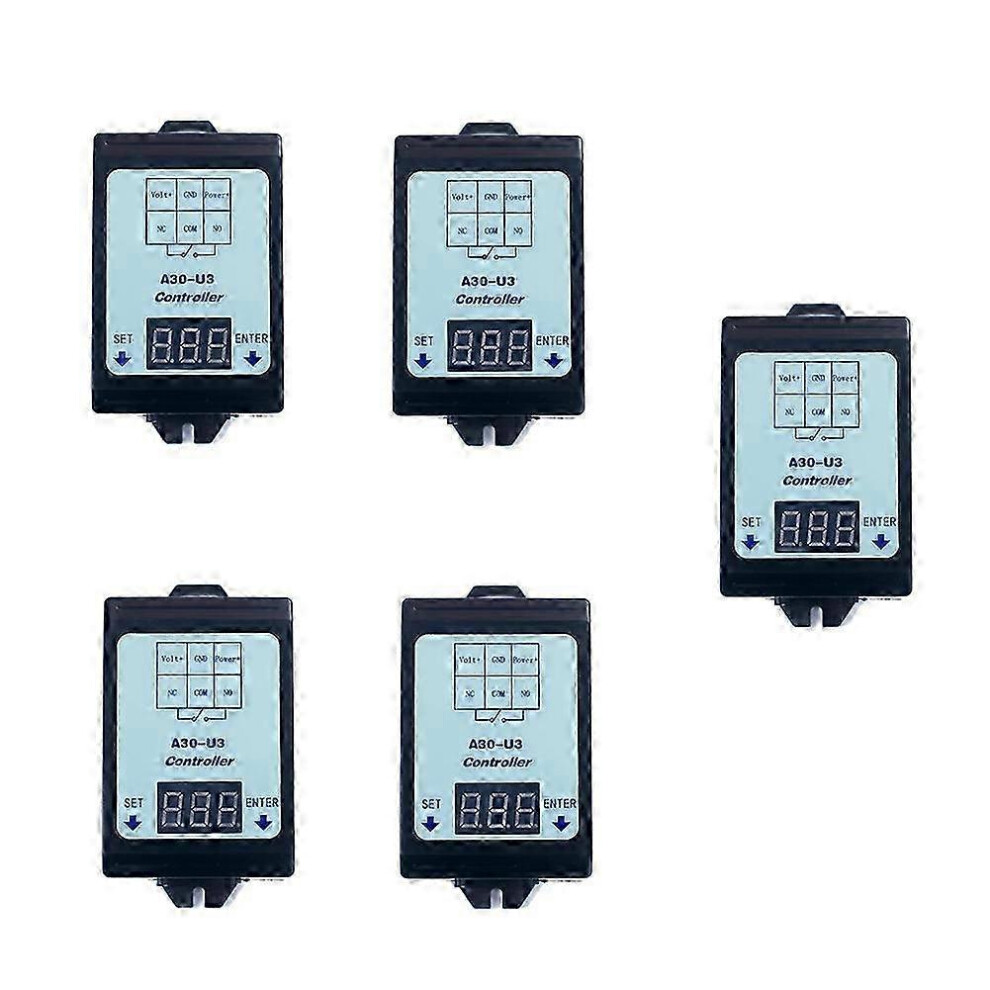

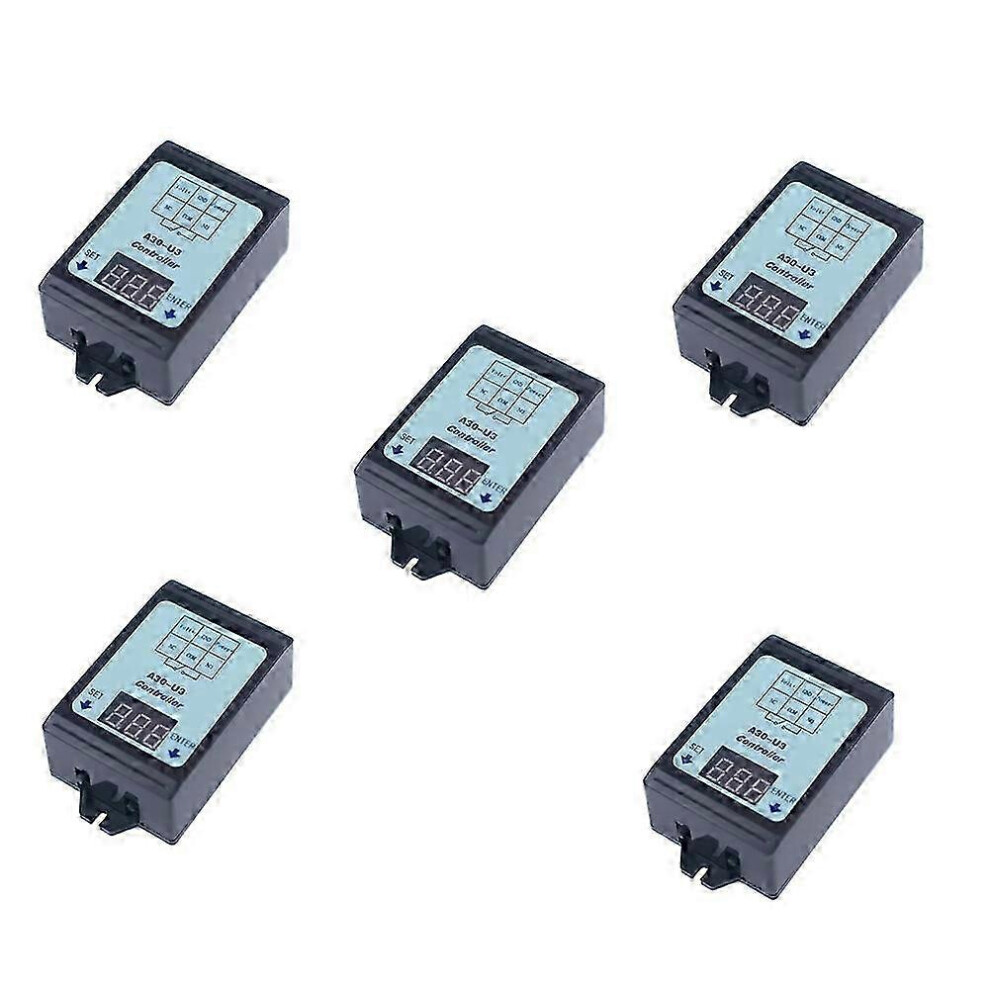

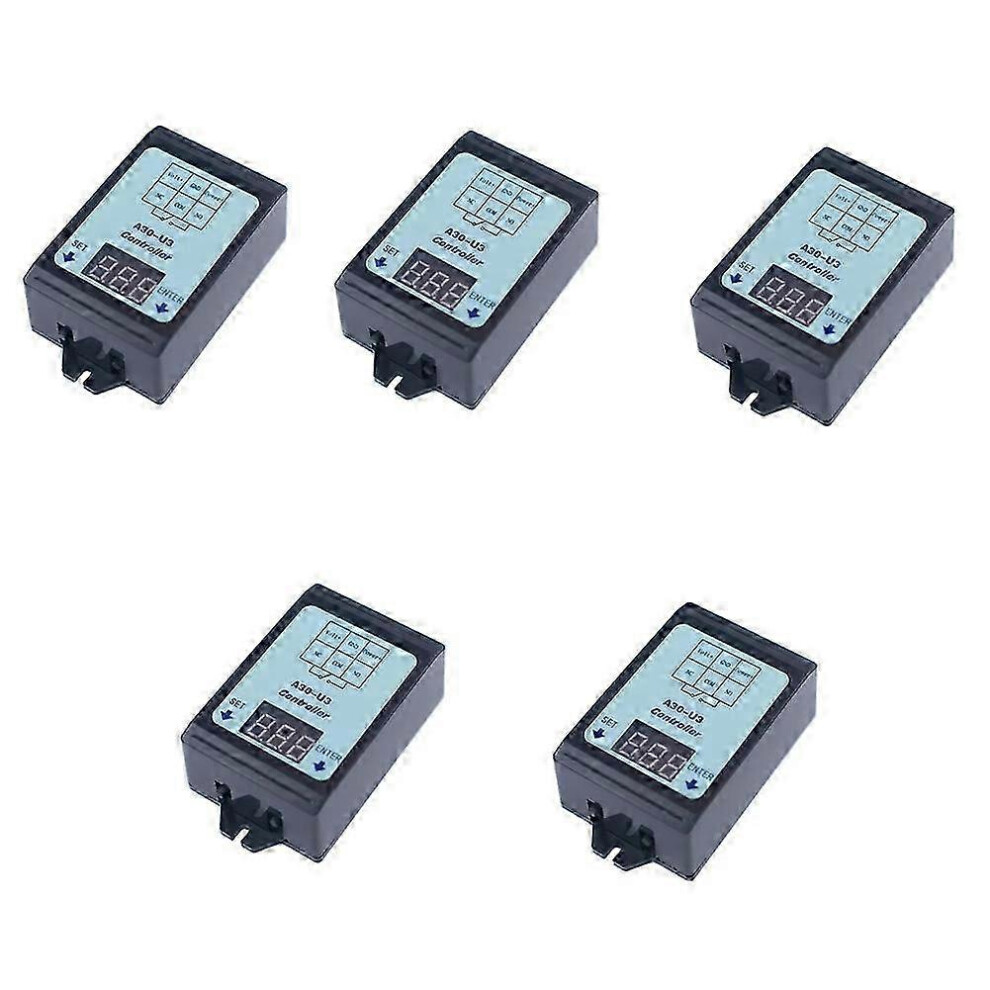

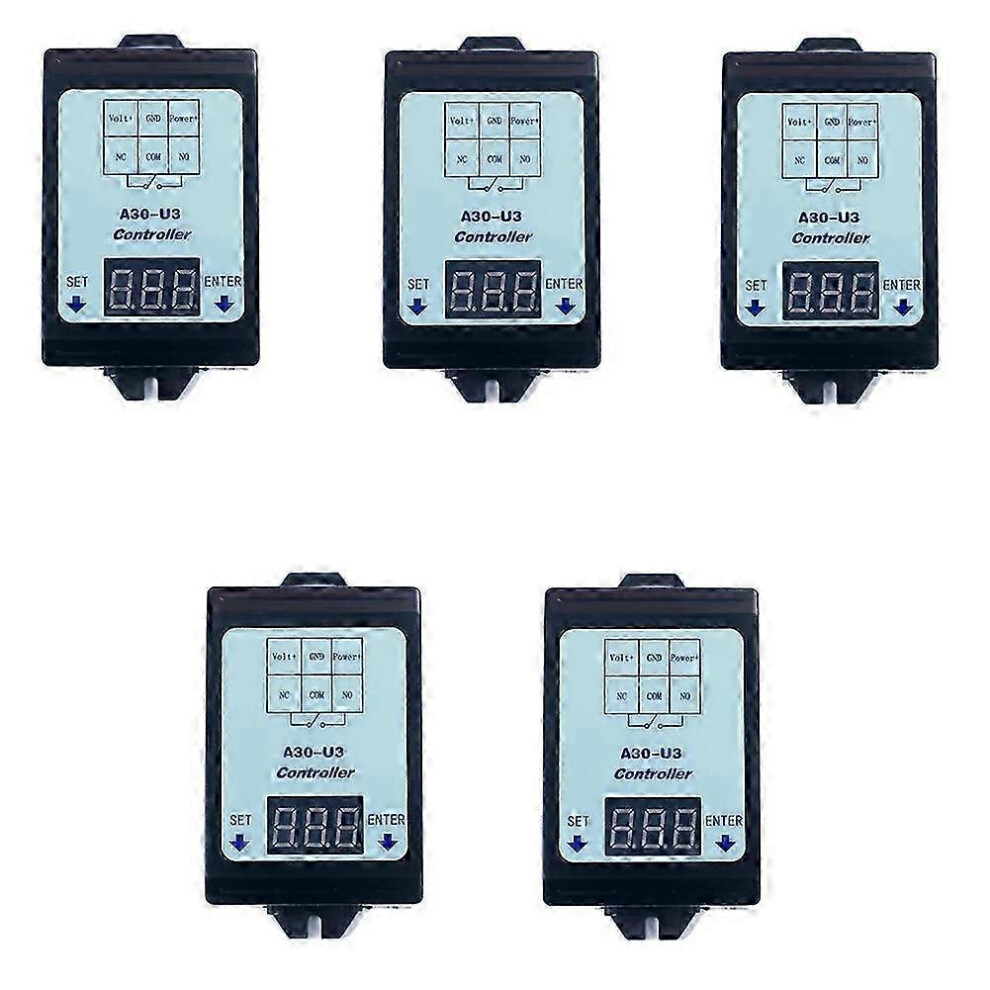

A30-U3 DC Voltage Relay 6-80V48V60V 30A Detection Control Delay Interval Action Switch Part

A30-U3 DC Voltage Relay 6-80V48V60V 30A Detection Control Delay Interval Action Switch Part Beschrijving

High-concerned chemical: None - This product is free from high-concern chemicals, ensuring a and more environmentally friendly option for your electrical DIY projects.
: - Proudly manufactured in , this DC voltage relay boasts robust construction and adherence to stringent local manufacturing standards.
Certification: None - While this product does not hold specific certifications, it is built to meet the required standards for electrical , ensuring reliability and performance.
: Electrical - Perfect for enthusiasts and professionals alike, this voltage relay is an essential component for electrical applications, offering versatility and high performance.
Description/Features:
The A30-U3 voltage controller is designed for precise DC voltage detection and control, featuring a digital display and adjustable voltage limits from 0-99.9V. It includes a relay output with delay settings ranging from 0-999 seconds, making it ideal for applications such as voltage detection switches, battery overvoltage and undervoltage protection, and charge/discharge controllers.
Specifications:
Voltage detection sensitivity: Adjustable (0.1sec - 0.9sec sampling time)
Relay output delay: Adjustable (0-999 seconds)
Voltage detection range: 0~99.9V with an error of 0.1V
Working power supply: DC 6~80V, suitable for 12V/24V/36V/48V/60V batteries
Relay contact load: Normally open 30A/250VAC, 30A/30VDC; Normally closed 20A/250VAC, 20A/30VDC
Mechanical durability: >10 million operations; Electrical durability: >100,000 operations (20A-250VAC)
Working environment temperature: -40~+85
Standby current: 4mA/24V (minimum); Relay active current: 58mA/24V
Dimensions: 78*53*30mm; Mounting hole spacing: 85mm
Note: It is not suitable for output voltages above 80V or for direct connection to PWM or MPPT solar chargers for DC48V batteries and above, as these may produce pulse voltages above 80V.
