AA81-LIN Bus Analysis Controller USB To LIN Debugger LIN Bus Analyzer(1PCS)

AA81-LIN Bus Analysis Controller USB To LIN Debugger LIN Bus Analyzer(1PCS) Beschrijving

AA81-LIN Bus Analysis Controller USB To LIN Debugger LIN Bus Analyzer(1PCS)

_x000D_

_x000D_

AA81-LIN Bus Analysis Controller USB To LIN Debugger LIN Bus Analyzer(1PCS)_x000D_

_x000D_

_x000D_

_x000D_

1. Support the host to send and receive LIN bus data._x000D_

2. Support the slave to send and receive LIN bus data (up to 16 channels supported)._x000D_

3. Support LIN bus data monitoring function._x000D_

4. Support LIN bus data playback._x000D_

5. Supports offline sending function. You can burn messages (up to 16) through the host computer without using a computer. After connecting to the power bank Compatible with power, you can send LIN messages._x000D_

_x000D_

LIN baud rate range: 4800 to 20000bps, 19200bps is commonly used._x000D_

12V output, current up to 0.5A._x000D_

LIN protocol supports LIN 1.X, LIN 2.X._x000D_

Supports secondary development of the host computer. Secondary development requirements can be quickly completed by writing serial communication according to the serial communication protocol._x000D_

Note:_x000D_

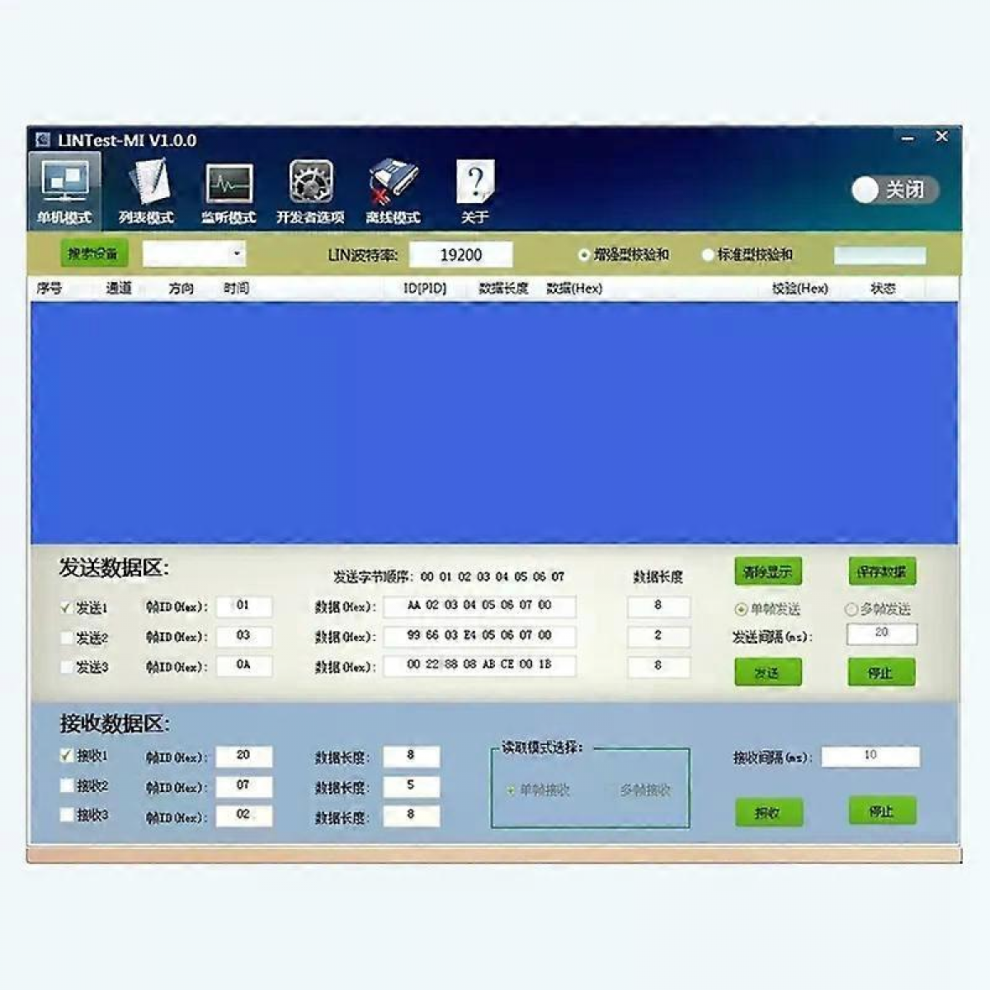

LINTest-MI does not support mobile APP control, does not support LDF files, and does not support baud rate identification. It is a low-end MINI version of LINTest-M and is mostly used in auto repair and LIN communication offline control fields that require high cost perCompatible withmance._x000D_

Due to different product batches, the appearance may vary, which does not affect the use._x000D_

Colour:As Shown_x000D_

Material:Plastic_x000D_

_x000D_

Package Contents:_x000D_

1 * LIN bus analysis controller_x000D_

_x000D_

Only the above package content, other products are not included._x000D_

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm._x000D_
