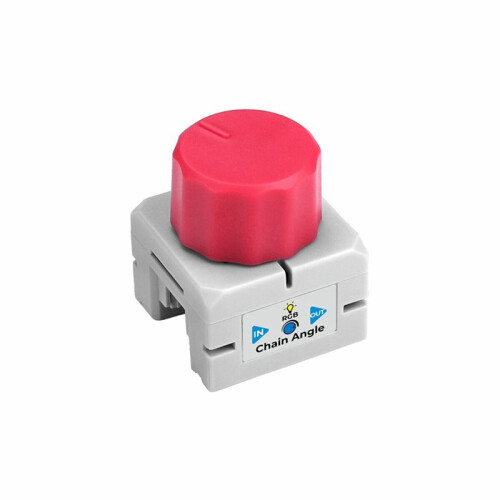

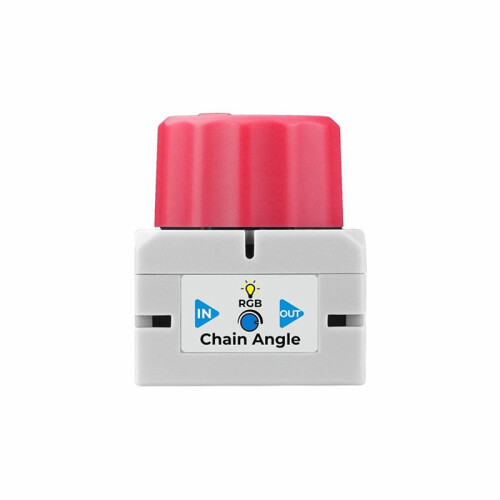

Chain Angle Polypotentiometer Knob Input Node Module Expandable Interactive Module for M5Stack Chain Series Expand

Chain Angle Polypotentiometer Knob Input Node Module Expandable Interactive Module for M5Stack Chain Series Expand Beschrijving

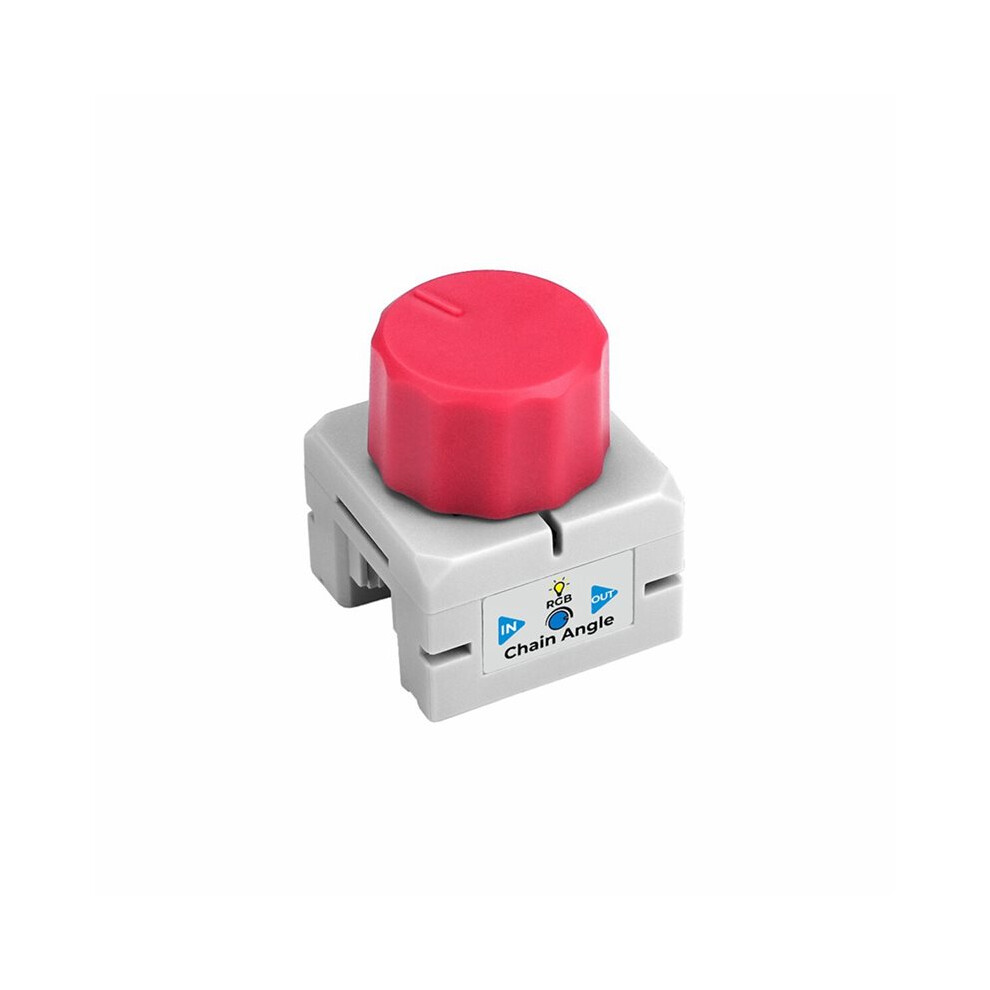

The Chain Angle features a built-in AB rotary encoder, supporting rotation direction detection and pulse counting, along with a center button for diverse input operations. It integrates a programmable RGB LED for customizable status indicators and interactive feedback, enhancing the user experience.

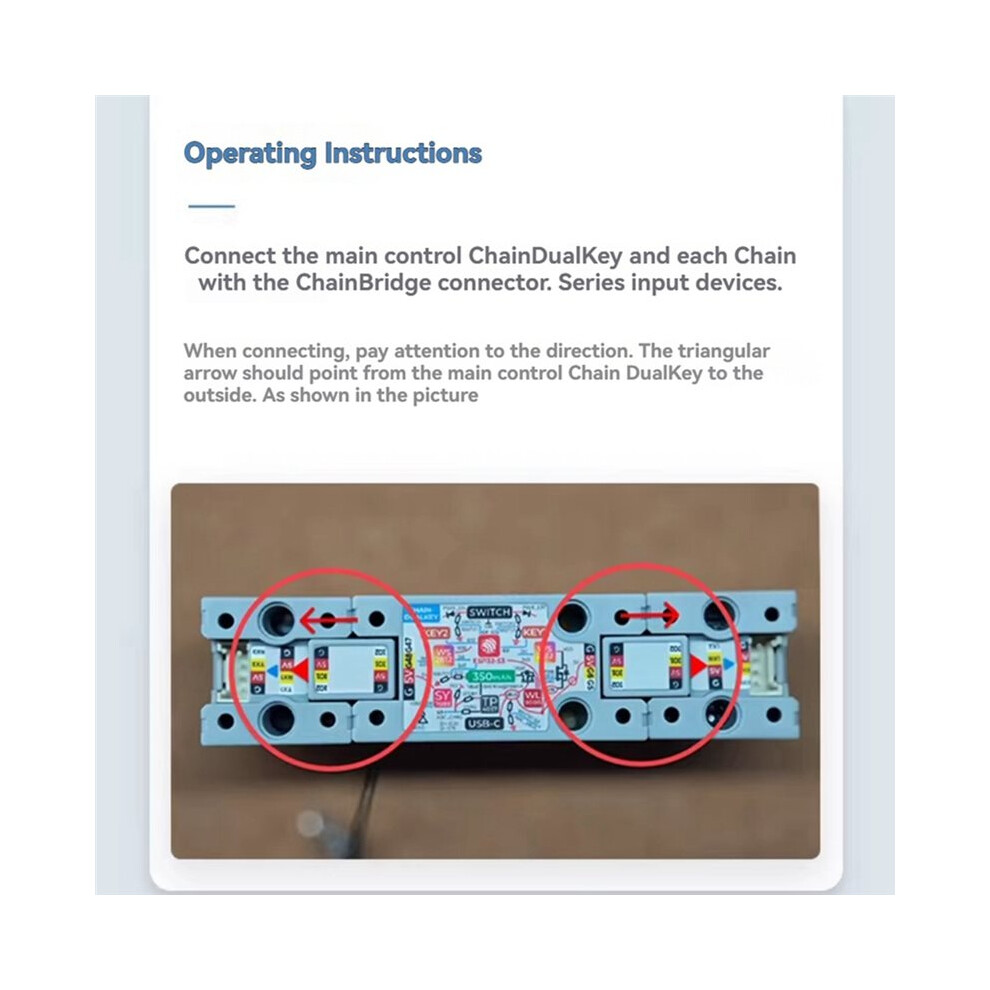

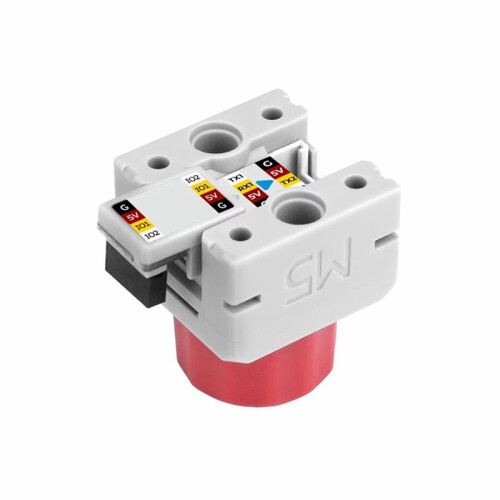

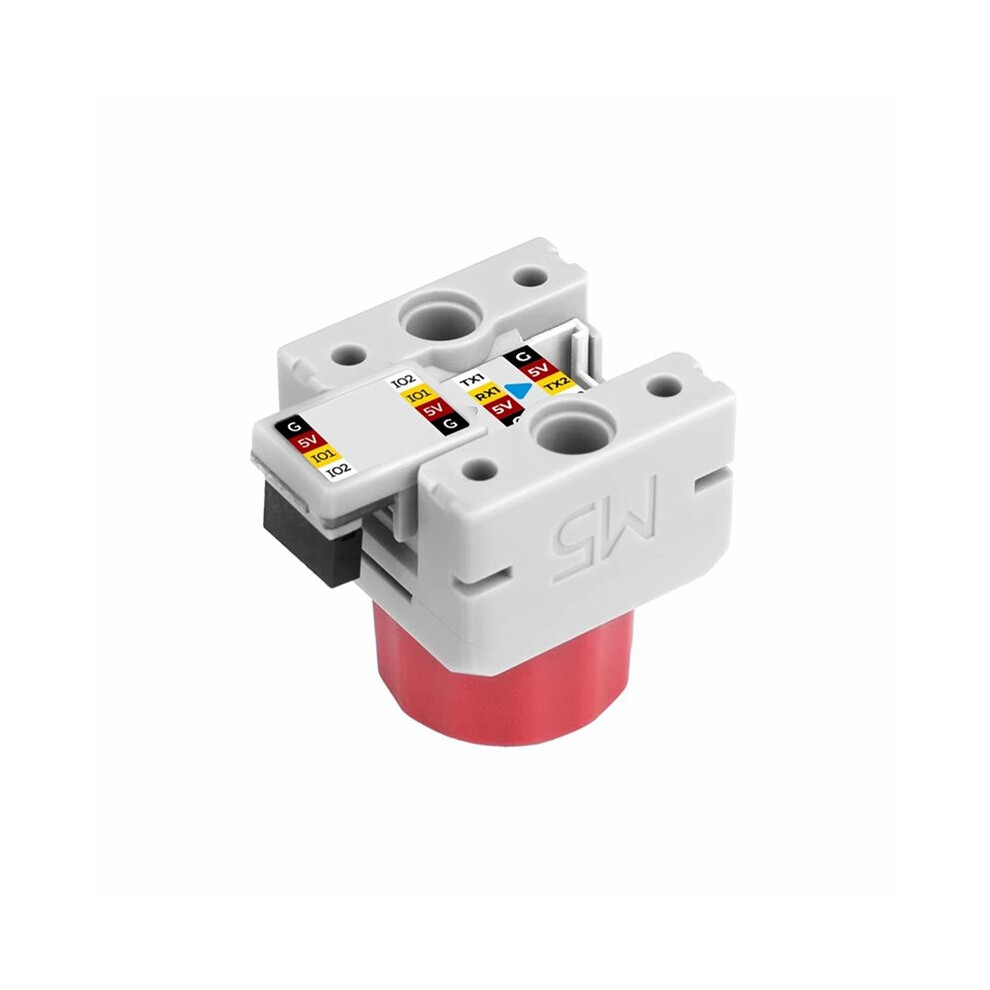

Equipped with two HY2.0-4P expansion interfaces, it can connect to the main Chain DualKey controller and other Chain series devices via Chain Bridge to build an interconnected system.
Compatible with for -compatible brick structures, supporting physical assembly and adapting to diverse installation and combination scenarios.
Employing an STM32G031GBU6 core controller, it achieves stable data communication via UART serial port (115200bps@8N1). RGB startup power consumption is as low as 21.13mA, suitable for deployment requirements.
Suitable for home control scenarios, enabling functions such as knob adjustment and button operation. Adaptable to human-computer interaction and home control scenarios, meeting diverse needs for interaction and intelligent control.
Specifications:
MCU: STM32G031G8U6
Input power: 5V
Communication method: UART 115200bps@8N1

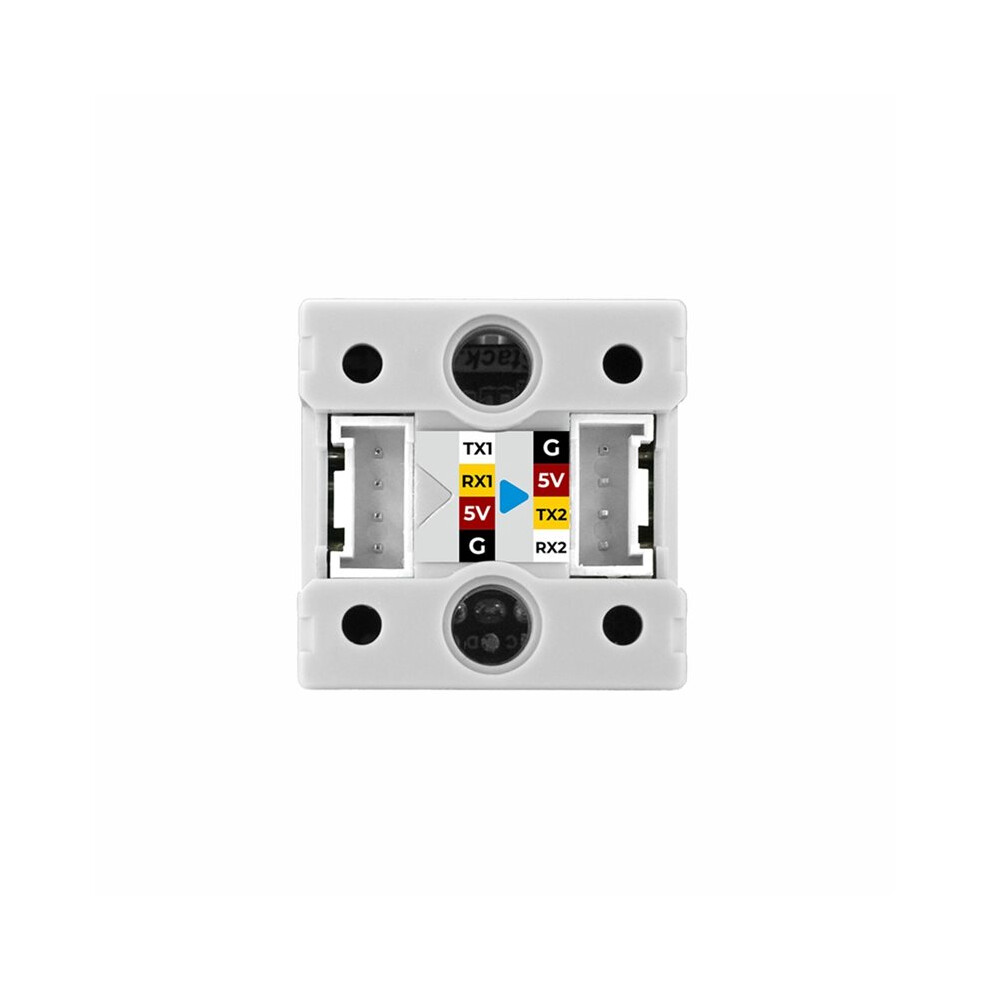

Interface specifications: 2x HY2.0-4P

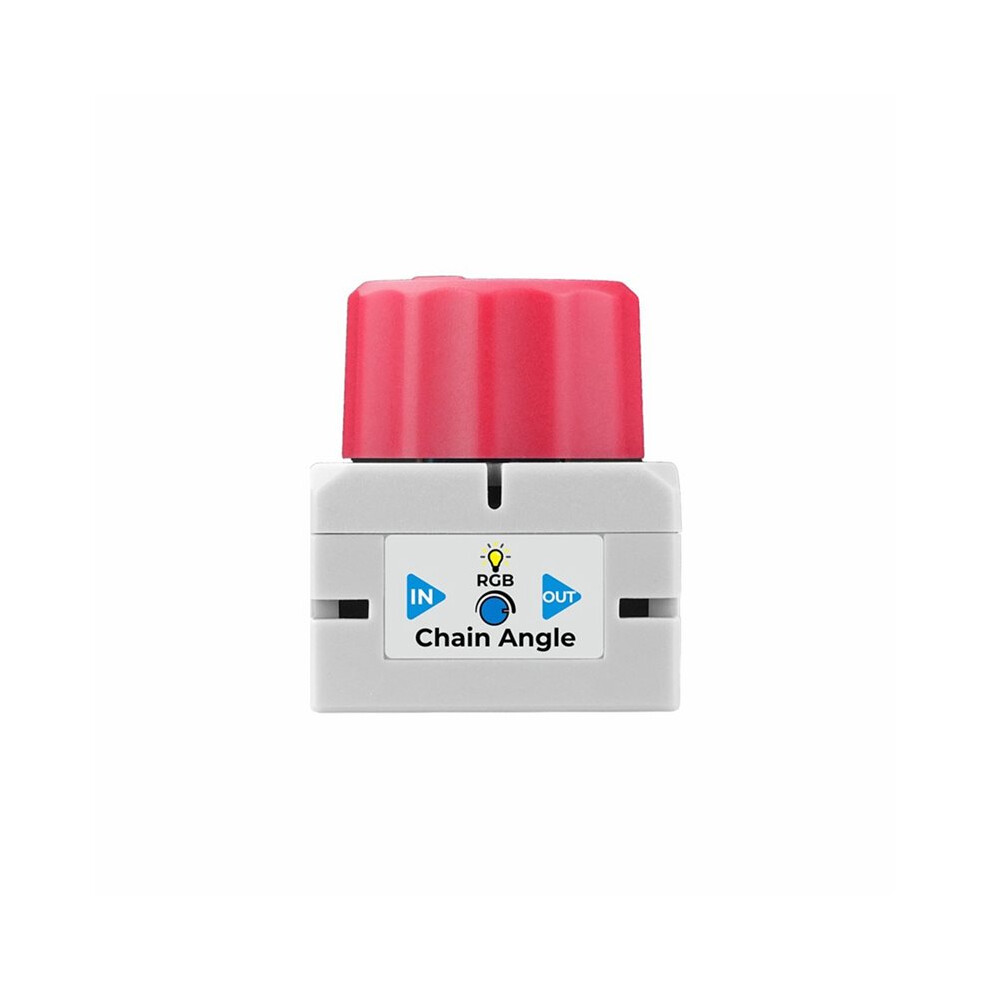

RGB LED: 1x WS2812C
RGB power consumption: 21.13mA
Rotation angle: 28010
Operating temperature: 0~40C
Color: As Shown
Material: Plastic

Package Contents:
1 * Chain Angle
