D3542 1000KV Brushless Motor RC Fixed Wing Aircraft Replacement

D3542 1000KV Brushless Motor RC Fixed Wing Aircraft Replacement Beschrijving

Features
1、Strong thrust, more powerful than other ordinary brushless motors, high working efficiency.
2、Stable and fluent operation and low noise. Adopts high quality metal, firm and sturdy, durable for use.
3、Easy to replace, wonderful replacement for the old or damaged one, easy to install, bring you convenience.
4、Good performance, multiple KV value of motor are optional, you can choose according to needs.
5、Suitable for RC fixed‑wing aircraft. Equipped with motor base, adapter and screws for easy installation.
Specification
Condition: 100% New
Item Type: RC Airplane Motor
Material: Metal
Color: Orange + Silver
Motor Size: Approx. 35 x 42mm / 1.4 x 1.7in
Shaft Diameter: Approx. 5mm / 0.2in
Operating Temperature Range: -0~+80
Motor Type: Outer rotor brushless motor, three-phase motor
Quantity: 1pc
Application: RC fixed-wing aircraft
How to Use: Use ESC to adjust the PWM signal for control, the PWM adjustment range is 900-2100US
Optional KV Value:

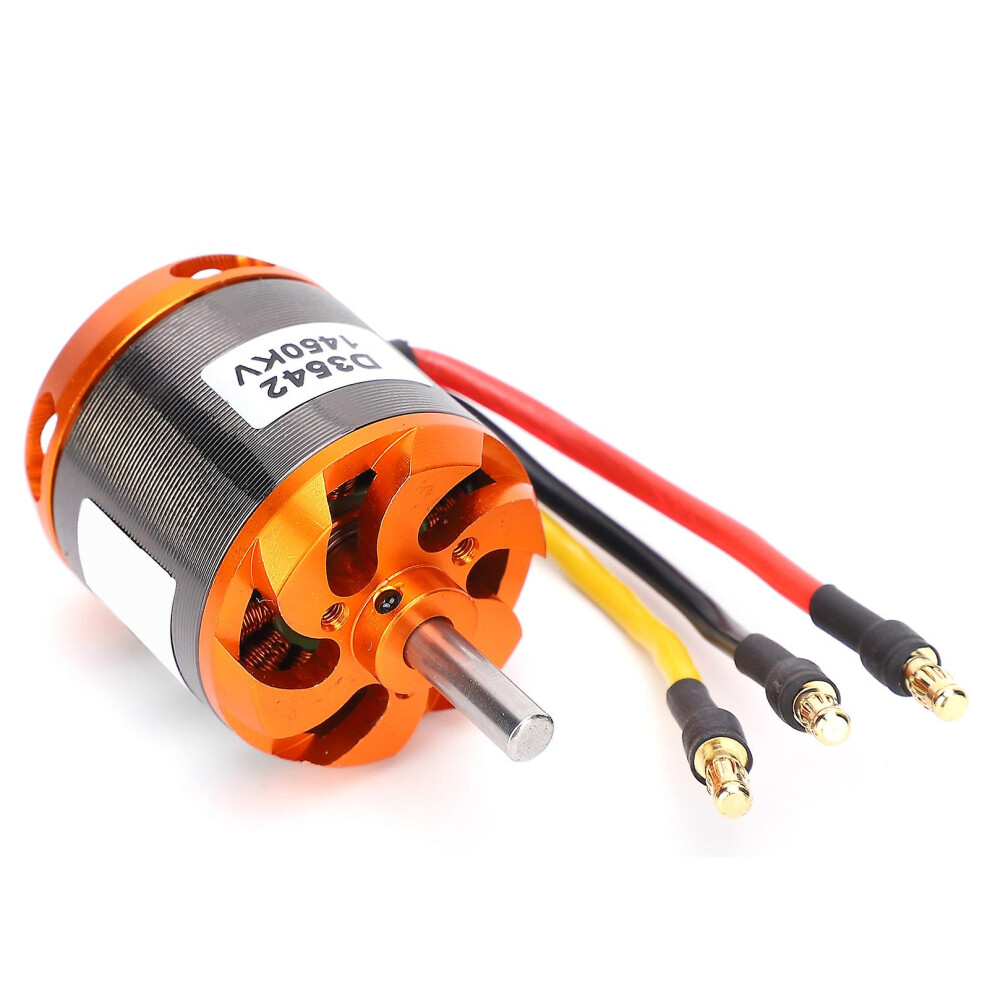

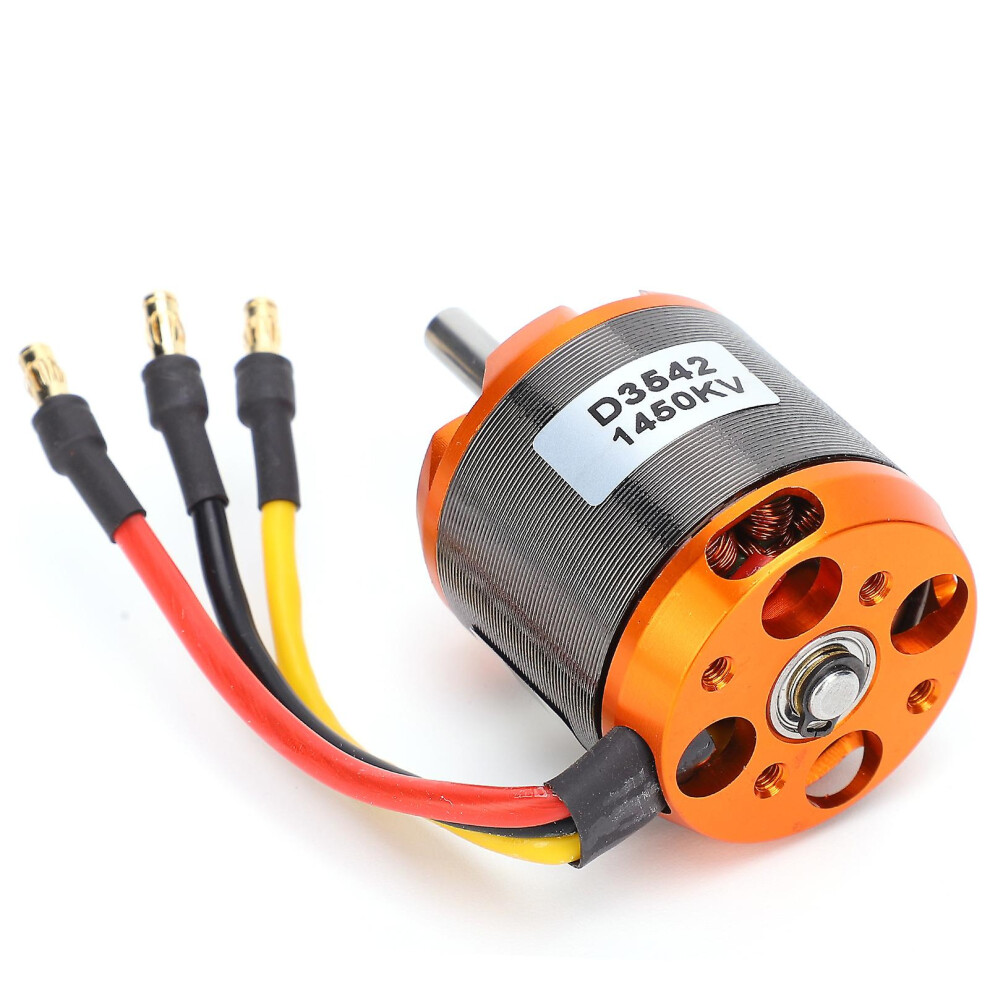

D3542-4-1450KV Motor:
Maximum Pulling Force: 1420g
Voltage: DC7.4~15.0V
Suggested ESC: 40A~70A
Maximum Power: 690W
Suggested Blade: 12 Inches
D3542-5-1250KV Motor:
Maximum Pulling Force: 1350g
Voltage: DC7.4~15.0V
Suggested ESC: 40A~70A
Maximum Power: 690W
Suggested Blades: 8 Inches
D3542-6-1000KV Motor:
Maximum Pulling Force: 1260g
Voltage: DC7.4~15.0V
Suggested ESC: 40A~70A
Maximum Power: 543W
Suggested Blades: 10 Inches

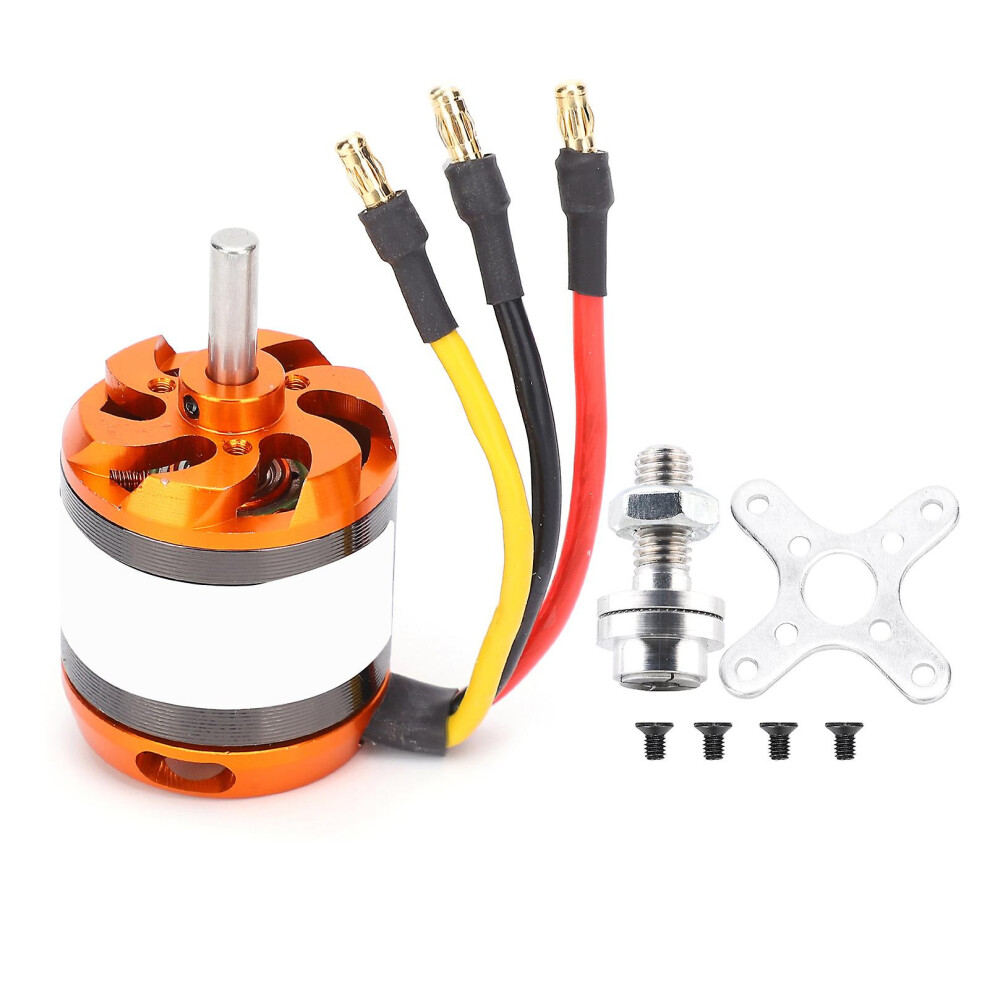

Package List
1 x Motor
1 x Motor Base
1 x Adapter
4 x Screw
