ESP32-S3 1.69-Inch IPS NO Touch LCD Display Development Board ST7789V2 SPI Display Module for Python

ESP32-S3 1.69-Inch IPS NO Touch LCD Display Development Board ST7789V2 SPI Display Module for Python Beschrijving

Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual core processor, with a clock speed of to 240 MHz
Supports 2.4 GHz Wi Fi (802.11 b/g/n) and 5 (LE), onboard antenna

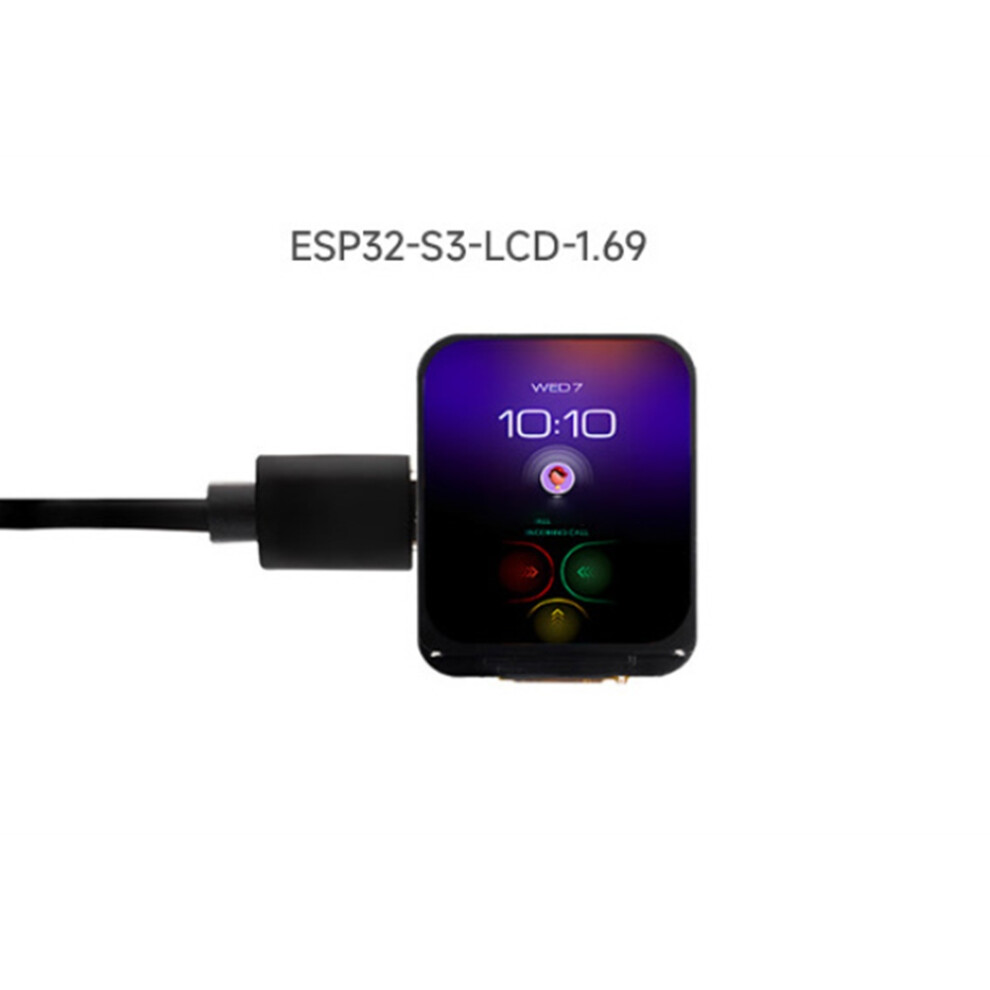

Onboard 1.69-inch LCD screen, 240x280 resolution, 262K color, capable of displaying color images clearly
Onboard QMI8658 six axis inertial measurement unit (3-axis acceleration, off-axis gyroscope), capable of detecting motion attitude, step counting, etc

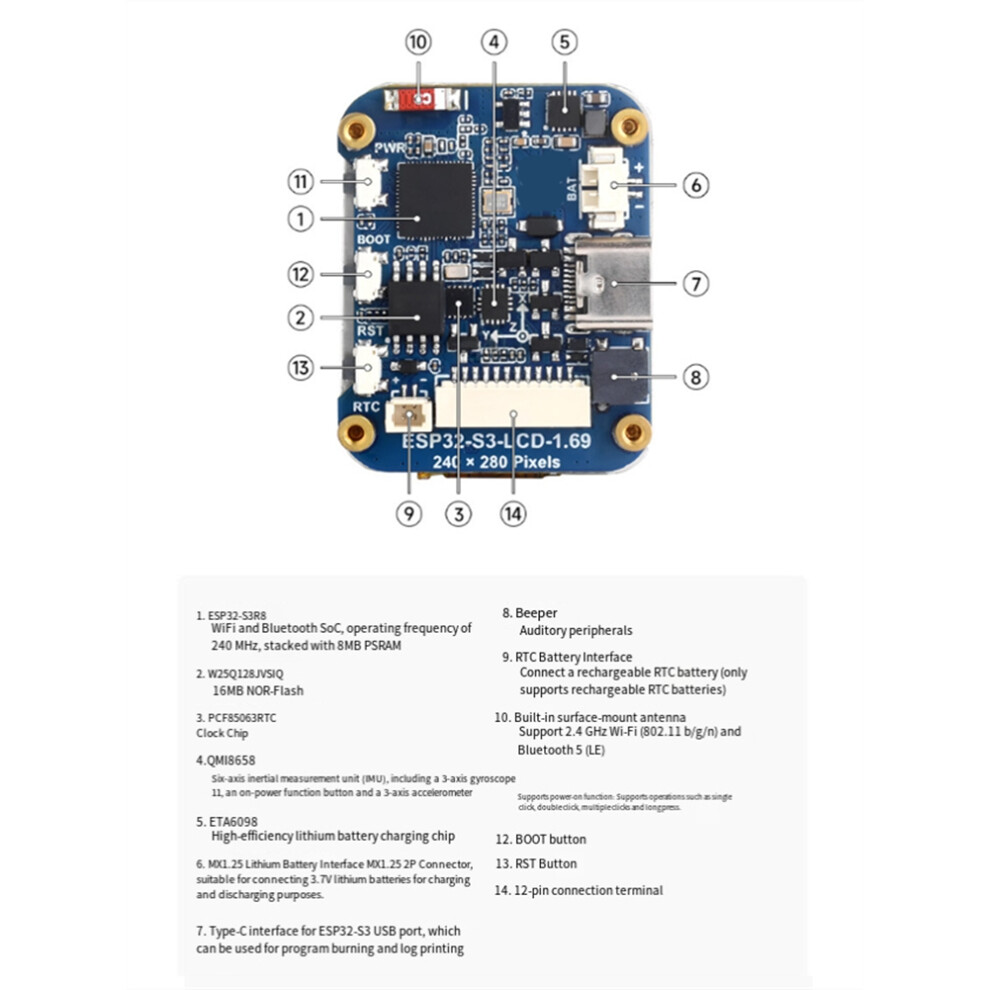

Display version features: 1. Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual core processor, with a clock speed of to 240 MHz 2. Supports 2.4 GHz Wi Fi (802.11 b/g/n) and 5 (LE), onboard antenna 3. Built in 512KB and 384KB ROM, stacked with 8MB PSRAM and external 16MB Flash 4. Onboard 1.69-inch LCD screen, 240x280 resolution, 262K color, capable of displaying color images clearly 5. Built in ST7789V2 driver chip, using SPI does not occupy too many interface pin resources 6. Onboard QMI8658 six axis inertial measurement unit (3-axis acceleration, off-axis gyroscope), capable of detecting motion attitude, step counting, etc 7. Onboard PCF85063 RTC chip, reserved SH1.0 battery slot (supports charging), can easily meet RTC function requirements 8. Onboard RST, BOOT, and a customizable side button for easy development of custom functions 9. Onboard 3.7V MX1.25 lithium battery charging and discharging interface 10. Introduce 5 GPIO, I2C, and UART pins for external devices and debugging, allowing for flexible configuration of peripheral functions 11. Supports precise control such as flexible clock and separate module power settings, achieving low-power mode in multiple scenarios
Color: & Black
Material: PCB

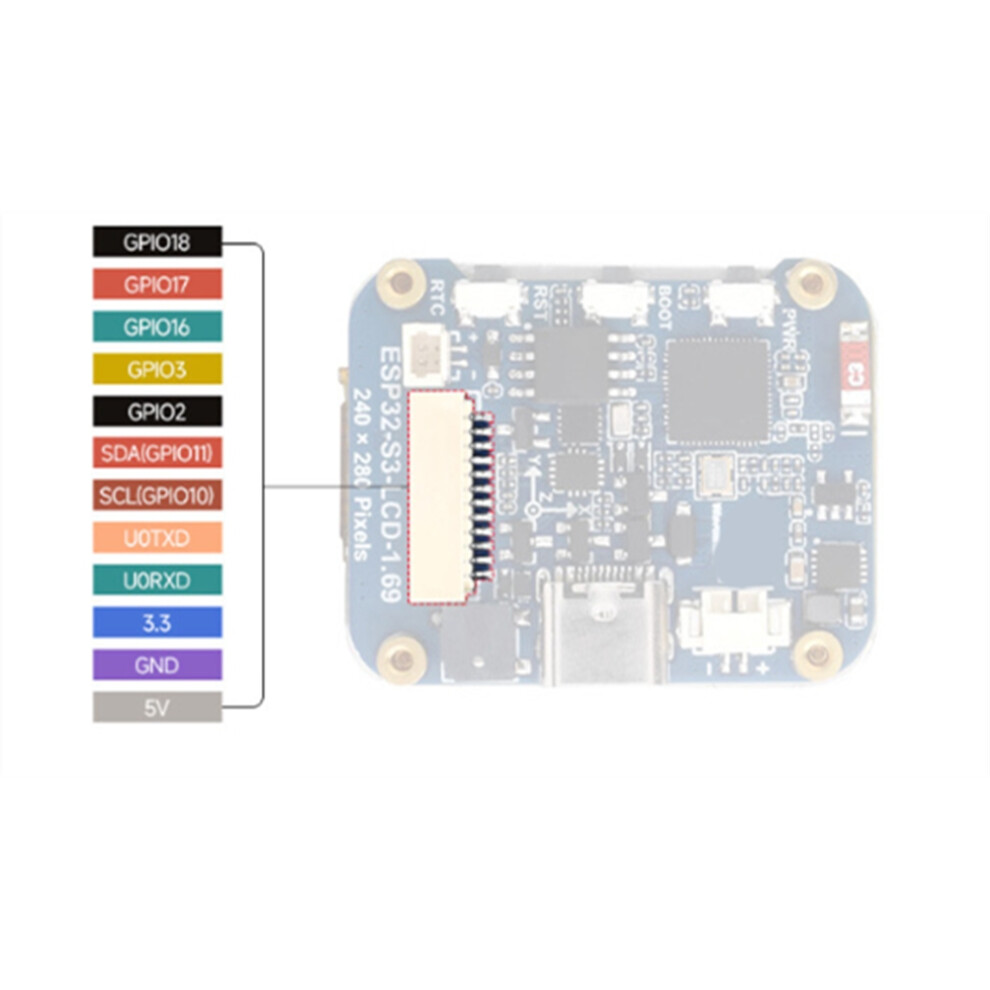

Package Contents:

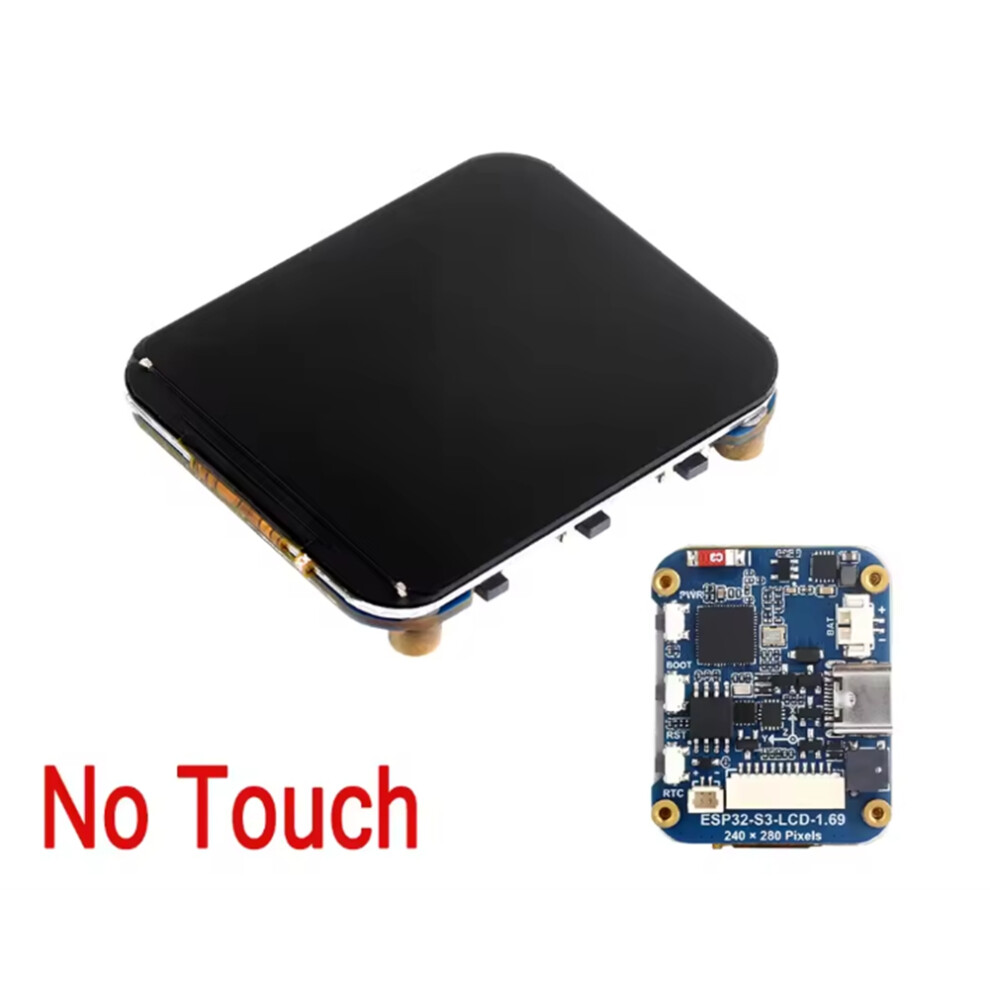

1 * ESP32-S3-LCD-1.69 Touchless Version
