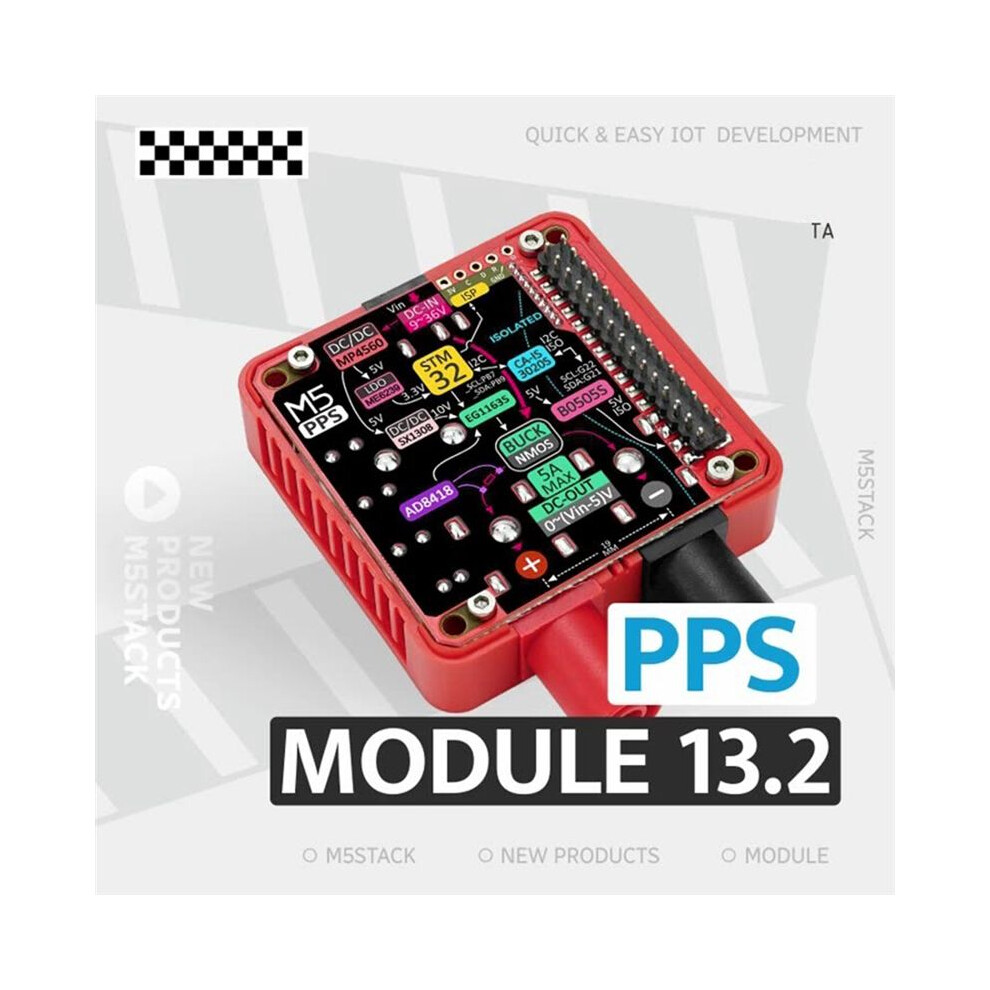

For M5Stack PPS Module 13.2 Programmable Power Supply Module for Core/Core2/CoreS3 Series Hosts

For M5Stack PPS Module 13.2 Programmable Power Supply Module for Core/Core2/CoreS3 Series Hosts Beschrijving

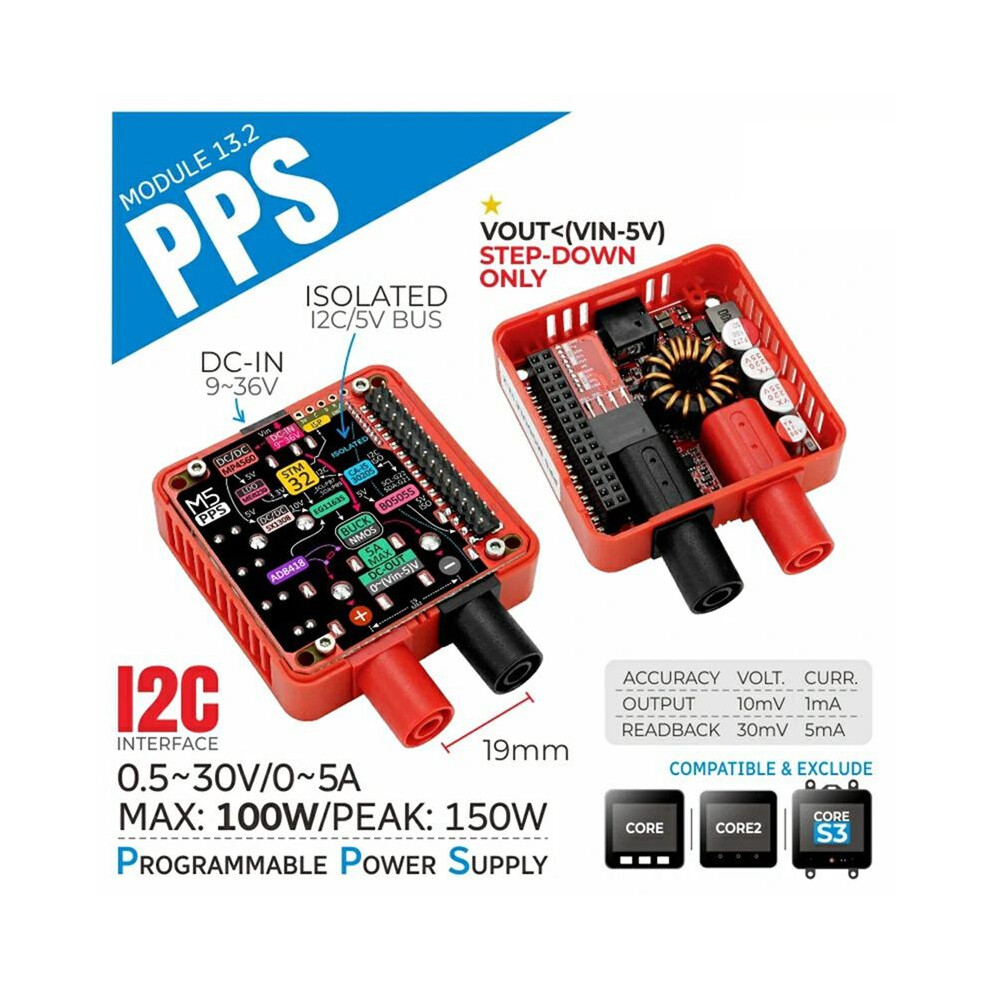

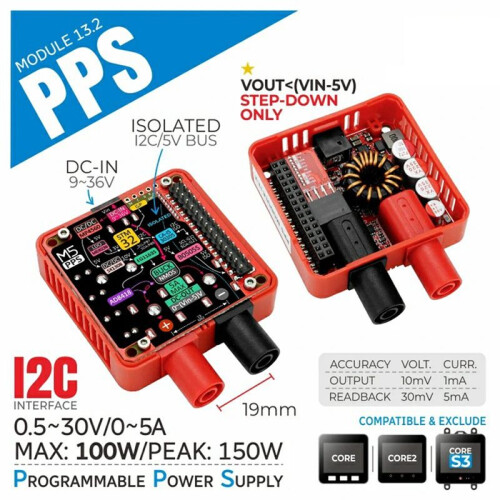

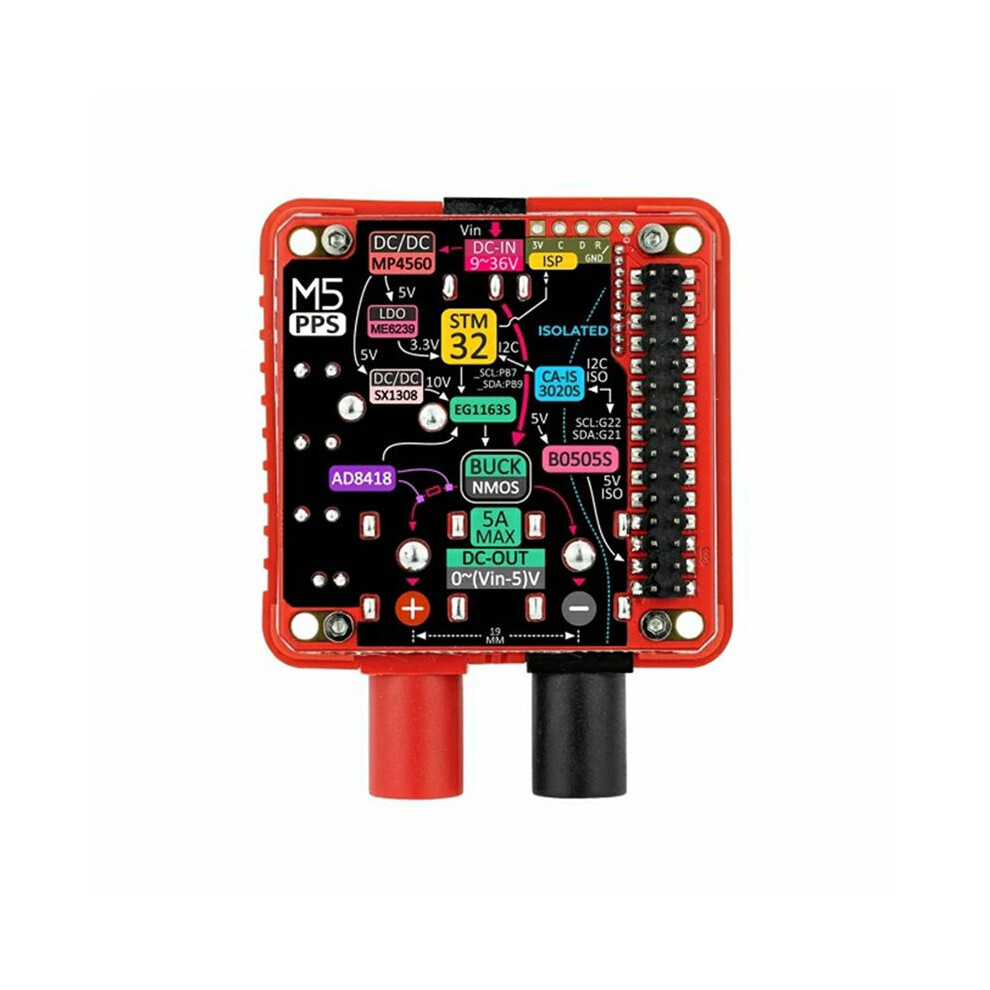

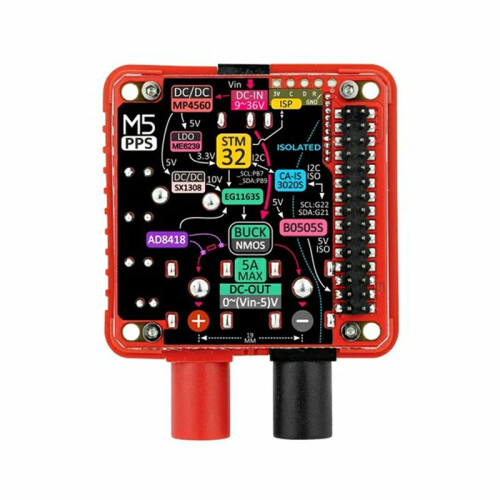

PPS Module 13.2 is a programmable power module. The module adopts STEP-DOWN step-down technology, supports 9-36V wide voltage input, built-in STM32 control processor and AD8418 high-resolution current amplifier, and achieves current and voltage output with rated output power of 100W ( 150W) through high-precision closed-loop control.

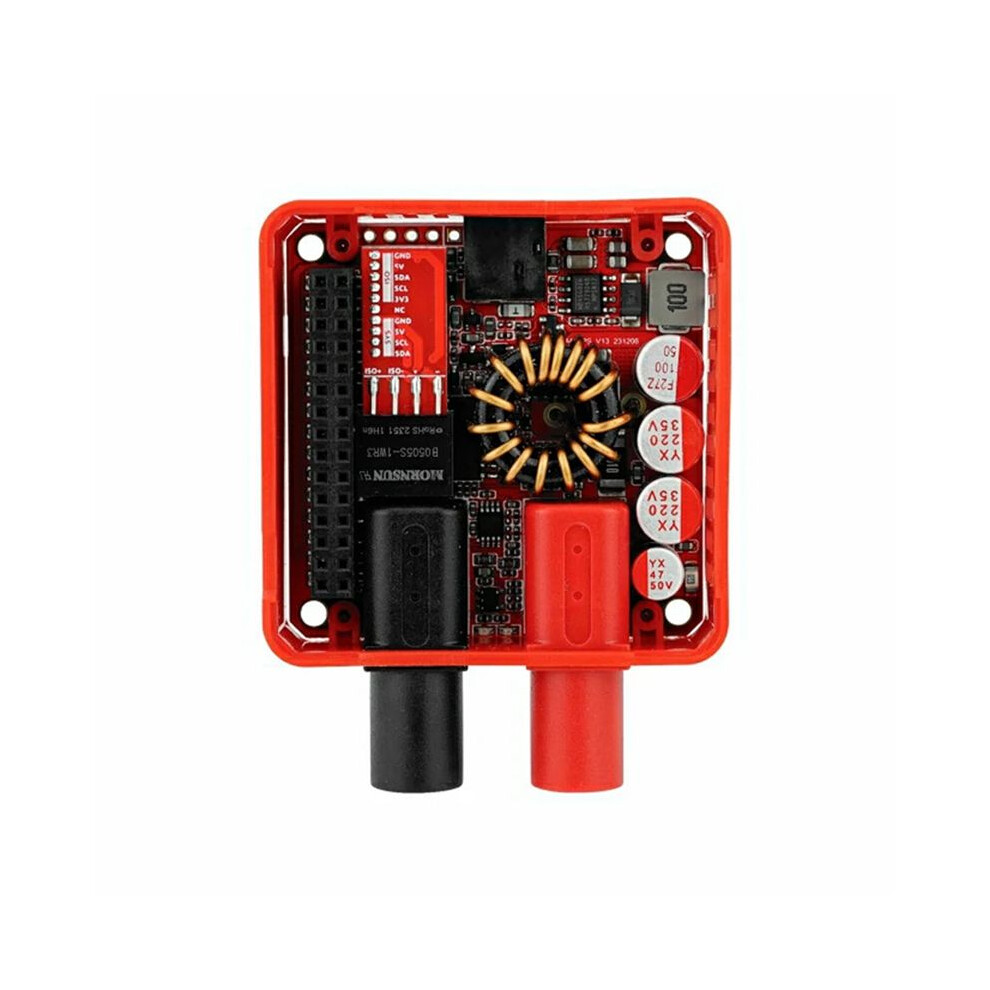

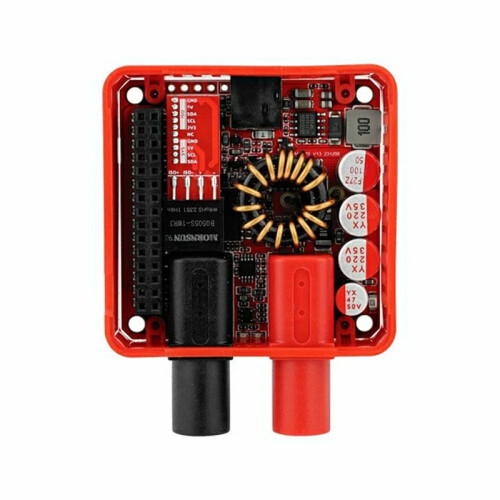

It can output 0.5~30V/0~5A, and the readback accuracy is or minus 30mV/5mA. In addition, the isolation chips CA-IS3020S and B0505S-1WR3 integrated the module provide electrical isolation of power supply and communication bus for the circuit.

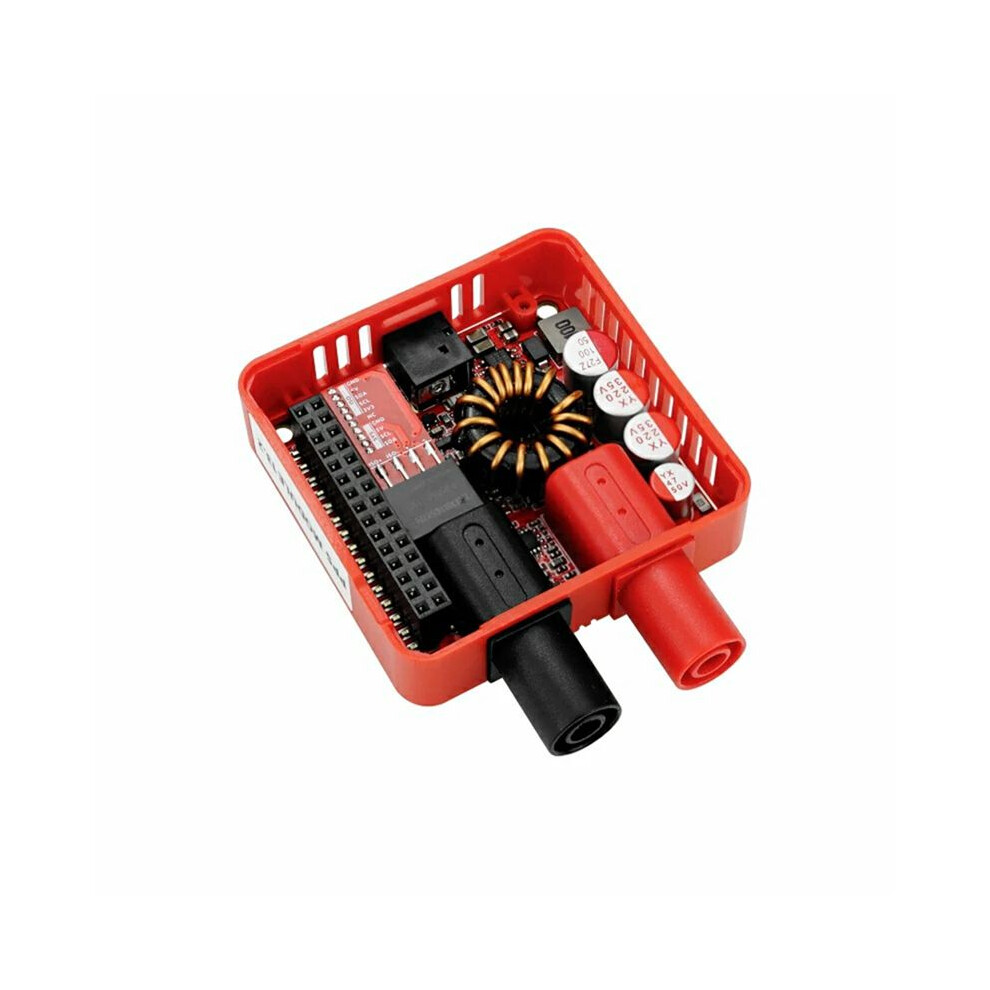

The output interface adopts a standard 4MM banana socket with a positive and negative pole spacing of 19mm. The module is fully calibrated at the factory, and users need to purchase a power adapter separately for use.
The module is suitable for scientific research experiments, industrial automation, embedded system development, and DIY projects of adjustable power supply.
The maximum output value depends the output capacity of the input power supply.

Product features

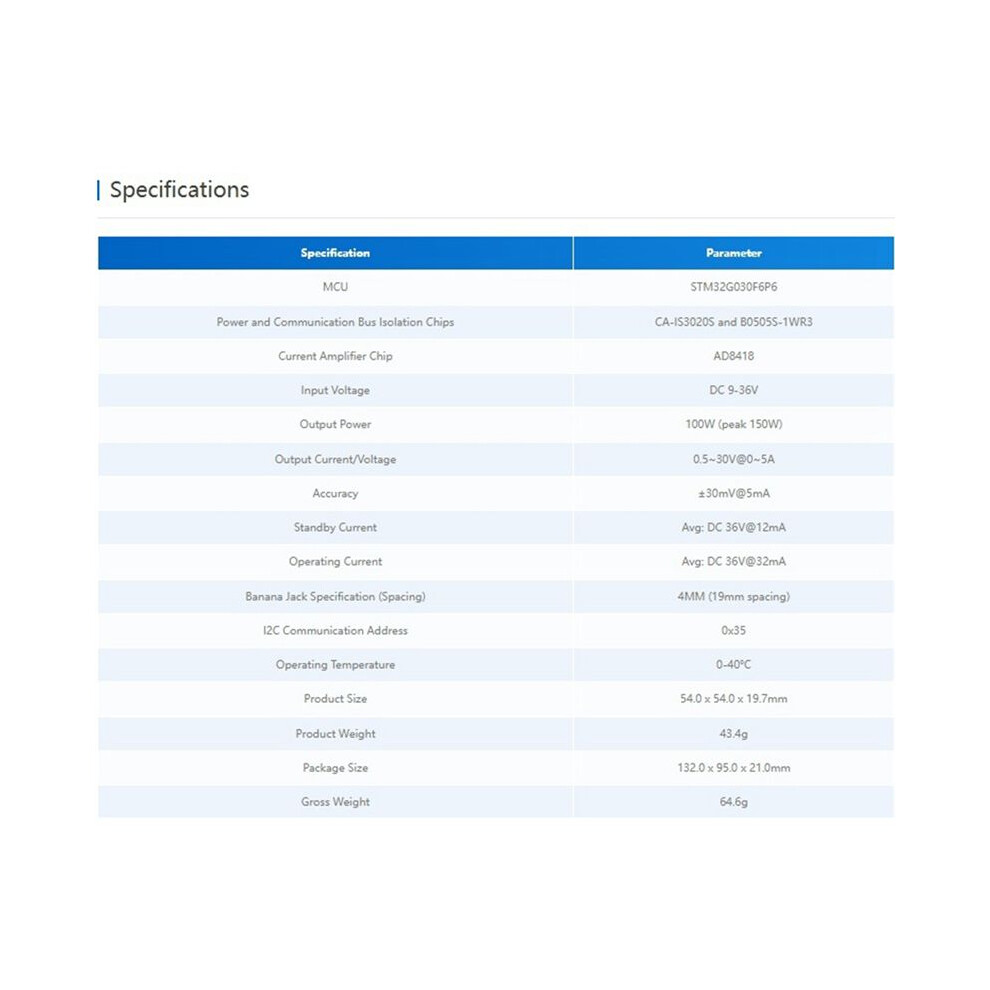

9-36V wide voltage input, output 0.5~30V/0~5A
High-precision rated output power 100W ( 150W)
With electrical isolation safety performance
Standard 4mm banana socket, positive and negative pole spacing 19mm
Applicable to Core/Core2/CoreS3 series hosts
Applications
Scientific research experiments
Industrial automation
Embedded system development
DIY projects for adjustable power supply
(The product printed words may vary depending the batch, but this does not affect use)
Color: Red
Material: plastic

Package Contents:
1 x Module 13.2-PPS
