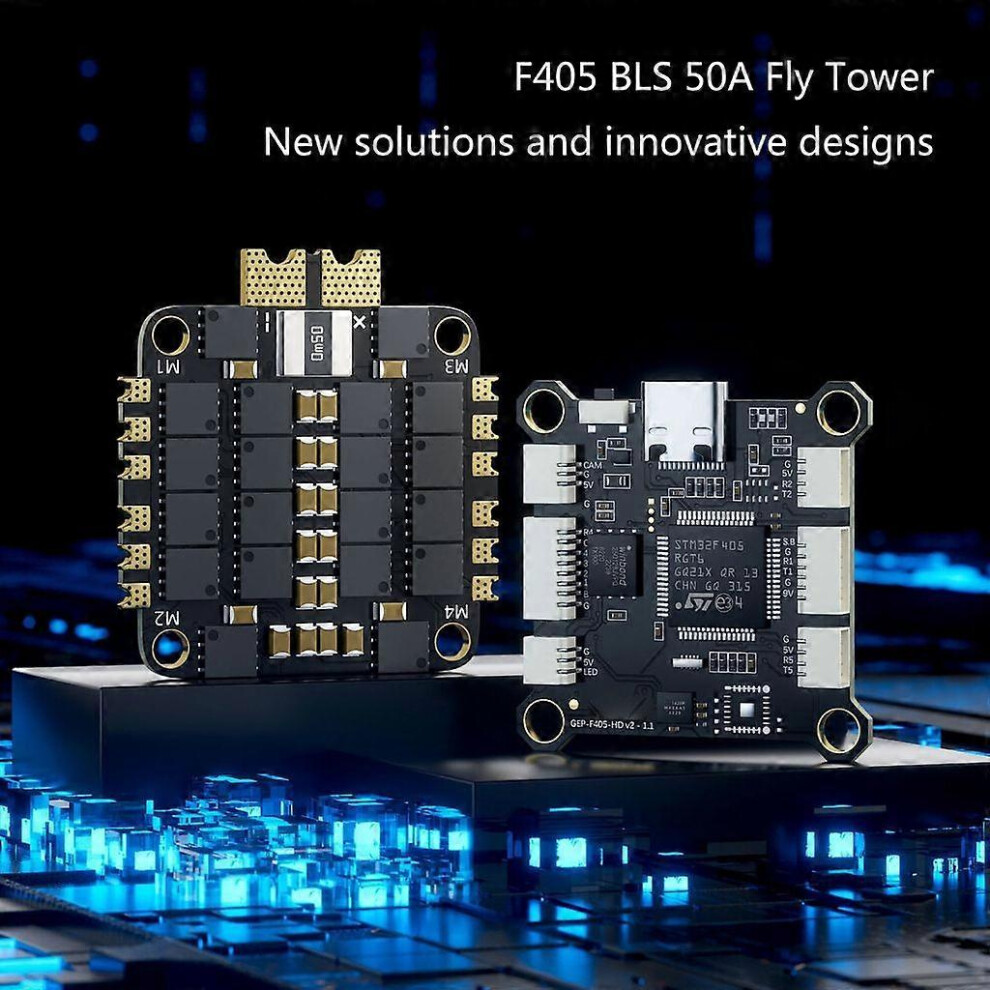

(FPV ESC) BLS50A 4in1 ESC F405 Flight Controller Board 16MB Black Box OSD

(FPV ESC) BLS50A 4in1 ESC F405 Flight Controller Board 16MB Black Box OSD Beschrijving

Features:
Equipped with a 16MB black box, it can record, analyze, and replaying flight data.

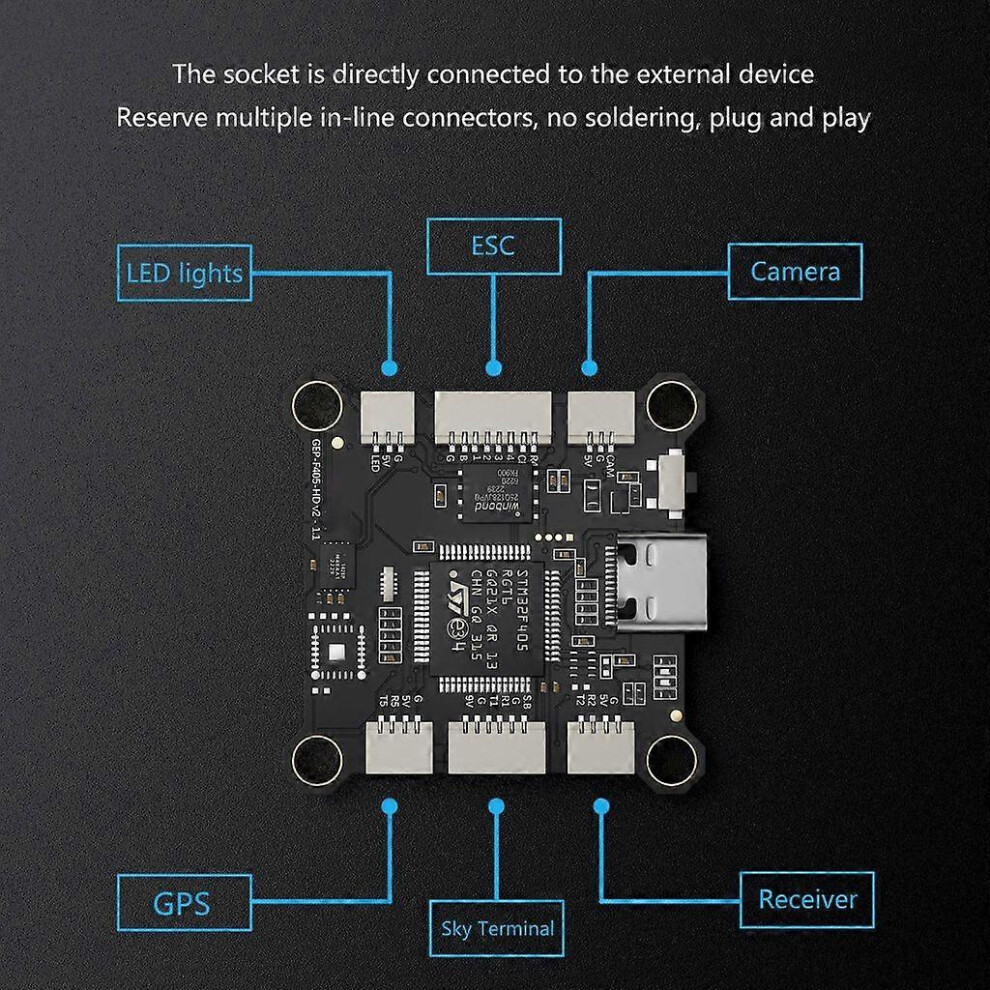

Insert and use design, convenient for quick installation and use.

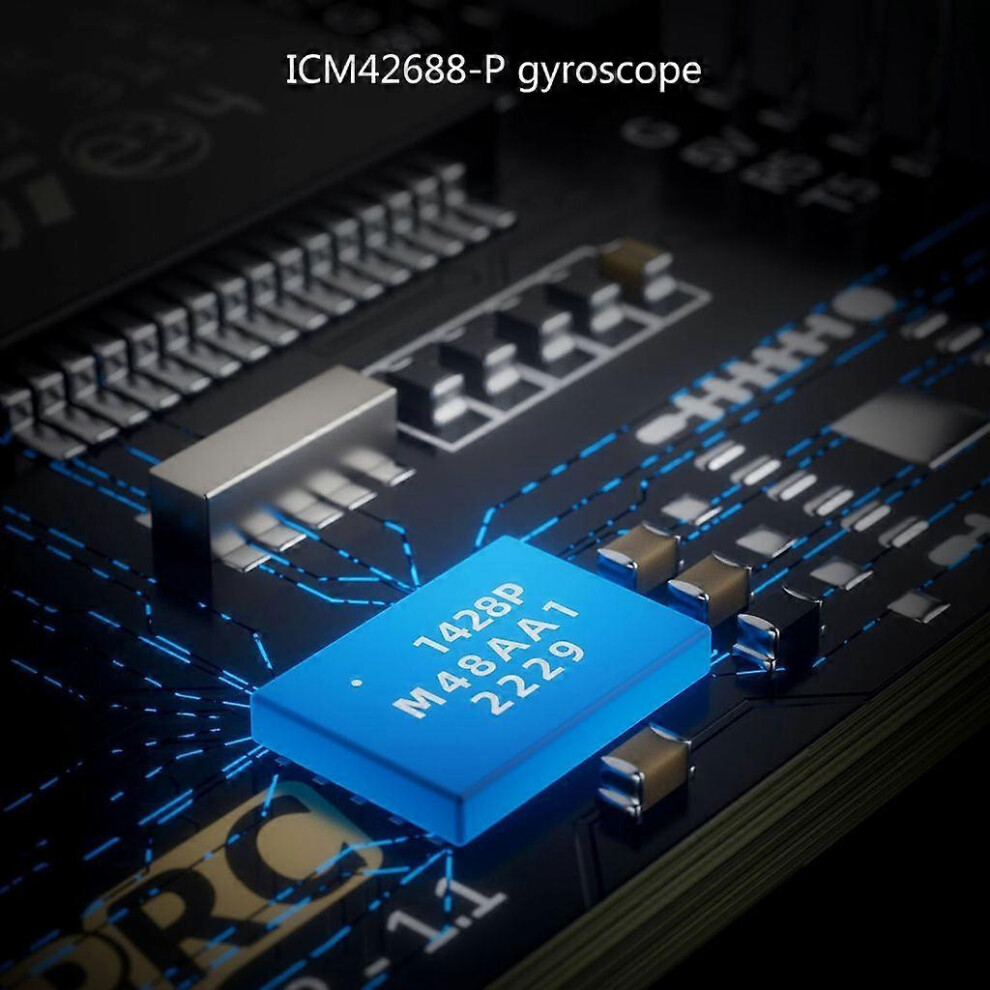

Equipped with 42688P gyro, providing a more stable flight controlling and control experience.

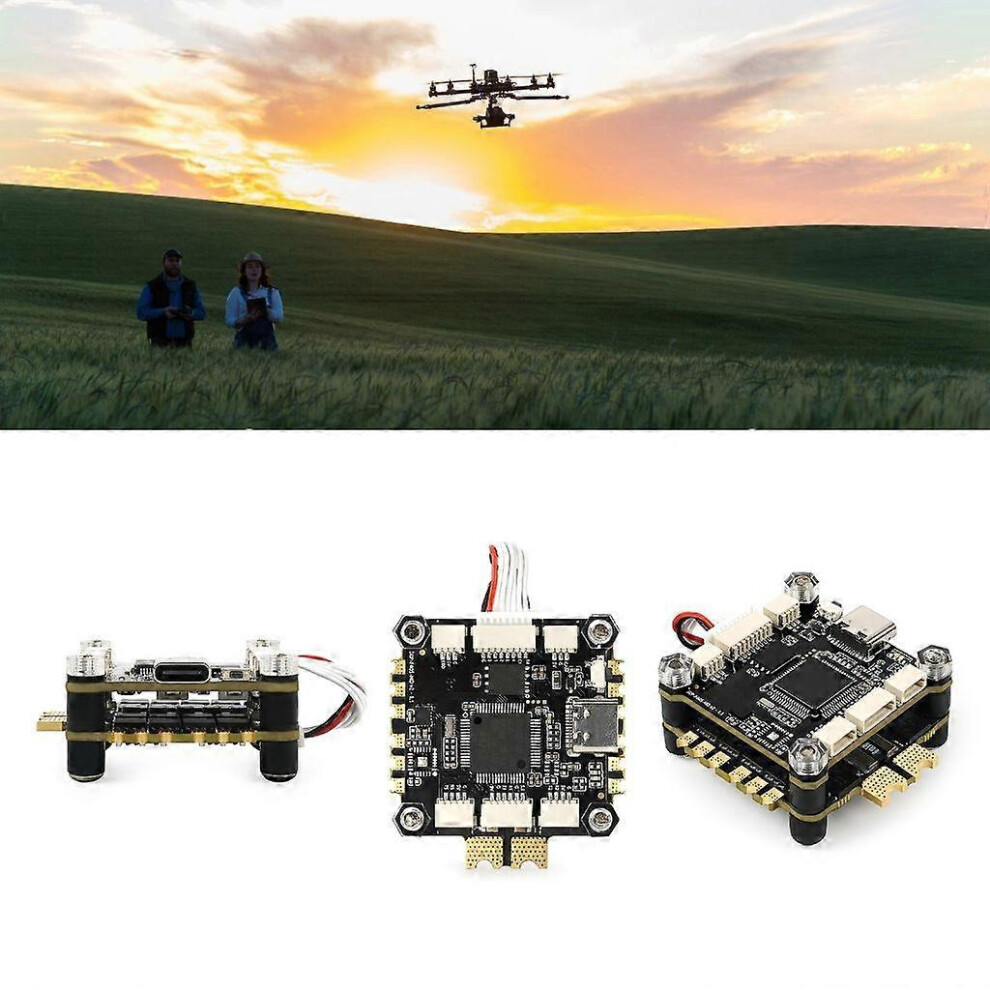

Stack designing save space and simplifies cable routing.
With highly performances and sensitive reaction speed, data recording function help users analyze flight performances and improve flight skill.

Specifications:
Material: Printed Circuit Board
Type: F405 Flight Controller BLS50A ESC Kit, Flight Controller, 4in1 ESC(optional)
F405 v2 Flight Controller:
MCU: STM32F405
IMU: ICM42688P(SPI)
Air Unit Connection: Direct plugging into Air Unit
Black Box: 16M onboard
USB Connector: USB C
OSD: OSD with AT7456E chip
BEC: 5V,9V double BEC
Firmware Target: GEPRCF405
Size: 36.8x36.8mm, hole 30.5x30.5mm,4mm hole becomes 3mm after use shock-absorbing circle
UART: 6

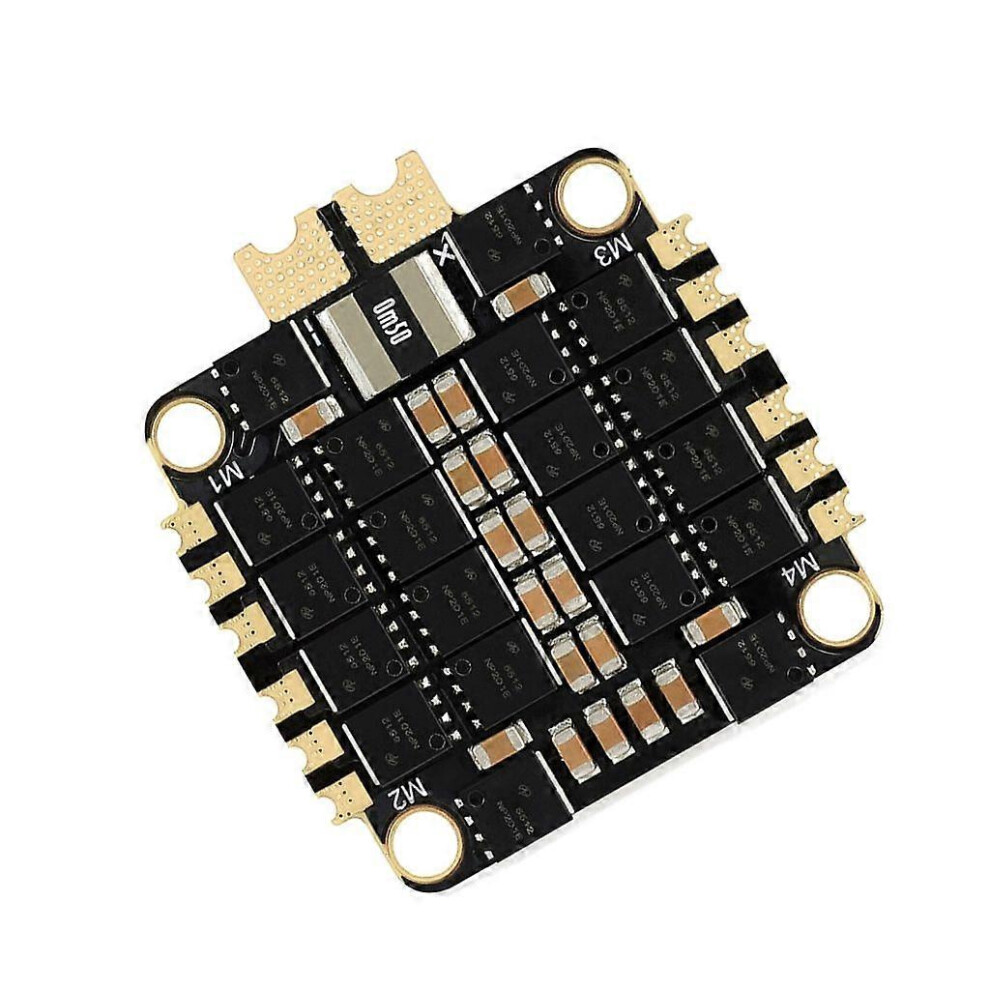

BLS50A 4IN1 ESC:
Galvanometer: Support
Continuous Current: 50A
Burst Current: 55A(5s)
Support Protocol: Oneshot125/Oneshot42/Mulishot modes/Dshot 150/300/600
Size: 42.9x39.7mm, hole 30.5x30.5mm,4mm hole becomes 3mm after use the shock-absorbing circle
Target: G_H_30

Note:
Please allow 1-2cm errors due to manual measurement.
Please allow for slight color differences due to different display resolution.

Package includes:
1x F405 Flight Controller BLS50A 4in1 ESC STACK Kit
or
1x F405 Flight Controller
or
1x 50A 4in1 ESC
