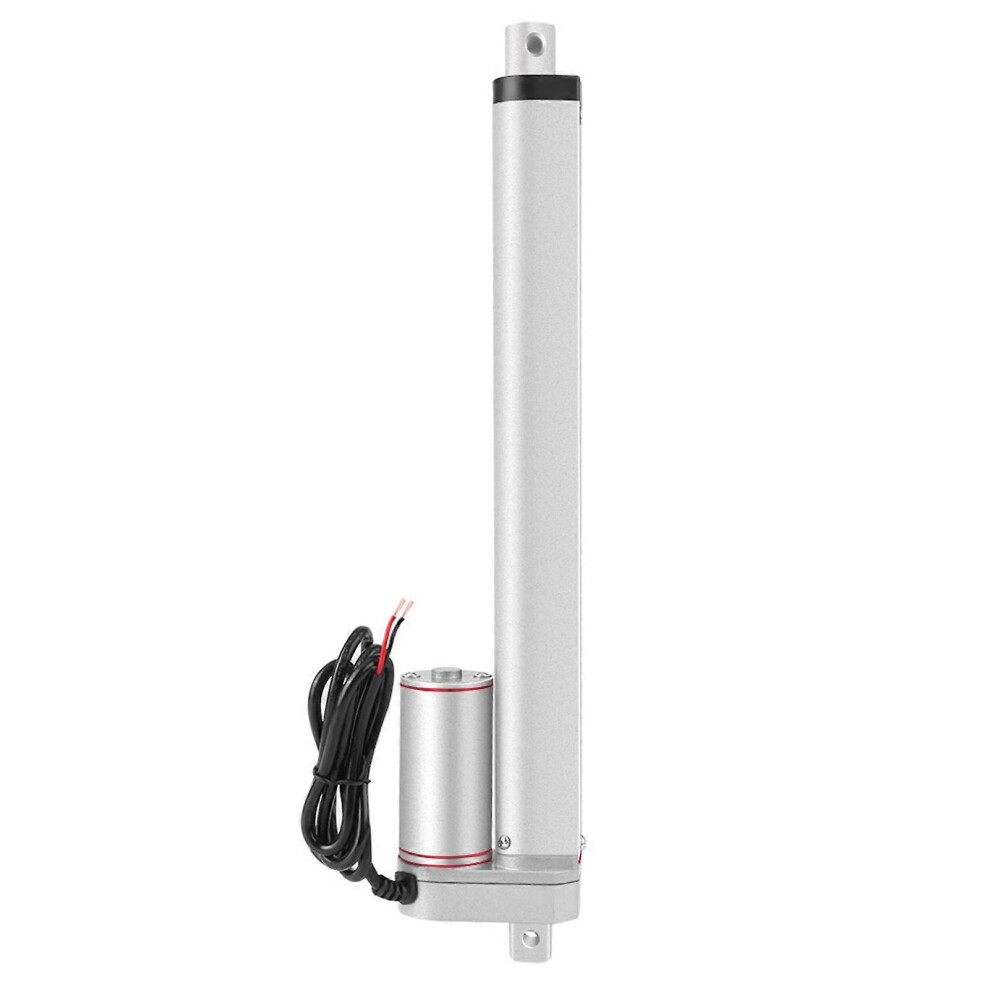

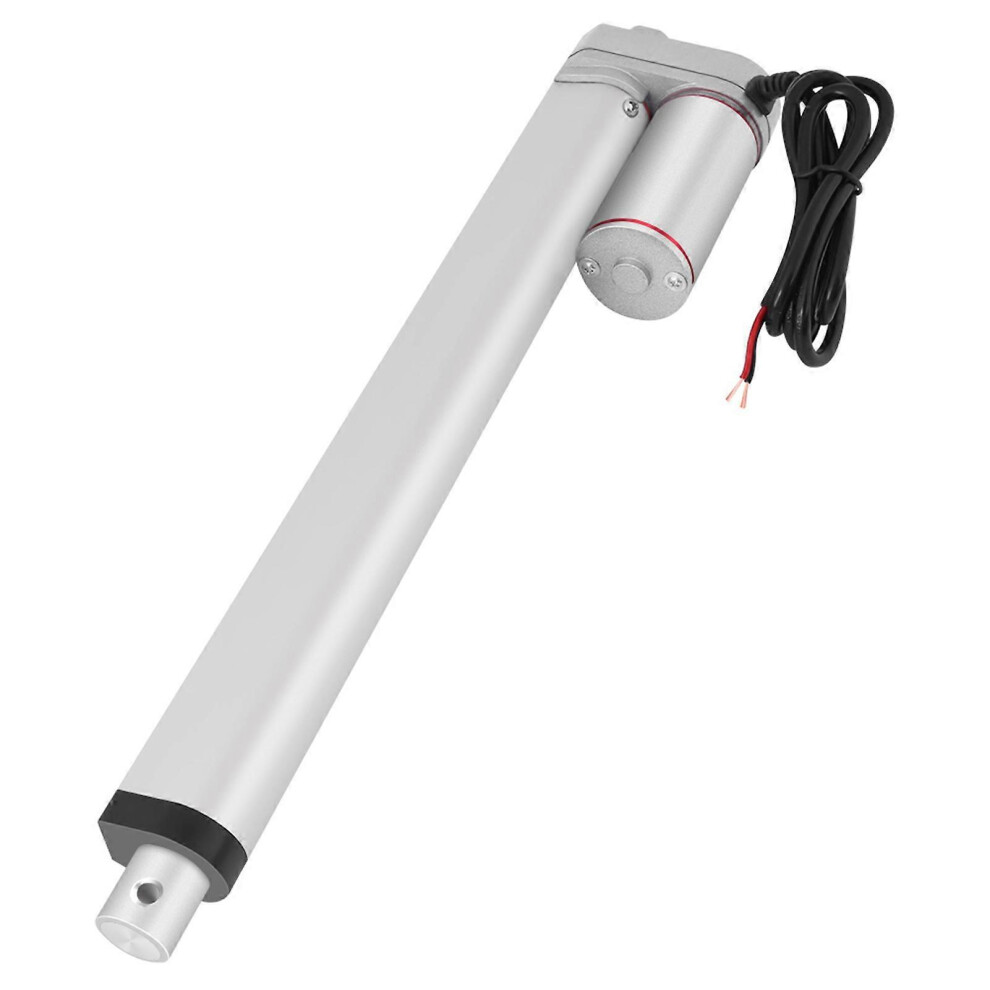

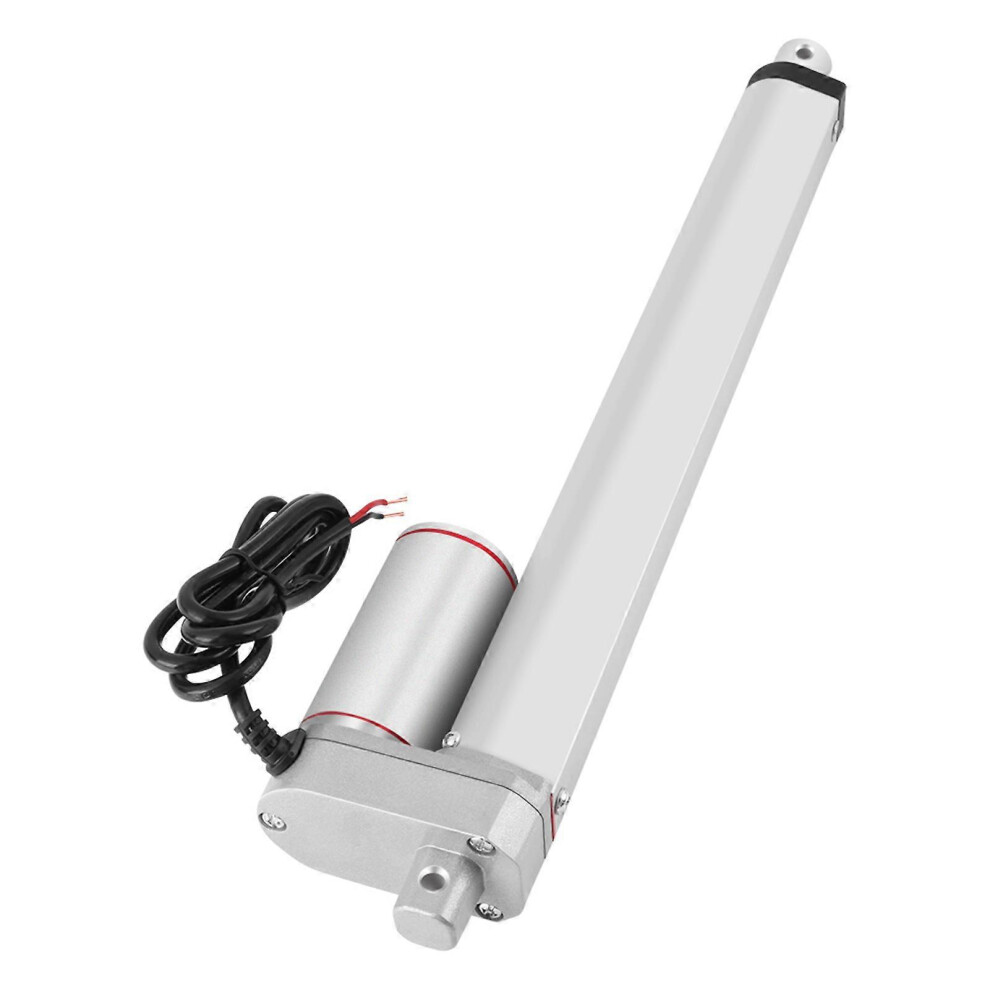

Heavy Duty DC12V Linear Actuator 250mm Stroke Electric Motor Load 96EQQ

Heavy Duty DC12V Linear Actuator 250mm Stroke Electric Motor Load 96EQQ Beschrijving

Features
Electric push rods - Also known as push rod motors, electric cylinders and linear actuators, an electric push rod that can convert electric motors
Working principle - Rotary motion into a linear reciprocating motion of the push rod, can be used in a variety of simple or complex processes
Main uses-Industrial electric lifting system, electric sofa, electric lifting rod, camera frame, video machine, wedding system.
Implement mechanical use to achieve remote
Control, centralized control or automatic control
Features:

Electric push rods - Also known as push rod motors, electric cylinders and linear actuators, an electric push rod that can convert electric motors
Working principle - Rotary motion into a linear reciprocating motion of the push rod, can be used in a variety of simple or complex processes
Main uses-Industrial electric lifting system, electric sofa, electric lifting rod, camera frame, video machine, wedding system.
Implement mechanical use to achieve remote
Control, centralized control or automatic control
Low noise design, noise level is 42dB

How it works:

After the motor is slowed by the gear, drive a pair of screw nuts. The
motor rotation into a linear motion, the use of motor reversal to
complete the putter action. Such as through a variety of lever, rocker
or connecting rod and other institutions to complete the rotation, shake and other complex movements.
You can increase the stroke by changing the lever arm length.
Low noise design, noise level is 42dB.
Inside set a stroke switch.
Can be matched with wire or remote control.

Specifications:

Size: as the picture
Weight: 1340 g
Permanent magnet DC motor drive voltage: 12V DC
Maximum pull: 800N
Maximum thrust: 500N
Standard Stroke: S =250mm
Minimum distance (the distance between the front and rear of the two holes) :L = S(stroke)+ 105mm putter between two holes = 2XS(travel)+ 105mm
No load speed: 10mm/s
Speed and thrust relationship: 5mm / s (kg) -50s (50kg)
environment temperature: -26~50
Standard protection level: IP54
Noise level: 42dB

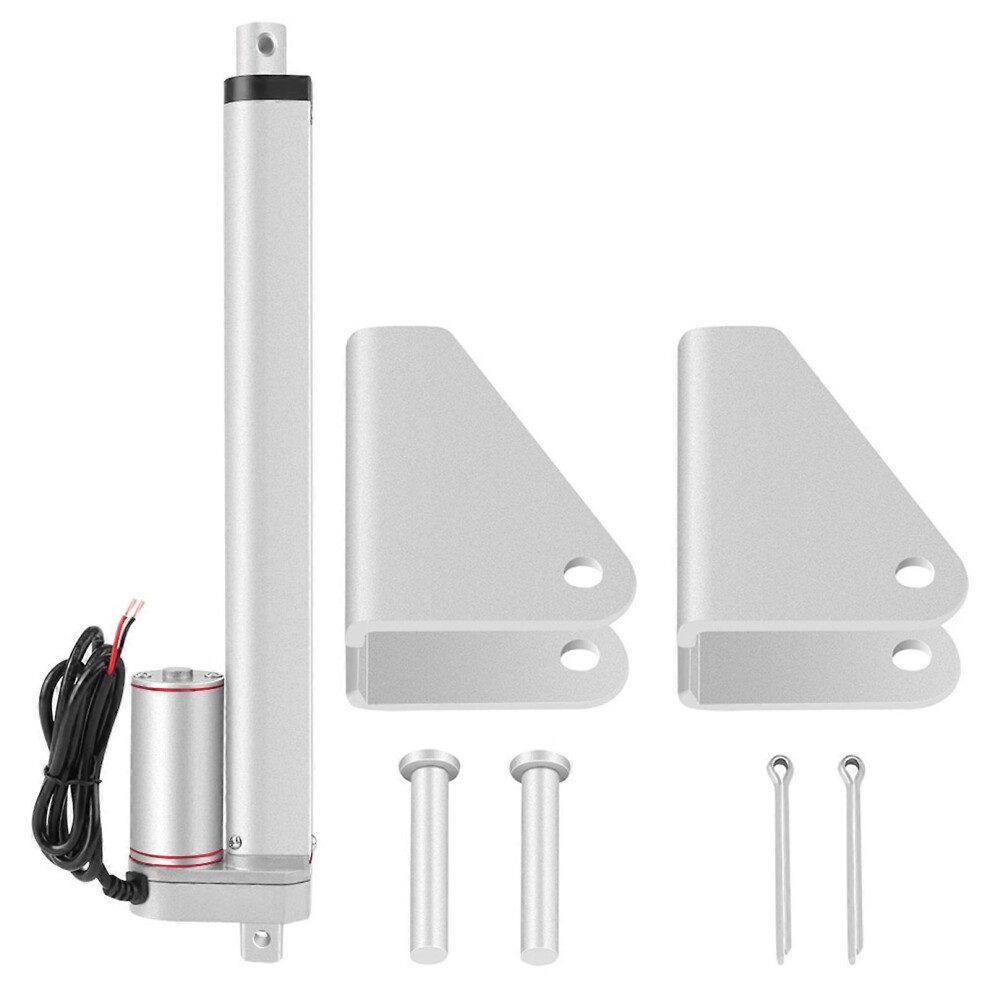

Package Included:

1 x Electric Linear Actuator Motor
2 x Bracket
2 x bolt
2 x cotter pin for the linear actuators
Package List
1 x Electric Linear Actuator Motor
2 x Bracket
2 x Bolt
2 x Cotter Pin for the Linear Actuators
