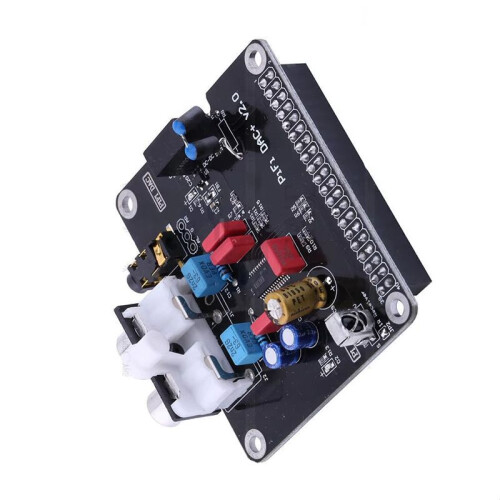

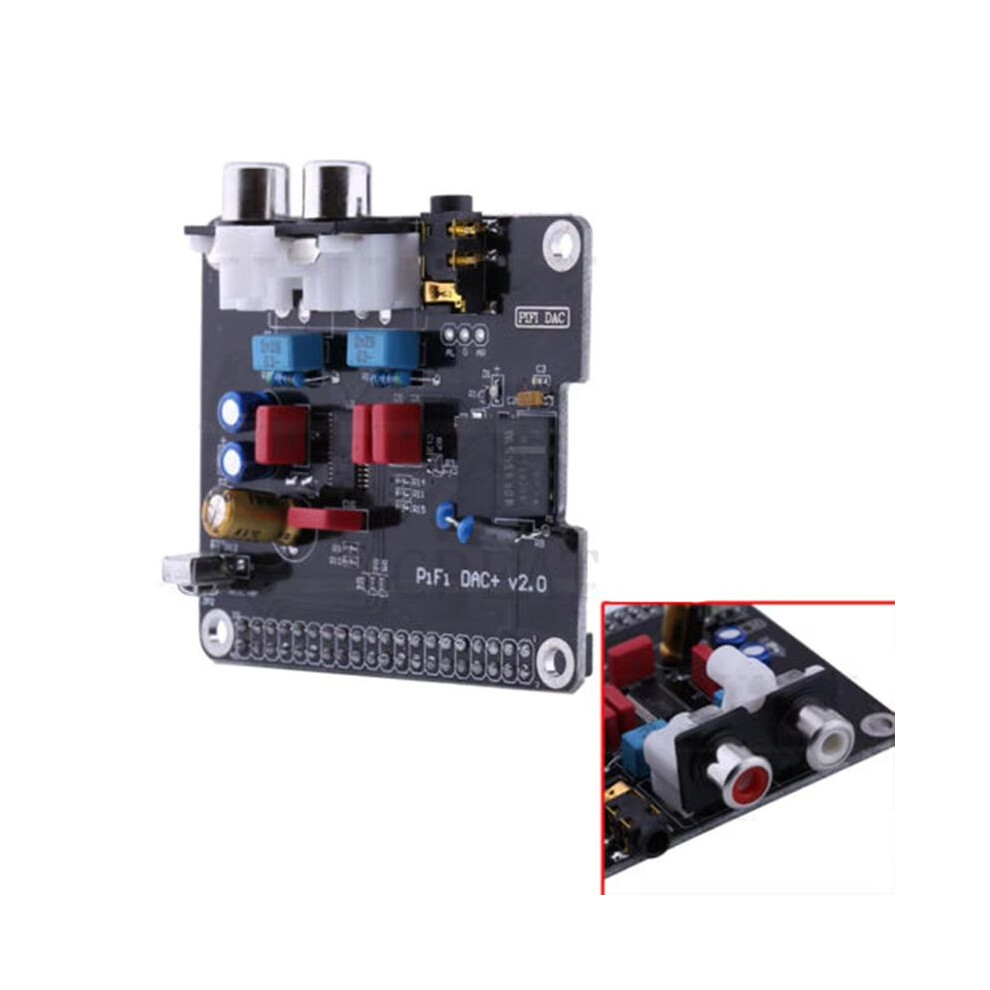

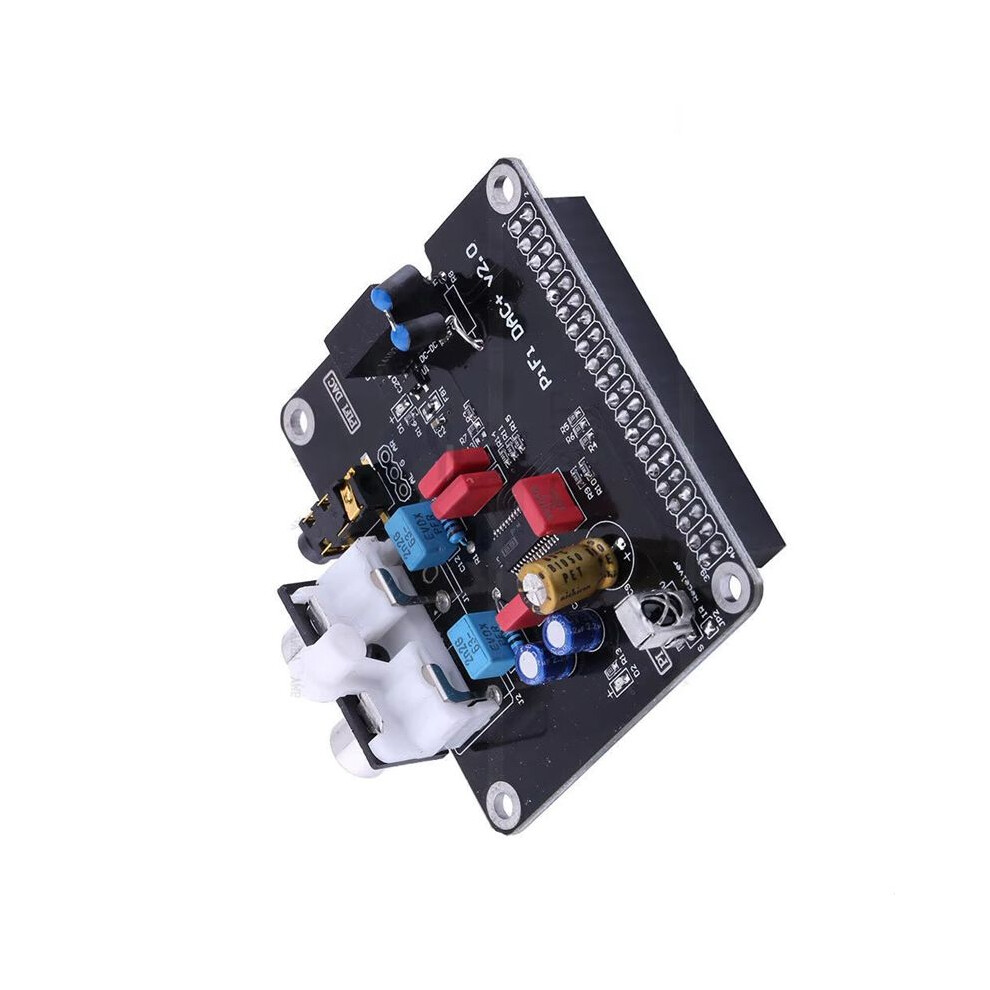

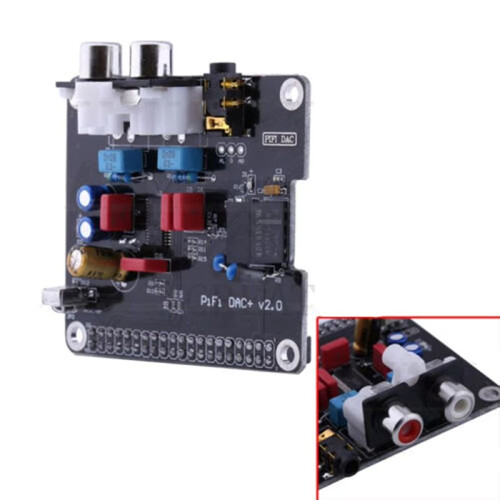

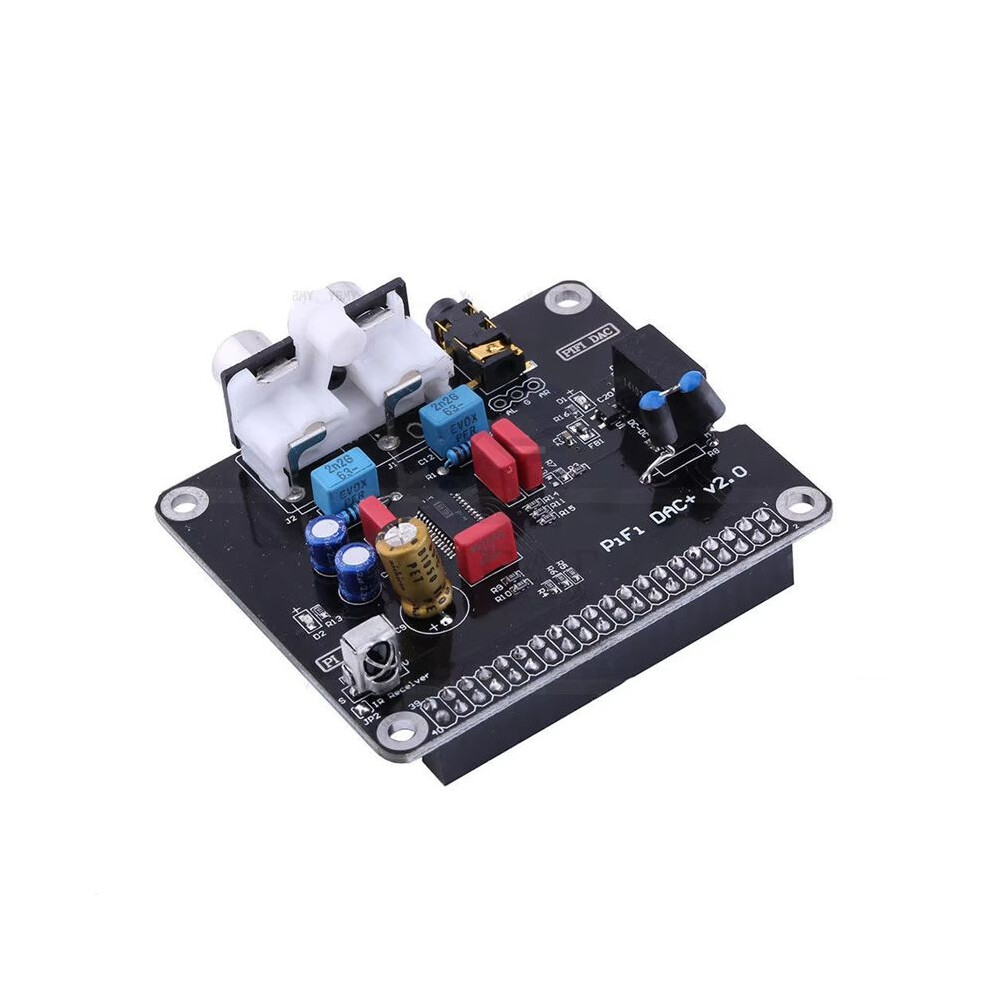

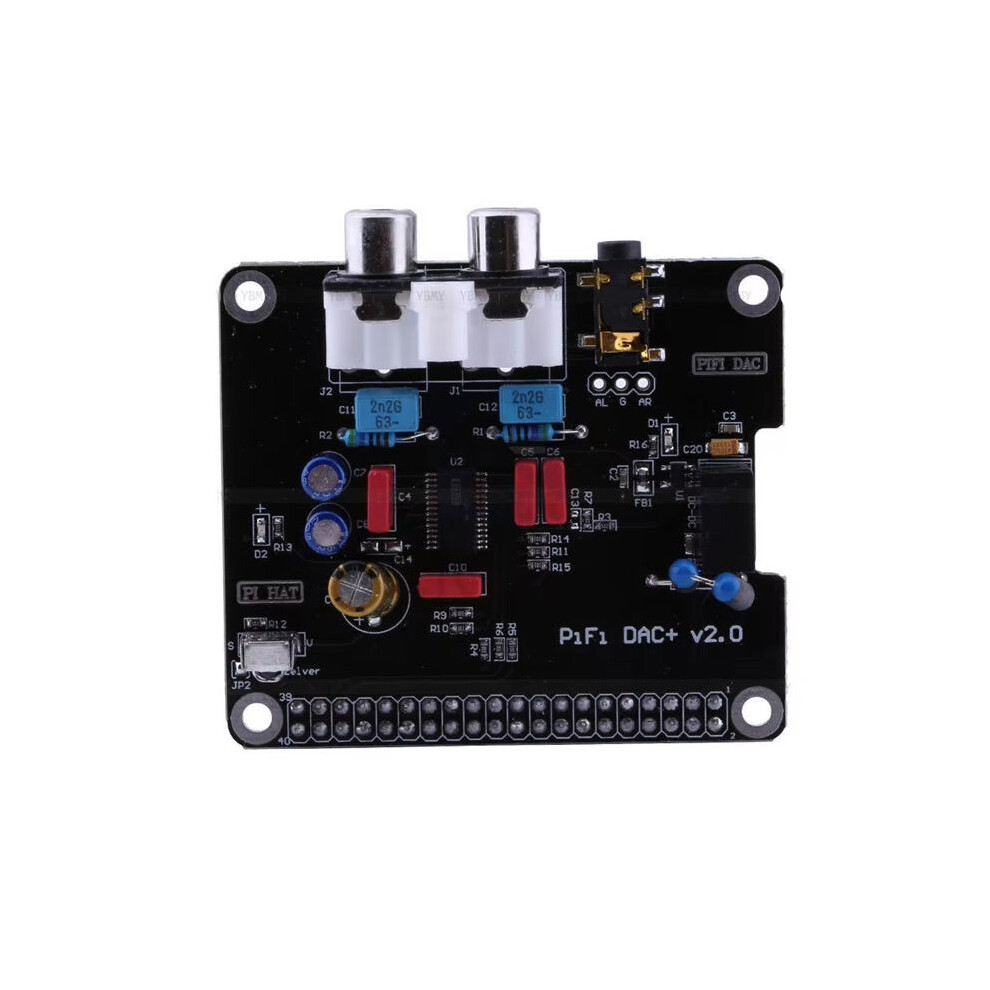

HIFI DAC Audio Sound Card PCM5122 I2S Interface 384KHz with LED Indicator for Raspberry Pi/2/3/B+ & for
Nieuw
Op voorraad
Waarom je van winkelen bij OnBuy zult houden:
- Verdien Cashback bij elke aankoop – gebruik het meteen voor je volgende bestelling
- Gratis levering – op miljoenen artikelen op de hele site
- Klanten vertrouwen ons – 136,000 beoordelingen met de score “Uitstekend”
€ 34,43
€ 36,21
5% korting!
+€ 4,50 levering
1%
Wat is directe Cashback?
Meer informatie
Prijzen zijn inclusief btw.
Rentevrije betaalopties beschikbaar
Bekijk de volledige productbeschrijving & details
Bezorging: Standaard (€ 4,50) | ma. 26ste - za. 31ste okt.
Verkocht door: Give you a good life
Retourzendingen: 30 dagen
180 dagen betalingsbescherming
Beschrijving & Details
Samenvatting
- 1. This is a special HIFI DAC expansion board designed for Raspberry pi B+ , using TI's DAC chip (PCM5122), using an I2S interface.
- 2. The user can use this expansion board with audio playback systems (for volumio, for xbmc system etc.) to build its own network HIFI player.
- 3. The expansion board provides two kinds of output interfaces to facilitate external amplifiers and other equipment.
- 4. It provides LED indicates working status. Red LED for the DAC power indicator (Power normal light), the green LED for the DAC working condition (when working decode light, stop, or does not work when off), a better understanding of the work of the DAC provide infrared receiver interface (occupied GPIO26).
- Audio sound card module
HIFI DAC Audio Sound Card PCM5122 I2S Interface 384KHz with LED Indicator for Raspberry Pi/2/3/B+ & for Beschrijving
1. This is a special HIFI DAC expansion board designed for Raspberry pi B+ , using TI's DAC chip (PCM5122), using an I2S interface.
2. The user can use this expansion board with audio playback systems (for volumio, for xbmc system etc.) to build its own network HIFI player.
3. The expansion board provides two kinds of output interfaces to facilitate external amplifiers and other equipment.
4. It provides LED indicates working status. Red LED for the DAC power indicator (Power normal light), the green LED for the DAC working condition (when working decode light, stop, or does not work when off), a better understanding of the work of the DAC provide infrared receiver interface (occupied GPIO26).
Sampling Frequency: 384KHz
Resolution (Bits): 16-32
Digital Audio Interface: I2S
SNR: 120dB
THD: -93dB
Dynamic range: 112dB
Supports for Raspberry Pi B+, for Raspberry Pi 2 Model B
Due to different batches, there may be differences in product appearance and printed text, which will not affect use
Color:As Shown
Material:PCB
Package Contents:
1 * Audio sound card module
Details
| OPC | PYMH9QB |
|---|---|
| Codes | 6032284236817 (EAN) |
| Product- en veiligheidsinformatie |
Productgegevens
| Height | 3cm |
|---|---|
| Width | 8cm |
| Length | 12cm |
| Weight | 0.025kg |
| Colour | As Shown |
| Material | PCB |
