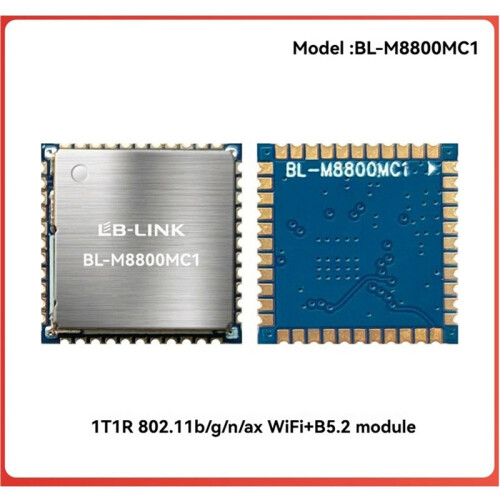

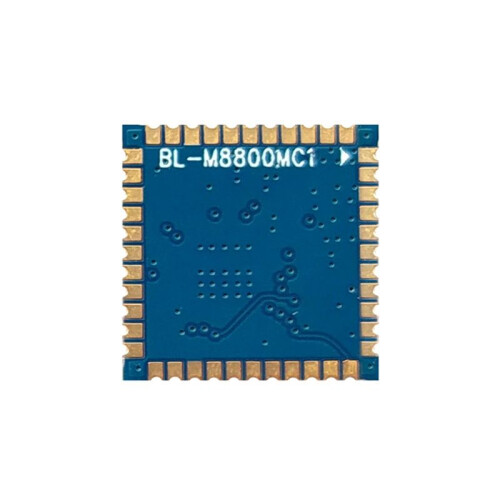

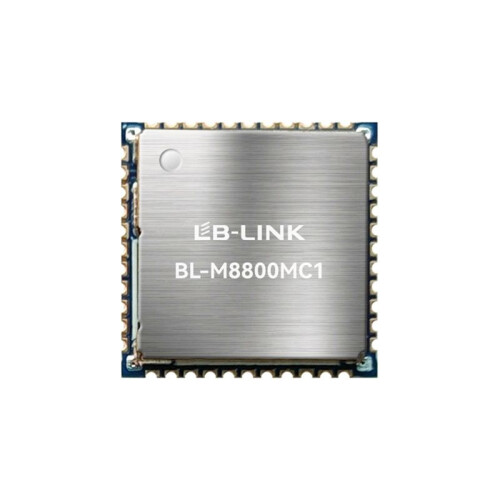

LB-LINK 2.4GHz IOT Module WiFi6+ 5.2 Low Power Wireless WiFi Module AIC8800MC Chip for Home
Nieuw
€ 7,31
Vergelijkbare producten die je misschien leuk vindt
Wilt u dat we u laten weten wanneer het weer beschikbaar is?
Beschrijving & Details
Samenvatting
- High-performance Cortex-M4F CPU with MPU and FPU, up to 240MHz frequency
- Integrated 608KB SRAM, 704KB ROM, and 16Mbits FLASH
- Supports GPIO multiplexing peripheral interfaces such as SDIO, SPI, USB, UART, I2S, I2C, PWM, and ADC
- RF operating frequency 2.4 to 2.4835GHz
- Compatible with IEEE 802.11b/g/n/ax standards, 20/40MHz bandwidth, and 1T1R WLAN PHY speed up to 286.8Mbps
LB-LINK 2.4GHz IOT Module WiFi6+ 5.2 Low Power Wireless WiFi Module AIC8800MC Chip for Home Beschrijving
High-performance Cortex-M4F CPU with MPU and FPU, to 240MHz frequency
Integrated 608KB , 704KB ROM, and 16Mbits FLASH
Supports GPIO multiplexing peripheral interfaces such as SDIO, SPI, USB, UART, I2S, I2C, PWM, and ADC
RF operating frequency 2.4 to 2.4835GHz
Compatible with IEEE 802.11b/g/n/ax standards, 20/40MHz bandwidth, and 1T1R WLAN PHY speed to 286.8Mbps
Chipset: AIC8800MC
Standard: IEEE 802.11b/g/n/ax
Frequency: 2.4GHz
Interface: USB or SDIO + UART
Operating Mode: SoftAP, Station
Power Supply: 3.3V 0.2V
Power Consumption: less than equal 600mA
Power Consumption: less than equal 18dBm (typ.)
Color:As Shown
Material:PCB
Package Contents:
1 * IOT Module
Details
| OPC | PSXB57V |
|---|---|
| Codes | 6032936290334 (EAN) |
| Product- en veiligheidsinformatie |
Productgegevens
| Height | 1cm |
|---|---|
| Width | 2cm |
| Length | 3cm |
| Weight | 0.003kg |
| Colour | As Shown |
| Material | PCB |
