LCD Display MP3 Decoder Board BT5.0 Handsfree Recording FM DC12V MP3 WMA WAV APE F

LCD Display MP3 Decoder Board BT5.0 Handsfree Recording FM DC12V MP3 WMA WAV APE F Beschrijving

Model: JQ-D008BT. Main control IC: AC 6921. Bluetooth IC: AC 6921 Bluetooth version is 5.0
Music format: MP3/WMA/WAV/FLAC/APE lossless format
Bluetooth calling function. recording function. Folder switching function. Radio FM frequency: 87.5-107.5 MHZ
Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control connection / DC 12V
About the structure: Panel size: length 112 x width 62MM, the panel is surrounded by screw holes, the depth of the panel is 22MM

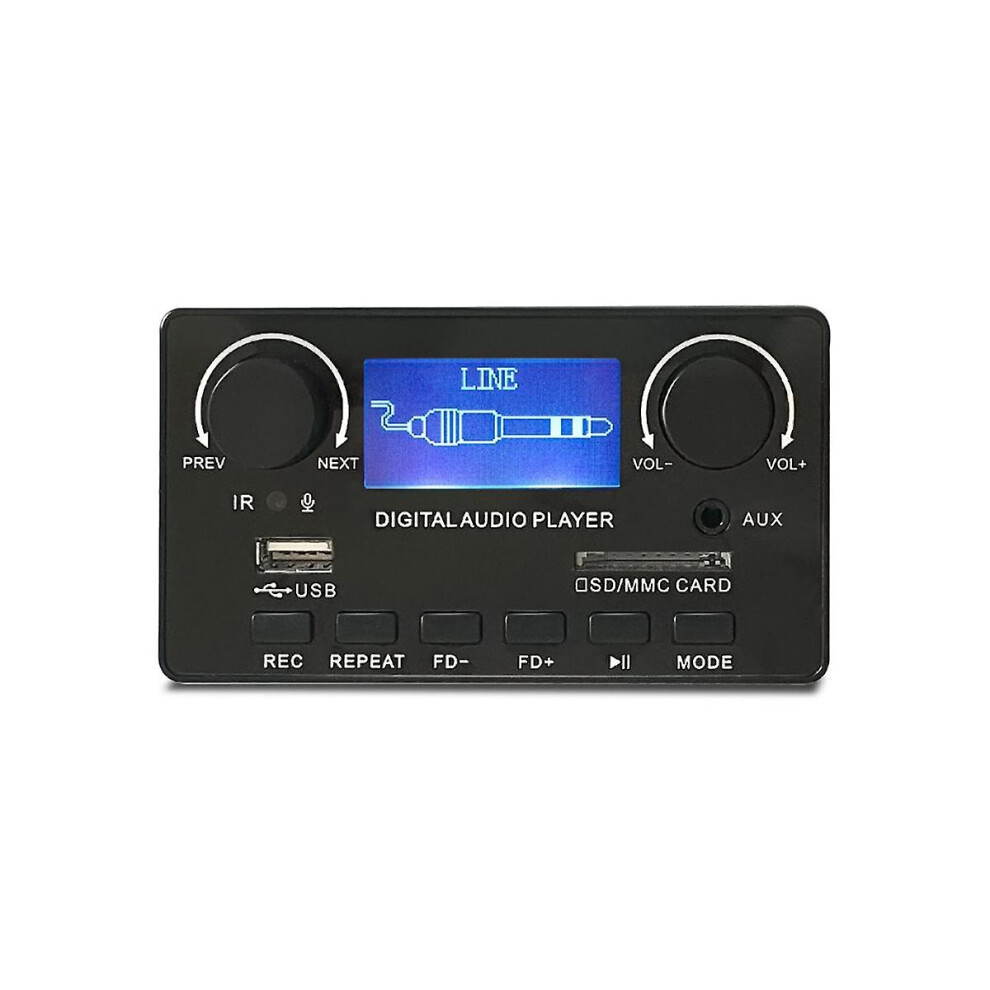

Button and interface function
1. PREV: Twist to the left to select the previous song;: Twist right to select song;
2. IR: infrared receiving module;
3, MIC: support call and recording functions;
4. USB interface: connect U disk (maximum support 32GB);
5. LCD screen: synchronous display of ;
6. SD card slot: connect SD memory card (maximum support 32GB);
7. AUX interface: audio input interface;
8. Volume knob: control the volume;
9. REC: Press and hold the REC button to start recording, press the REC button again to cancel the recording function and play the recorded file; when recording, you need to connect a storage device, such as a U disk or TF card;
10. REPEAT: Press the single loop function once, press it again to cancel the single loop, and in sequence;
11. -: The short key is to switch to the previous folder, and the long press is to rewind;
12. +: Short key is to switch to folder, long press is fast forward;
13. PLAY/PAUSE: Short press is to switch between pause and play; long press is to radio FM automatic station;
14. MODE: Switch between USB / TF / FM / AUX / BLUETOOTH;
Colour:black
Material:Plastic + Electronic Components

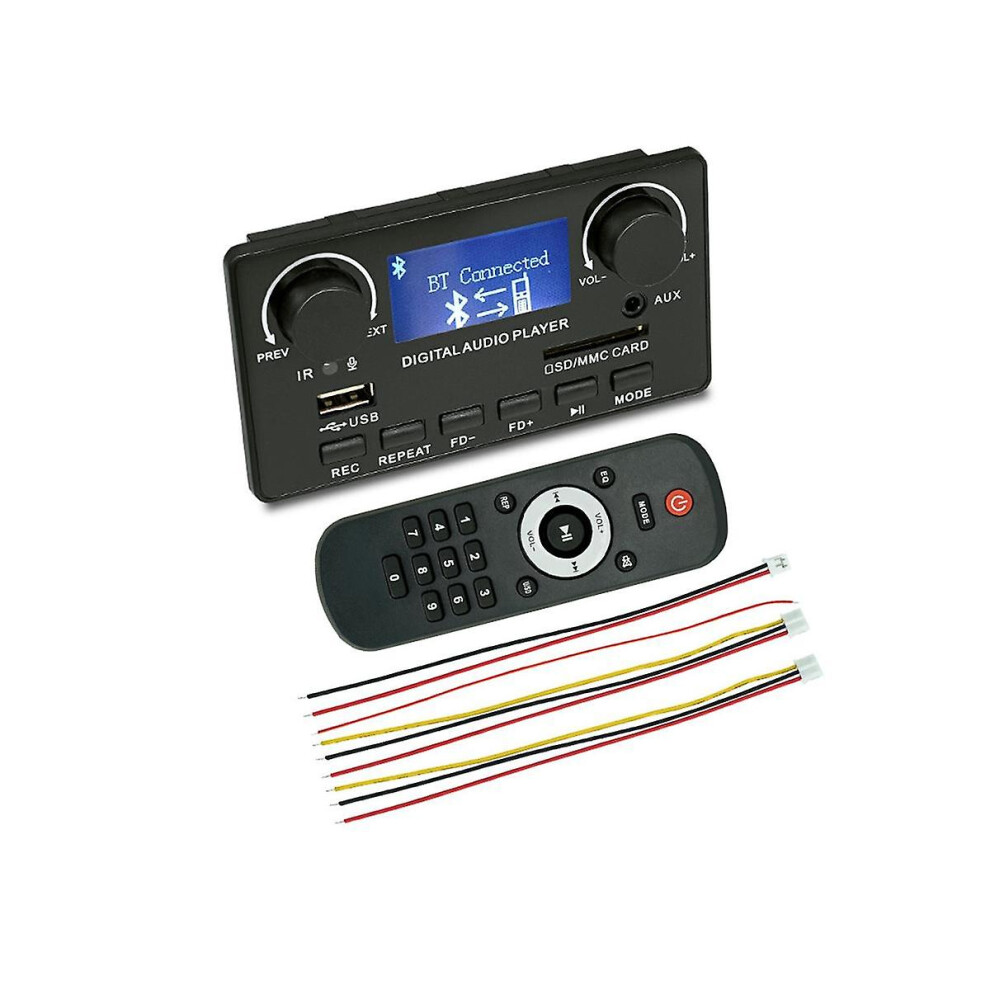

Package Contents:
1 x decoder board

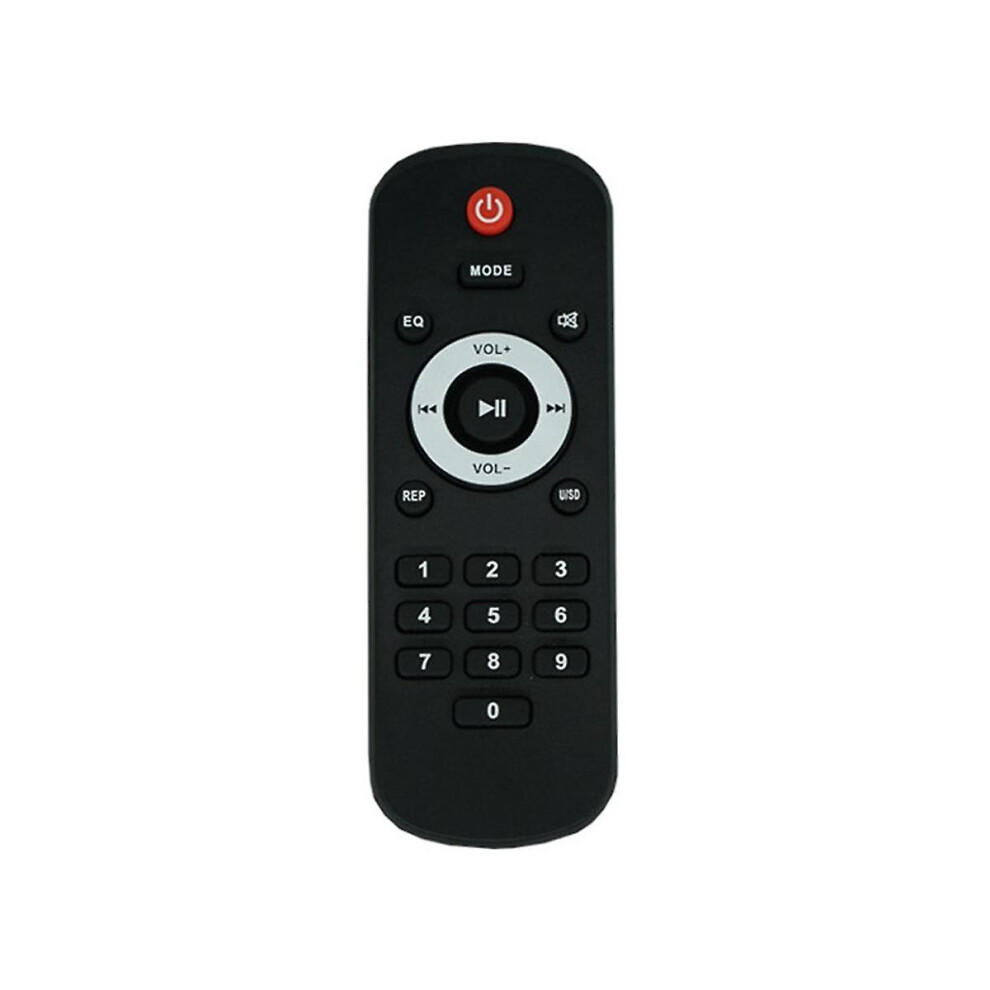

1 x remote control(2 AAA batteries not included)
1 set x cables
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
