M328 Multi-Purpose Transistor Tester 1.8 Inch TFT LCD for Diode Resistor ESR Capacitance Inductor Meter B

M328 Multi-Purpose Transistor Tester 1.8 Inch TFT LCD for Diode Resistor ESR Capacitance Inductor Meter B Beschrijving

128x160 TFT color display.
New boot voltage detection.
Automatically test a component's pins and display them the LCD.
Measure MOSFET gate threshold voltage and gate capacitance.
Measure bipolar transistor current amplification factor and base-emitter threshold voltage.

One-button operation, automatic shutoff to prevent unnecessary battery drain
Short detection : only 1.7 seconds (it is normal to take 1 minute for bulk capacitor detection)
Reminder: Make sure the capacitors are fully discharged before testing.
Display: 128 x 160 TFT color display
Normal test speed: 1.7 seconds
Shutdown current: 20 nA

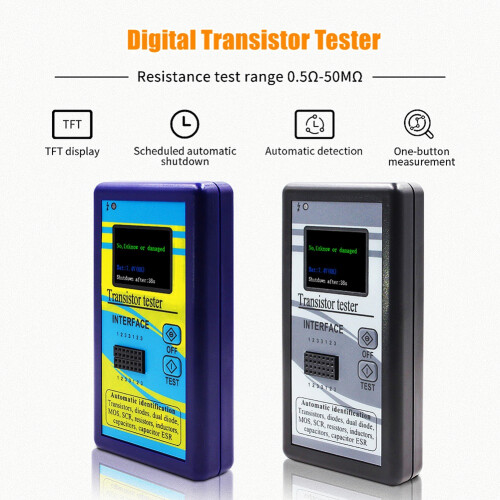

Resistance test range: 0.5 ohm - 50 M ohm
Inductor test range: 0.01 mH - 20 H
Capacitor test range: 25 pF - 100,000 uF
Specification:B
Color: As Shown
Material: plastic

Package Contents:

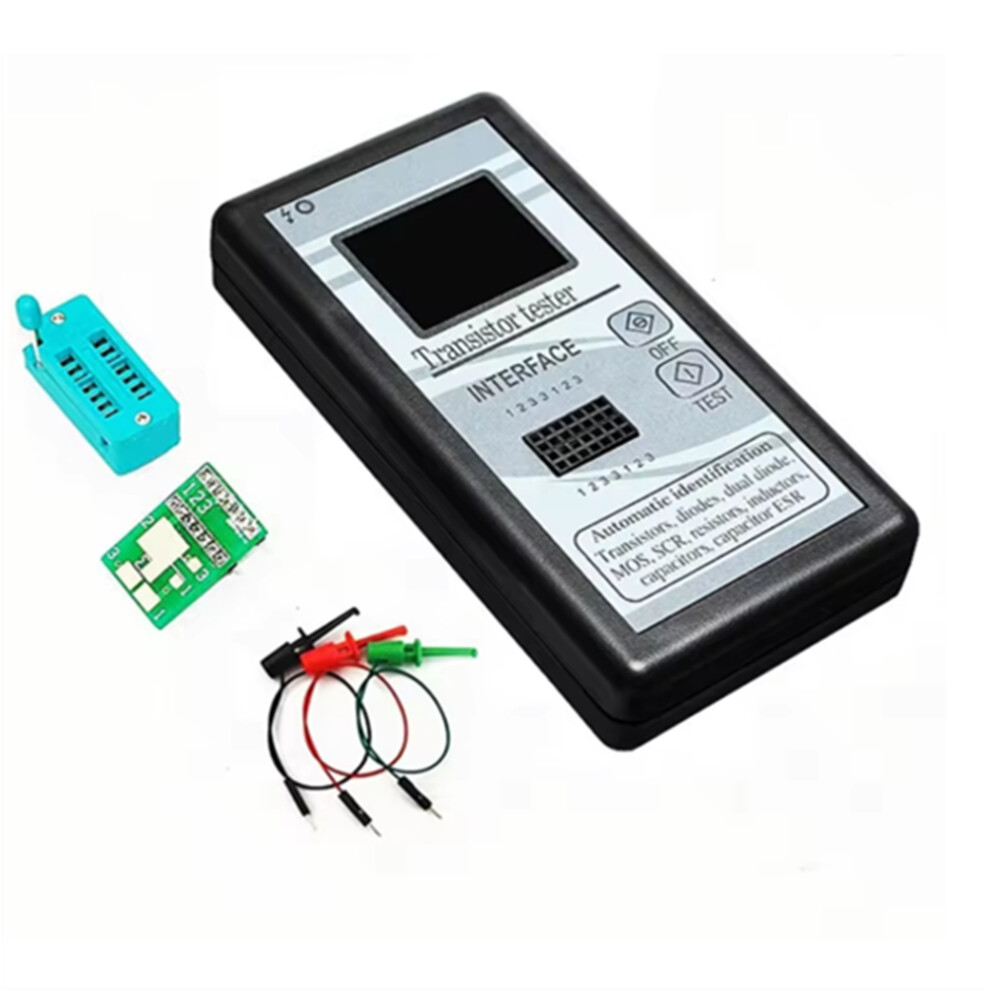

1 x M328 Multi-Purpose Transistor Tester Kit(Without 1 x 9V battery,You need to prepare yourself)
