Mechanical Watch Timing Tester Machine Multifunction Timegrapher NO. 1000 Auto Calibration Timer Machine EU Plug

Mechanical Watch Timing Tester Machine Multifunction Timegrapher NO. 1000 Auto Calibration Timer Machine EU Plug Beschrijving

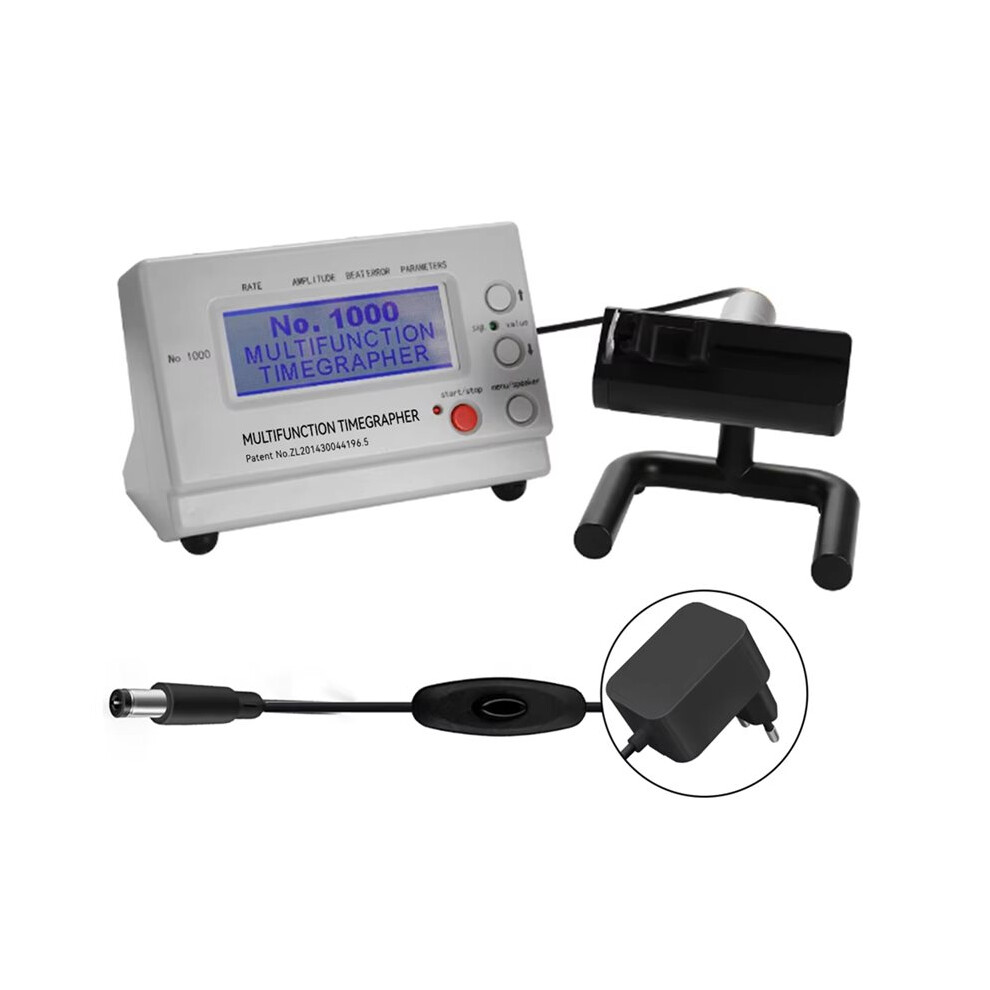

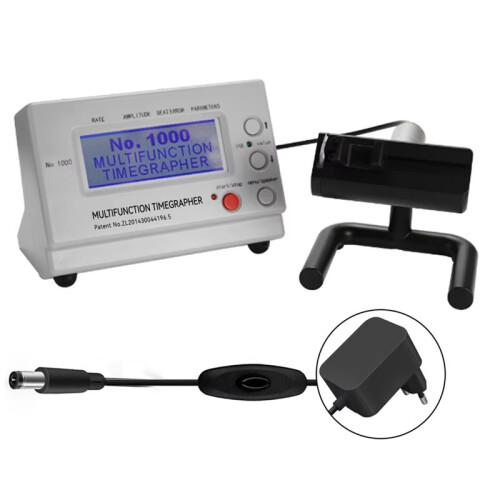

This No.1000 timegrapher is a precise mechanical watch test instrument that is easy to use and more professional. It is a watch tool that can be used for both repairers and hobbyists.

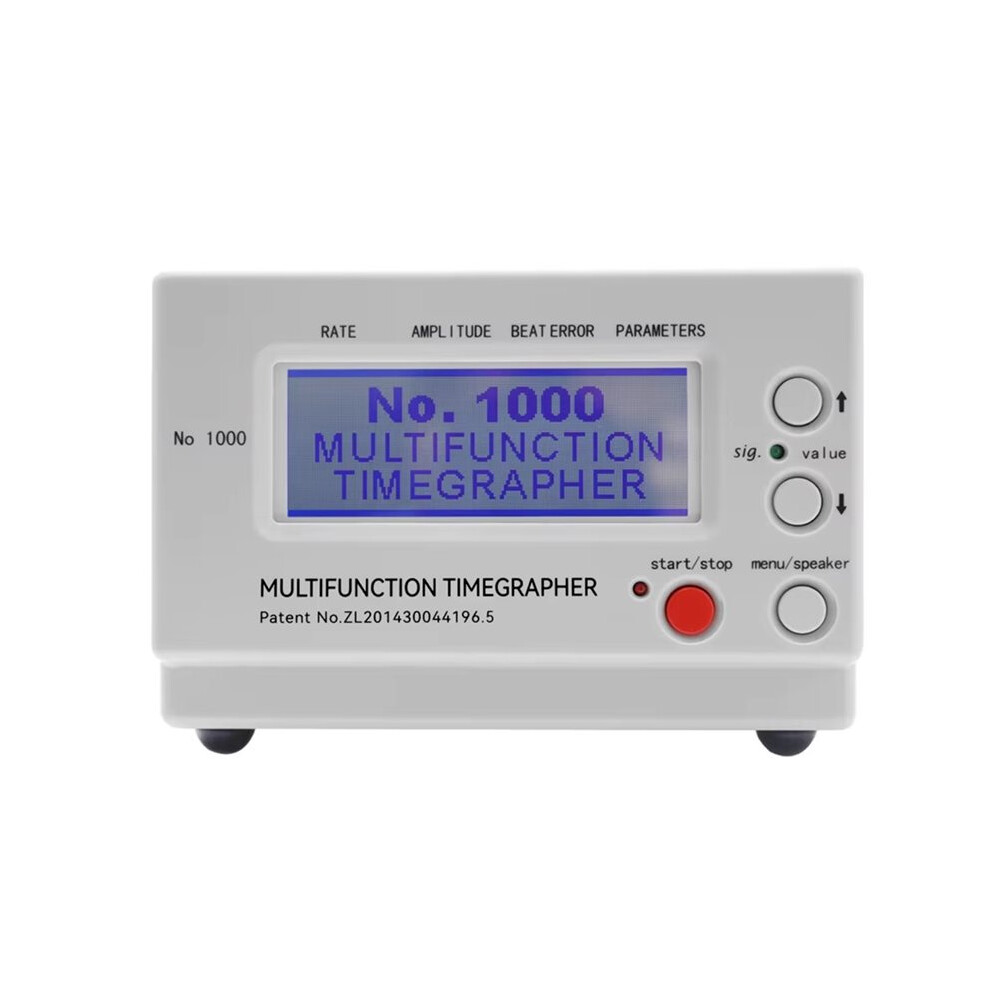

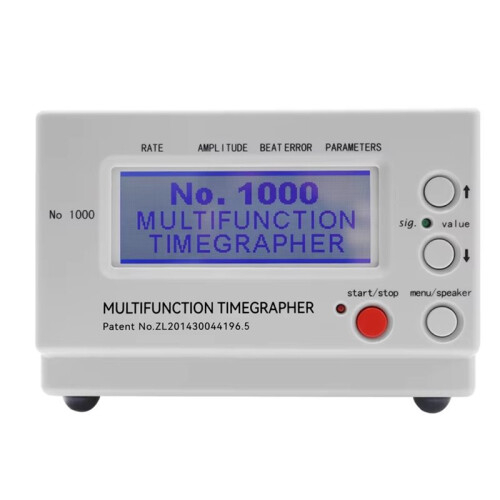

The frequency diagram of the watch can be displayed the LCD screen.
According to different watches, the instrument will automatically adjust the optimal signal level during the test.
The instrument will automatically calculate the rate deviation, amplitude, be-at error, and display them by the data in real .

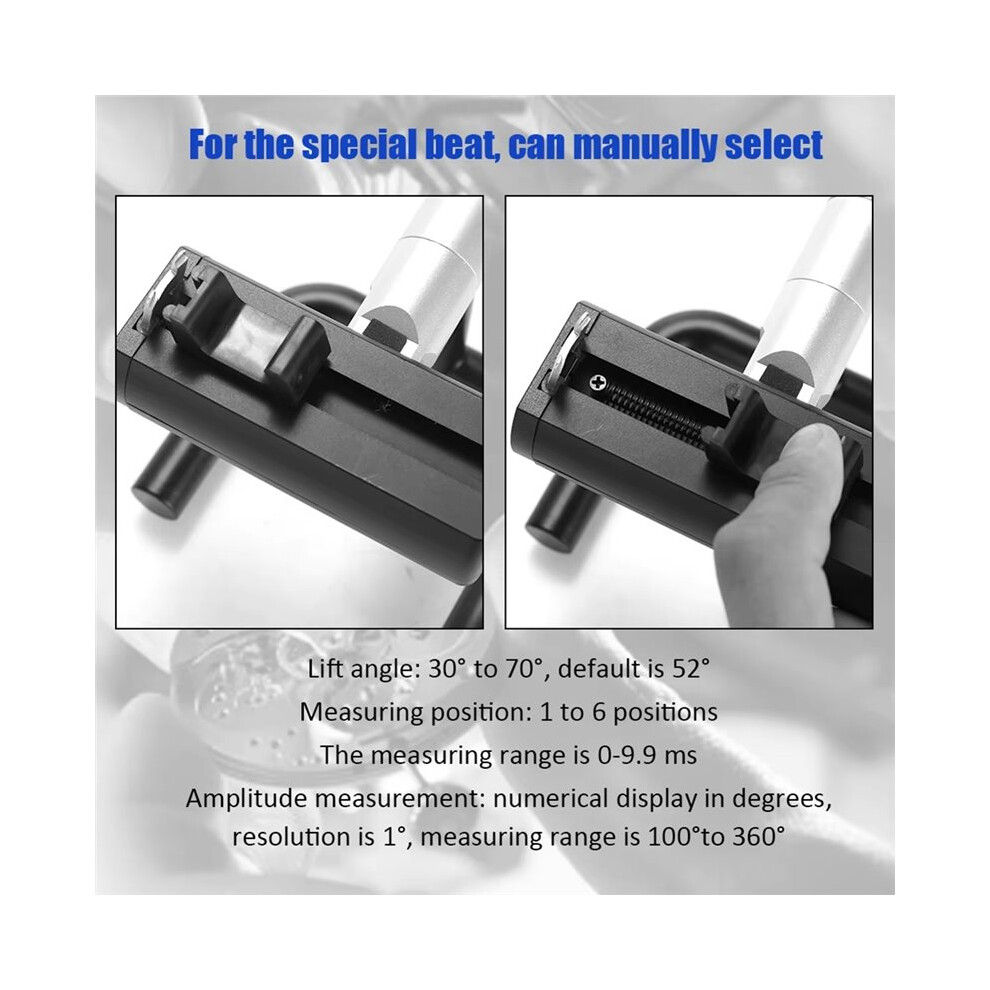

For the conventional be-at, the instrument can automatically respond; for the special be-at, can manually selects. The sampling period can be selected by 2 seconds, 4 seconds, 6 seconds, 8 seconds, 12 seconds, 20 seconds, 30 seconds, 60 seconds, and the average value of corresponding period will be regarded as the exact value of the watch.

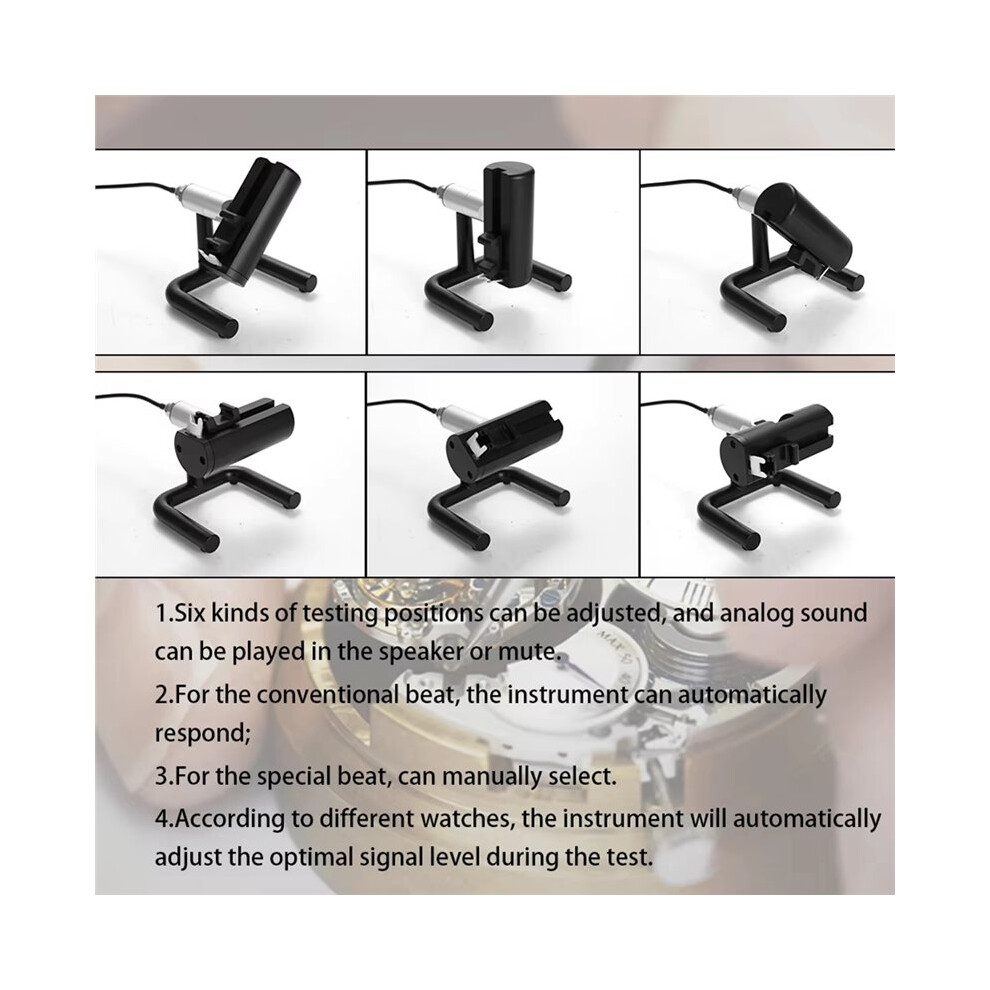

Six kinds of testing positions can be adjusted, and ana-log sound can be played in the speaker or mute.
Measuring possibilities: rate deviation, amplitude, be-at error
Rate deviation measurement: the ranges of deviation is 999 sec/day, accuracy is 1.0 sec/day
Amplitude measurement: numerical display in degrees, resolution is 1, measuring ranges is 100 to 360
Measuring for the be-at error (frequency error): numerical display in milliseconds. Resolution is 0.1 milliseconds; the measuring ranges is 0-9.9 ms
Measuring position: 1 to 6 positions
Sampling periods: 2/4/6/8/12/20/30/60 seconds
Lift angle: 30 to 70, default is 52
length: 196 points
Language: Chinese, English, Japanese
Display dimensions: 98 x 34mm / 3.9 x 1.3in

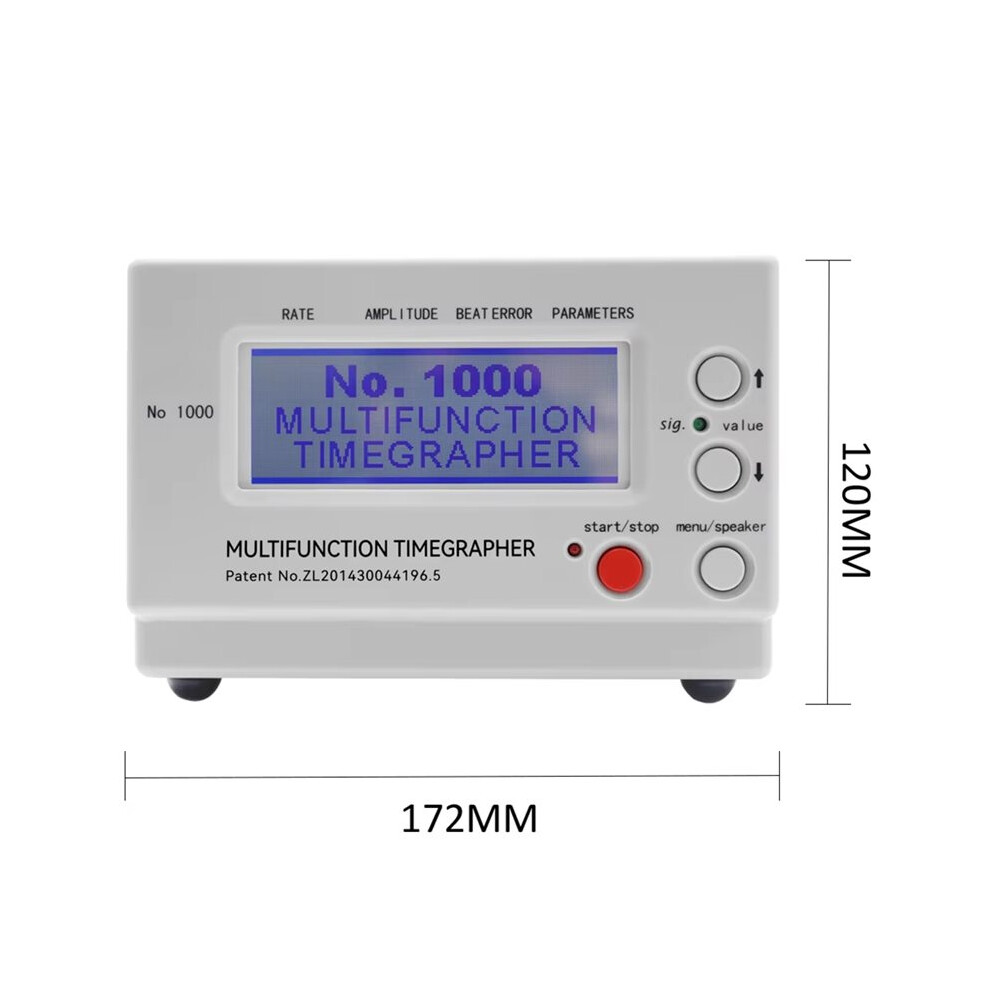

Item size: 172 x 114 x 40mm / 6.8 x 4.5 x 1.6in
Item weight: 1400g / 3.1lb
Plug Type:EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so .
Voltage: AC220V
Color: Silver
Material: Alumin
