Nc Emergency Stop No Red Green Momentary Push Button Switch Station 600v 10a-Useful

Nc Emergency Stop No Red Green Momentary Push Button Switch Station 600v 10a-Useful Beschrijving

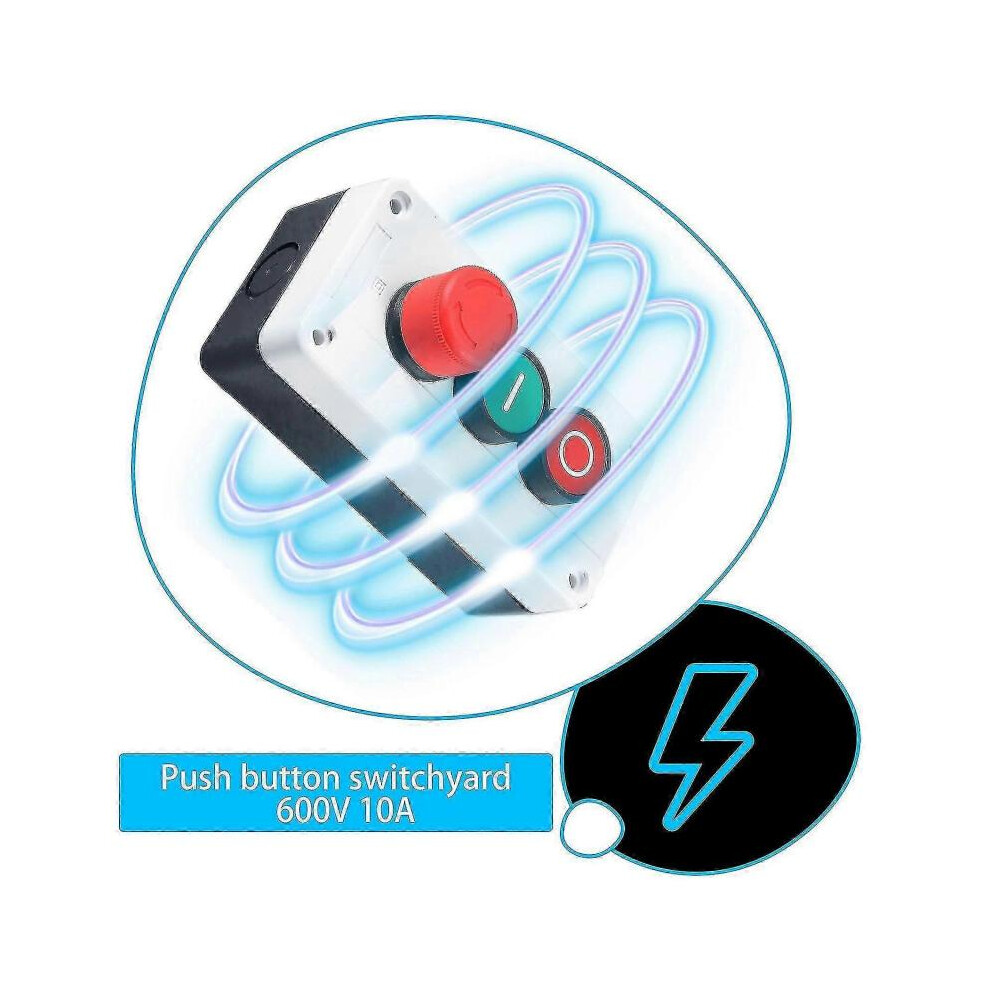

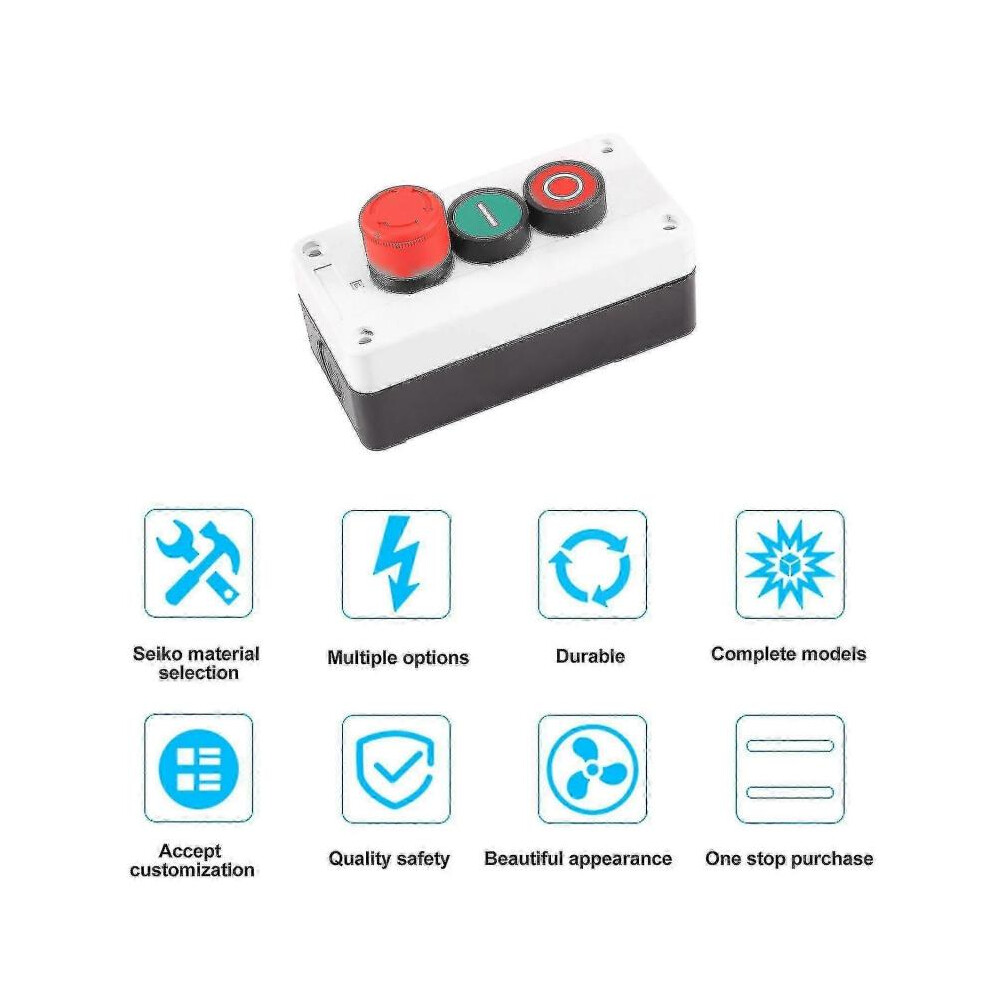

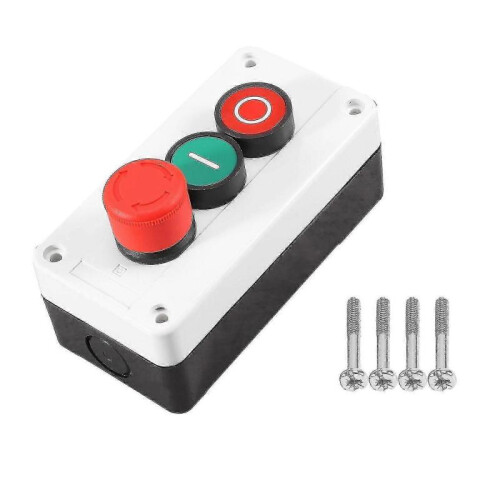

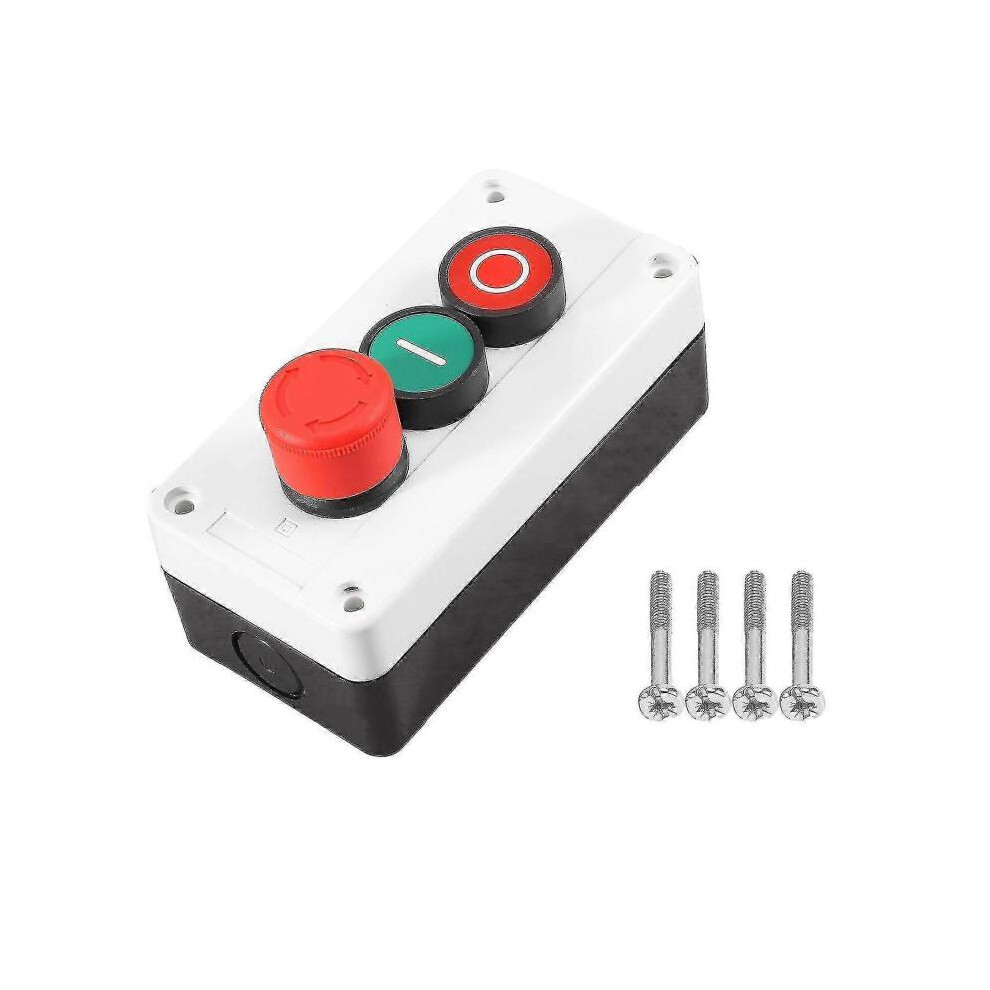

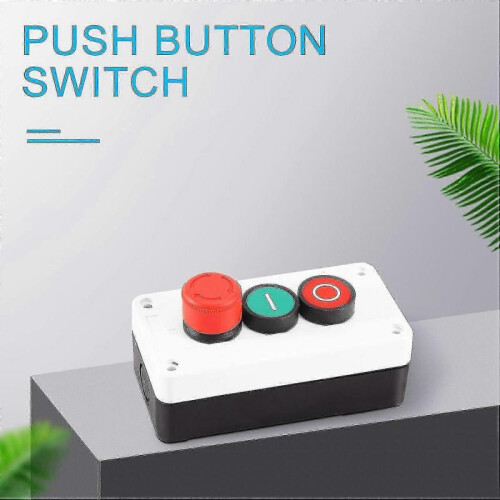

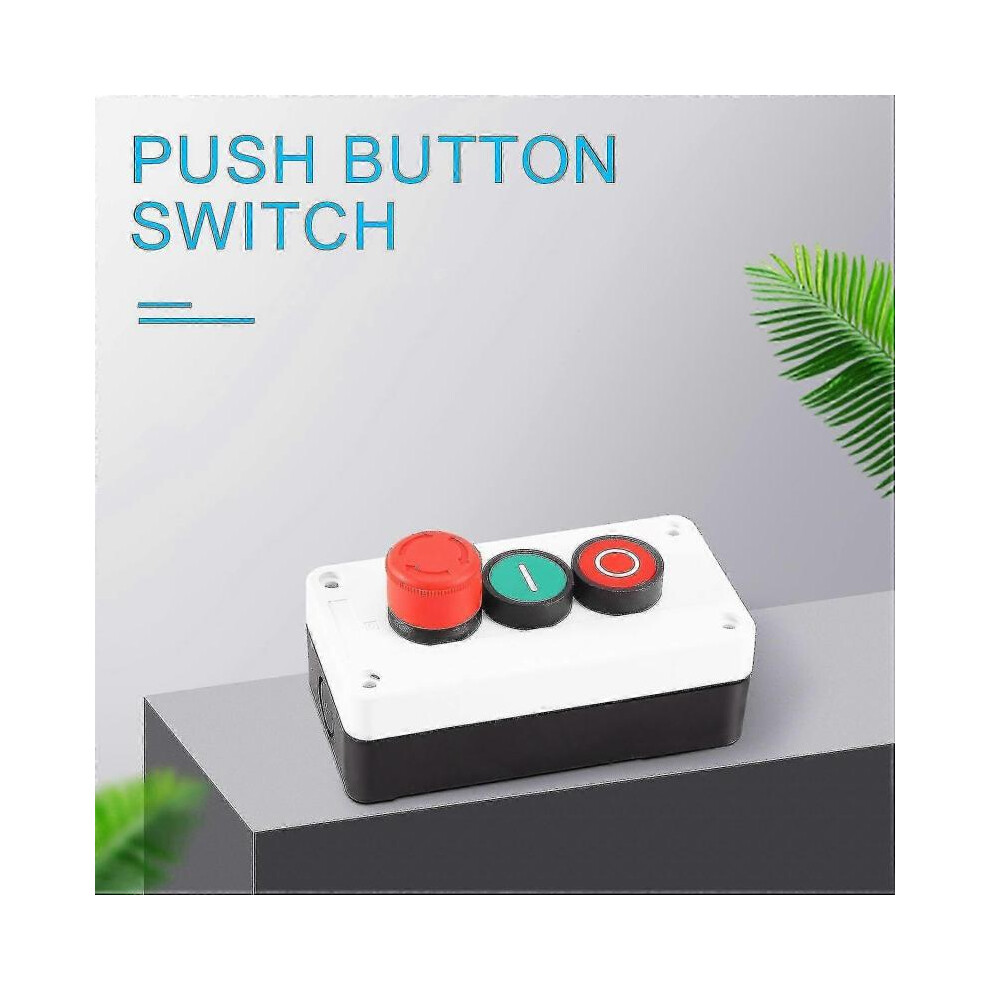

Product Name : Push Button Switch Station;Material : Plastic, Metal;Action Type : Red Emergency Stop Button: Latching Push Button: Momentary Contact Type : Red Emergency Stop Button: 1 NC Black Push Button: 1NO White Push Button: 1NO;Ith : 10A;Ui : 600V AC-15 : 240V 3A;Uimp : 6kV;Terminal Number : 6 Mounting Hole Diameter : 8mm / 5/16";Hole Distance(center to center) : 118 x 51mm / 4.6" x 2"(L*W); Size (.) : 132 x 65 x 75m / 5.2" x 2.6" x 3" (L*W*T) Button Color : Red, Green;Weight : 227g; The push button switch station consists of three separate switches, one is a 1 NC emergency stop red push button switch, one is a 1 NO momentary red push button switch is a 1 NO momentary green flat push button switch. Can be widely used to control the electromagnetic , contactor, relay and other tomatic control electric circuits. Comes with quick connect terminals to allow for fast connections. Package Content : 1 x Push Button Switch Station Note:Light and different displays may cse the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
