PCIE X1 to Single Port -Compatible Embedded Image Application Multimedia 2D Card SM750 Network Card Chip

PCIE X1 to Single Port -Compatible Embedded Image Application Multimedia 2D Card SM750 Network Card Chip Beschrijving

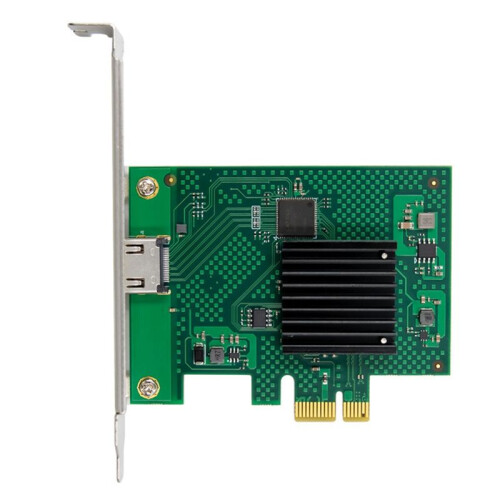

PCIe X1 Gigabit Ethernet electrical port network card, based Ethernet 82576 controller. This adapter represents enterprises and data centers.
The next step in Gigabit Ethernet (GbE) network evolution, providing audio/video bridging (AVB) support, and power management such as -efficient Ethernet.
Technology (EEE) merge with DMA (DMAC).
PCI Express * Gen 2.1 (2.5GT/s), high performance design
Dual-port PCI-Express * 10/100/1000Mbps Ethernet network card

Innovative power management functions:
Including Efficient Ethernet (EEE), DMA coalescing, ultra-compact design, and unique ventilation brackets that can increase efficiency and reduce power consumption.
IEEE 802.1Qav Audio-Video Bridge (AVB), used for strictly controlled media stream synchronization, buffering and reservation
Technical Parameter:
Applicable network:Gigabit Ethernet
Main controller:for 82576EB
Bus type:PCI Express X1, 2.5GT/s
Media interface:copper cable, RJ45
Transmission rate:10/100/1000Mbps
Network topology:10BASE-T/100BASE-TX/1000BASE-T, IEEE 802.1Q VLANs, IEEE 802.3z, IEEE 802.3, IEEE 802.3x, IEEE 1588, IEEE 802.3az
Efficient Ethernet (EEE)
Management function IPMI transfer through SMBus or NC-SI, iSCSI boot, WoL, PXE remote boot, VLAN filtering
Operating system: FreeBSD, Linux, VMWare ESXi, Win 7/Server 2012/Server 2008/Win 8/Win 8.1/Server 2016/Win 10
Firmware environment:
Working temperature:0-55 (32-131)
Storage temperature:-40-70 (-40-158 )
Storage humidity 90% non-condensing relative humidity at 35
Color:As Shown
Material:Electronic Component

Package Contents:
1 * Transfer card
1 * Barrier
