Precision Dial Test Indicator 0-0.8mm for Metric Dovetail Rails with Level Gauge Scale

Precision Dial Test Indicator 0-0.8mm for Metric Dovetail Rails with Level Gauge Scale Beschrijving

Material: Metal
Color: As the picture shows

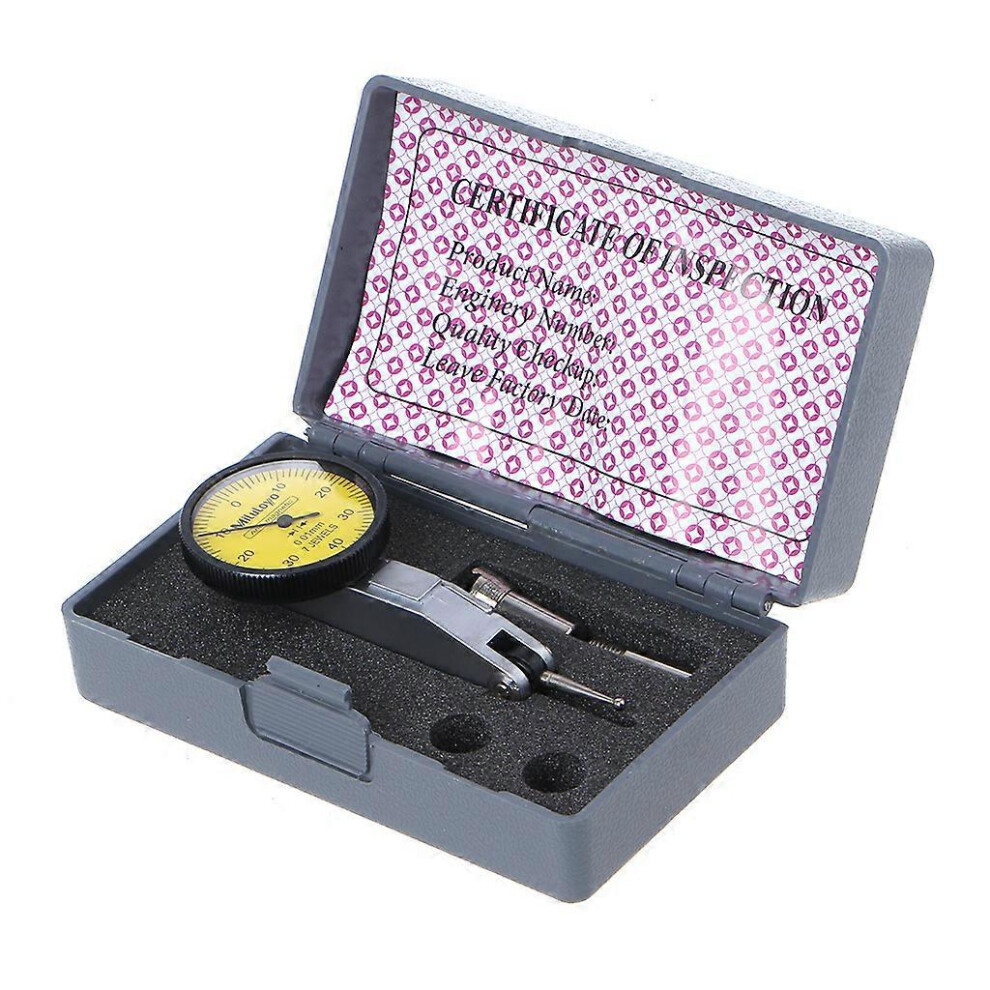

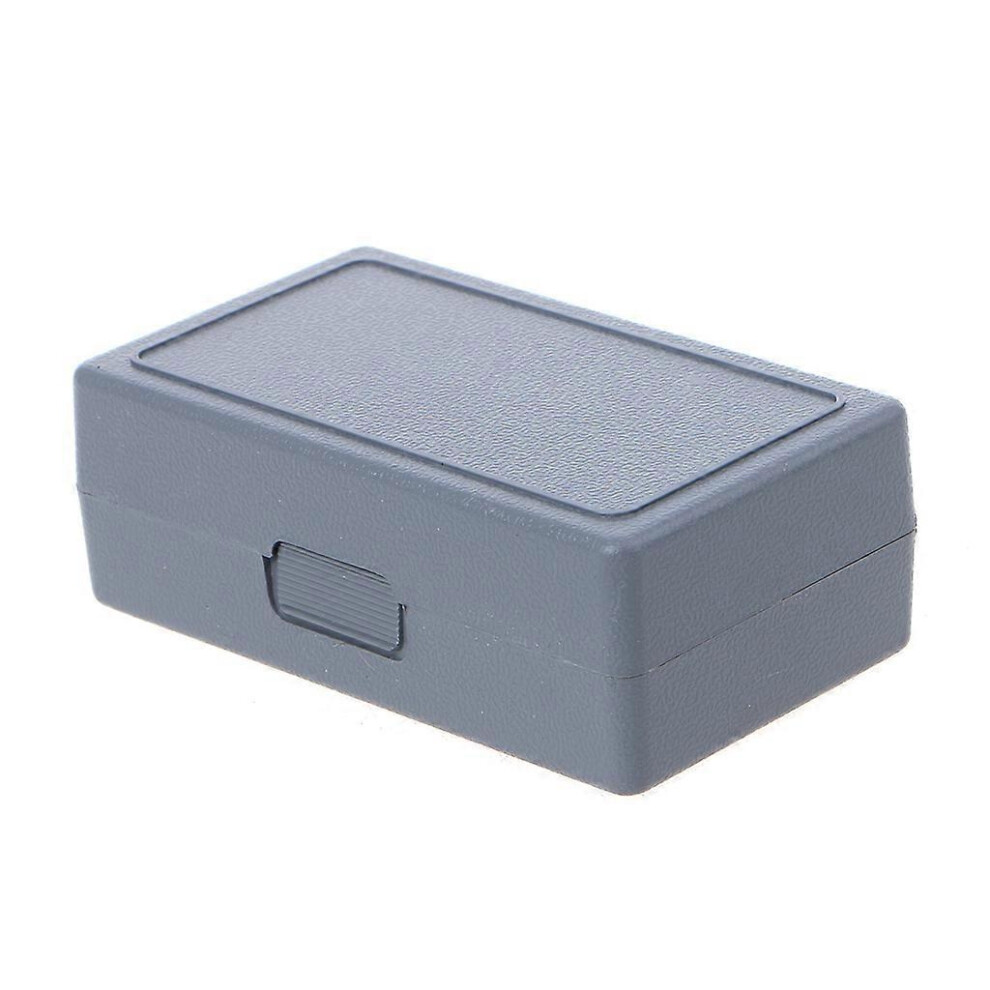

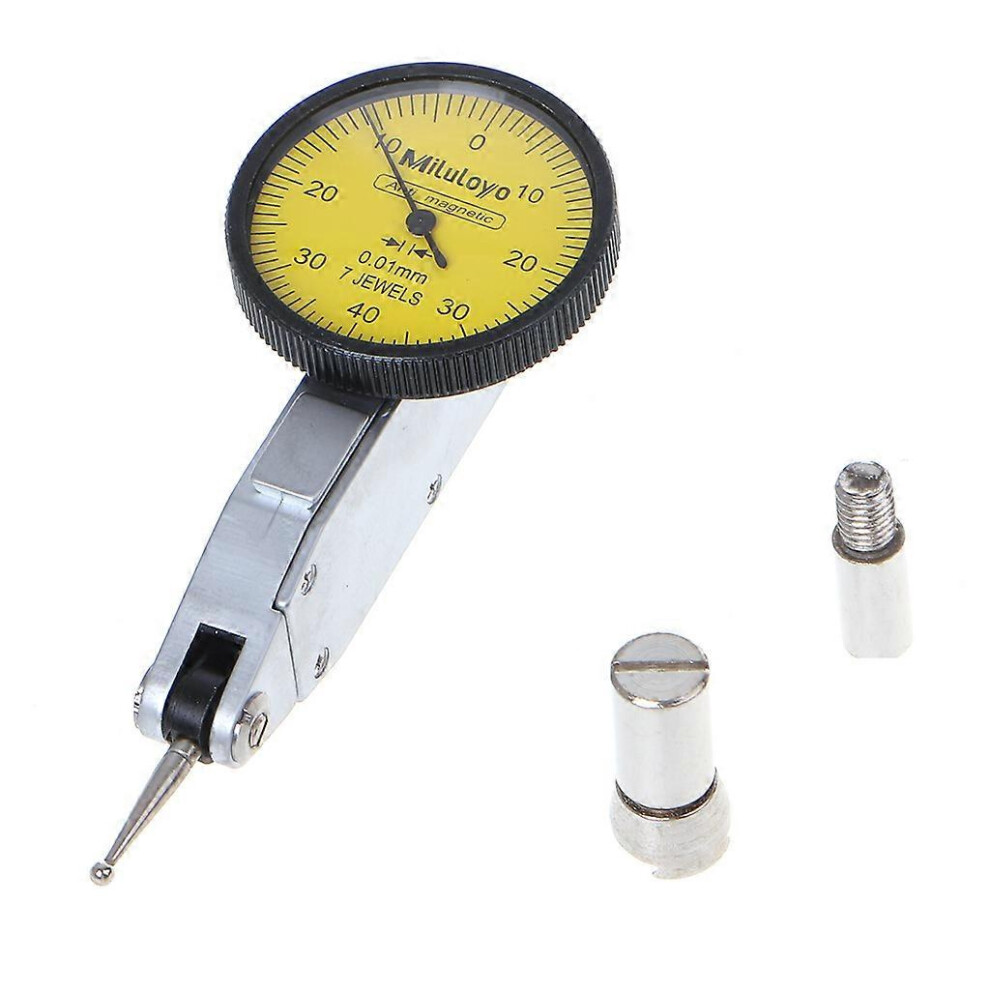

Dial Test Indicator Gauge Feature Fowler inch/metric dial test indicator with yellow face is designed to measure surface variations in narrow or recessed areas 0-0.8mm measuring range, 0.0005"/0.01mm graduations, 0-40-0 balanced inch readings, and 0.001mm balanced metric readings Auto-reversing contact point and adjustable bezel Three dovetail mounts for mounting indicator from the top,back,or front One-piece housing with satin chrome finish provides durability This dial test indicator is designed for taking measurements in machining,layout,and inspection work.The dial has microfine black graduations for 0-40-0 balanced inch readings and red graduations for 0.001mm balanced metric readings.A movement and an auto-reversing contact point provide smooth action.A knurled bezel rotates 360 degrees to zero the reading at any location.Three dovetail mounts on the top,back,and front of the indicator provide a range of mounting options.The one-piece housing and satin chrome finish provides durability. This dial test indicator includes one 3/8" and one 5/32" dovetail clamp and a molded for case.Dial readings with three digits,0-40-0 for example,signify that the indicator has a balanced dial. Dial readings with two digits, 0-100 for example,indicate the dial has a continuous dial.Balanced dials are used for reading the difference from a specific surface reference point.Continuous dials are used for direct readings and usually have a larger measurement range than balanced dials. Specifications Face 1-1/4" diameter yellow face Dial type and reading 0-40-0 balanced inch and 0-.25-0 balanced metric readings Range 0-0.8mm Graduations 0.0005"/0.01mm Contact point length 1/2" Dovetail clamps 3/8" and 5/32" Mounting type Dovetail Characteristic & Function A magnetic stand that uses a switchable permanent magnet for convenient mounting onto flat iron or steel surfaces. The arm can be hydraulically locked in any position using the knob on the upright . Useful for holding dial indicators or dial test indicators during alignment operations.
Quantity:1Pc
Note: Due to the difference between different monitors, the picture may not reflect the actual colorof the item. Thank you!
