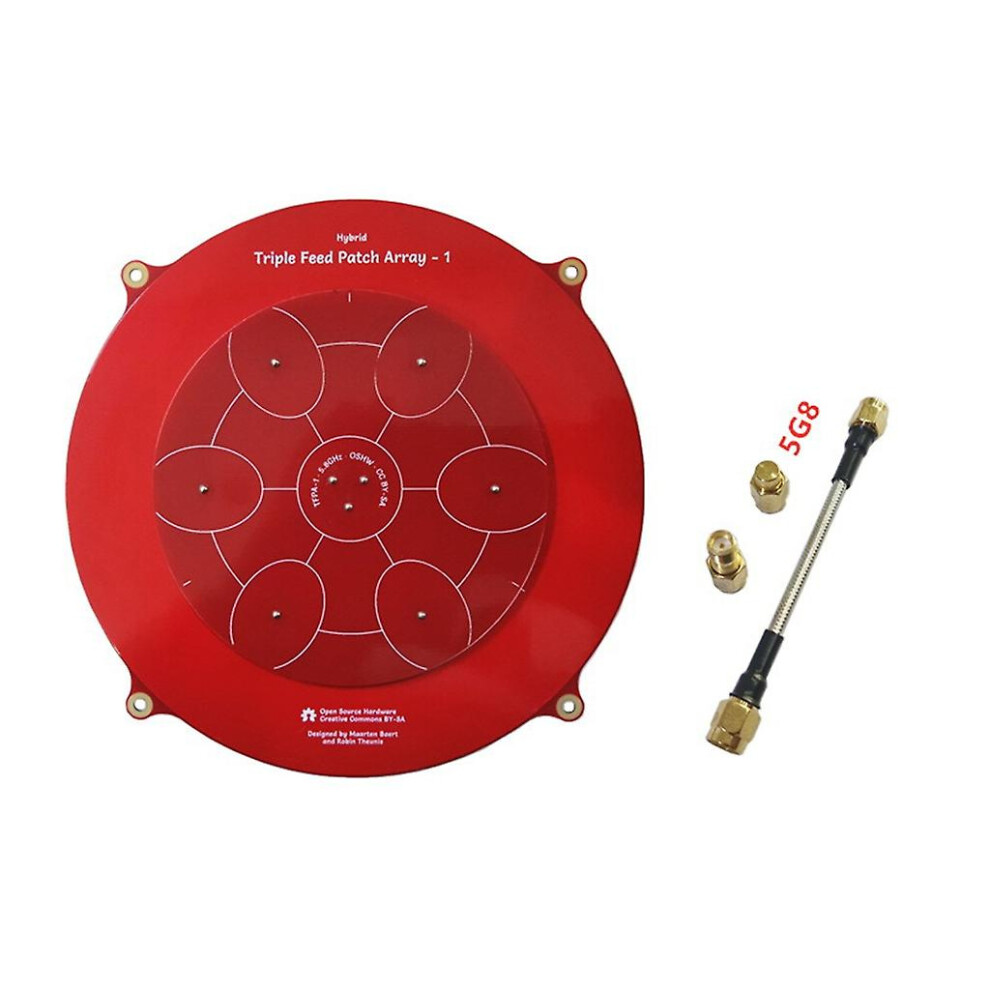

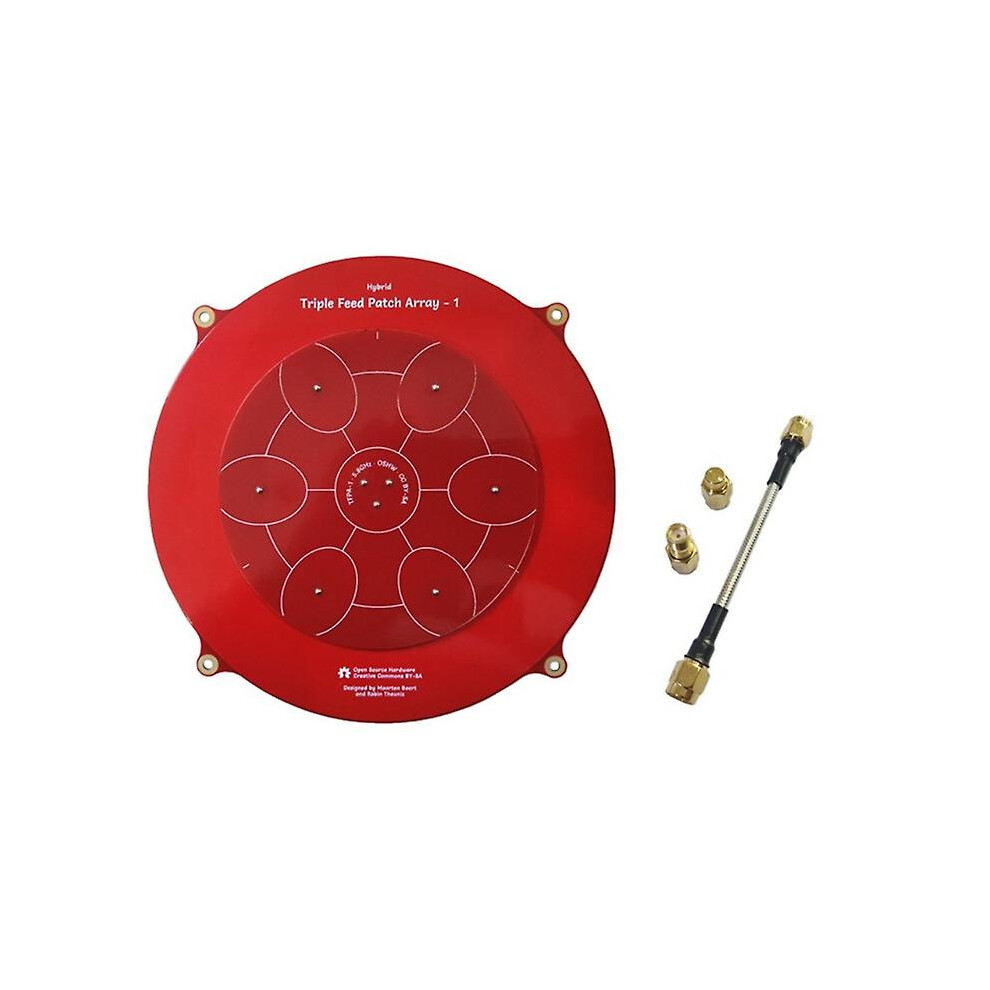

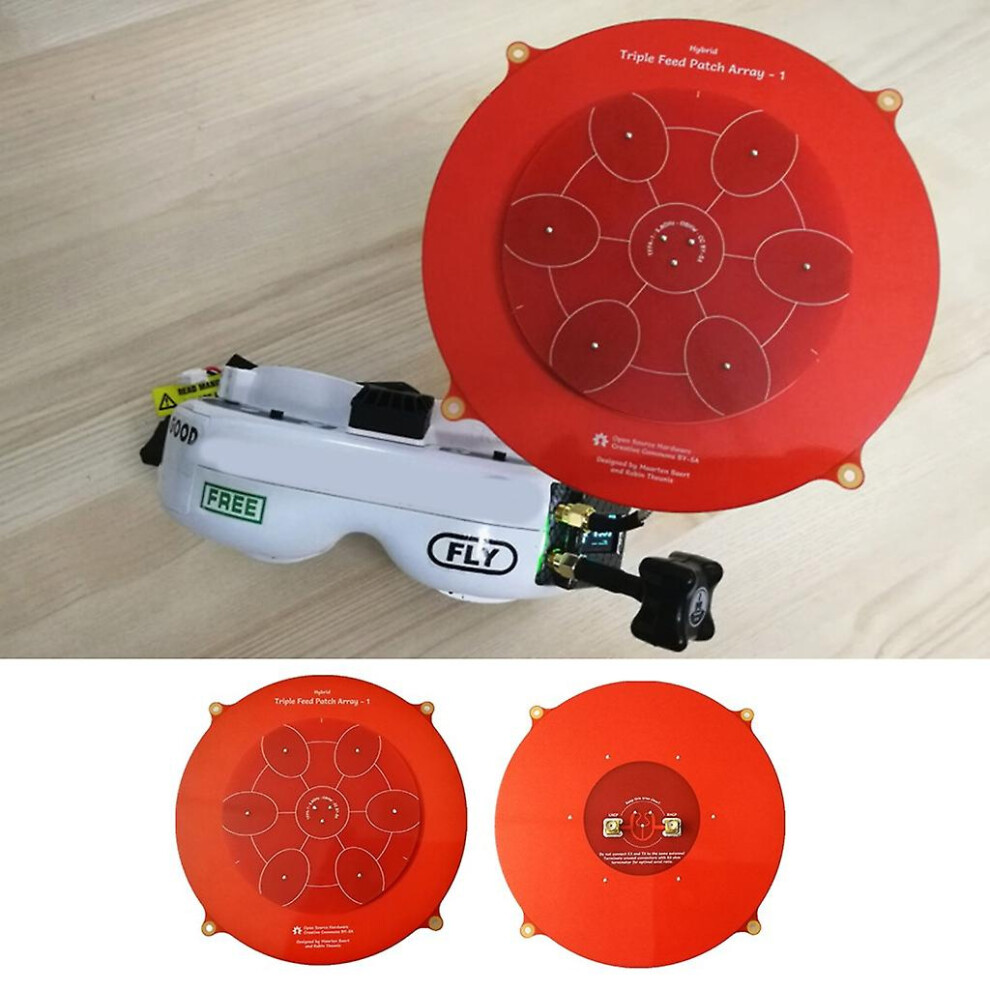

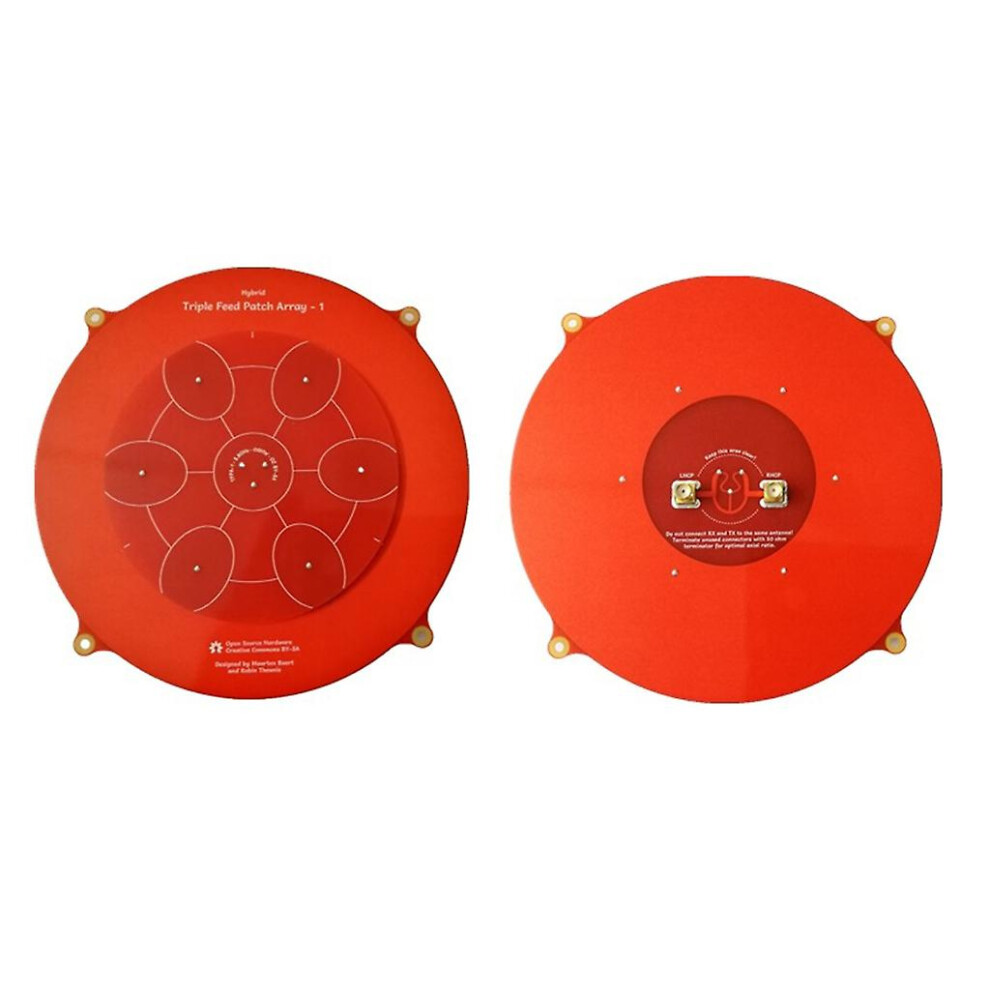

(Red) 5.8GHz 14dBi 150mm Triple Feed Patches Pagoda Array Antenna for Drones

(Red) 5.8GHz 14dBi 150mm Triple Feed Patches Pagoda Array Antenna for Drones Beschrijving

Features:
new and high quality
Good radiation efficiency. Most FR4-based patches have terrible efficiency because FR4 is very lossy at 5.8GHz. Additionally, most array antenna have high losses in feed networking. This design uses coupled patches to keep feed networking simple and reduce these losses.
Exceptionally good ratio, not just directly perpendicular to the Patches but also off-center.
Though not as high as the theoretical gain of an array. This is because maximizing the gain would result in high sidelobes and a poor ratio.

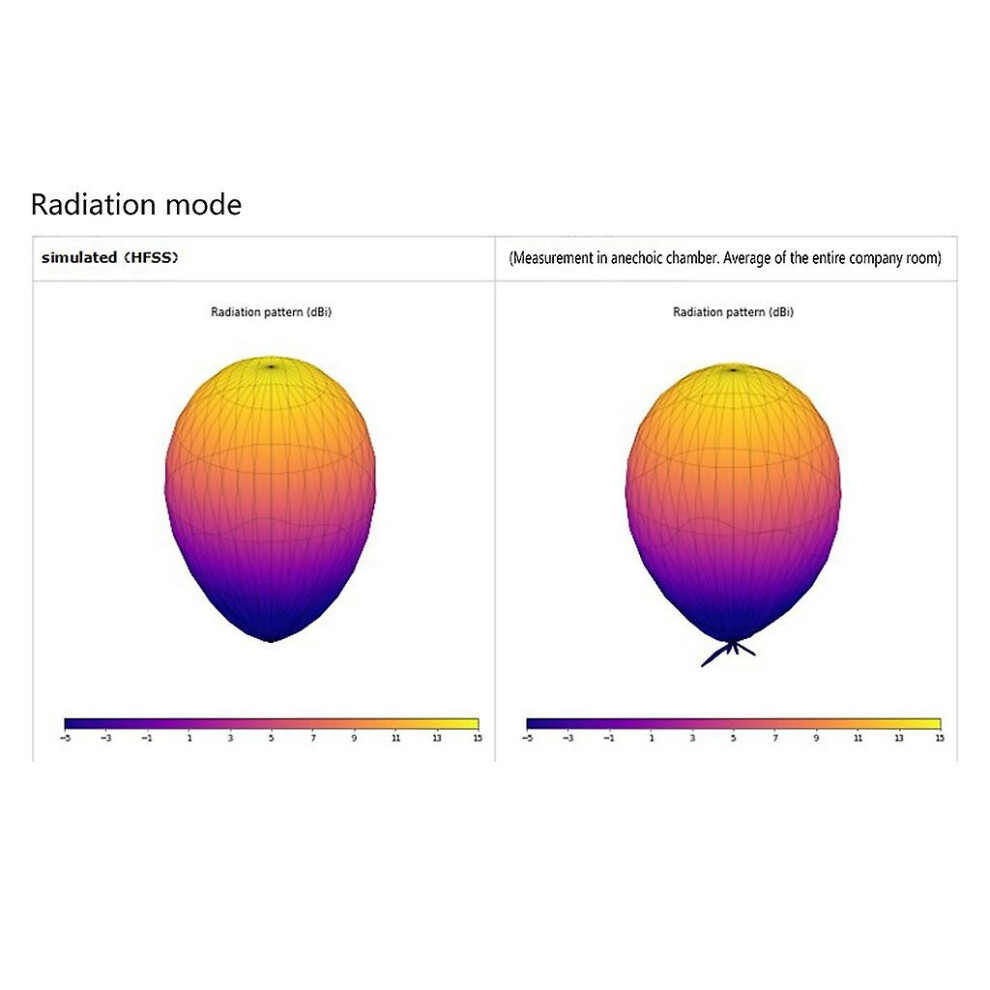

Very low sidelobes, almost all energy is concentrated in main lobes. This increases the width of main lobes, at the expense of some gain.
Reasonably cheap and easy to manufactures with high accuracy, even for a hobbyist.

Specifications:
Material:ABS
Color:Black/Redness
Size:Approx.15cm/5.91inch

Note:
1.Please allow 1-2cm errors due to manual measurement, make sure that you do not mind before you order.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item.

Package includes:
1 Set Triple Feed Patches
