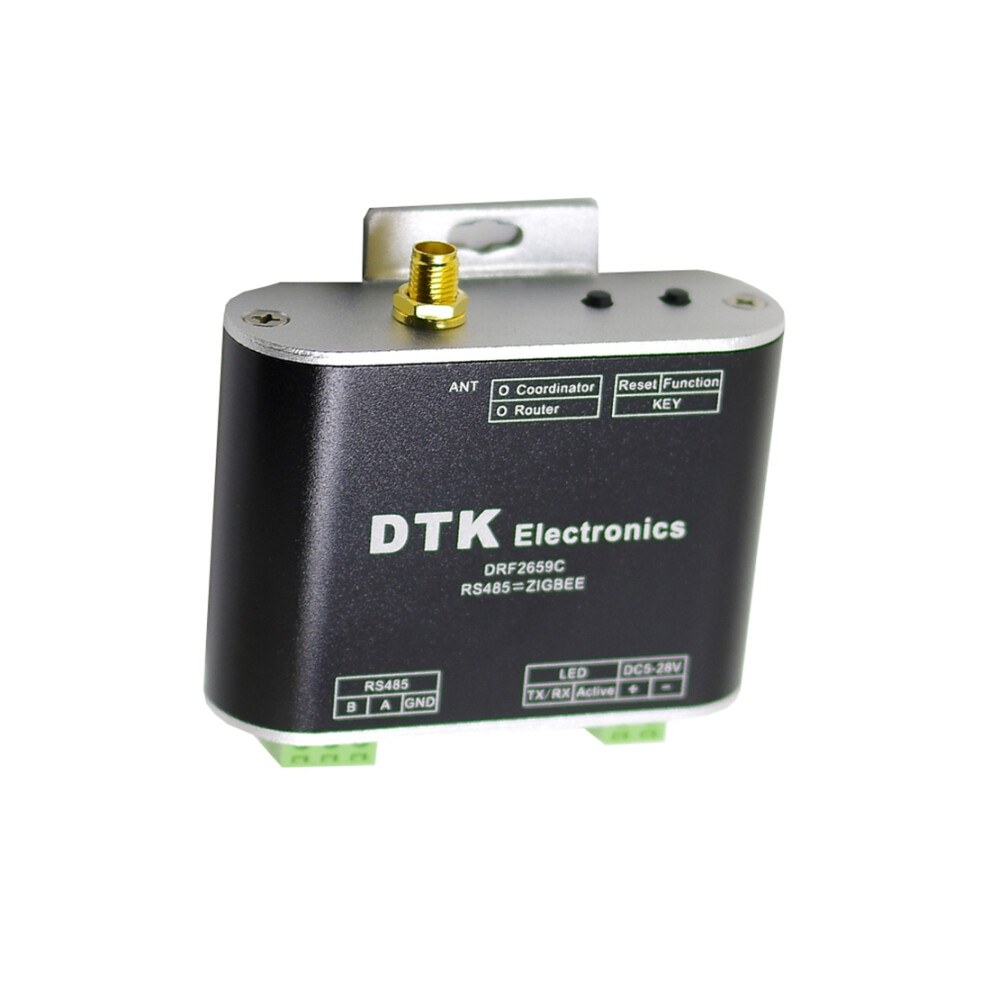

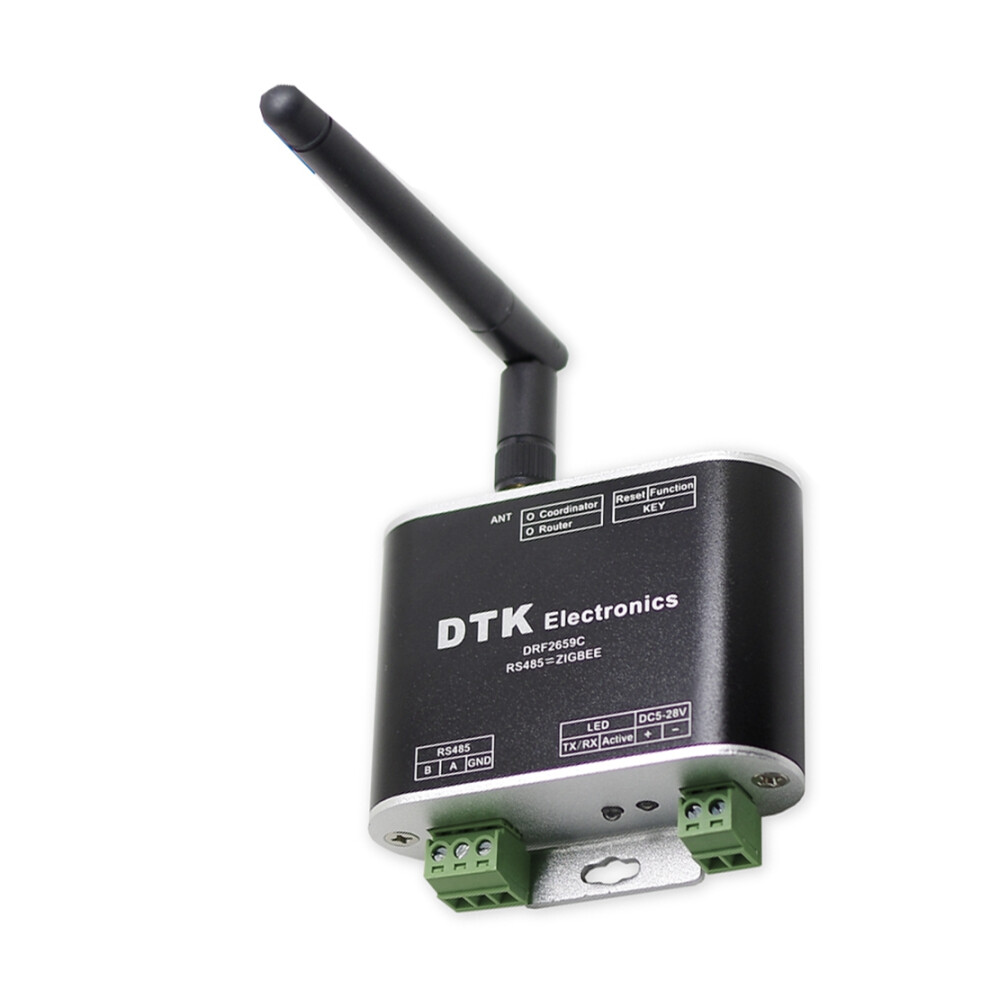

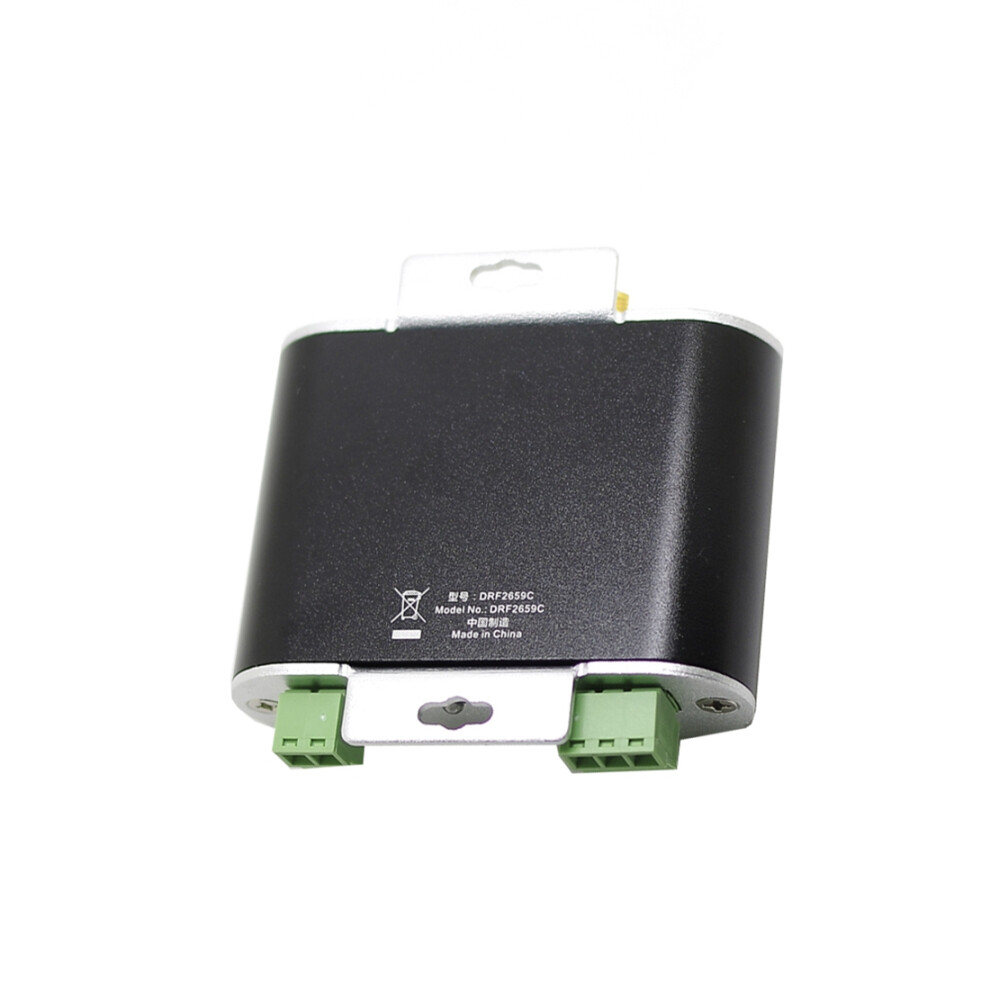

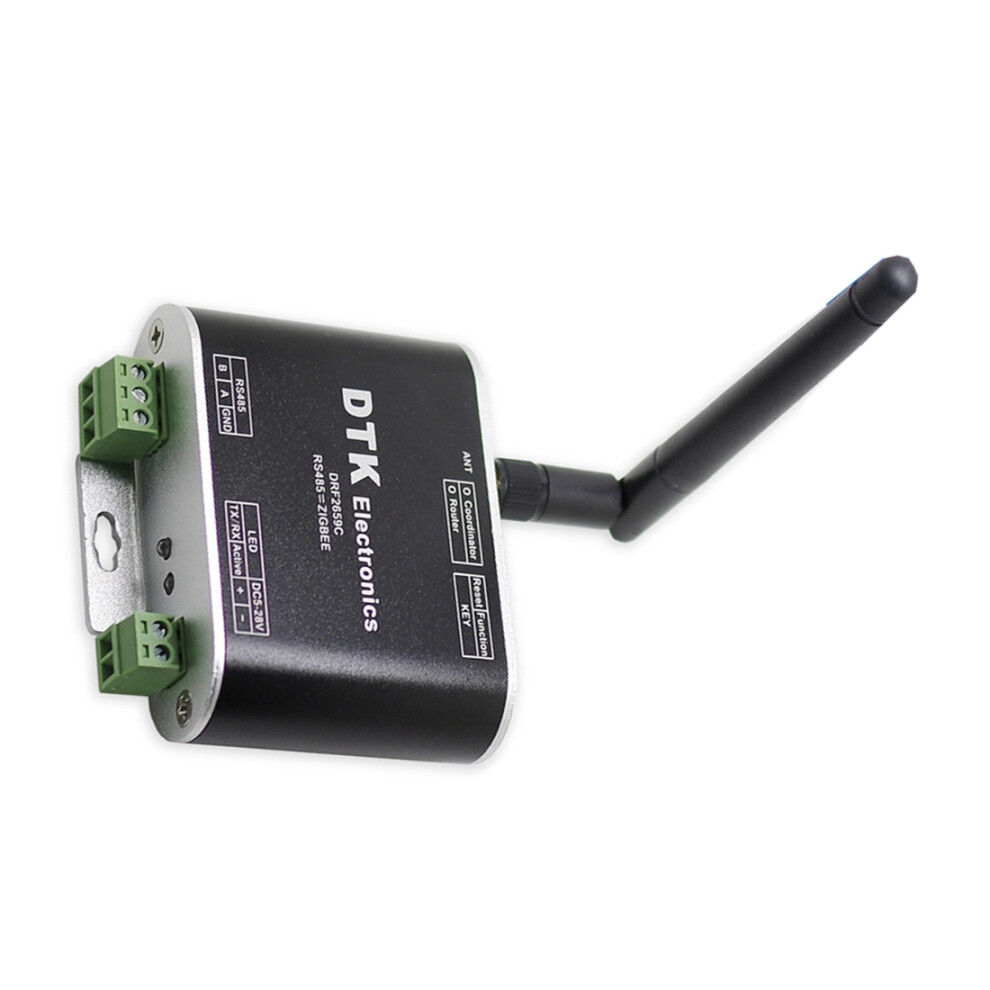

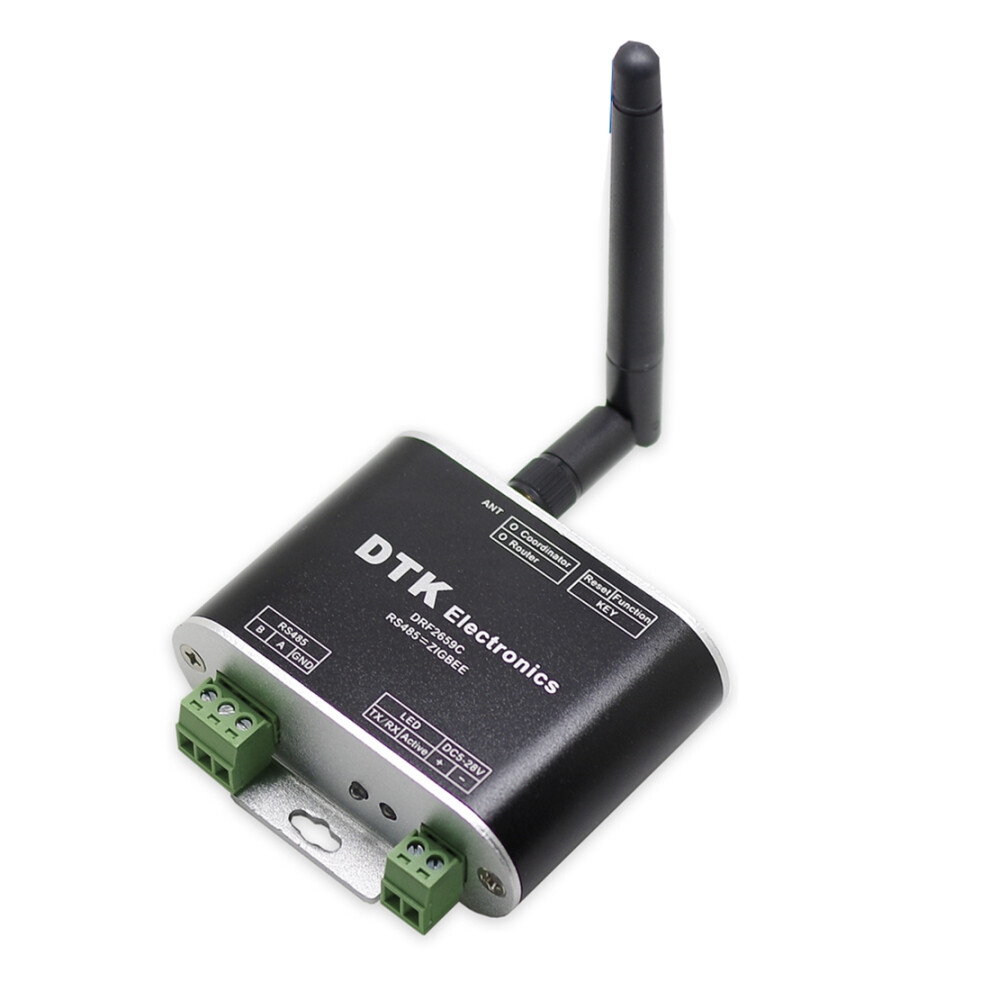

RS485 to ZigBee Wireless Module, 1.6Km Transmission CC2630 Chip, DRF2659C (Antenna)

RS485 to ZigBee Wireless Module, 1.6Km Transmission CC2630 Chip, DRF2659C (Antenna) Beschrijving

Dual-core CPU, larger and more efficient network
Dynamic routing maintenance, 200-level routing depth
The host computer visualizes the routing status of the entire network
ROUTER setup-free one-key ad hoc network
COORDINATOR can be replaced directly

Model: DRF2659C
Input voltage: DC5-28V
Temperature range: -40-+85
Wireless frequency: 2.4GHz (2460MHz), the user can change the channel through the serial port command
(2405MHz-2480MHz, step size: 5MHz)
Serial port rate: 38400bps (missing recognition) can be set to 1200bps, 2400bps, 4800bps
9600bps, 19200bps, 38400bps, 57600bps, 115200bps
Serial port format: 8-N-1 (default) can be set 8-E-1, 8-O-1
Transmission distance: visible open environment, the maximum transmission distance is 1600 meters (using an external antenna)
Receiving sensitivity: -98dBm
Configurable node: it can be configured as Coordinator, Router.
Interface: Communication interface: RS485 (A/B/GND) Antenna port: SMA outer screw inner hole
type: Antenna
colour: black
Material: plastic

Package Contents:
1 x Wireless Module
