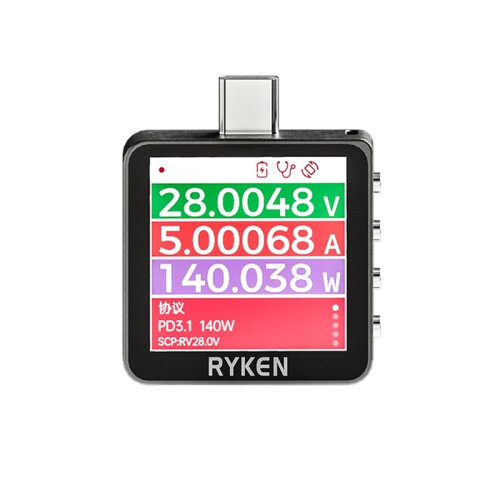

RYKEN RK-X3 Voltage Current Tester USB Mobile Phone Fast Charging Detector Laptop Charging

RYKEN RK-X3 Voltage Current Tester USB Mobile Phone Fast Charging Detector Laptop Charging Beschrijving

Hign-concerned Chemical: None
Model Number: RK-X3
Item Type:
The Type-C multi-function tester features a 1.54-inch HD screen, a high-end controller, and a dedicated 16-bit ADC sampling chip. It also includes a dedicated PD physical layer protocol chip for real- monitoring of voltage, current, power, capacity, waveform, and fast charging protocol data.
Display: 1.54-inch IPS true color screen

Voltage measurement range: 3.6-36.00V (standard version)
Voltage measurement accuracy: [0.01V
Current measurement range: 0-6A (short-term 10A)
Current measurement accuracy: 0.5% of range
Power measurement range: 0-240W
Temperature measurement accuracy: 0.000%
Capacity accumulation range: 0-9999WH
Measurement rate: [100ms
Temperature measurement range: 0.000%
Self-current consumption: [0.080A (maximum)
Operating temperature range: 0-80C
Dimensions: 36.2 x 36.2 x 8.9mm
Refresh rate: 200ms
Interface transfer rate: USB 4.0 (for 4/5)
Weight: 17g
Color: Black
Material: Aluminum Alloy

Package Contents:
1 * Tester
