SCD41 CO2, Temperature & Humidity Sensor Module

SCD41 CO2, Temperature & Humidity Sensor Module Beschrijving

Carbon dioxide is a key indicator of indoor air quality, damaging human cognitive ability and happiness. SCD41 is the next generation of Micro-carbon dioxide sensor of Sensirion.
SCD41 has high precision and high cost performance. The module leads out the power supply and communication pins with a 2.54mm spacing pin interface.
On chip temperature and humidity compensation realizes humidity and temperature measurement through built-in temperature and humidity sensor.
SCD41 can realize intelligent regulation of indoor ventilation system according to carbon dioxide concentration. Indoor air quality helps to maintain a healthy and efficient environment under low carbon dioxide concentration for a period of time.
features
Reference accuracy, specified range 400-2000 ppm
Supply voltage range: 2.4 - 5.5 V
High accuracy: (40 ppm + 5%)
Digital I2C interface
Integrated temperature and humidity sensor
Low power operation to Less than 0.4 Ma average @ 5 V, 1 meas/ 5 minutes

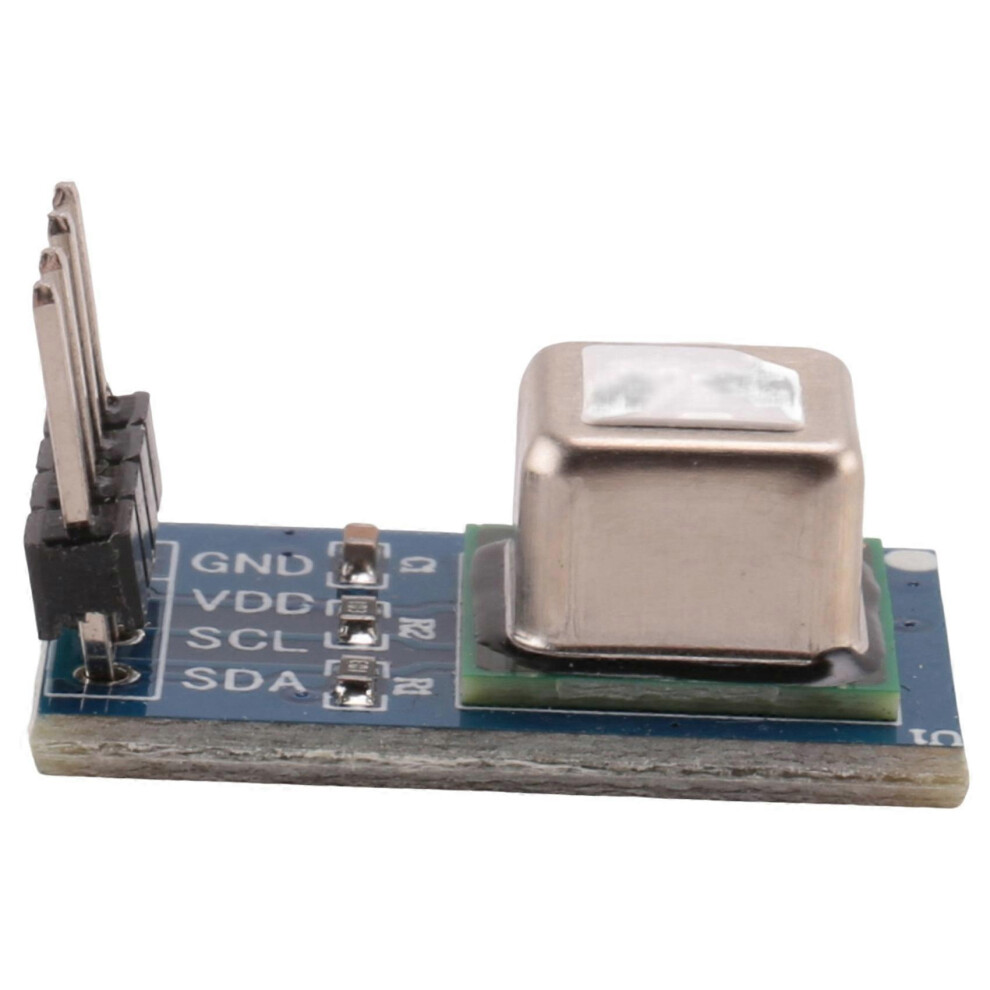

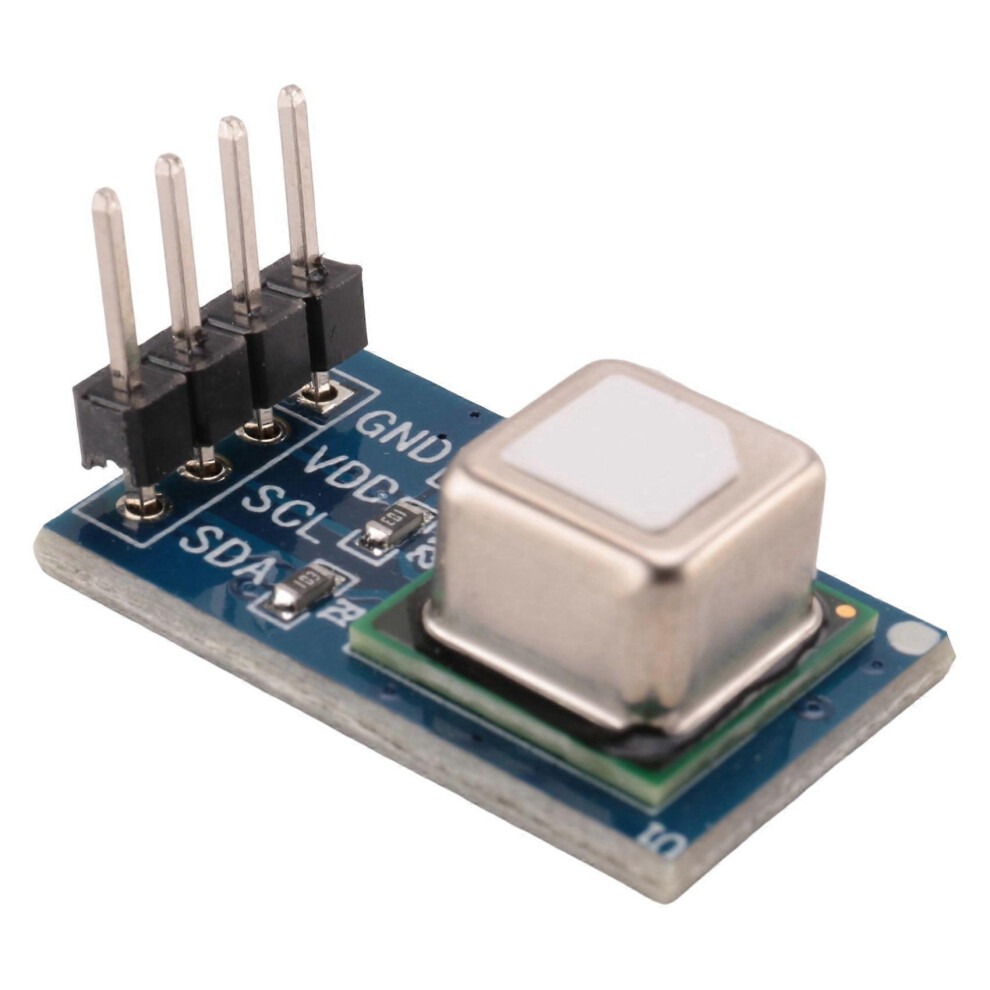

Interface definition:
1. GND: negative input port of power supply
2. VDD: positive input port of power supply
3. SCL: I2C clock port
4. SDA: I2C data port
Material: PC+Metal
colour: blue
Package Contents:
1 x sensor module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
