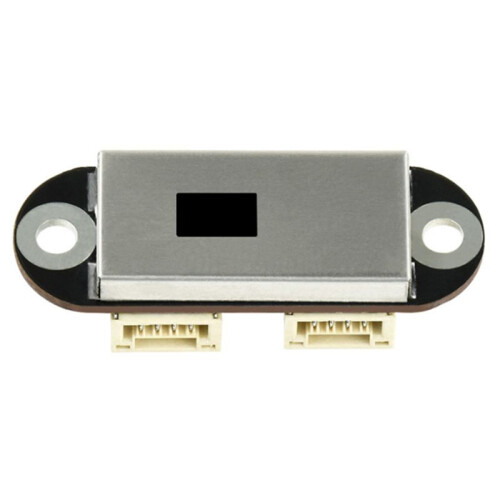

TOFSense Lidar Range Finder Sensor Module TOF Single Point Micro-Ranging UART & ICAN 0.1-8m

TOFSense Lidar Range Finder Sensor Module TOF Single Point Micro-Ranging UART & ICAN 0.1-8m Beschrijving

TOF laser ranging sensor, I am a laser ranging sensor based TOF ( of flight) technology, with built-in controller and ranging algorithm, ranging range to 5m, accuracy to 1.5cm, resolution to 1mm.
I support UART and CAN communication, support active and query output data, support cascade ranging, you can use me as a ranging tool for distance detection, as a robot obstacle avoidance/route planning, and can also be used in drone height determination/ceiling detection and other fields.
Optical filtering, built-in MCU and ranging algorithm, cascade ranging. Short distance: 0.012~2.16m. Medium distance: 0.012~3.60m. Long distance: 0.01~5.00m. Short distance: accuracy 1.0cm, standard deviation Less than 0.3cm. Medium distance: accuracy 1.0cm, standard deviation Less than 1.5cm
Long distance: accuracy 1.5cm, standard deviation Less than [email protected]~, standard deviation Less than 8cm@3~5m. Measurement resolution: lmm. Wavelength: 940nm (in compliance with Class1 standard. Field of view (FOV): 15~27 (multi-position adjustable)
Communication interface (UART/CAN): UART (2 interfaces can be used as UART interfaces at the same , TTL signal level 3.3V). CAN (2 interfaces can be used as CAN interfaces at the same ) Communication baud rate. UART: 115200~3000000bps (default 115200bps). CAN: 100000~3000000bps (default 100000bps). Cascade quantity: The UART interface supports to 8 cascades, and the CAN interface supports to 7 cascades

Power supply voltage: 3.7~5.2V
Product power consumption: 290mW (UART active output, long-distance mode power supply voltage 5.0V, current 58mA)
Product weight: 2.7g
Product size: 35.58 x 12 x 8.05mm (length x width x height)
Support UART or CAN, output mode can be set
UART and SCAN communication, support communication mode configuration, reserve two communicat
