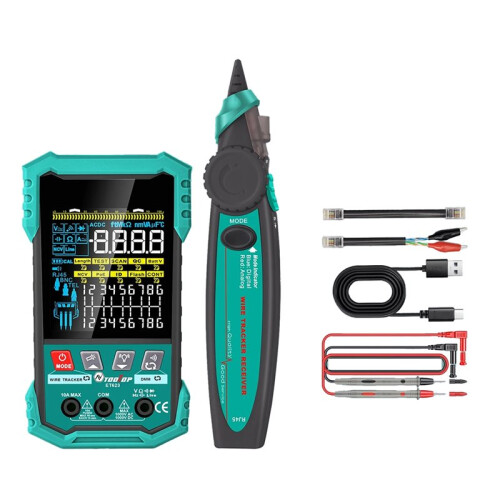

TOOLTOP Network Cable Tester POE Test QC Crimping Breakpoint Detect LAN Cable Tracker 400M Cable Length Measurement ET623

TOOLTOP Network Cable Tester POE Test QC Crimping Breakpoint Detect LAN Cable Tracker 400M Cable Length Measurement ET623 Beschrijving

1. 2.5-400M network cable length measurement (applicable to RJ45 8-core or 4-core network cable, telephone , BNC video cable)
2. Crystal crimping test to determine whether the network cable is crimped and connected

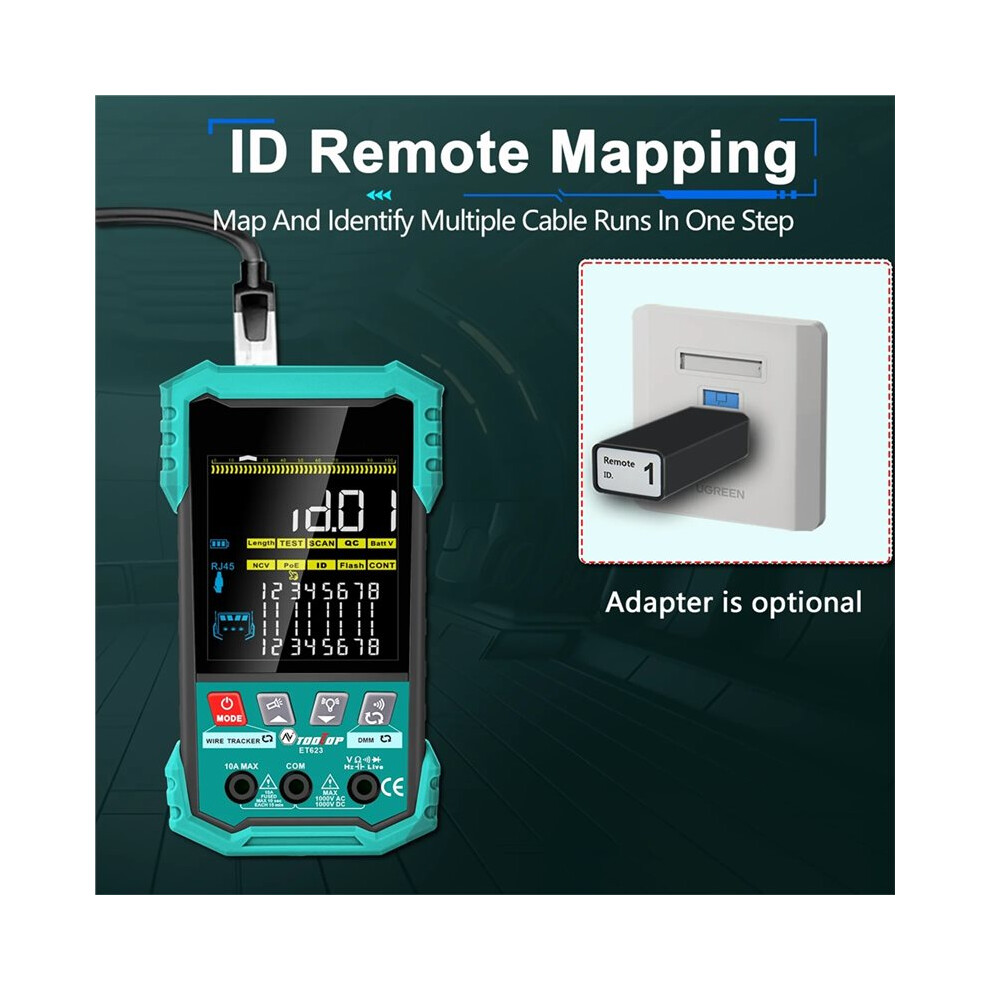

3. Cable mapping function can test the open circuit, crossover, short circuit, etc. of the network cable
4. Noise-free digital search, quickly find the target , with sensitivity adjustable
5. POE test, polarity judgment and voltage value display, applicable to standard, non-standard/IEE802.3AF/AT

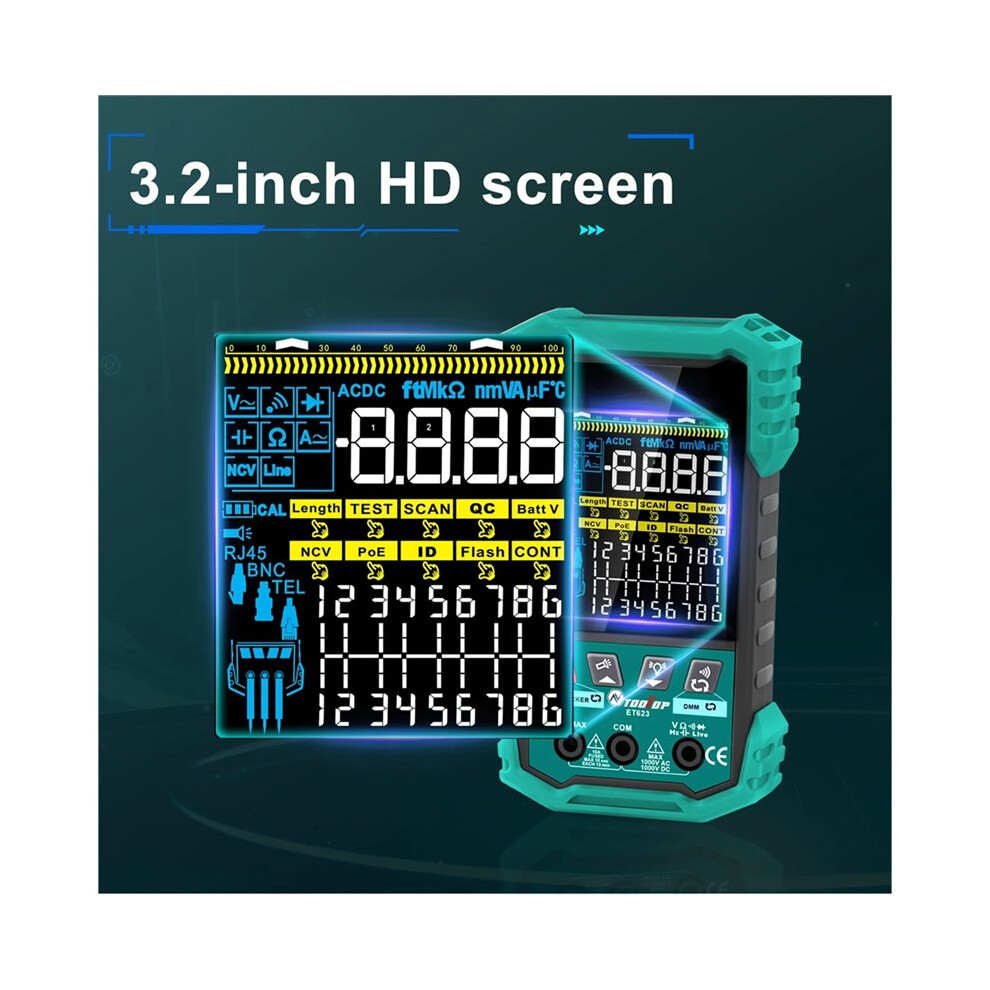

3.2-inch color LCD display, clearer input indication
The model ET623 comes with multi-function multimeter function
The host uses lithium battery for power supply, which is more environmentally friendly
Network Cable Tester

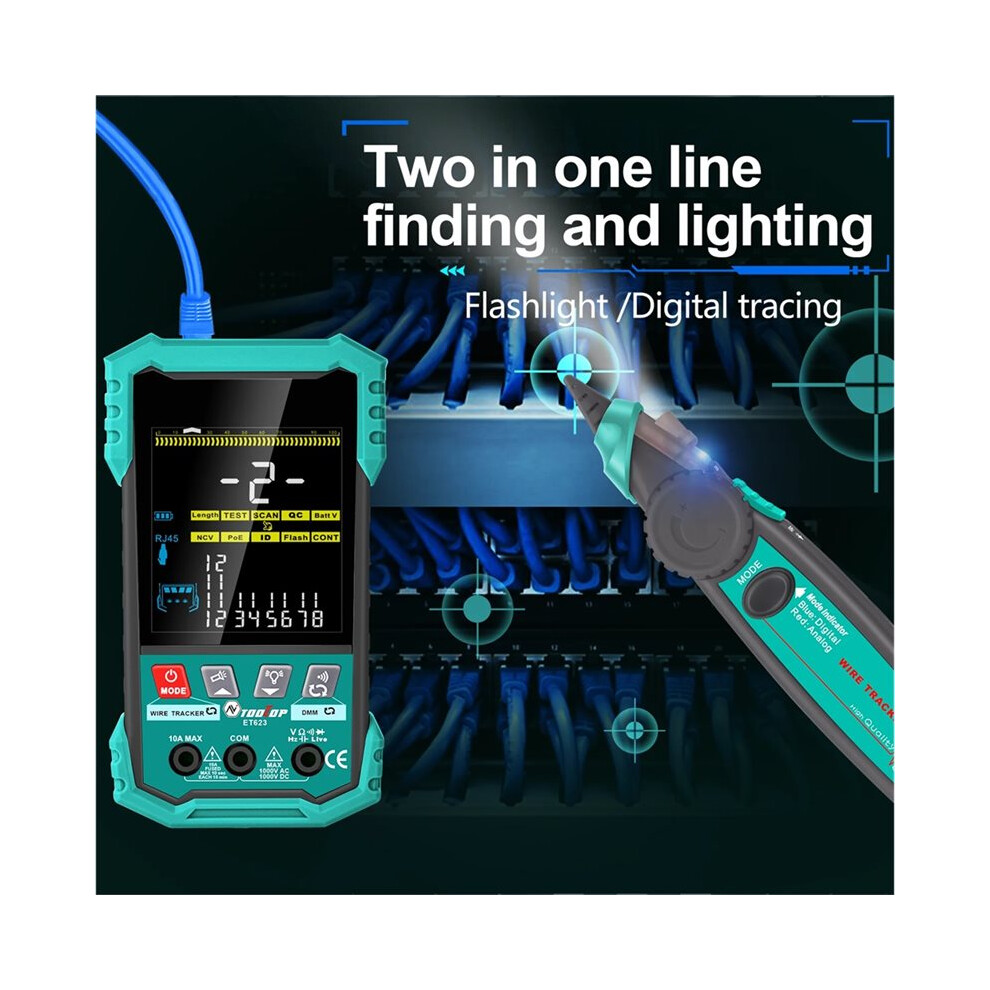

Digital Tracing: Digital and vibration(ET623)
Length Accuracy:2% 1m
Enter Connection Prompt :Support
Cable Mapping :Normal/Open/Short/
Flash: 10/100/1000 Mbps
Breakpoint Measurement: Supported
Voltage (battery) test:
ET623:Multimeter measurement
NCV Testing Sensitivity :Adjustable
Digital Tracing Sensitivity :Adjustable
Flashlight lighting: support
POE Test: Voltage/polarity
Low battery detection function: support
Auto Power Off: Support
Power supply: 1250mAh (Host) rechargeable lithium battery(included)/ 1 x 9V(receiver)battery (NOT INCLUDED)
Multimeter[only for ET623]
Multimeter: 6000 counts
Voltage: 600.00mV-1000V (0.5%+0.3)
AC Voltage: 6V-600V (1%+3)
Current: 999.9mA-9.999A(1.2%+3)
AC Current: 999.9mA-9.999A(1.5%+3)
Resistance: 600.0Ω-60.00MΩ (1.5%+5)
Capacitance: 6.000nF-666.6μF (2.0%+6)
6.000mF-60.00mF(5%+20)
Continuity: Less than 10Ω ,buzzer sounds
Diode: support
Color: As Shown
Material: plastic

Packag
