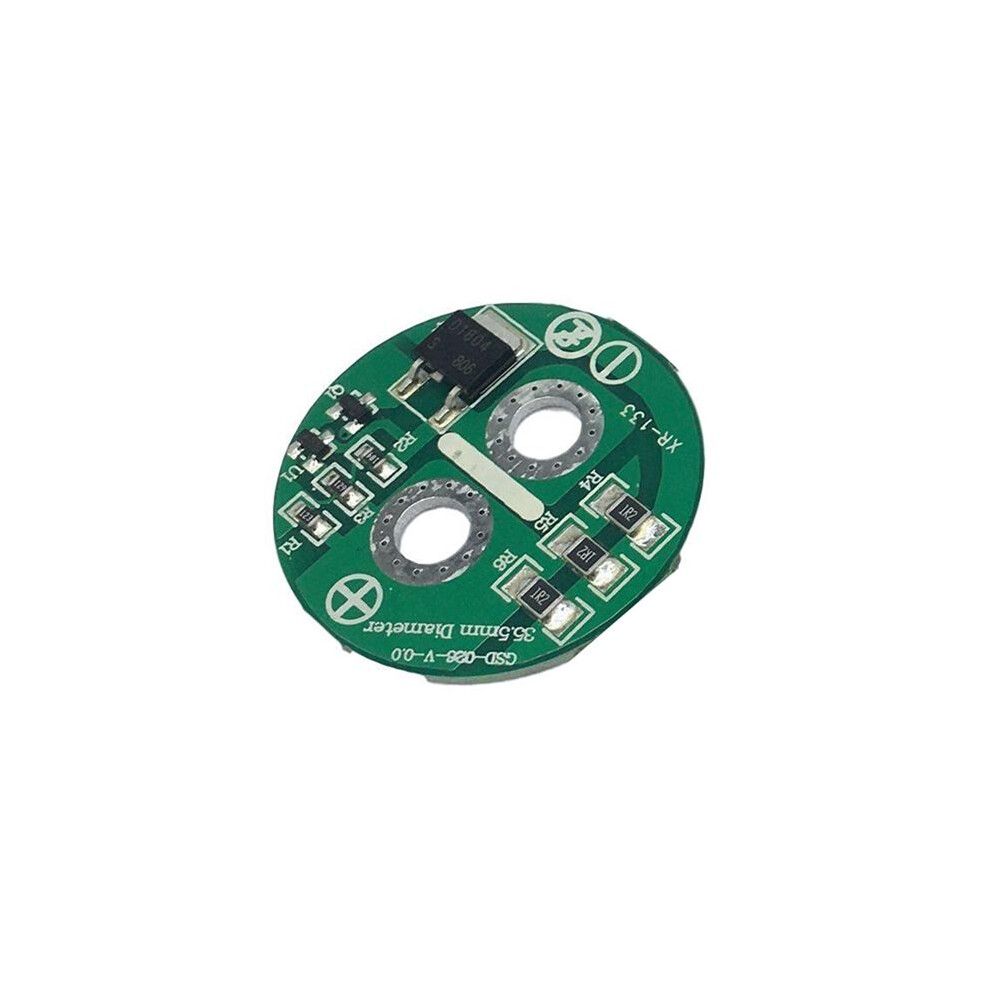

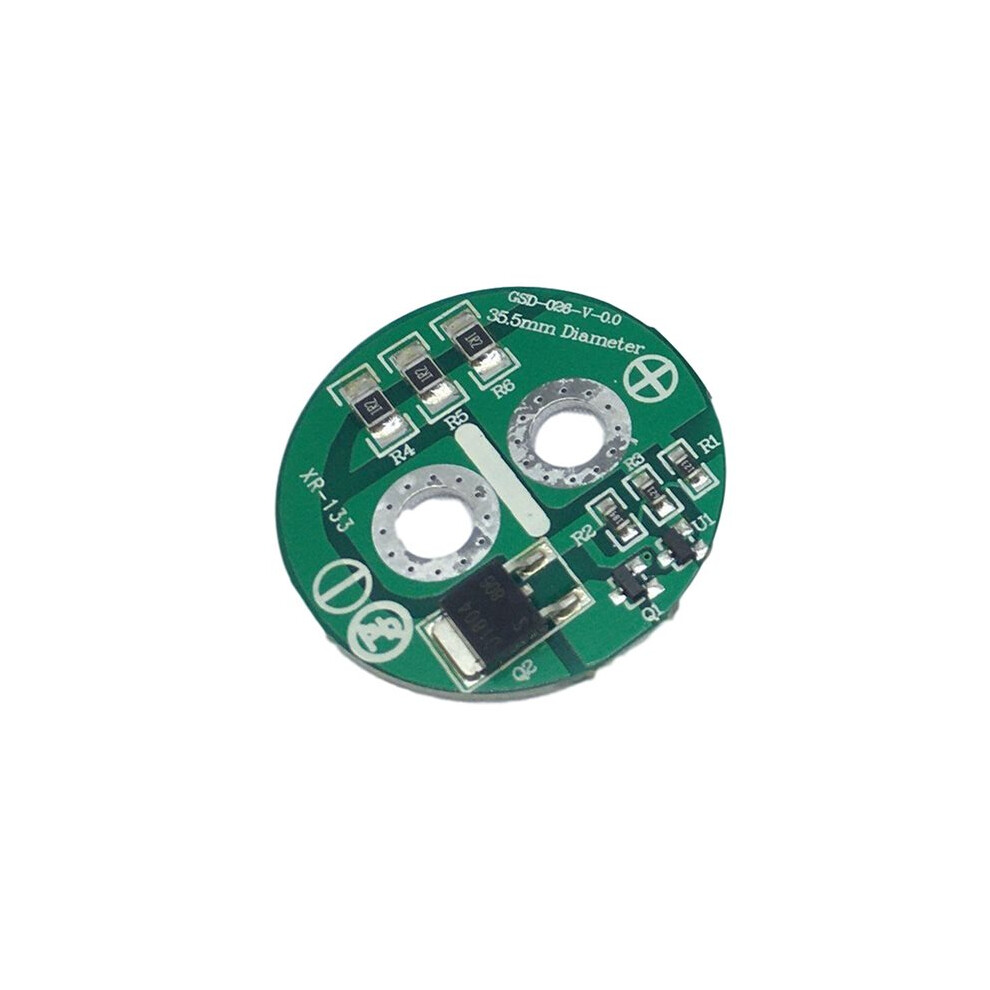

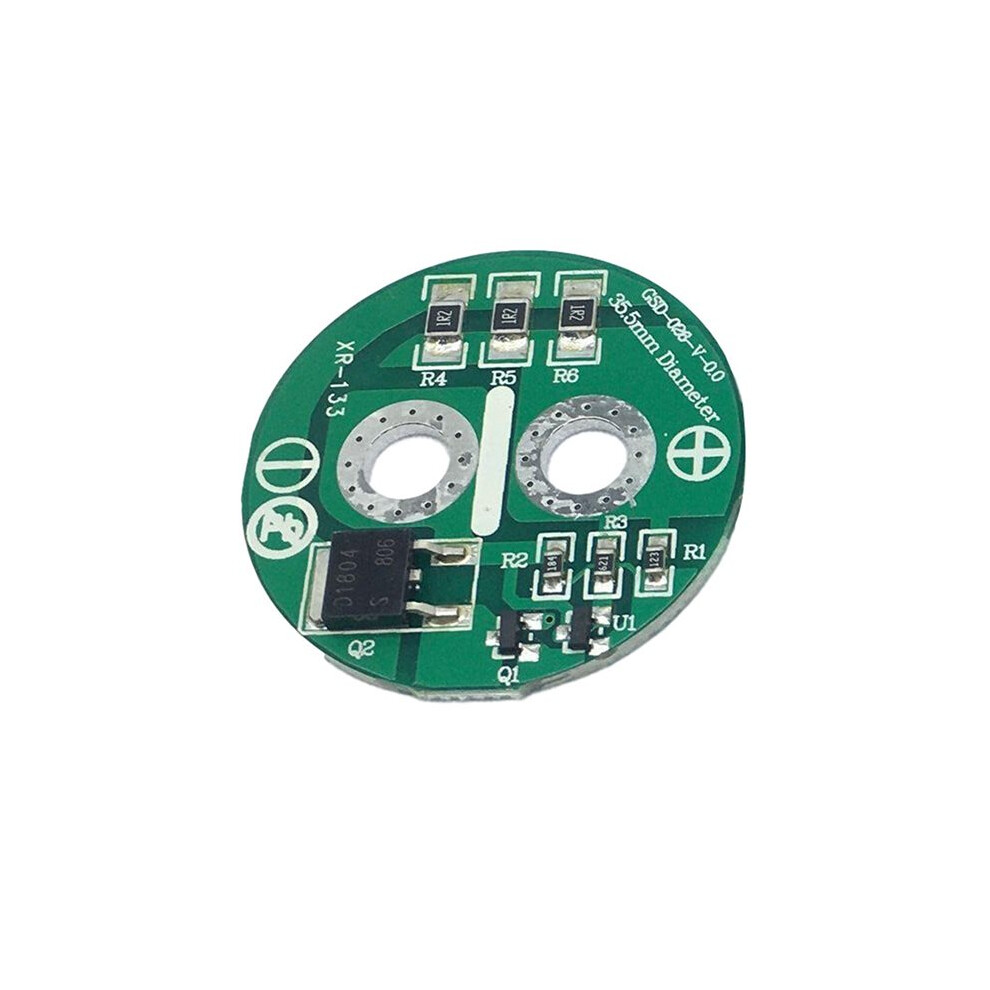

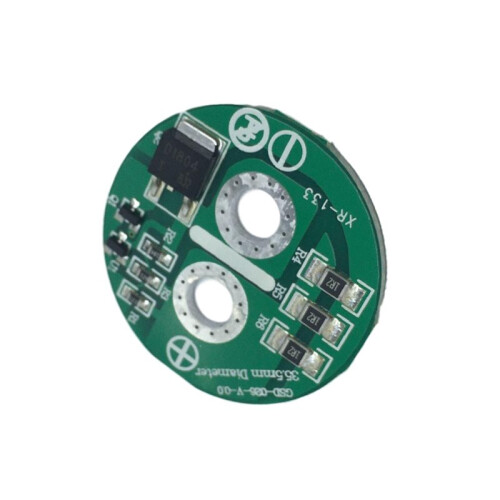

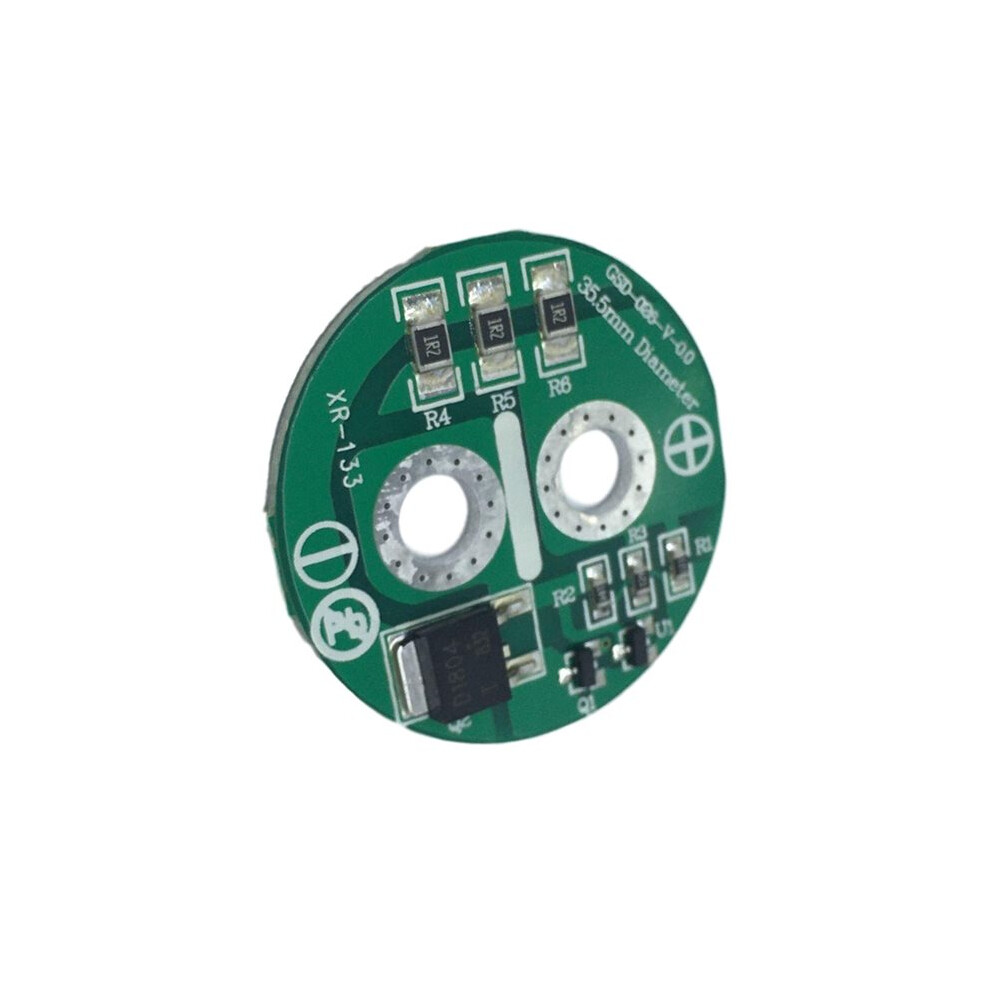

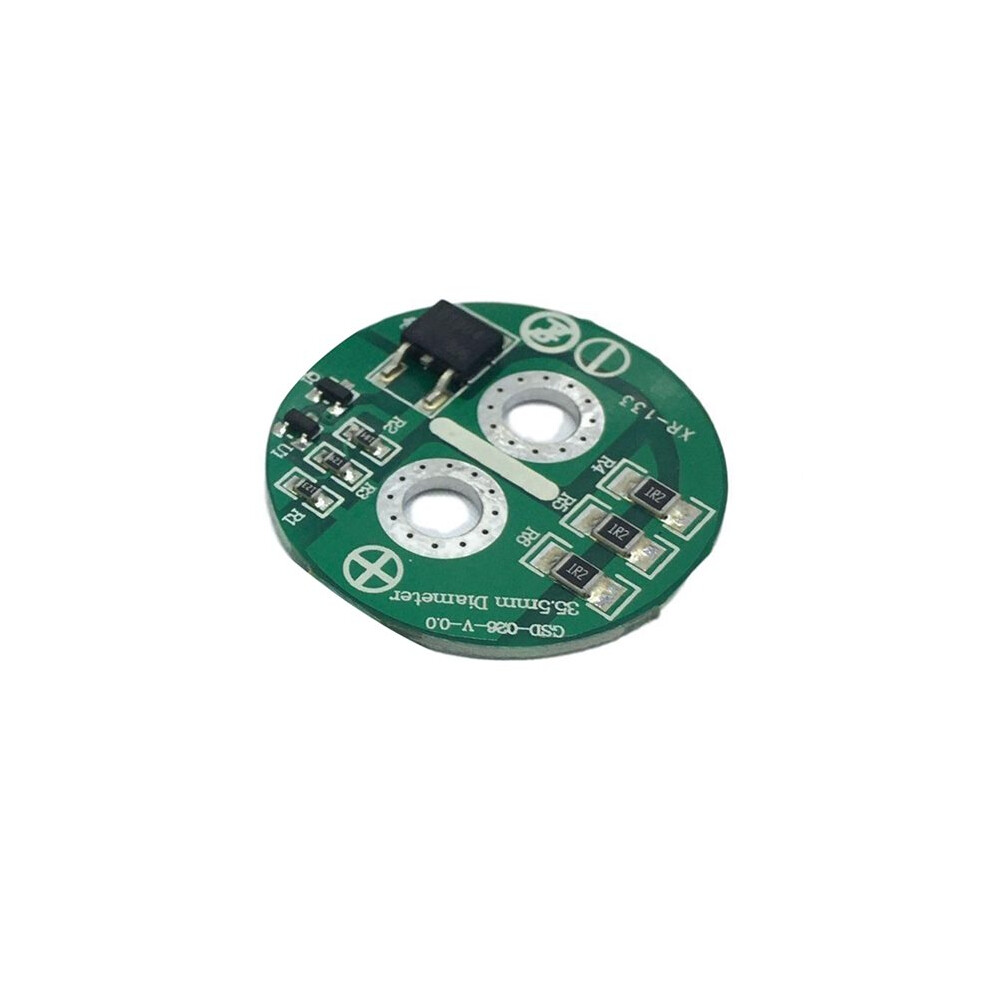

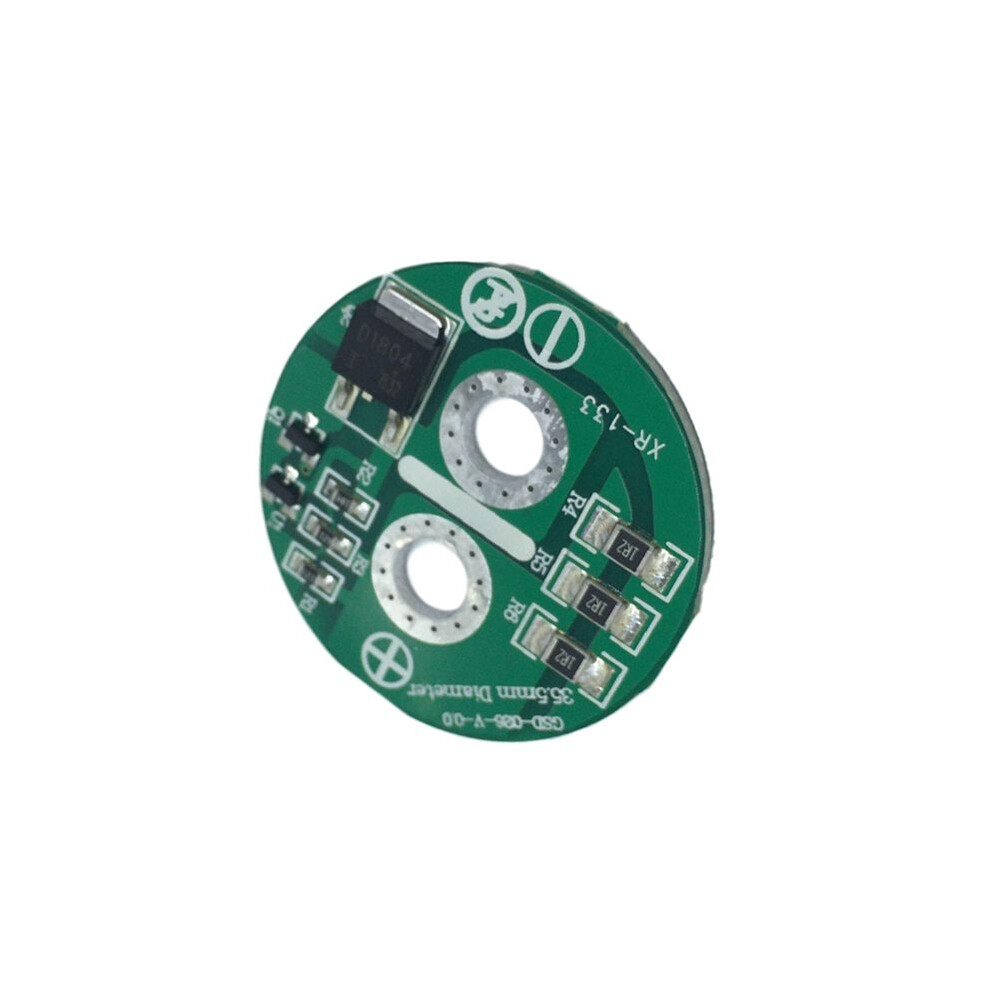

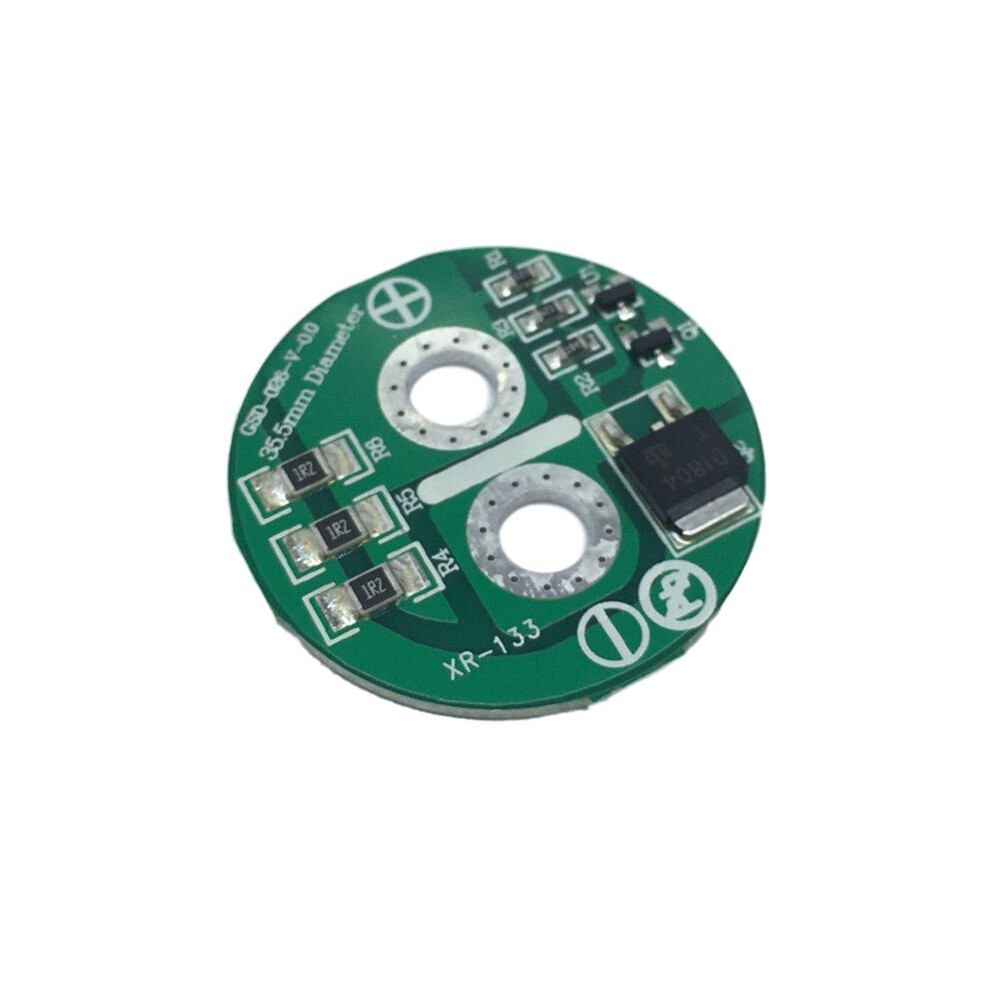

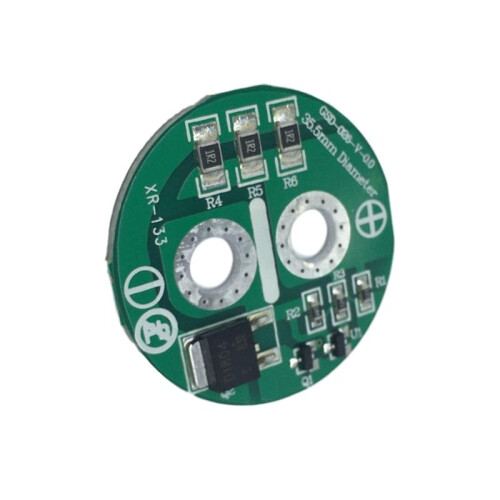

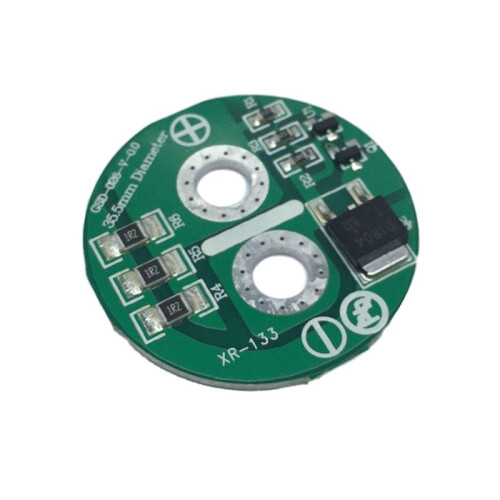

Universal 2.5V 500F Super Farad Capacitor Balancing Protection Board Super Capacitor Protection Board

Universal 2.5V 500F Super Farad Capacitor Balancing Protection Board Super Capacitor Protection Board Beschrijving

1. 2.5V low voltage: single input voltage as low as 2.5V, wide compatibility, suitable for more low-voltage devices
2. Ultra-wide temperature operating range: operating temperature -40 to 85, adapting to extreme environments, stable and reliable
3. High-precision voltage control: balanced start- voltage of 2.65V, precise control, to protect the safety of capacitors
4. Charge equalization technology: adopts charge equalization dissipation mode to enhance capacitor life and performance
5. Miniaturized design: diameter of only 35.5mm, easy to install and integrate into compact equipment

Parameter:
Product Name: Super Farad Capacitor Protection Board
Maximum charging input voltage: 2.5V (single unit)
Maximum charging current: unlimited (capacitor needs to be matched)
Maximum discharge current: unlimited (capacitor needs to be matched)
Minimum discharge voltage: 0.1V
Charging operating temperature: -40~85C
Unloading operating temperature: -40 to 85C
Balance starting voltage: 2.65V
Balancing current: 1A
Balance mode: charge equalization dissipation
Plate resistance: 8mΩ
Plugging static power consumption: n*50uA
Plate operating power consumption: n*1mA
Size parameters: diameter 35.5mm, fixed hole diameter 5.8mm, two holes center distance 12.5mm, pad diameter 10mm
Characteristics: meet 600-700F supercapacitor specifications
Color: Green
Material: PCB

Package Contents:
1* 2.5V Super Farad Capacitor Protection Board
