Waveshare RP2350 Industrial 6-CH Relay Module -Board RS485 Interface Isolation Protection

Waveshare RP2350 Industrial 6-CH Relay Module -Board RS485 Interface Isolation Protection Beschrijving

1. Uses the RP2350B microcontroller chip designed for Raspberry Pi
2. Unique dual-core, dual-architecture, equipped with a dual-core ARM Cortex-M33 processor and a dual-core Hazard3 RISC-V processor, with a clock running frequency of to 150MHz, supporting users to flexibly between the two architectures
3. Built-in 520KB and 16MB -chip Flash
4. Uses Type-C interface, no need to worry about forward and reverse insertion

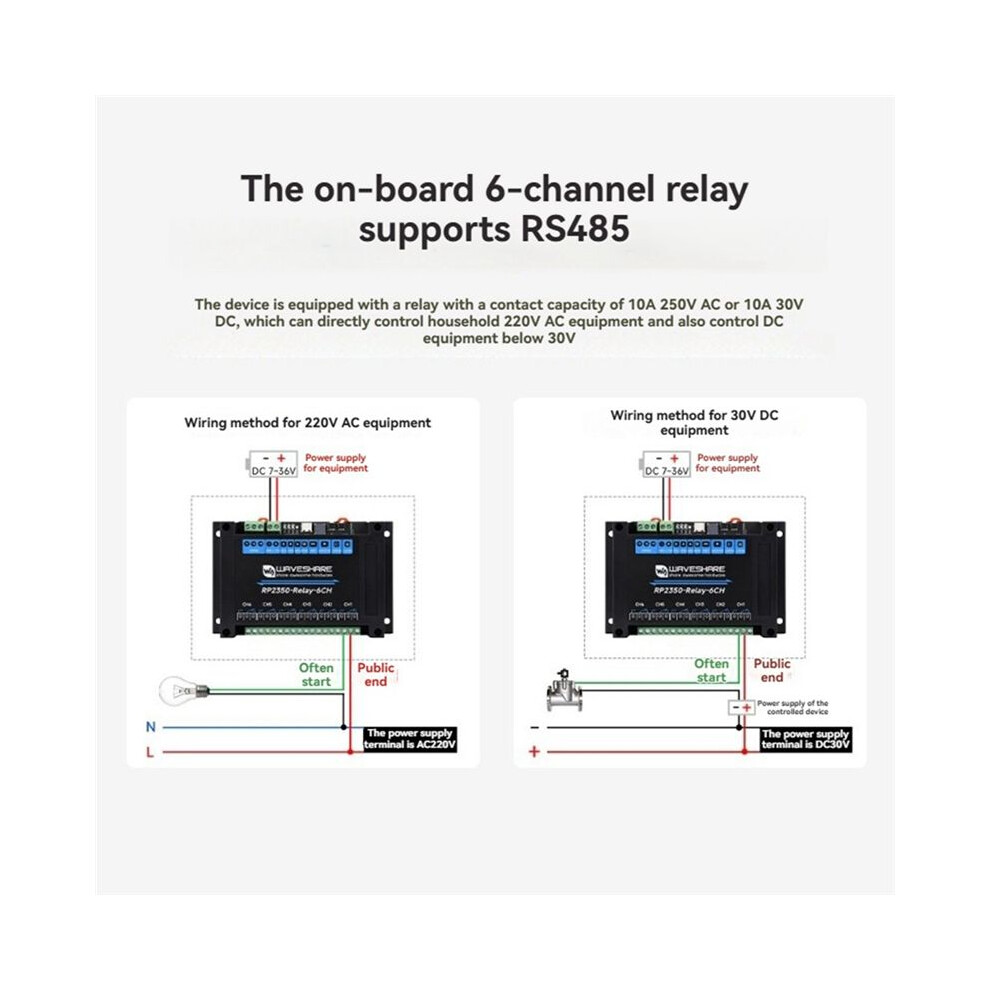

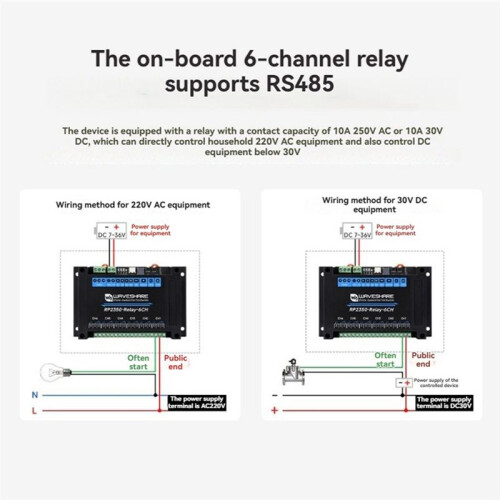

5. Uses high-quality relays, allowing access to loads: 10A 250V AC or 10A 30V

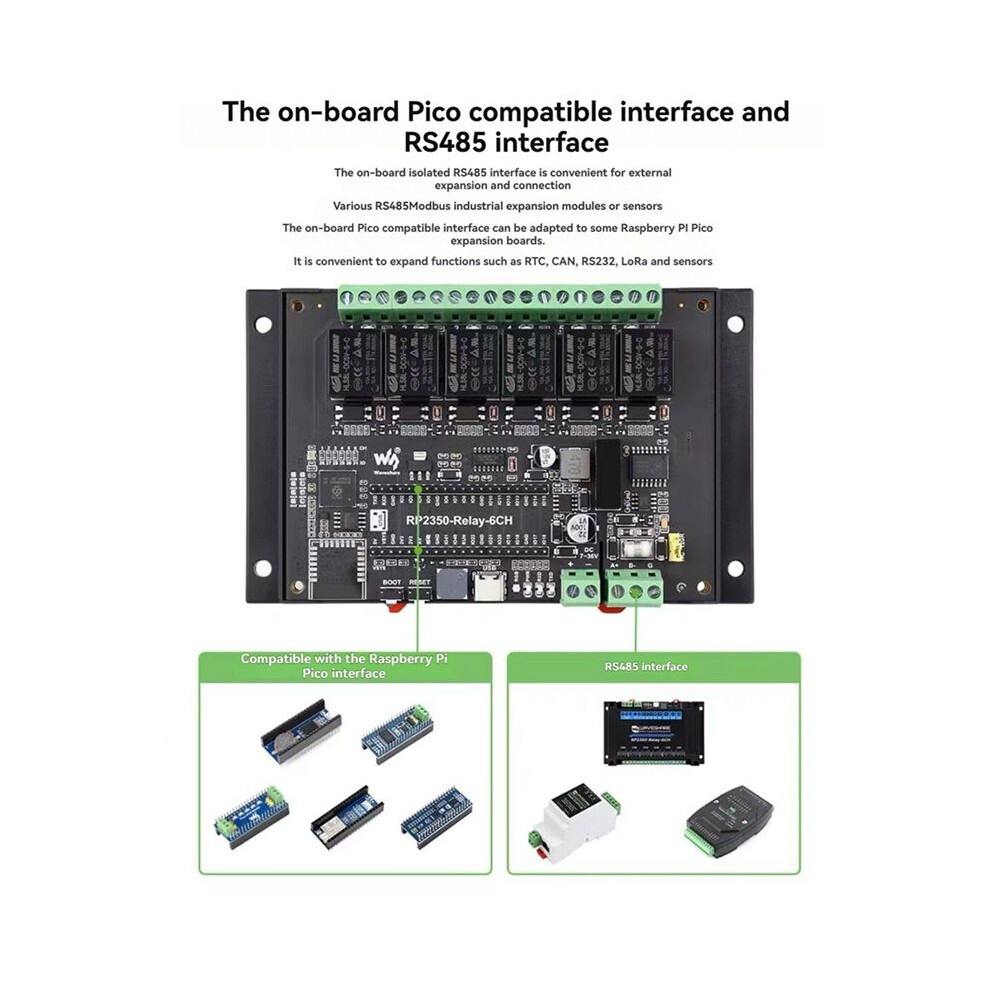

Onboard isolated RS485 interface, convenient for external expansion to various RS485 Modbus industrial expansion modules or sensors.
Onboard compatible interface, can be adapted to some Raspberry Pi expansion boards, convenient for expanding RTC, CAN, RS232, LoRa and sensor functions.
Onboard terminal power supply interface, supports 7V-36V wide voltage range power supply, convenient for industrial power supply.

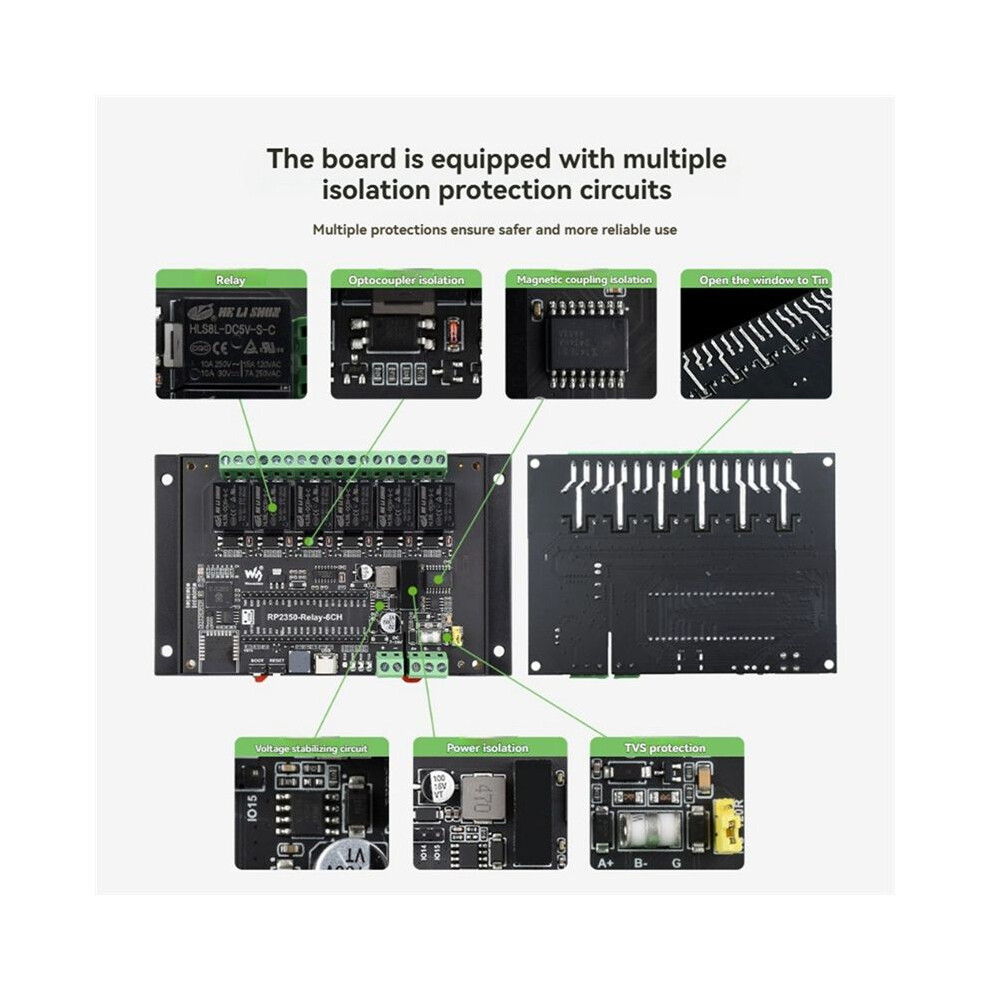

Onboard optocoupler isolation, to prevent relay external high voltage circuit from interfering with control chip.
Onboard digital isolation, to prevent external signal from interfering with control chip.
Onboard integrated power isolation, can provide stable isolation voltage, no additional power supply is required for isolation end.
Onboard power supply and RS485 transceiver indicator, buzzer and RGB colored lights, convenient for sensing the operating status of the equipment.
Rail-type ABS protective shell, easy to install and use, safer with shell.
USB1.1 host and slave device support.
Support low power sleep and hibernation mode.
Can be identified as a large-capacity storage device via USB for drag-and-drop download of programs 34 multi-function GPIO pins are brought out.
2 I2Cs, 2 UARTs, 8 12-bit ADCs and 24 controllable PWM channels
Color: As
