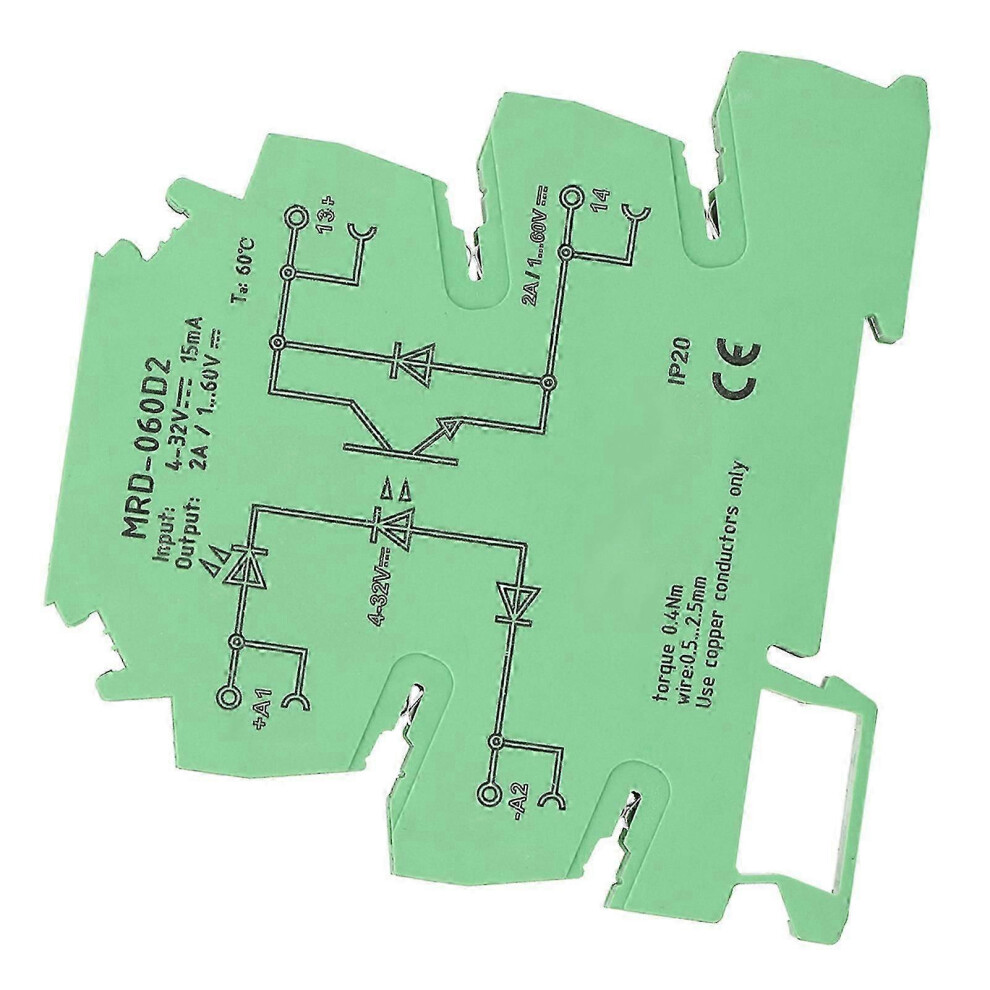

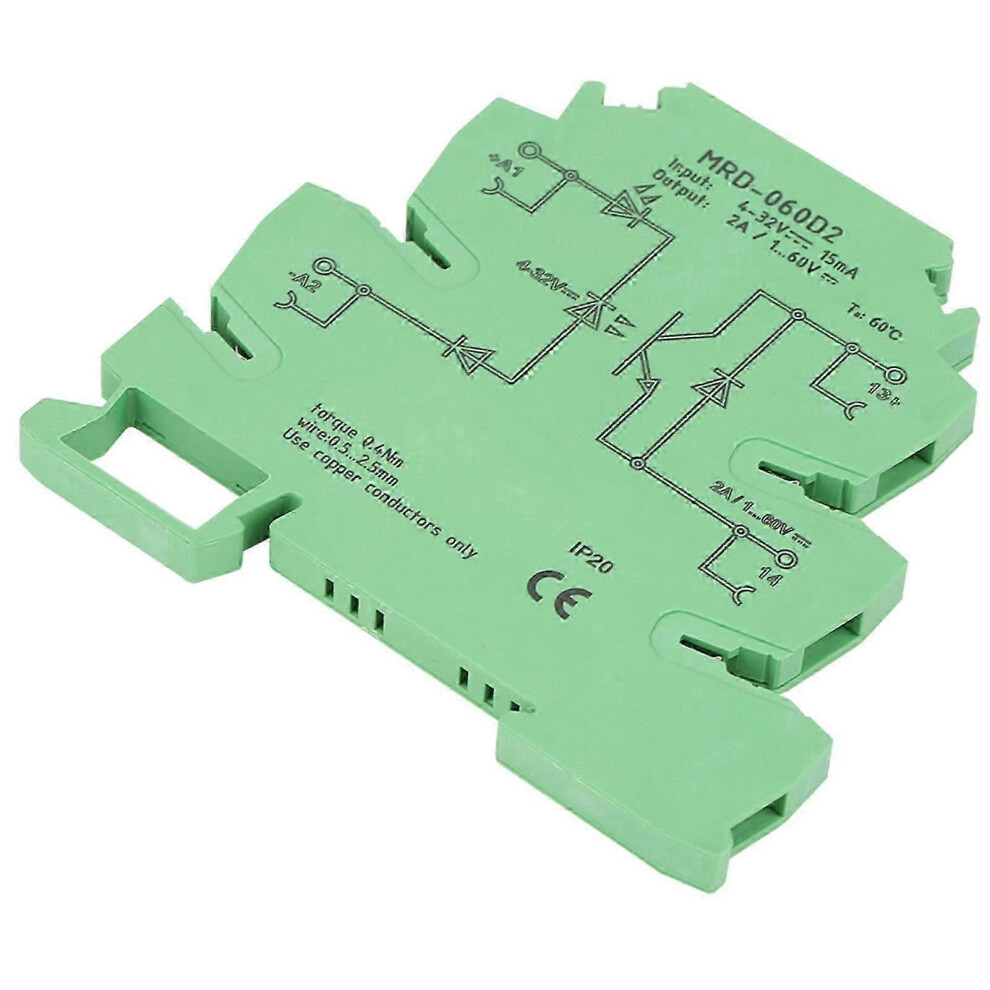

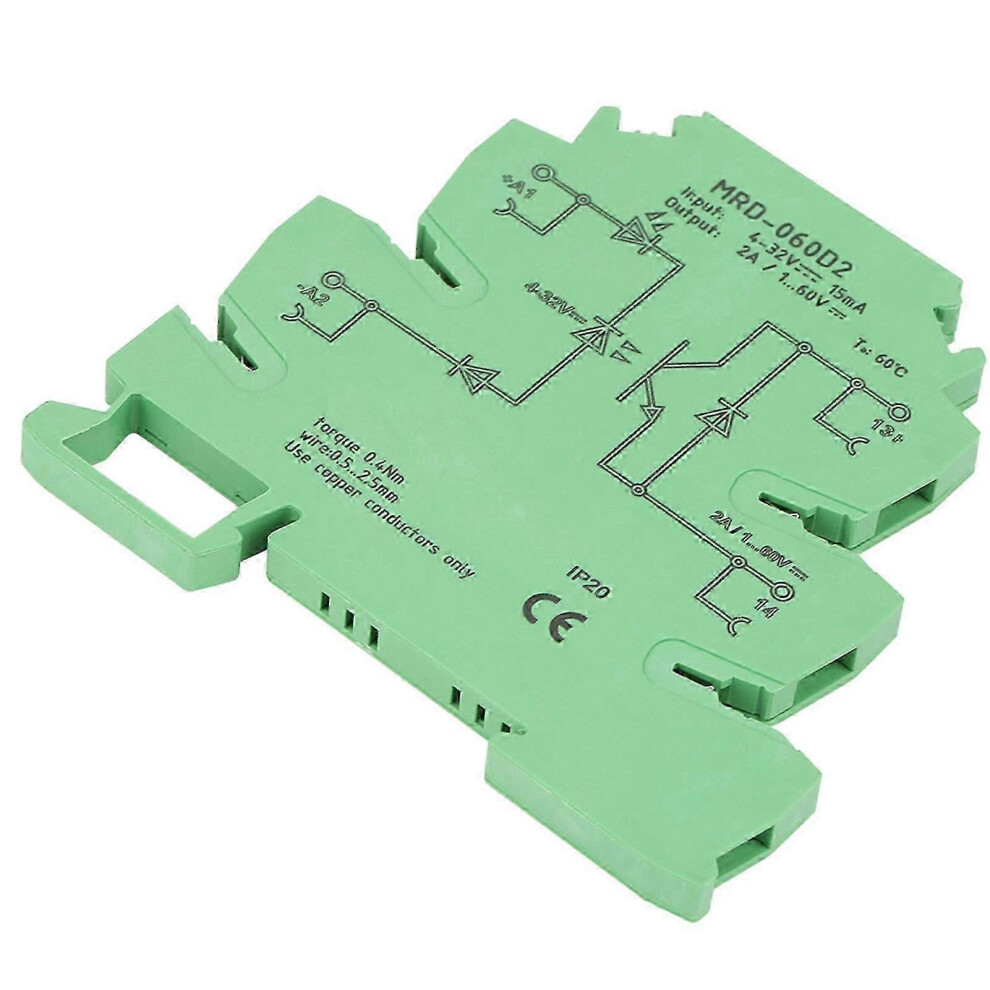

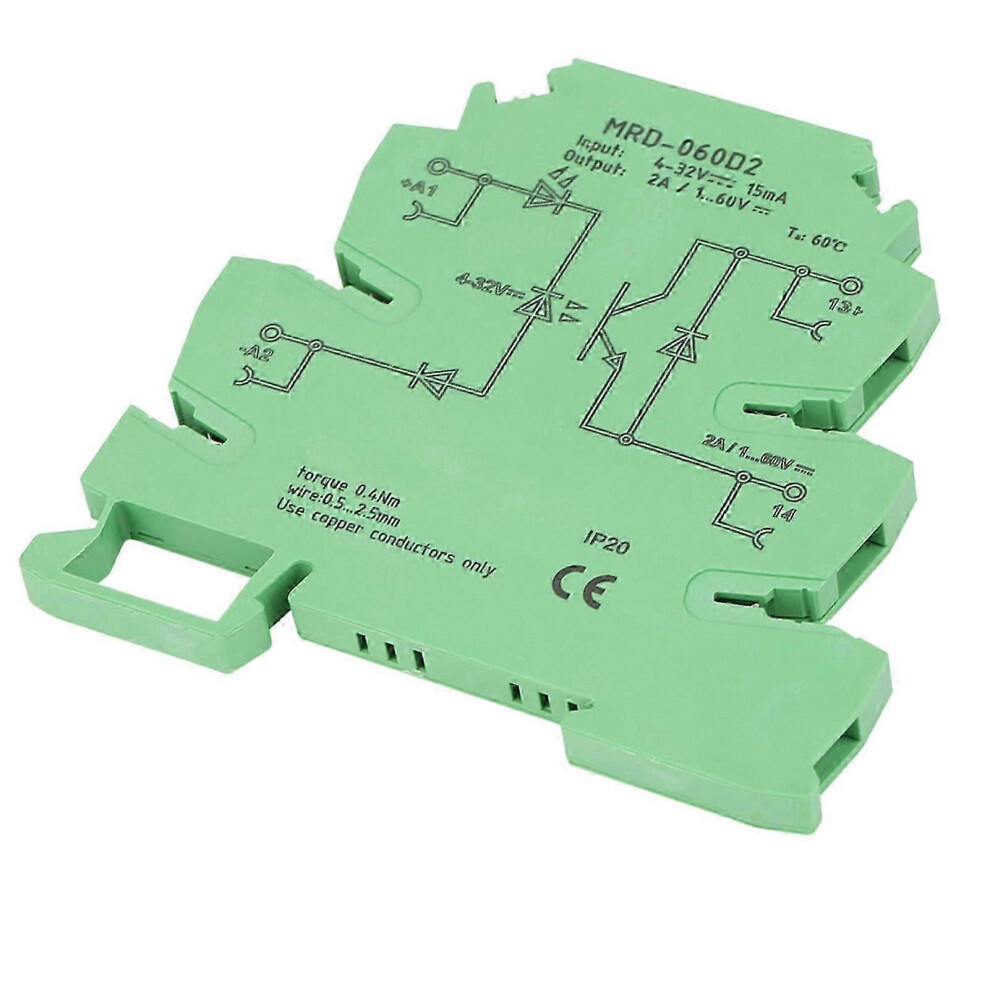

2026 Ultra Thin 6.2mm Solid State Relay Module MRD-060D2, Input 4-32VDC NO

2026 Ultra Thin 6.2mm Solid State Relay Module MRD-060D2, Input 4-32VDC NO Beschreibung

Features: _x000D_This Ultra-thin port type relay is mainly suitable for pneumatic DC electromagnetic valve _x000D_Dc solid state relay output, no spark, wear-resistance, durableOverall shrinkage volume for saving space, TS - 35 rail installation _x000D_With LED input state indicator, IP20 protection shell contactless _x000D_Adjacent relay can bridge, fast connection operation _x000D_Input and output protection circuit, the isolation voltage can be up to 4 kv _x000D_Flame retardant shell, the integration of structure vibration resistance, impact resistance, stable performance _x000D_Specification: _x000D_Model: MRD-060D2_x000D_Rated input voltage: 4-32VDC 15mA_x000D_Rated output voltage: 5-60VDC 2 A_x000D_Status indicates: yellow LED luminous tube_x000D_Protection circuit: diode reverse connect protection_x000D_Device type: power MOS FET transistor_x000D_Leakage current: 1mA_x000D_Input/output response time: < 250us_x000D_Maximum continuous current: 2A_x000D_Connection: screw connection _x000D_Size: 81*6.2*78mm/3.2*0.2*3.1in _x000D_Weight: Approx.32g/1.1oz _x000D_ _x000D_Package list: _x000D_1 x Solid State Relay Module 1This Ultra-thin port type relay is mainly suitable for pneumatic DC electromagnetic valve 2Dc solid state relay output, no spark, wear-resistance, durable 3Overall shrinkage volume for saving space, TS - 35 rail installation 4With LED input state indicator, IP20 protection shell contactless 5Adjacent relay can bridge, fast connection operation
