60RPM 14MM N20 Micro Gearbox Motor for DIY Robotics Projects (DC 6V)

60RPM 14MM N20 Micro Gearbox Motor for DIY Robotics Projects (DC 6V) Beschreibung

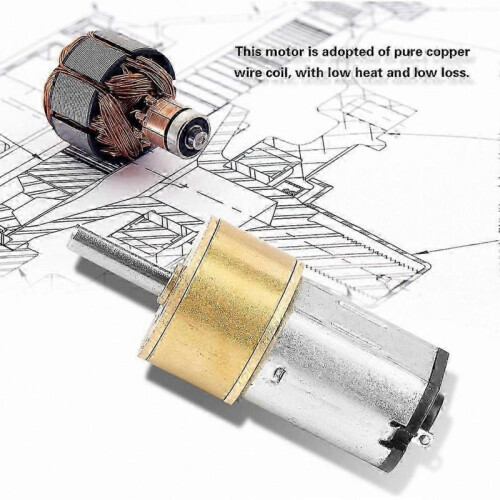

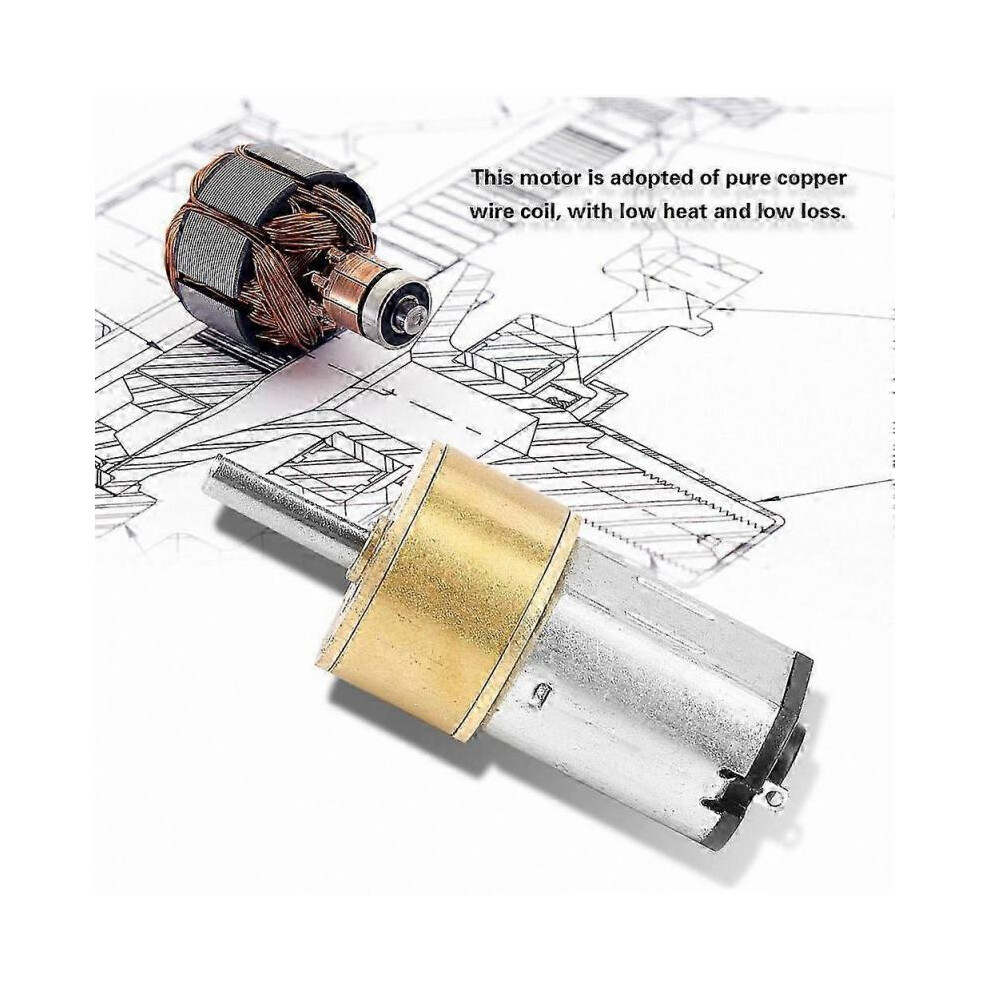

Features: This DC motor features high torque, low speed, and low noise operation. The gear motor has a sealed structure for effective dust protection. Constructed with metal gears, it is wear-resistant and helps prevent gear damage, ensuring a long service life. Equipped with pure copper wire coil for low heat generation and low power loss. Ideal for use in electronic locks, DIY toy cars, small robots, tracking vehicles, balancing cars, and other applications. Specification: Voltage: 6V DC Speed: 60 RPM, 100 RPM, 300 RPM, 600 RPM (Optional) Gearbox diameter: 14mm / 0.6in Output shaft length: 10mm / 0.4in Output shaft diameter: 3mm / 0.1in, D-shaped shaft with 0.5mm flat edge Motor size: 35 x 15mm / 1.4 x 0.6in Weight: Approx. 13g / 0.5oz Performance Data: - 6V, Gear ratio 1:298 - No load speed: 60RPM, current: 30mA; Load speed: 55RPM, current: 45mA; Load torque: 460g.cm; Stall current: 1.1A, Stall torque: 4.2kg.cm - 6V, Gear ratio 1:100 - No load speed: 100RPM, current: 30mA; Load speed: 83RPM, current: 45mA; Load torque: 320g.cm; Stall current: 1.1A, Stall torque: 2.25kg.cm - 6V, Gear ratio 1:50 - No load speed: 300RPM, current: 40mA; Load speed: 240RPM, current: 50mA; Load torque: 140g.cm; Stall current: 1.1A, Stall torque: 2.0kg.cm - 6V, Gear ratio 1:50 - No load speed: 600RPM, current: 50mA; Load speed: 500RPM, current: 60mA; Load torque: 65g.cm; Stall current: 1.1A, Stall torque: 2.2kg.cm Package list: 1 x DC Gear Motor
