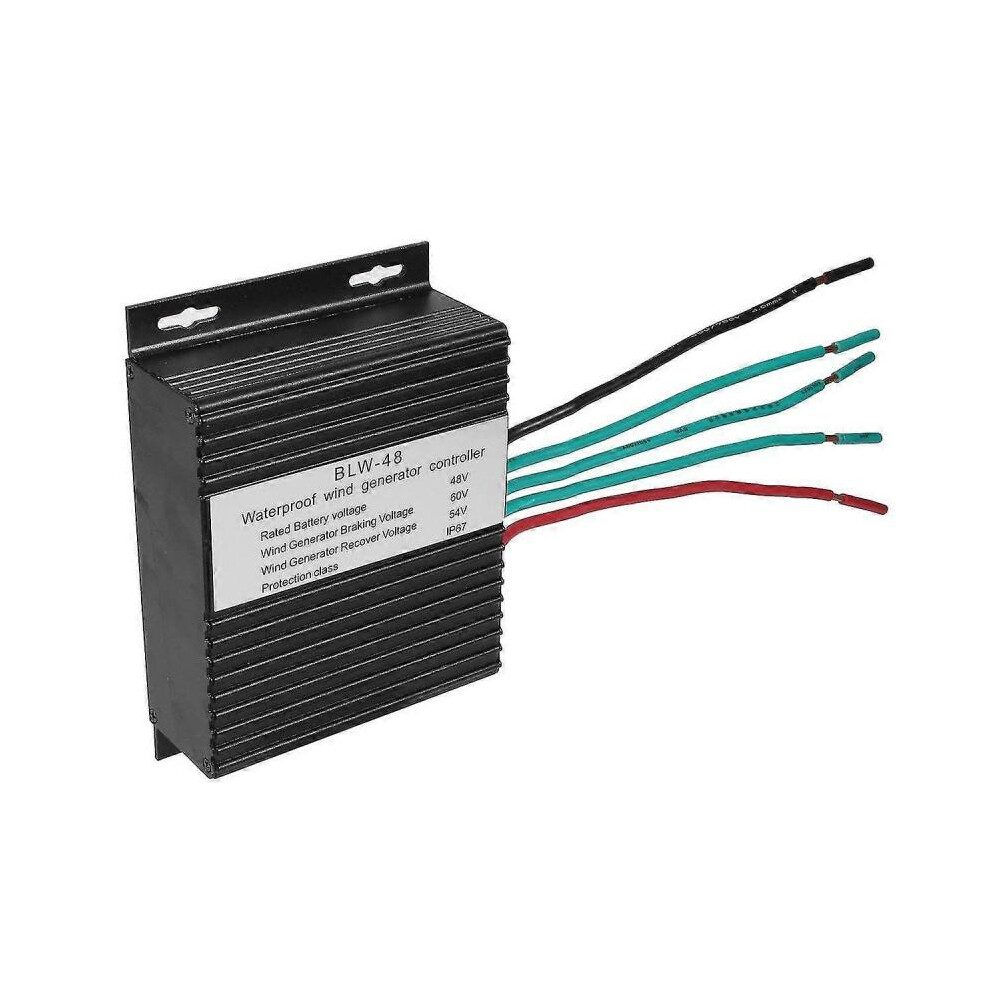

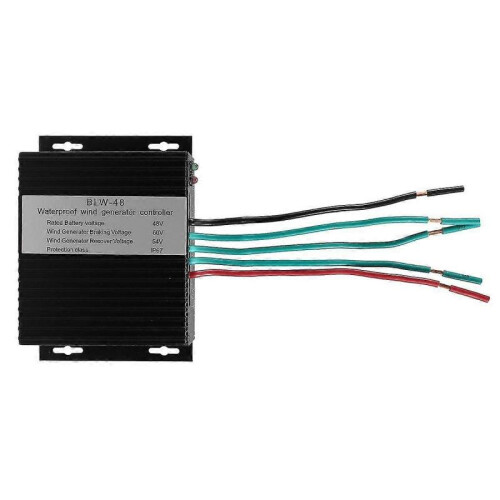

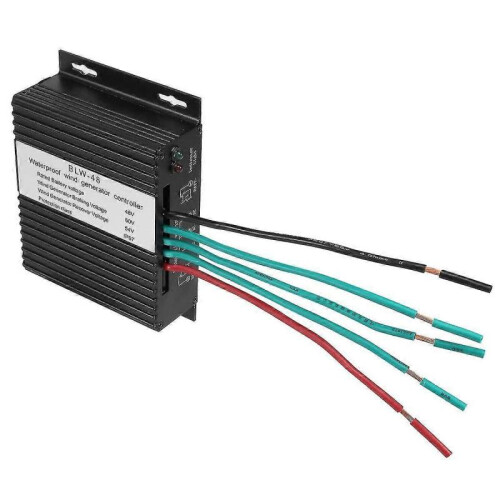

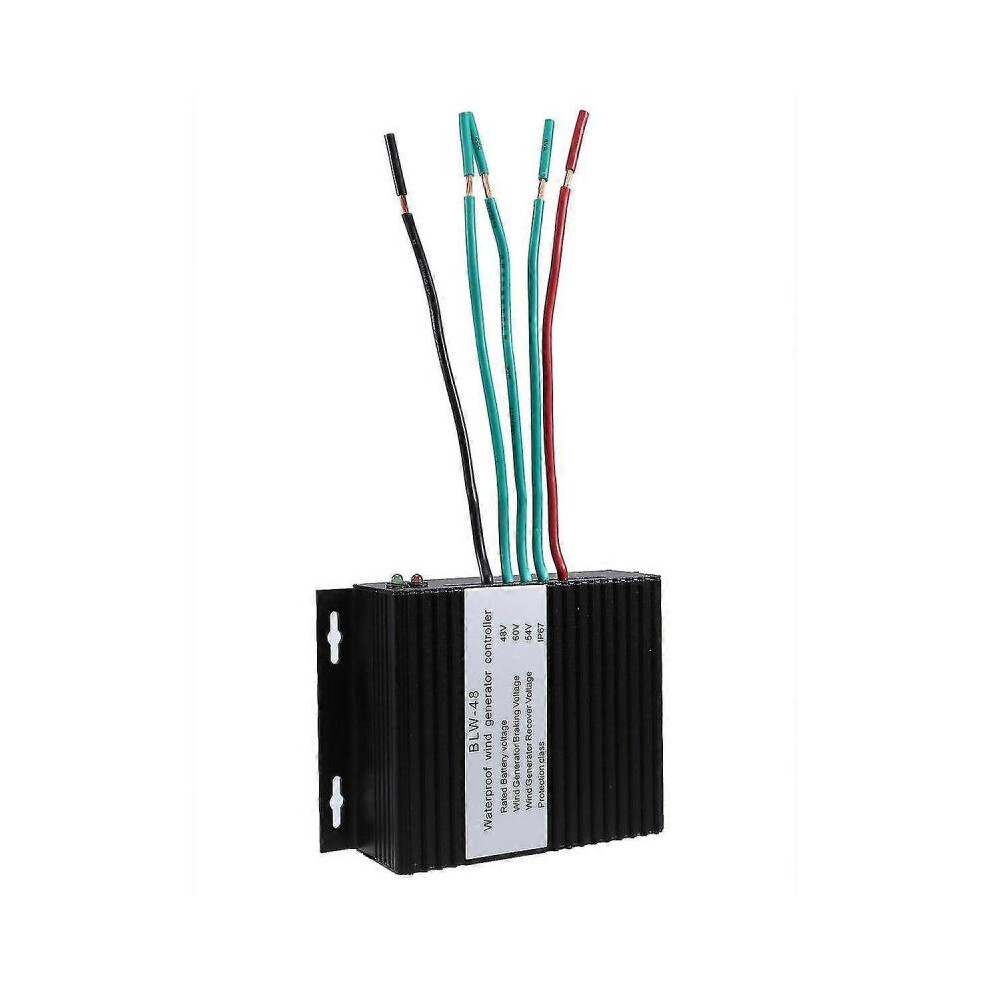

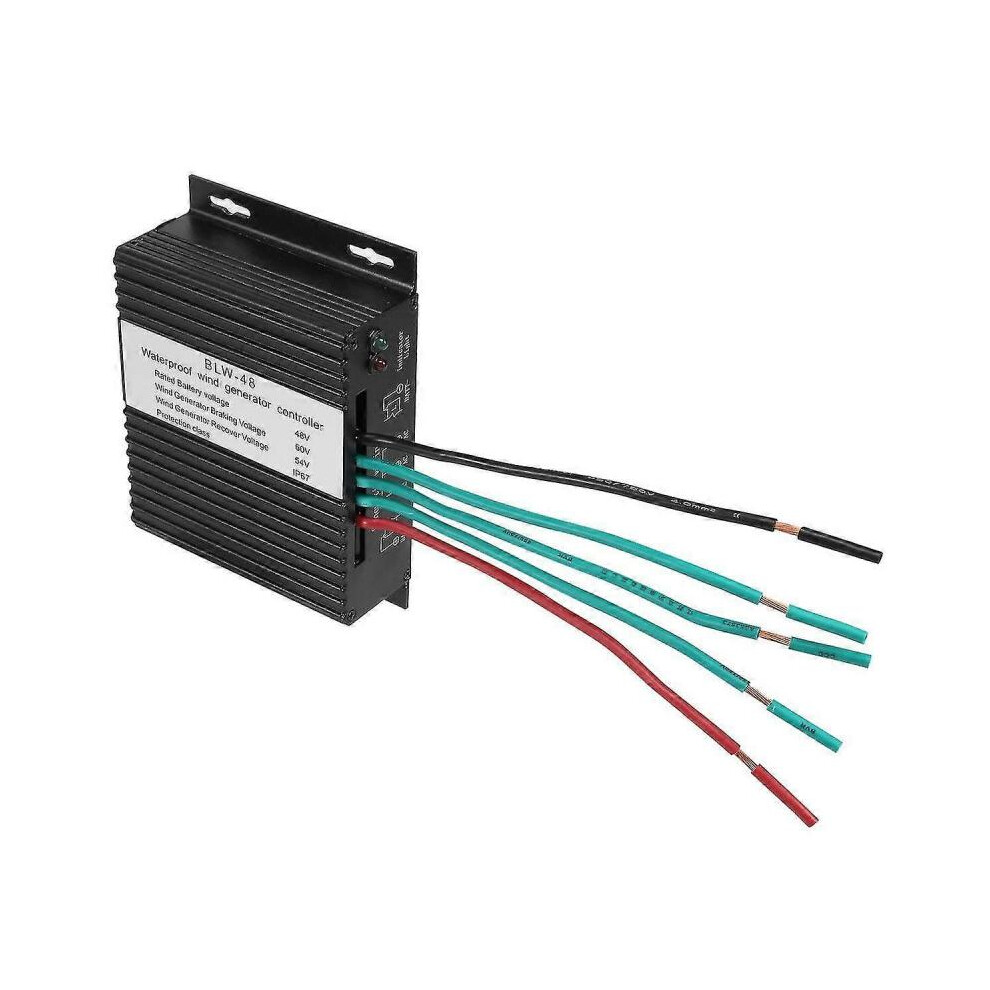

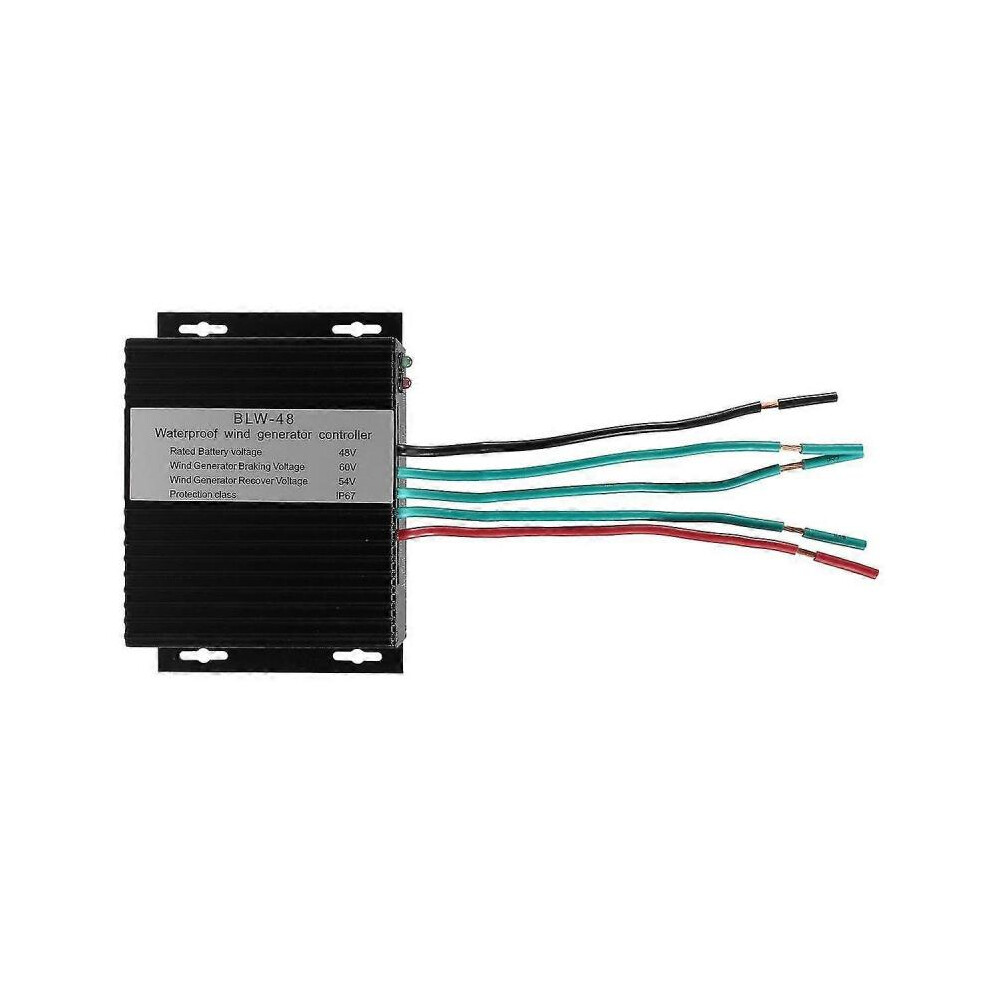

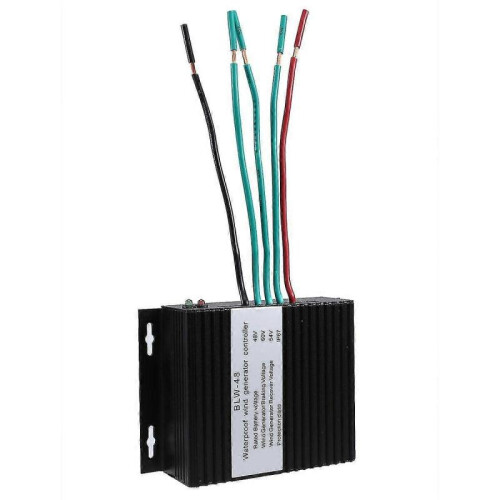

8000w Dc 48v Wind Turbines Generator Charge Controller Waterproof Battery Charge Controller Regulat

8000w Dc 48v Wind Turbines Generator Charge Controller Waterproof Battery Charge Controller Regulat Beschreibung

Precautions: 1. Verify that the wind turbines output voltage matches the rated voltage of the battery. 2. Wire in the following order, first connect the positive and negative terminals of the battery, and then connect the three-phase voltage output of the fan. 3. carefully connect the battery and the wind turbines to the controller according to the instructions. Connecting the reverse polarity or the wrong position will cause the system to work abnormally and may even cause damage to the system components. 4. Although the controller has taken protective measures against possible accidents, it is strongly recommended that users strictly abide by the operating procedures to prevent damage to the battery and controller. Wiring: 1. Connect the "+" and "-" of the battery to the positive and negative terminals of the battery of the controller. 2. Connect the three-phase output voltage of the wind turbines to the three-phase voltage input terminal of the controller fan. 3. When manual brake is required, short the red thin wire to the positive battery, that is, complete the manual brake function. To cancel this function, just disconnect the thin red wire. Indicator status: When the controller green power (BATTERY) indicator is on, it indicates that the battery is connected properly. When the controller's green fan access (WIND) indicator flashes, it indicates that the wind turbines is connected. The speed of the flashing reflects the speed of the fan. When the controller red (BRAKE) indicator is on, the battery is fully , the wind turbines is automatically braked, or the brake is automatically activated due to overcurrent protections. Specifications Rated battery voltage: 48V Wind generator voltage: 60V Wind generator voltage: 54V Protections class:IP67 colour: black + gray Material: Plastic Package Contents: 1 x Controller Only the above package content, other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
