DC - DC Converter, LTC3780, 5V - 32V to 1V - 30V, 10A, Constant Voltage and Constant Current Automatic Step-up/Step-down

DC - DC Converter, LTC3780, 5V - 32V to 1V - 30V, 10A, Constant Voltage and Constant Current Automatic Step-up/Step-down Beschreibung

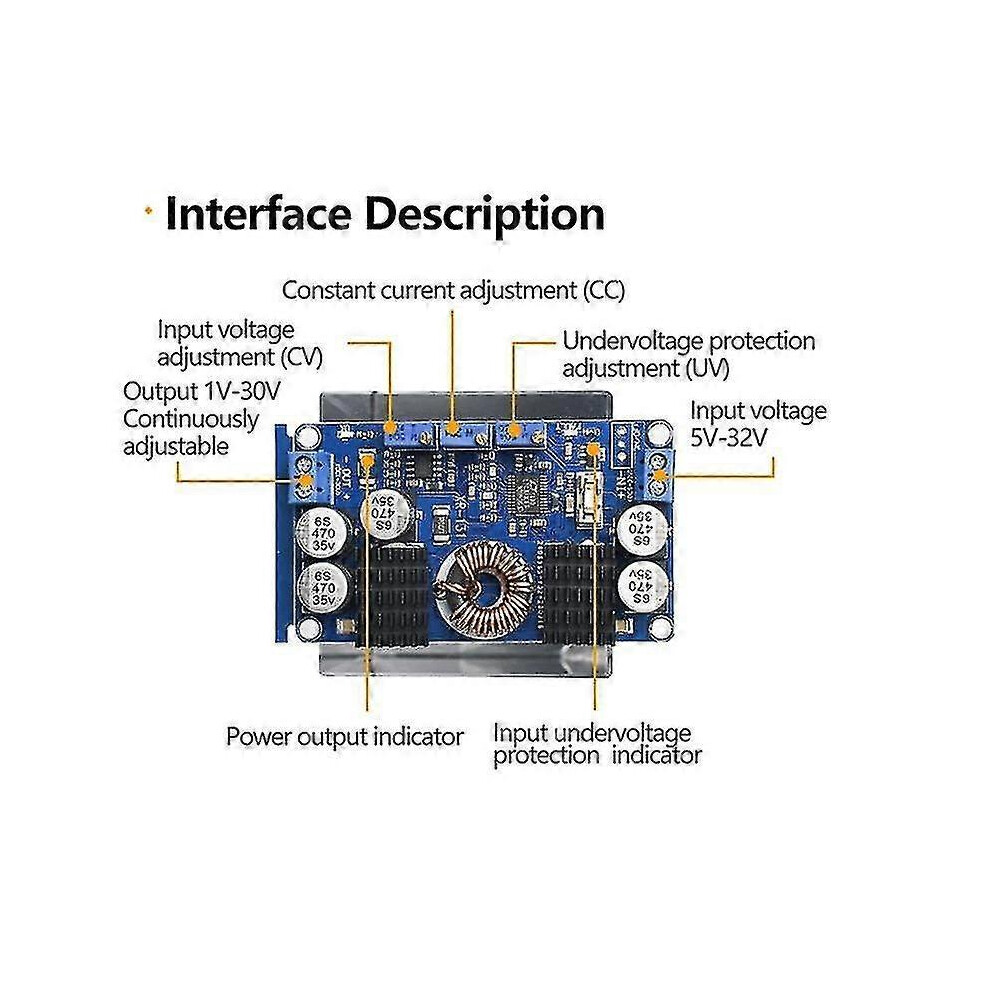

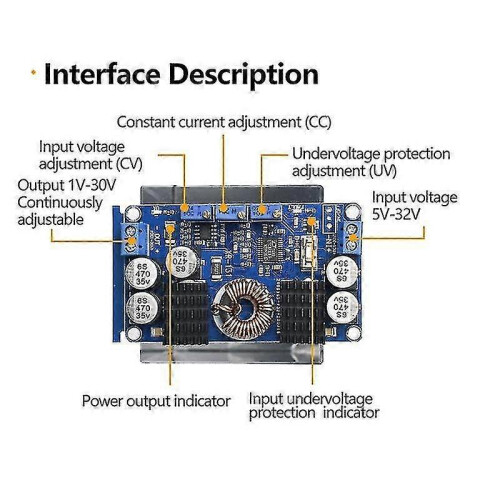

1. The circuit board uses a 1.6 - thick gold - plating process; the input uses a replaceable fuse to connect the power supply and the device. 2. The whole - board electrolytic capacitors use low - resistance, high - frequency capacitors, which can reduce the ripple to an extremely low level; it has constant - voltage, constant - current, and under - voltage protection functions (Maximum Power Point Tracking MPPT is more suitable for solar charging). There is an output error indicator light, which will light up when the output voltage is extremely abnormal or a short - circuit fault occurs. 3. Oxidized heat sinks are used for heat dissipation, and the heat - dissipation effect is better than that of ordinary natural aluminum plates; the inductor uses iron - silicon - aluminum material, which generates less heat. 4. Please carefully read the following instructions before purchasing and using the voltage module. Otherwise, the company will not be responsible for the damage caused by improper use or replace the product. 5. This module belongs to an automatic step - up/step - down power supply. When the input voltage is lower than, higher than, or equal to the output voltage, the output voltage can remain stable. 6. When the output is set to 12V and the input voltage changes between 5V and 32V, the output voltage remains constant at 12V. It has constant - current, constant - voltage, under - voltage protection, output indication, and fault indication functions. The output has over - current, over - voltage, and short - circuit protection; all components can meet the requirements of industrial applications; it can be applied to various scenarios, such as charging, high - power LED driving, device power supply, vehicle power supply, etc. Electrical parameters: 1. Input voltage: DC 5 - 32V, and the recommended voltage is above 10V. 2. Output voltage: DC 1V - 30V continuously adjustable. 3. Output current: Maximum 10A, and it is recommended to work within 7A for a long time. 4. Output power: 80W for long - term operation, and it can reach 130W. Strengthen heat dissipation when it exceeds 80W. 5. Output ripple: 50mV (12V output, 5A test). 6. Input reverse - connection protection: None. If needed, connect a Schottky diode at the input end. 7. Output anti - backflow: None. If it is used for battery charging or the load is an inductive load, connect a Schottky diode in series at the output end. 8. Dimensions: 77.6x46.5x15mm. 9. Short - circuit protection: Yes. 10. Weight: Approximately 45 grams. Color: Blue Material: Plastic Packaging contents: 1 voltage adjustment charging module Only the above packaging contents are included, and other items are not included. Note: Light reflection and different displays may cause slight differences between the color of the item and the actual object. The measurement error is allowed to be 1 - 3cm.
