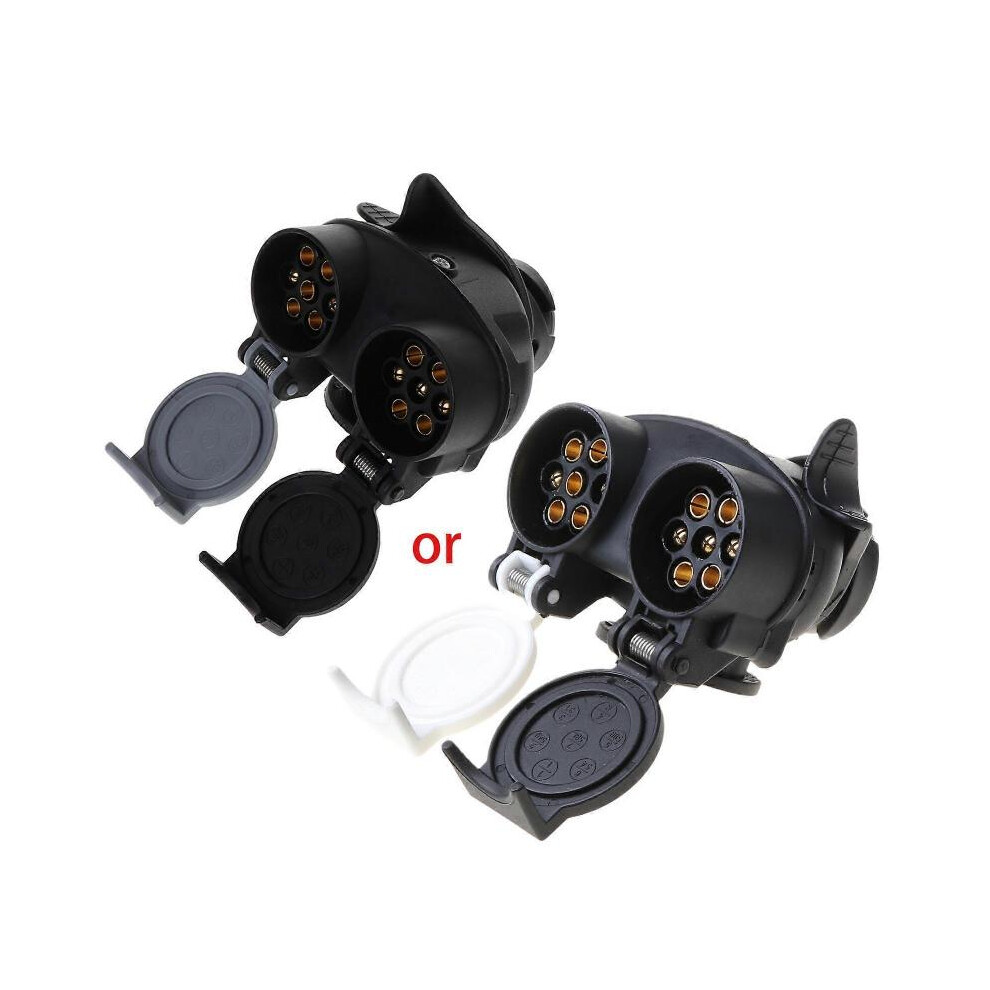

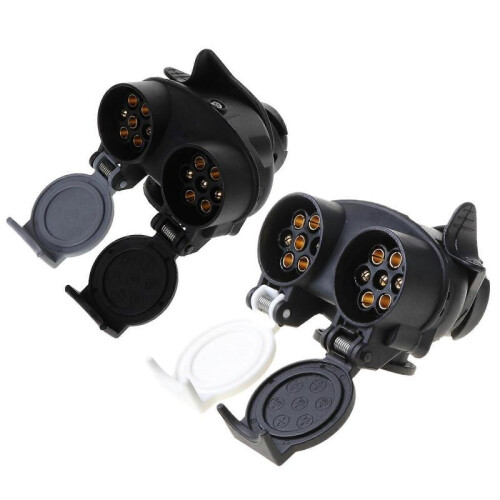

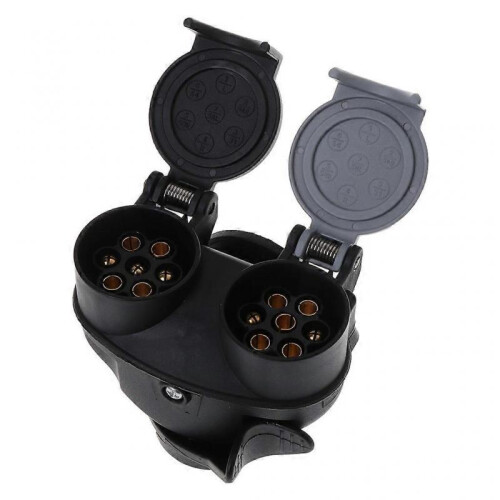

Durable 13 Pin Plug to 12N / 12S 7 pin Towing Plug Trailer Caravan Replacement Plug Socket Waterproof Connector Adapter

Durable 13 Pin Plug to 12N / 12S 7 pin Towing Plug Trailer Caravan Replacement Plug Socket Waterproof Connector Adapter Beschreibung

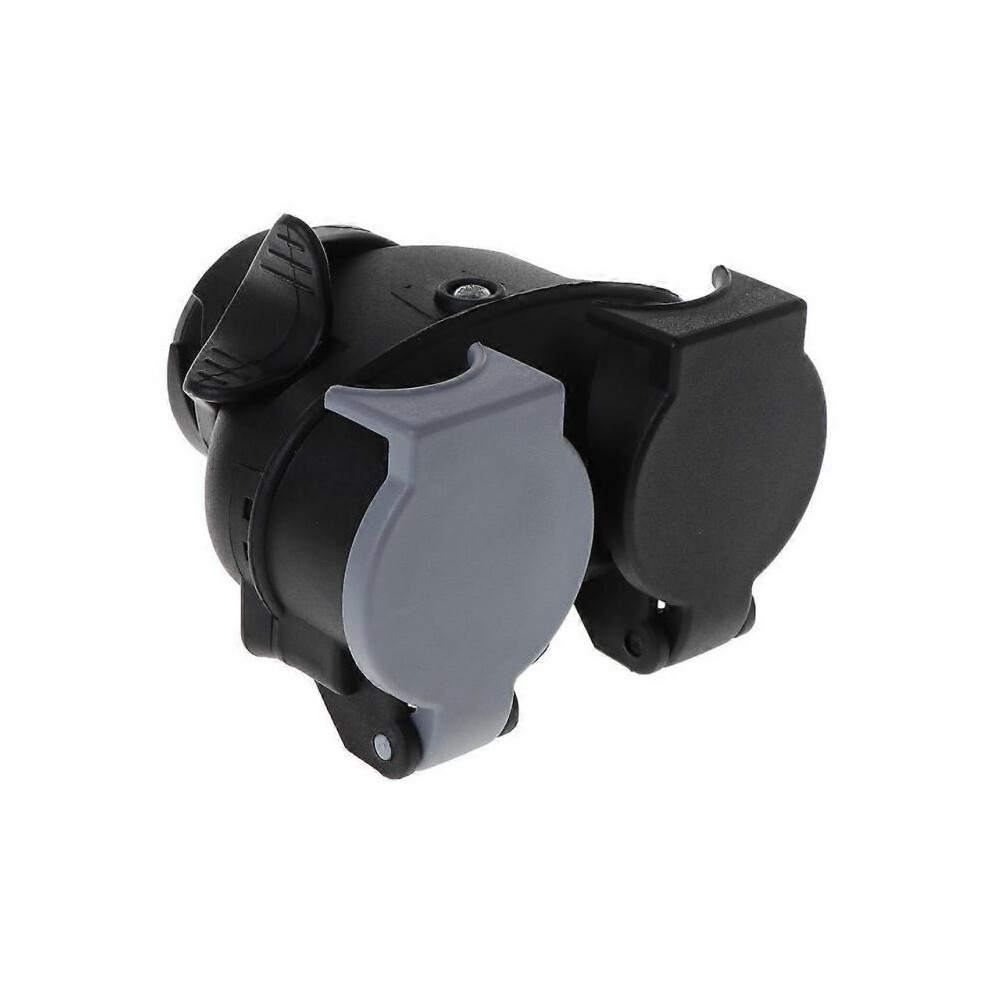

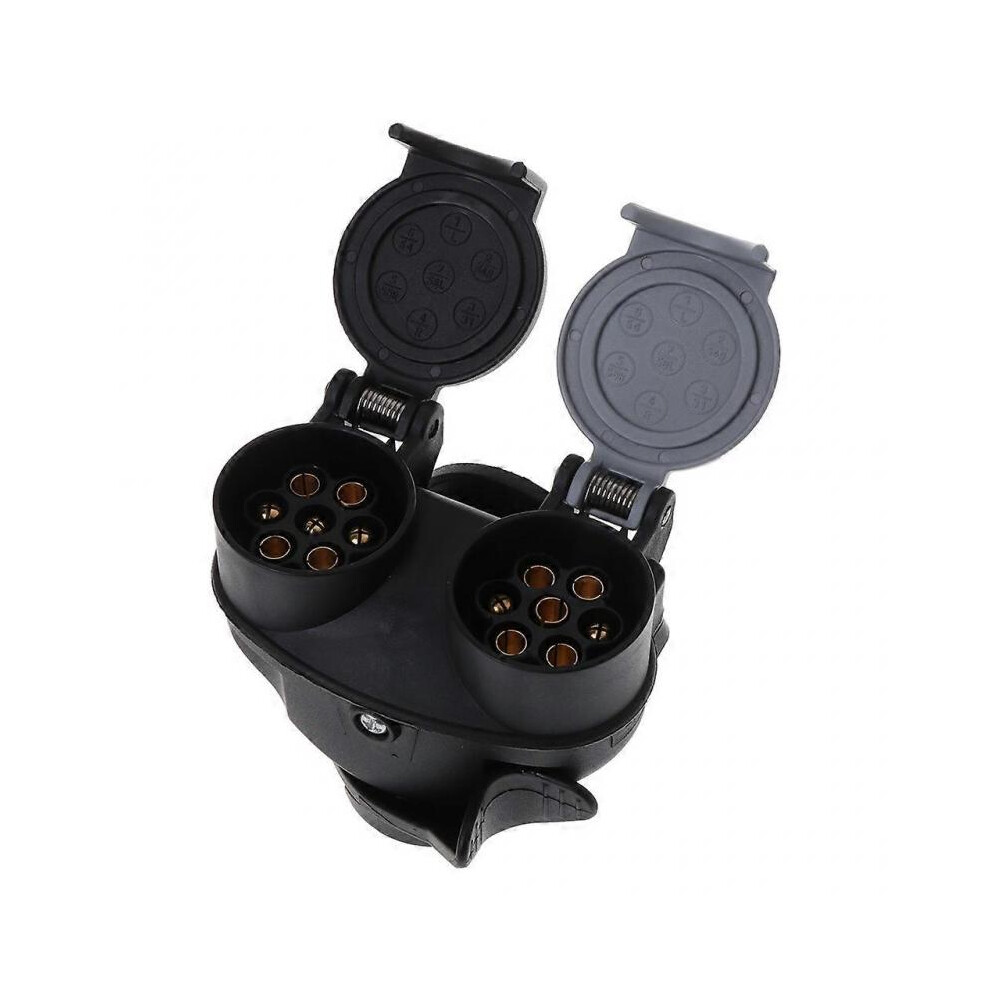

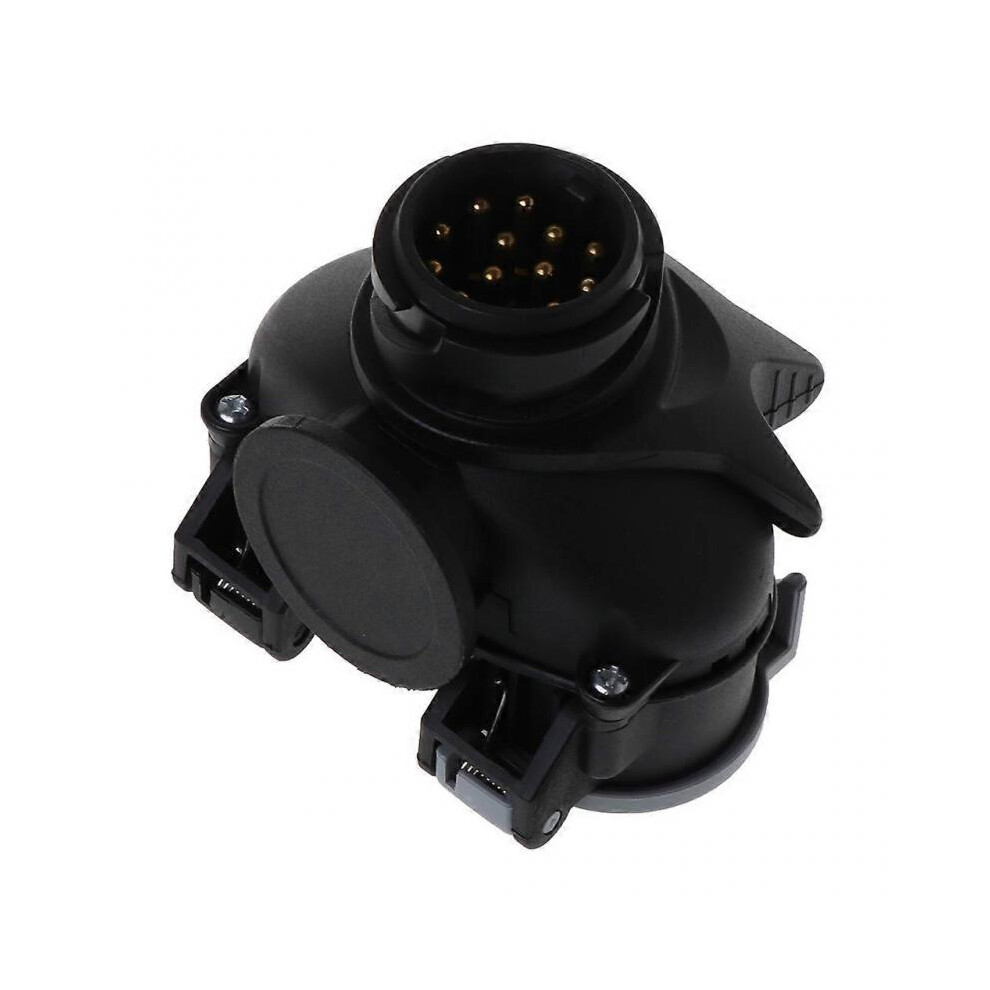

["brand new and high quality\r\n\r\nProduct Description\r\nMaterial: ABS+ Copper\r\nColor: Black (N Type) + Gray(S Type)\r\nVoltage: 12V\r\nCertification: CE, ROHS, PAHS\r\nFeatures: Connect the major vehicle and the additional trailer; Transfer the electronic signature from the vehicle to trailer.\r\n\r\nThis lead enables you to connect your 13 Pin European plug on your vehicle to 7 pin 12N & 12S Sockets on your caravan or towed item.\r\n\r\nThe adapter plugs into the Vehicle 13 pin Plug and the two sockets on the trailer/caravan can then plug into the adapter.\r\n\r\nWeather proof sprung locking flap, protects the connections when not in use and locks in the 7 pin socket, when in use.\r\n\r\nAdapter13Pin Plug to 7Pin socket N/S type, 12 volt car trailer.\r\n\r\nConverts 13 pin Euro Style Plug to 7 pin 12N 12S fitting as on most caravans / trailers\r\nWill operate all road legal lighting for your trailer / caravan\r\nSlim line design - same diameter as a normal trailer plug and just over half the length\r\nPlease do not mistake this item for the 7 to 13pin one, please check the socket male or female type before purchasing; we do sell the 7 to 13 pin converter.\r\nSpecs:\r\n\r\n•Wiring configuration:\r\n\r\n7 Pin Lighting Connections - 12 N Black Cable Function\r\n\r\nPIN 1 - Yellow Wire (Left/H Direction Indicator)\r\nPIN 2 - Blue Wire ( Rear Fog Lamps )\r\nPIN 3 - White Wire ( Earth Return )\r\nPIN 4 - Green Wire (Right/H Direction Indicator)\r\nPIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )\r\nPIN 6 - Red Wire (Brake lights)\r\nPIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )\r\nCaravan 7 pin supplementary circuits 12S for grey cable function\r\n\r\nPin 1 Yellow Reversing Lamps\r\nPin 2 Blue Battery Charging (original UK system)\r\nPin 3 White Earth Return (for pins 2&4)\r\nPin 4 Green Power Supply\r\nPin 5 Brown Spare\r\nPin 6 Red Fridge\r\nPin 7 Black Earth Return (for pin 6)\r\n13 Pin Lighting Connections - Cable Function\r\n\r\nPin1 - Yellow Wire ( Left Indicator )\r\nPin2 - Blue Wire ( Fog Light )\r\nPin3 - White Wire ( Earth Return )\r\nPin4 - Green Wire ( Right Indicator )\r\nPin5 - Brown Wire ( Right tail / Side Light )\r\nPin6 - Red Wire ( Brake / Stop Lights )\r\nPin7 - Black Wire ( Left tail / Side Light )\r\nPin8 - Pink Wire ( Reversing Light )\r\nPin9 - Orange Wire ( 12V Pemanent power from battery )\r\nPin10 - for Grey Wire ( 12V Ignition on ( Battery charging or Fridge )\r\nPin11 - White / Black Wire ( Earth for Teminal 10 )\r\nPin 12 - White / Blue Wire ( NOT usually used )\r\nPin 13 - White / Red Wire ( Earth for Teminal 9 )\r\n\r\nThis shows the standard wiring colours, but your car might not be standard. If it is not then you should note which pin number each wire goes to before removing the old socket and simply connect the new one the same.\r\n\r\nPackage includes（without retail package）:\r\n1 13 Pin Plug to 12N / 12S 7 pin Socket"]
