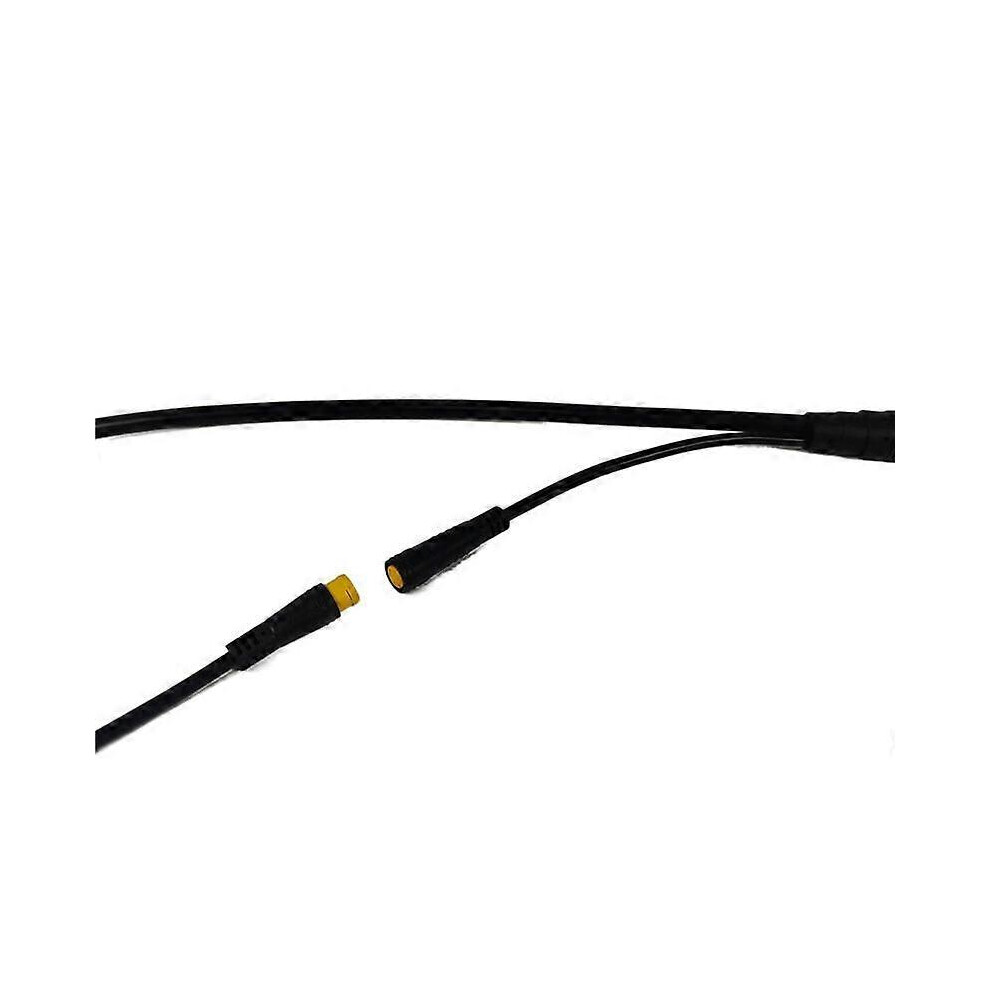

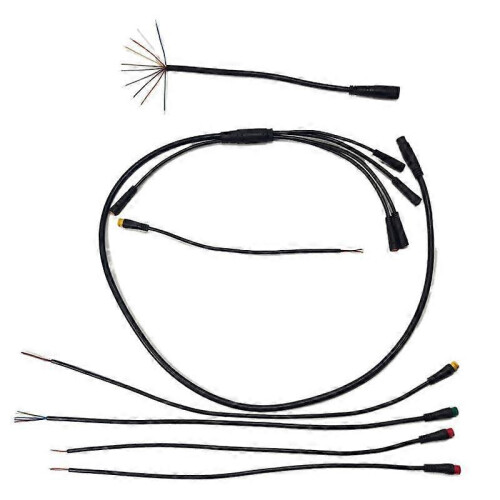

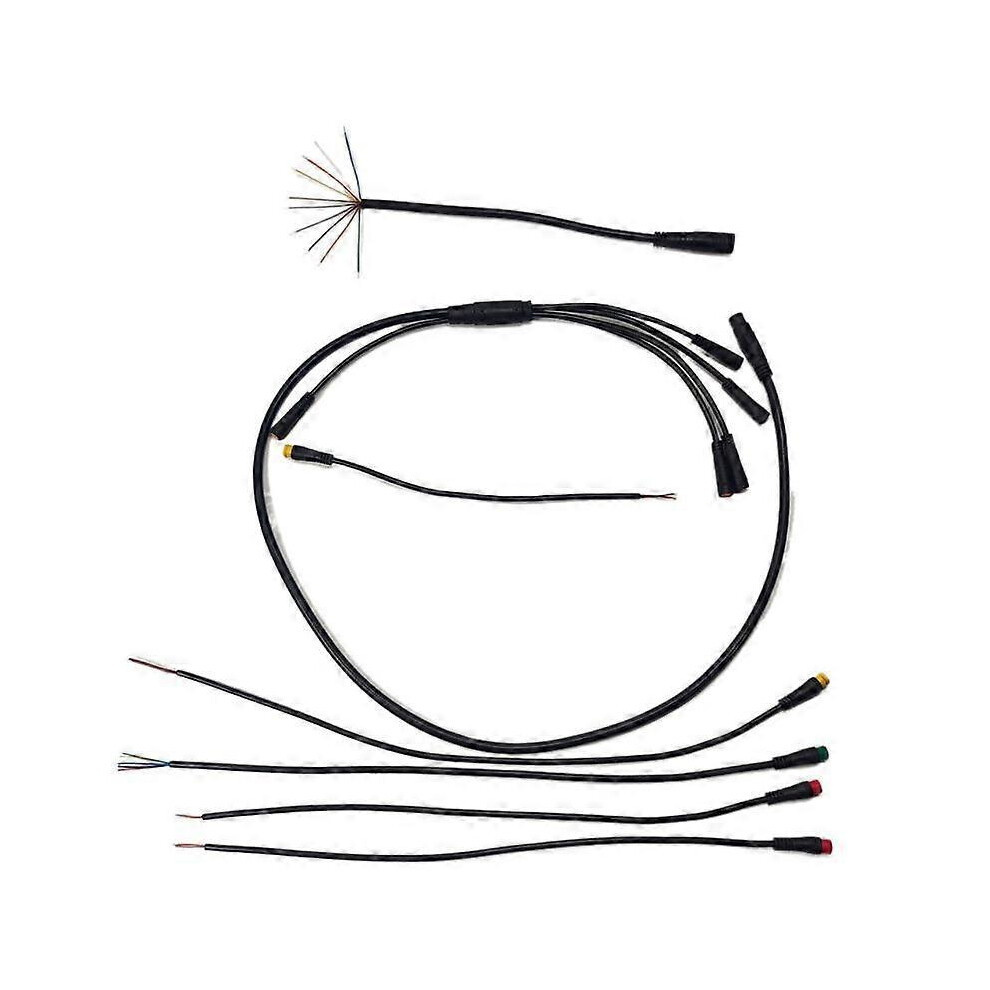

Ebike Electric Bicycle Common Controller Conversion Waterproof Wire Cable DIY 1T5 Throttle Brake Display Headlight

Ebike Electric Bicycle Common Controller Conversion Waterproof Wire Cable DIY 1T5 Throttle Brake Display Headlight Beschreibung

Use: It can be used for ordinary wire controller DIY modified waterproof wire version, suitable for customers with strong hands-on ability. Headlights, display, throttle, brakes Integrated cable plug:10pin Headlight plug:3pin Display plug:5pin Throttle plug:3pin Brake plug:2x2pin Net weight:160g Main line color function description: Red:B+ Black:GND Yellow:TX data Green:RX data Blue:Electric door lock White:Brake signal (LOW pressure LOW) Brown:Headlight output + Purple:5V power supply Gray:Throttle output Orange:The default value is invalid Valve line color function description: Red:5V+ Black:GND White:Signal output Display line color function description: Red:B+ Black:GND Yellow:TX Green:RX Blue:Electric door lock Display special description: Part of the display is using JULET standard line sequence, so there is a JULET line sequence reference in the graphic, please pay attention to adjustment when connecting! Brake line color description: Orange/Red:GND Gray:Brake signal Colour:Black Material:ABS Package Contents: 1 x Motor Connector Cable kit Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
