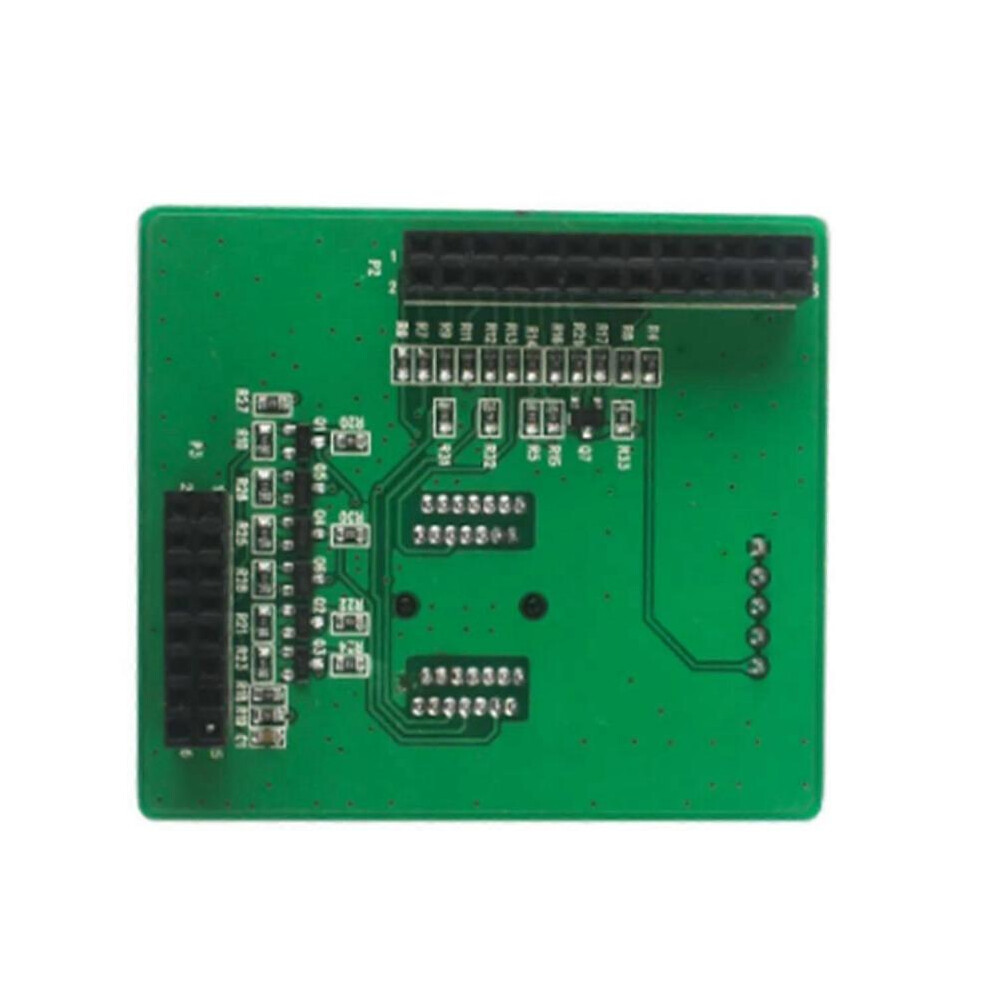

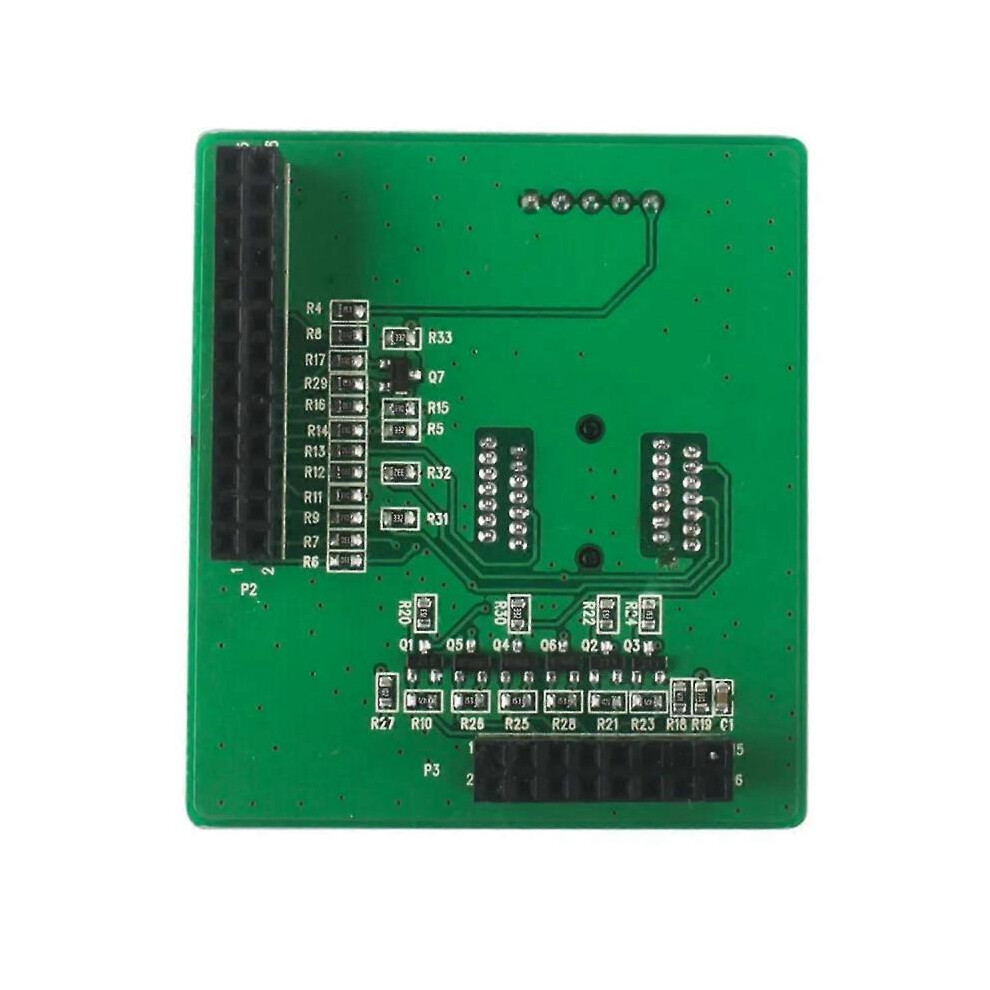

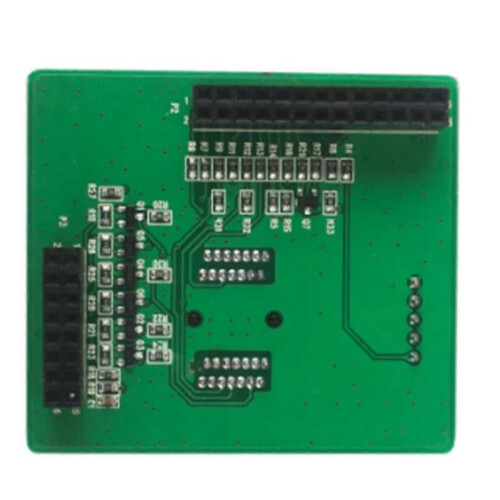

Pcf79xx Adapter for Vvdi Prog Programmer yuante

Pcf79xx Adapter for Vvdi Prog Programmer yuante Beschreibung

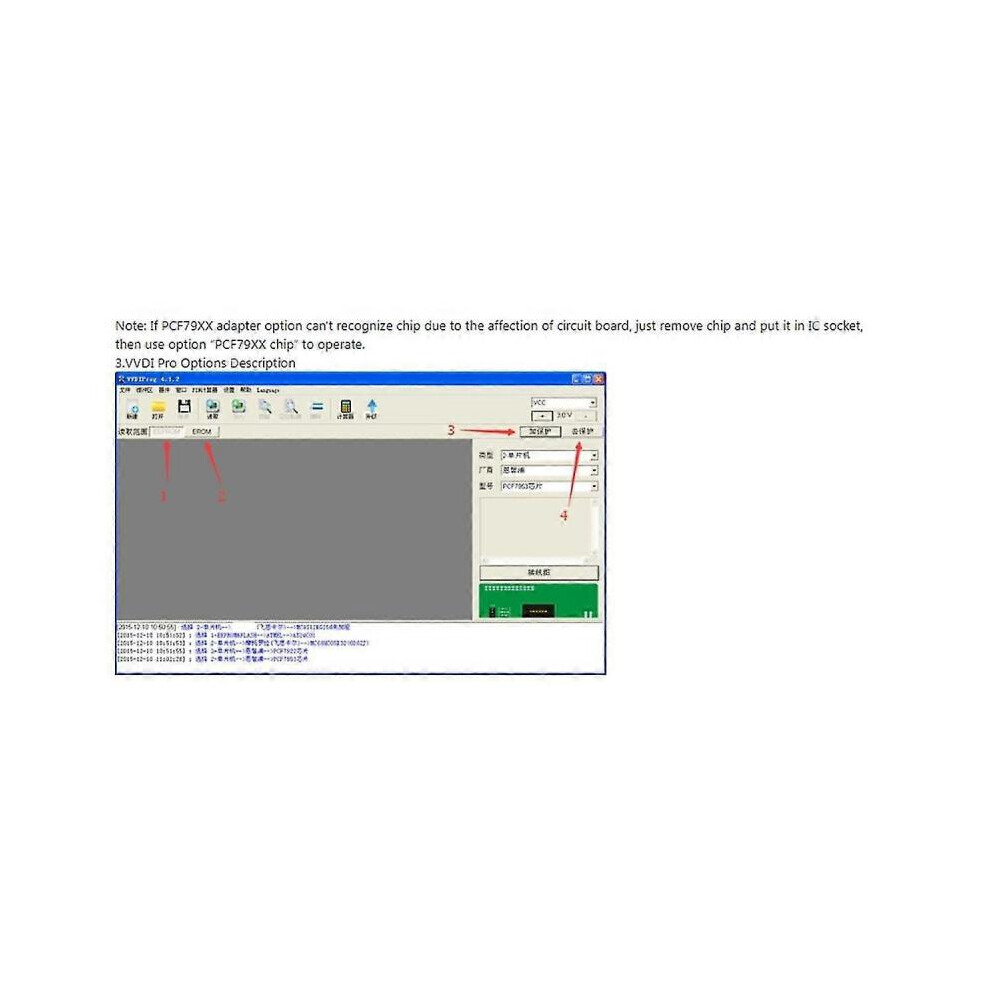

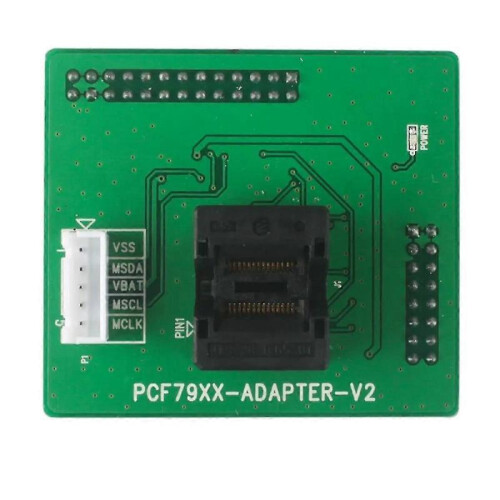

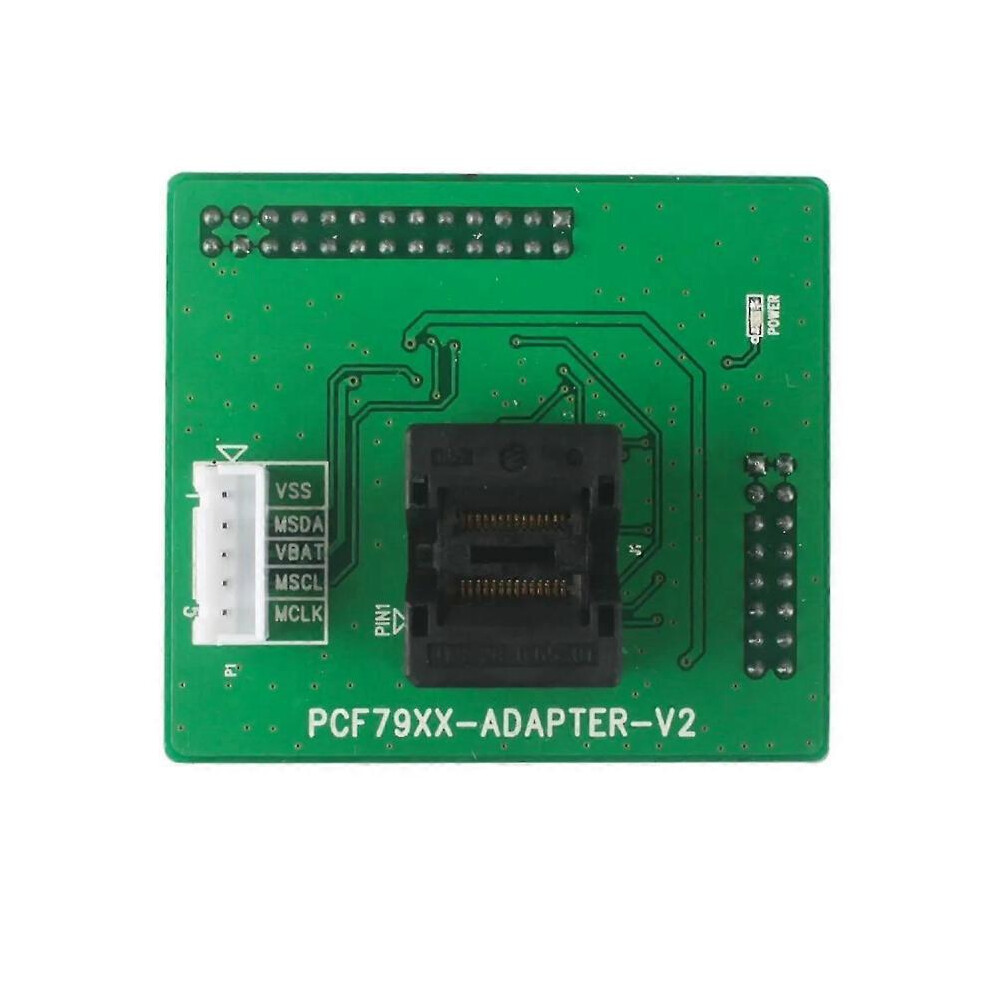

Supported Chip Models: PCF7922 PCF7941 PCF7945 PCF7952 PCF7953 PCF7961PCF79XX Chip Function: Currently PCF79XX chip support lock, unlock and read/write data.1. Two Optional Ways to Read Write PCF79XX Chip(1) Remove the chip and put it in the IC socket, select option "PCF79XX chip"(2) Connect wire to the circuit board, select option "PCF79XX adapter"Note: If PCF79XX adapter option can't recognize chip due to the affection of circuit board, just remove chip and put it in IC socket, then use option "PCF79XX chip" to operate.2. VVDI Pro Description(1) "EEPROM":data storage space, it can read & write in protected status.(2) "EROM":program memory space (equal to other chip's FLASH space), it can read & write in unprotected status.(3) "Protected":click "Protected" to lock chip and unable to read out chip data.(4) "Unprotected":click "Unprotected" to unlock chip and to read out chip data. After unlock, the old data in the chip will be cleared.Colour:GreenMaterial:PC+MetalPackage Contents:1 * PCF79XX AdapterOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
