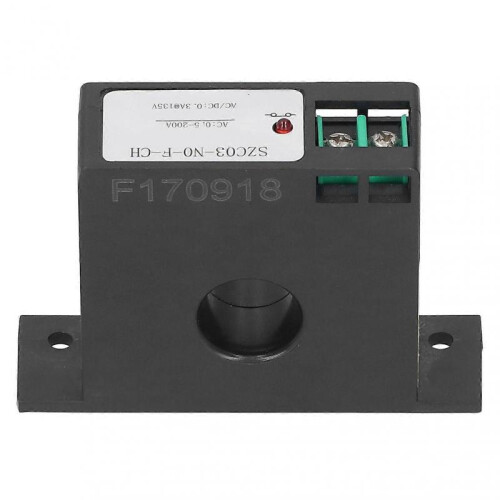

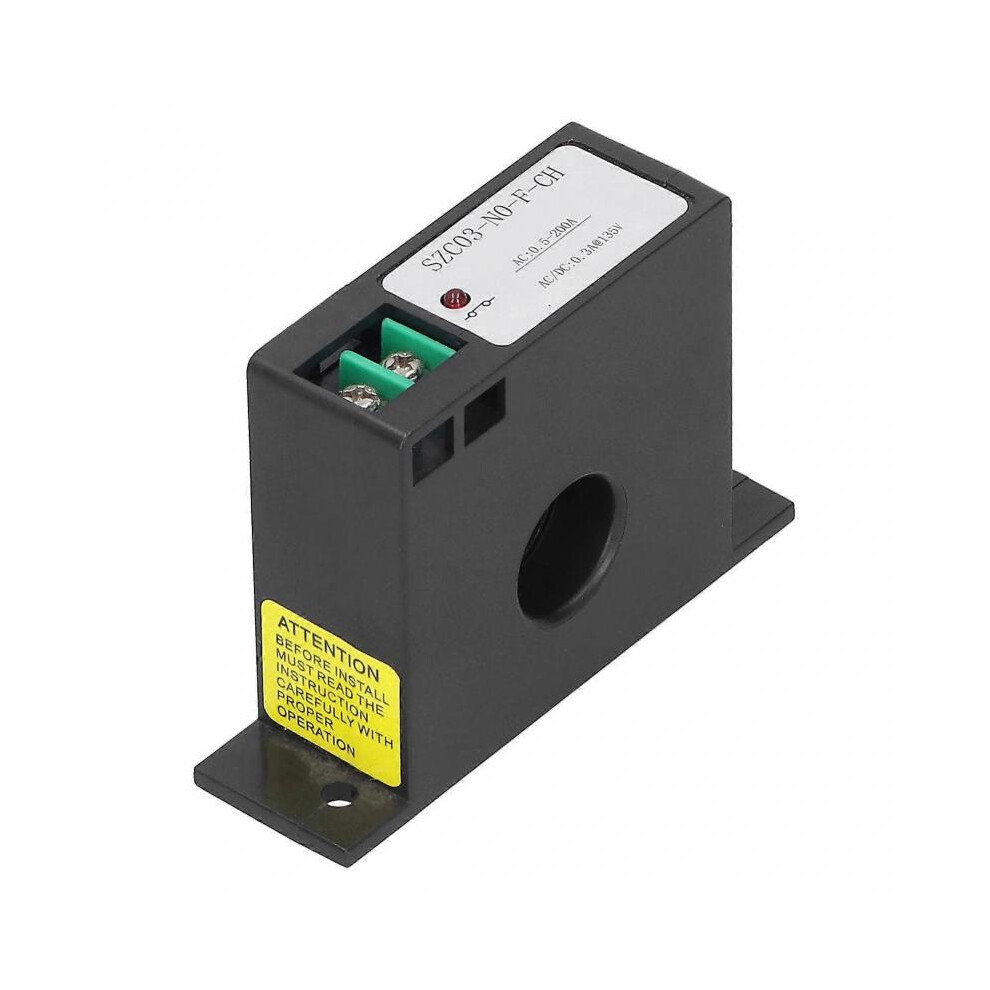

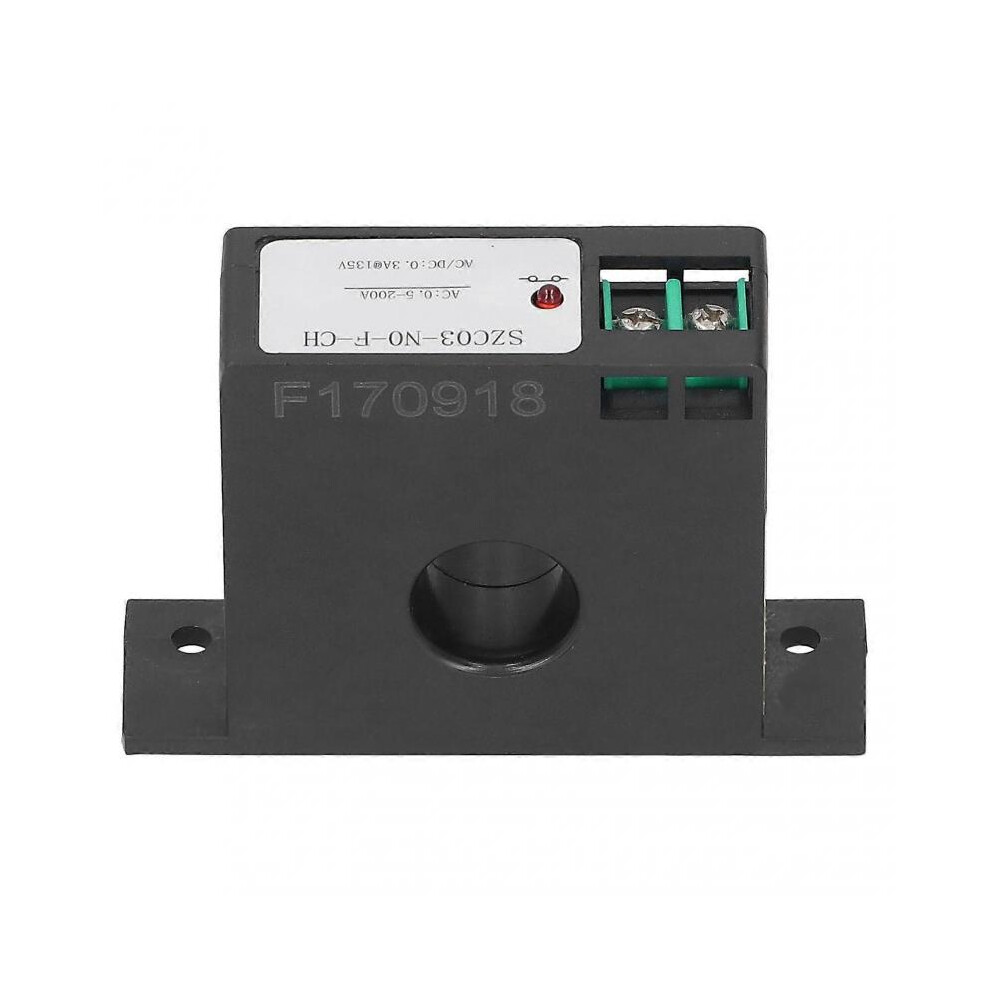

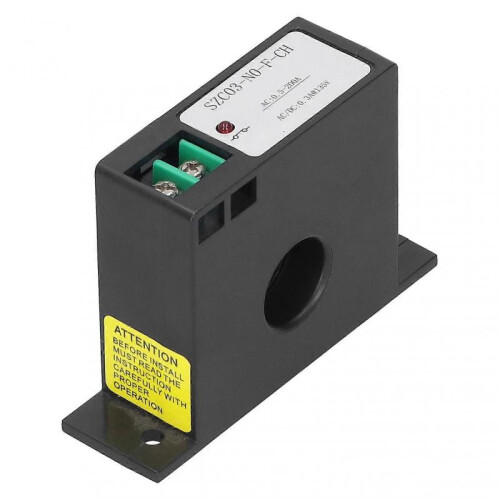

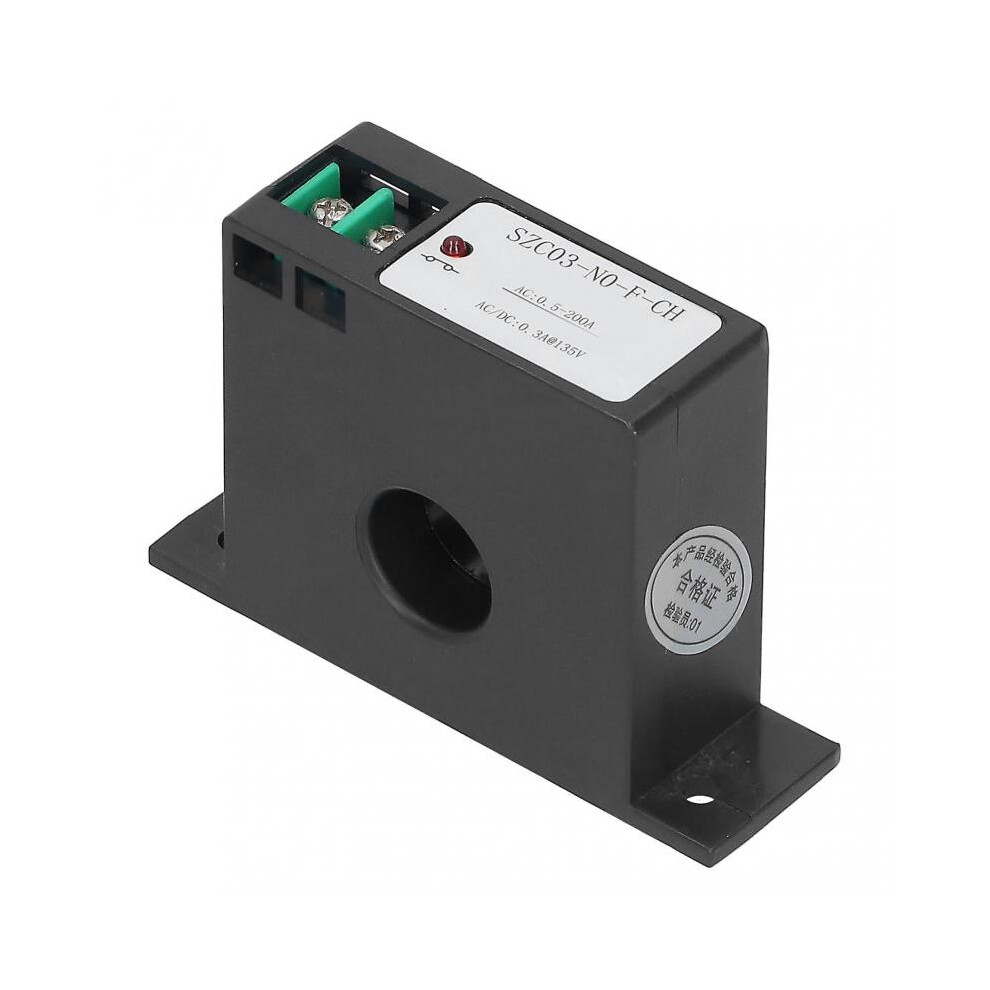

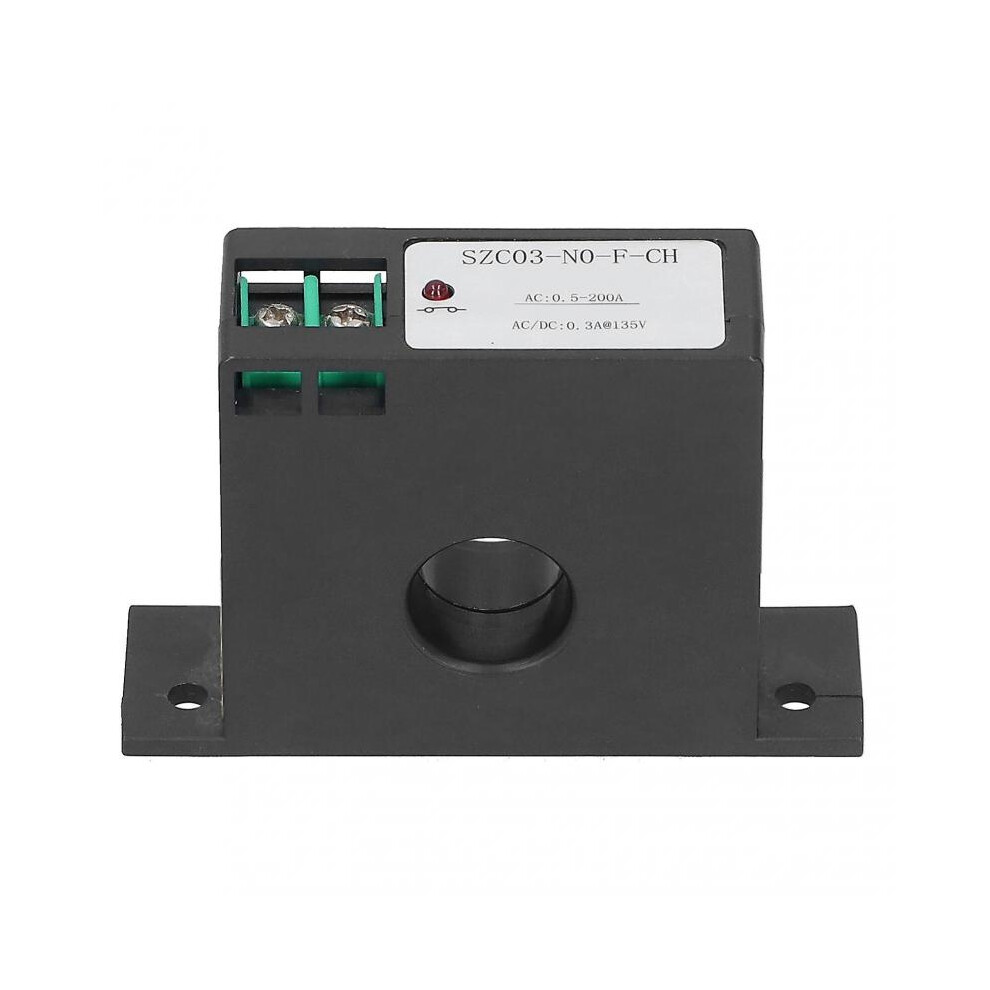

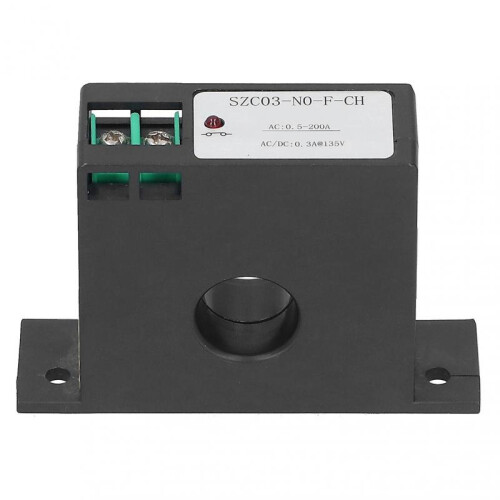

Rankomu Current Mutual Inductance Switch AC Current Sensing Switch 0.5-200A, Self-Powered Inductive Mutual Inductance Sensor

Rankomu Current Mutual Inductance Switch AC Current Sensing Switch 0.5-200A, Self-Powered Inductive Mutual Inductance Sensor Beschreibung

Features Self-Powered: Operates without the need for an external power supply, providing hassle-free installation and flexibility in usage. LED Status Indicator: Conveniently displays the operational status, enhancing visibility and ease of monitoring. Reliable Performance: Features a through-core structure design with an isolation withstand voltage of up to 2000V, ensuring robust and safe operation. Hysteresis Less Than 1%: Allows usage under strong magnetic field conditions, ensuring precise and dependable performance. Ideal for Industrial Control: Offers high accuracy, stable performance, and a long service life, making it perfect for automatic industrial control equipment and power monitoring. Specification: Item Type: Current Mutual Inductance Switch Material: Plastic Model: SZC03-NO-F-CH Switch Type: Normally On Current Jump Value: Not Adjustable Power Supply: Self-Powered Input Through-Core Current: 0.5-200A AC Rated Load: 0.3A at 135V AC/DC (Can not be exceeded in any case) Minimum Value of Switch Conduction: 0.50.2A The Maximum Overload of the Through-Core Current: 200%, the through-core current cannot exceed 200% of the rated value Accuracy: 10% Power Consumption: 1W Maximum Leakage Current: 1mA Hysteresis: 1% Response Time: 200ms Working Temperature: -30~70 Humidity: 0-95% (No Condensation) Square Bore Diameter: Approx. 20 x 20mm/0.8 x 0.8in Application: Widely used in substations, frequency conversion speed regulation devices, inverter devices, electrolytic plating, electric locomotives, street lamp monitoring, coal mines and other automation industries that require current monitoring. Product Introduction: SZC03 series AC current induction switch is designed and produced to solve AC current monitoring. It uses the principle of mutual inductance to isolate AC current by inducing AC through-core current, output a normally opeNOr normally closed switching signal, and directly control various automated industrial control equipment Compared with traditional transformer, thermal protector and other devices, using this device can not only obtain more accurate and timely control effects, but also greatly simplify design. Package List: Item Type: Current Mutual Inductance Switch Material: Plastic Model: SZC03-NO-F-CH Switch Type: Normally On Current Jump Value: Not Adjustable Power Supply: Self-Powered Input Through-Core Current: 0.5-200A AC Rated Load: 0.3A at 135V AC/DC (Can not be exceeded in any case) Minimum Value of Switch Conduction: 0.50.2A The Maxi Package List 1 x Current Mutual Inductance Switch
