1 Pcs for Altera Epm240 Cpld Learning Board Test Panel & 1 Pcs for Altera Ep2C5T144 Learning Development Board

1 Pcs for Altera Epm240 Cpld Learning Board Test Panel & 1 Pcs for Altera Ep2C5T144 Learning Development Board Popis

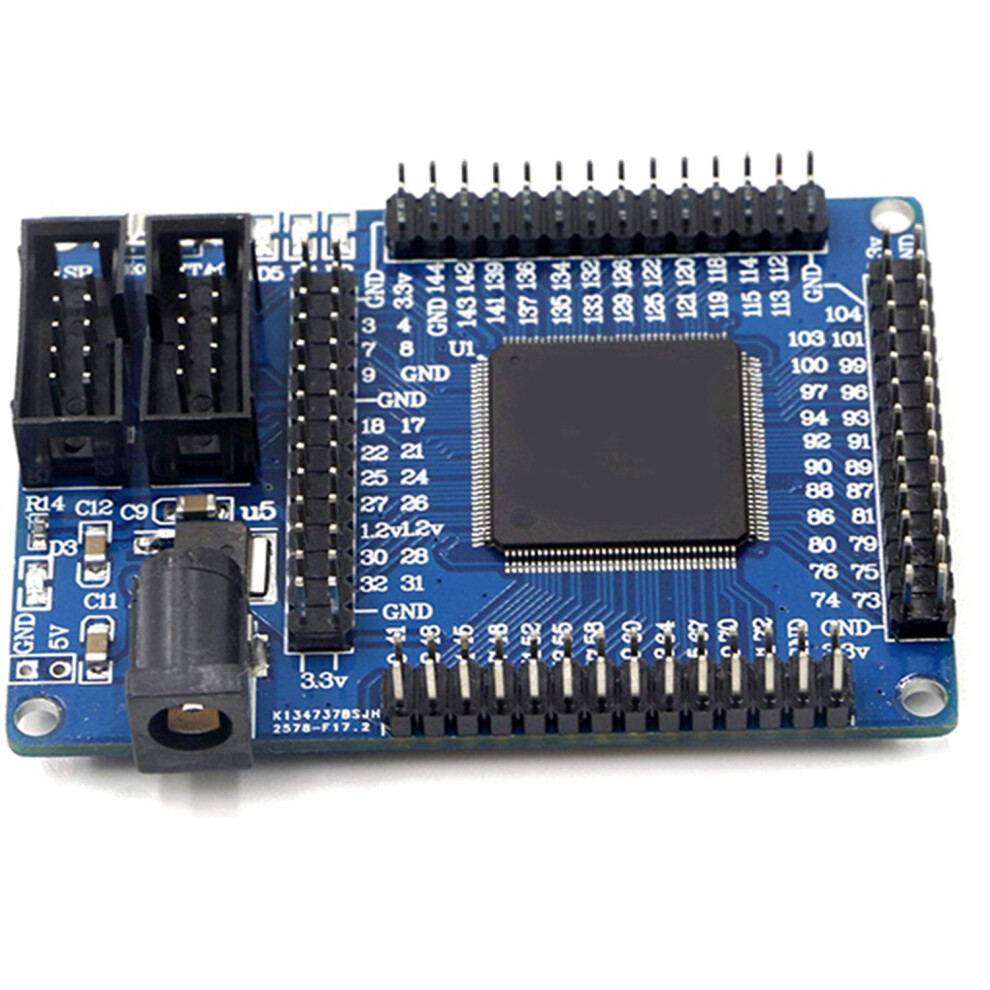

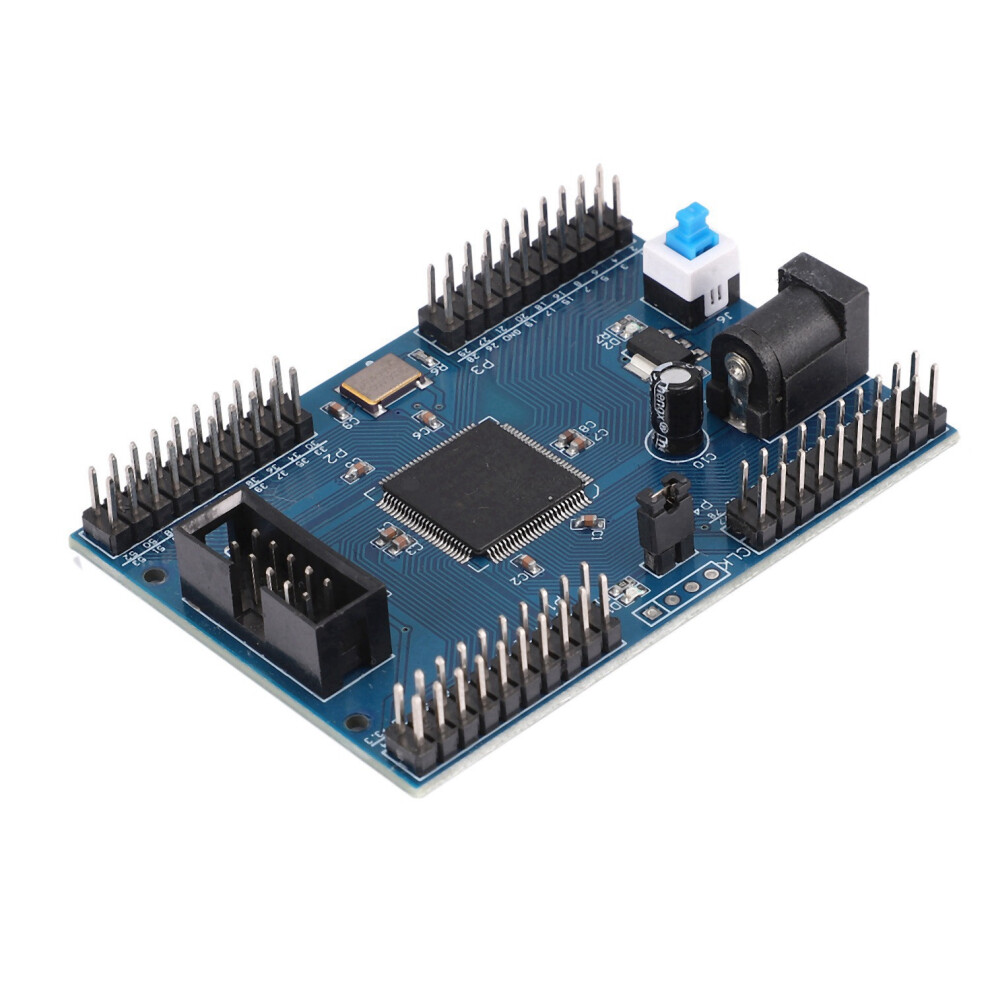

1 pcs EP2C5T144 Development Board & 1 pcs for Altera EPM240T100C5 (MAXII) CPLD Development Board

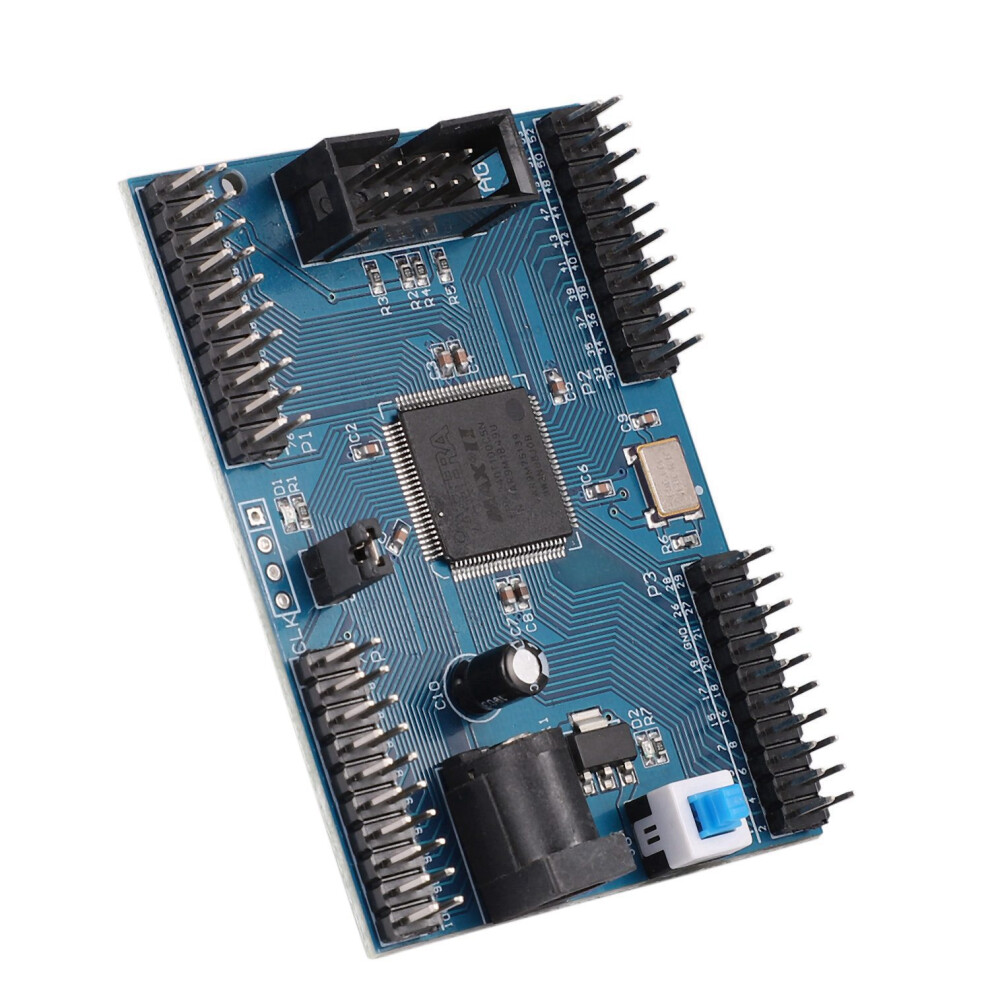

The product is ALTERA MAX II family CPLD chip EPM240T100C5N minimum system board, together with a Byte-Blaster and USB-Blaster Download for product validation and development.
JTAG and power supply interface board has been set aside, and leads to all the pins, simply connect the 5V power supply can work extremely convenient to use.
The CPLD chip for the entry of low-cost CPLD / FPGA is very appropriate, the user according to the IO port of the core plate leads to expansion of the external circuitry such as: LED lights, digital tube, LCD liquid crystal, serial communications, etc.
Facilitate the users to develop their own products to maximize the learning development cost savings for the user.The use of cycloneiiep2 Celsius 5t144 fragmented Altera's FPGA as the core minimum system, easily embedded in the actual system.
Complete simple logic control, data acquisition, signal processing, math calculations and other functions.
The core board FPGA chip pin is omnidirectional. The board can be directly attached to the board. The 5 V power board can be charged by pushing the socket or by pushing out the array.
chip board EPM240T100C5.
Board JTAG interface.
Active board 50MHZ crystal.
With a programmable LED.
With a 5V chip, 3.3V AMS1117-3.3 .
5 V power supply with .
All the leads all the IO.
Hardware Configuration:
Marine ep2 Celsius 5t144 chip.
The EPROM chip uses epcs4 with 4 mbit.
Marine 50 M active crystal (back).
Use a high power outlet that is powered by a 5 V power supply.
There is a power indicator and a reset .
With the car 3 SMD LED, you can do LED test experiments.
All IO connectors and clock pin PIN leads through which you can extend to any memory
